When Should You Specify a Grooved Reducer for Industrial Piping?
2026-09-16 10:28:30
Specifying a grooved reducer at the right stage of your piping project can prevent costly rework, reduce labor hours, and extend system life. A grooved reducer connects pipes of different diameters using mechanical groove technology, eliminating the need for welding or threading. In firefighting systems, HVAC networks, and industrial water supply lines, this fitting type delivers faster commissioning and reliable pressure performance. Understanding the precise conditions that call for this component helps procurement engineers, site supervisors, and distributors make decisions that protect both budget and operational continuity.
Specifications
| Name | Specification | Specification |
|---|---|---|
| Grooved Reducer | DN65×25S (76×33S) | DN250×25S (273×33S) |
| Grooved Reducer | DN65×32S (76×42S) | DN250×32S (273×42S) |
| Grooved Reducer | DN65×40S (76×48S) | DN250×40S (273×48S) |
| Grooved Reducer | DN65×50S (76×60S) | DN250×60S (273×60S) |
| Grooved Reducer | DN80×25S (89×33S) | DN250×65S (273×76S) |
| Grooved Reducer | DN80×32S (89×42S) | DN250×80S (273×89S) |
| Grooved Reducer | DN80×40S (89×48S) | DN80×65G (89×76G) |
| Grooved Reducer | DN80×50S (89×60S) | DN100×50G (114×60G) |
| Grooved Reducer | DN80×65S (89×76S) | DN100×65G (114×76G) |
| Grooved Reducer | DN100×25S (114×33S) | DN100×80G (114×89G) |
| Grooved Reducer | DN100×32S (114×42S) | DN100×100G (114×108G) |
| Grooved Reducer | DN100×40S (114×48S) | DN125×65G (140×76G) |
| Grooved Reducer | DN100×50S (114×60S) | DN125×80G (140×89G) |
| Grooved Reducer | DN100×65S (114×76S) | DN125×100G (140×114G) |
| Grooved Reducer | DN100×80S (114×89S) | DN150×65G (165×76G) |
| Grooved Reducer | DN125×25S (140×33S) | DN150×80G (165×89G) |
| Grooved Reducer | DN125×32S (140×42S) | DN150×100G (165×114G) |
| Grooved Reducer | DN125×40S (140×48S) | DN150×125G (165×140G) |
| Grooved Reducer | DN125×50S (140×60S) | DN150×150GG (165×159G) |
| Grooved Reducer | DN125×65S (140×76S) | DN200×65G (219×76G) |
| Grooved Reducer | DN125×80S (140×89S) | DN200×80G (219×89G) |
| Grooved Reducer | DN150×25S (165×33S) | DN200×100G (219×108G) |
| Grooved Reducer | DN150×32S (165×42S) | DN200×100G (219×114G) |
| Grooved Reducer | DN150×40S (165×48S) | DN200×125G (219×140G) |
| Grooved Reducer | DN150×50S (165×60S) | DN200×150GG (219×159G) |
| Grooved Reducer | DN150×65S (165×76S) | DN200×150G (219×165G) |
| Grooved Reducer | DN150×80S (165×89S) | DN250×65G (273×76G) |
| Grooved Reducer | DN150×100S (165×114S) | DN250×80G (273×89G) |
| Grooved Reducer | DN200×25S (219×33S) | DN250×100G (273×114G) |
| Grooved Reducer | DN200×32S (219×42S) | DN250×125G (273×140G) |
| Grooved Reducer | DN200×40S (219×48S) | DN250×150G (273×165G) |
| Grooved Reducer | DN200×50S (219×60S) | DN250×200G (273×219G) |
| Grooved Reducer | DN200×65S (219×76S) | DN300×80G (325×89G) |
What Is a Grooved Reducer and How Does It Work?
Concentric vs. Eccentric Configurations

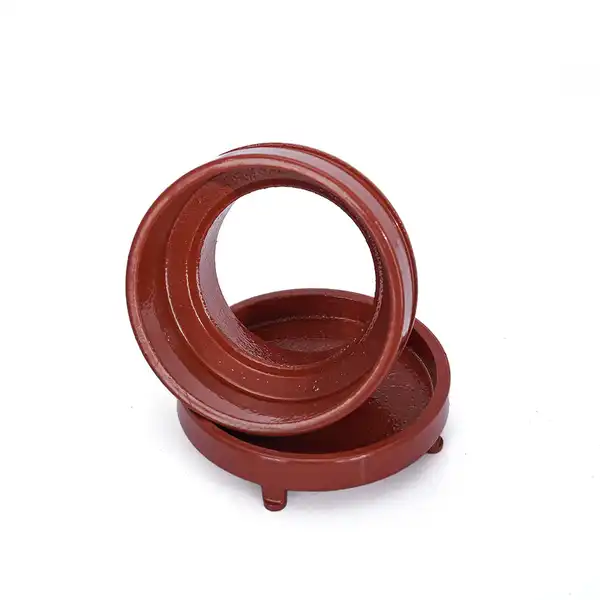

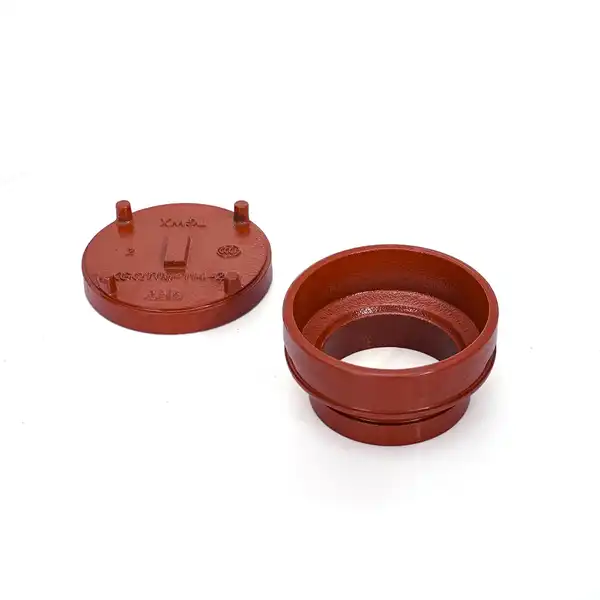

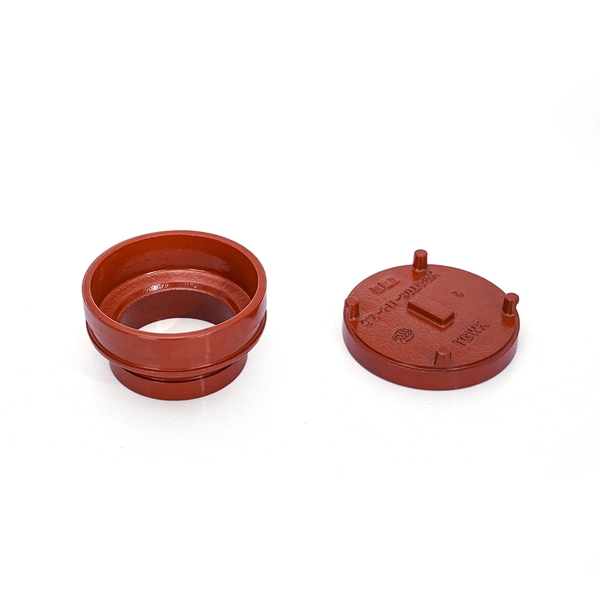

Through pre-cut or roll-formed grooves at each end, a Grooved Reducer is a mechanical pipe fitting that allows flow to move between two pipe sizes. A coupling housing and an elastomeric gasket that responds to pressure lock onto those grooves to make a seal that doesn't leak without the need for fusion welding.
There are two main versions. The two pipe sizes share a centerline with a Concentric Reducer, which means it can be used for vertical installations. An Eccentric Reducer moves the bottom flat out of the way. This keeps straight liquid lines from getting air pockets, which is very important in water treatment and HVAC chilled-water systems.
These fittings are made from ductile iron that meets ASTM A536 Grade 65-45-12 standards. They have a minimum tensile strength of 65,000 psi, which means that under rated pressure conditions, they are physically equivalent to welded joints.
When to Specify a Grooved Reducer: Key Use Cases?
It's not automatic to pick this type of fitting. This choice is based on the system pressure, the fluid medium, the pipe plan, and the limitations of the spot. In the following situations, it is strongly recommended to use a mechanical Grooved Reducer:
- Firefighting and sprinkler systems: NFPA 13 says that ductile iron Grooved Reducers that are listed by UL or FM must be used. Mechanical Grooved Reducer connections get rid of the need to work near flammable buildings with open flames, meeting both the requirements for a hot work permit and AHJ compliance.
- HVAC chilled-water and heating circuits: In commercial buildings with more than one floor, it is common for pipe diameters to change between supply headers and branch lines. Industry studies show that Grooved Reducer systems cut installation time by about 50% compared to welding. This speeds up completion plans for projects that need to be finished on time.
- Industrial water supply and process piping: Grooved Reducer width transitions are used to balance pressure distribution without making lasting changes to the structure of the building. This is how facilities handle the changing flow demand across production zones.
- Retrofit and expansion projects: Grooved Reducer fittings make it possible to change the width of pipes without cutting into live systems or having to do hot work in areas where people are already present.
All of these situations have one thing in common: they are places where installation speed, upkeep ease, and safety compliance are just as important as pressure performance.
Steel, stainless steel, and ductile iron pipe are all compatible with Grooved Reducers on common schedules. Based on their nominal size and coupling type, they are usually rated between 300 PSI and 750 PSI. When defining, always check both the ASTM and ANSI/AWWA C606 groove measurement standards to make sure that couplings from different brands will work together.
Grooved Reducer vs. Other Connection Methods
Welded vs. Grooved: Speed and Flexibility
Welded reducers have strong, permanent joints, but they need skilled workers, hot work permits, and an inspection after the weld is done. This causes real project risk in places that are prone to fire or have people living in them. With Grooved Reducer connections, those problems are gone for good.
Flanged reducers make it possible to take parts apart, but they require more axial length and bolt force, which makes fitting in tight spaces harder, while a Grooved Reducer offers a more compact solution. Threaded reducers work well for smaller pipe sizes but can't be used for diameters bigger than DN50 because they are hard to seal and can't handle much pressure.
The Grooved Reducer mechanical joint is very good at reducing vibrations. The elastomeric seal absorbs vibrations caused by the pump and can expand and contract with temperature changes. Welded links do these things directly into the pipe structure. This makes Grooved Reducers very useful in places like pump rooms, mechanical equipment rooms on rooftops, and seismically active areas where pipes are likely to move.
When it comes to materials, ductile iron coated with epoxy glue is resistant enough to rust for most water-based systems. Stainless steel Grooved Reducer valves are the better choice for strong chemical media, but they cost more per unit. Following NFPA color-coding rules, most buying engineers in the U.S. market ask for ductile iron with a red or orange epoxy finish for fire protection uses.
Installation and Maintenance Guide
Step-by-Step Installation Overview
Installing something correctly has a direct effect on how well it works and how long it lasts. Before putting the pipe ends together, make sure the groove sizes match the manufacturer's specification sheet. Field leaks are usually caused by grooves that aren't lined up right or aren't the right size.
Use the manufacturer's recommended substance to grease the gasket, then place it in the middle of the pipe end and press the coupling housing onto both grooved ends at the same time. Tighten the bolts one at a time until they reach the recommended torque value, which is usually given in ft-lbs on the coupler data sheet. Do not fully tighten one bolt before the other.
As part of routine maintenance for a Grooved Reducer, the gasket condition, the integrity of the coupling housing, and the coating surface are checked visually every three months. If you see any signs of coating wear, slight surface rust, or gasket expansion, you should replace it right away. By keeping a small stock of replacement gaskets on hand, you can avoid long periods of downtime during inspections.
When looking for a seller, make sure they are ISO9001 certified and can give you material test records (MTRs), so you can track the Products" target="_blank" style="color:blue" >products. In the United States, fire protection applications must have a UL/FM listing. This should be on the product label and shipping paperwork.
Procurement Insights: How to Source Quality Grooved Reducers?
Finding a trusted Grooved Reducer supplier means looking at a number of factors that are all linked. Certification credentials are non-negotiable for U.S. projects: ISO9001, CE, and UL/FM listings indicate that manufacturing processes meet audited international standards rather than self-declared claims.
In fast-track building plans, the amount of the supplier's inventory is very important. If a seller has more than 2,000 tons of stock, they can ship standard sizes from DN65 to DN300 within days. This keeps projects from being held up by local single-source vendors when demand goes up.
Customization sets real manufacturing partners apart from transactional suppliers. For projects that need non-standard mixtures of pipe diameters, special-shaped transitions, or specific coating requirements, you need a provider that can work from CAD models and has a clear review and approval process.
For almost 40 years, FLA Industrial & Trading Co., Ltd. has helped foreign buying teams. Its ductile iron Grooved Reducers are certified by ISO9001, CE, and UL/FM, and its engineering team responds within 24 to 48 hours to quote requests, weight estimates, and 3D design reviews. This is a big help when project deadlines are tight.
Conclusion
If you choose the correct pipe diameter transition fitting early on in the design process, you can avoid costly changes and delays in the field. Grooved Reducers make installation faster, upkeep easier, and safety more important. This is especially true in firefighting systems, HVAC networks, and industrial water supply uses. The construction of ductile iron with an epoxy resin coating makes it resistant to corrosion for a long time in most water-based service environments. When you add in those material properties and verified UL/FM certification, it's easy to make the specification choice. Carefully think about the pressure needs, fluid media, and site limitations of your project, and then find a provider whose licenses and inventory depth can meet your deadline without any problems.
FAQ
Are grooved reducers compatible with different pipe materials?
When the grooved ends are properly prepared, Grooved Reducers made to ANSI/AWWA C606 groove specifications are compatible with carbon steel, stainless steel, ductile iron, and HDPE-lined pipe. Before you buy something, you should always check the manufacturer's data sheet to make sure that the pipe materials mentioned for the coupling case are compatible.
Can grooved reducers match the pressure performance of welded fittings?
Working pressure ranges from 300 PSI to 750 PSI for ductile iron Grooved Reducer fittings that are rated to ASTM A536 Grade 65-45-12. This range depends on the standard diameter and coupler class. This range meets or exceeds the system design pressures for most business HVAC and fire defense uses. For high-demand process uses, look at the manufacturer's pressure-temperature chart.
What maintenance steps extend the service life of grooved fittings?
Check the condition of the gasket, the torque of the coupling housing bolts, and the integrity of the coating every three months. Gaskets that show tension set or surface breaking should be replaced. Keep a small stock of gaskets on hand that are the right size for the job. For systems with epoxy resin-coated parts, fix any damage to the coating right away with a touch-up product that works with the system to stop rust in one area.
Partner With FLA Industrial & Trading Co., Ltd. for Certified Grooved Reducer Solutions
When you're working on your next piping job, you need a reliable Grooved Reducer provider with a track record of success. FLA Industrial & Trading Co., Ltd. sells ductile iron Grooved Reducers with certifications from ISO9001, CE, and UL/FM. They have sizes ranging from DN65 to DN300 in stock and can deliver them within 24 to 48 hours. Get in touch with our team right away for bulk pricing, custom specifications, and technical help. Check out flaindustry.com or email us at sales@flaindustrial.com.
References
1. American Society for Testing and Materials. ASTM A536: Standard Specification for Ductile Iron Castings. ASTM International, 2014.
2. American Water Works Association. ANSI/AWWA C606: Grooved and Shouldered Joints. AWWA, 2015.
3. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.
4. Nayyar, Mohinder L. Piping Handbook, 7th Edition. McGraw-Hill, 2000.
5. Smith, Peter & Zappe, R.W. Valve Selection Handbook, 5th Edition. Gulf Professional Publishing, 2004.
6. Construction Industry Institute. Modularization and Prefabrication in Industrial Construction: Best Practices Report. CII, 2012.
