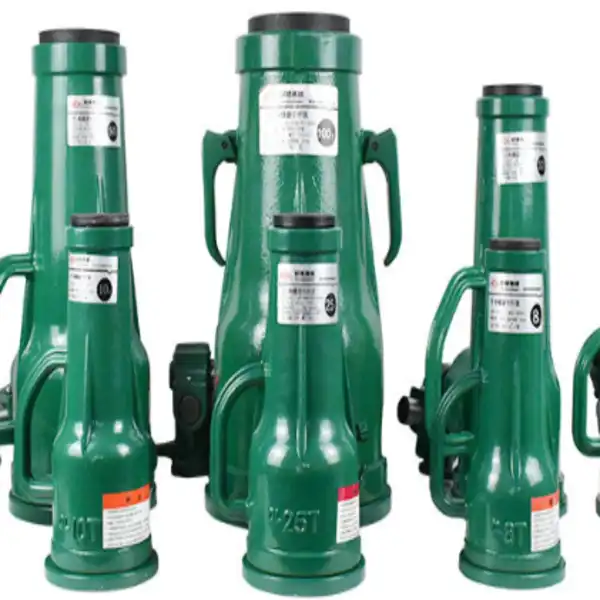

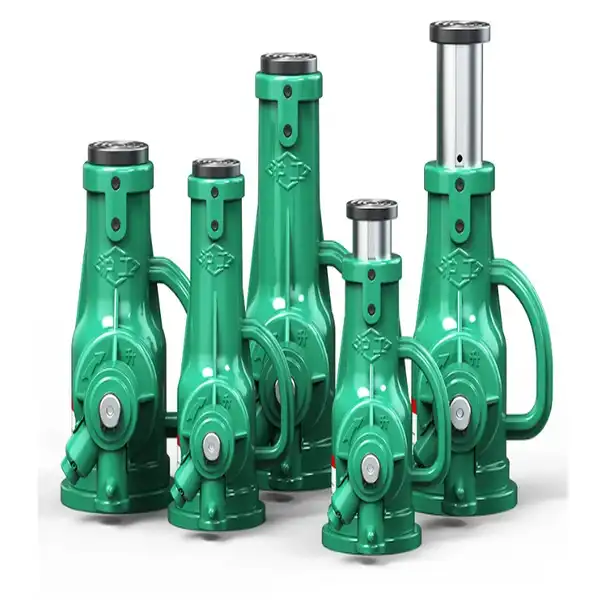

Industrial Screw Jack for Height Adjustment in Heavy Equipment

When heavy equipment demands precise, reliable height adjustment, an industrial screw jack stands out as one of the most mechanically sound solutions available. Unlike hydraulic systems that can drift under sustained pressure, a screw jack uses a threaded lead screw mechanism to convert rotational motion into controlled linear displacement — holding loads rigidly in place without continuous power input. Whether you are managing construction site leveling, synchronized machinery positioning, or long-term load support, this device delivers sub-millimeter accuracy and structural integrity that procurement engineers and site supervisors consistently rely on.

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding How Screw Jacks Work in Heavy Equipment Height Adjustment

The Core Mechanical Principle

A mechanical Industrial Screw Jack works by turning a lead screw, which is usually either trapezoidal or Acme-threaded, through a worm gear system. This rotation directly leads to travel in a straight line up and down. The shape of the thread gives it a natural mechanical advantage, which lets a small amount of power produce a huge amount of rotational force. Industrial-grade units can handle dynamic loads of 2.5 kN to 3,500 kN, which is more than enough for everything from supporting heavy structures to carefully positioning equipment.

Types: Manual, Electric, and Pneumatic

There are three main drive configurations, and each one is best for a different set of operational needs. For low-frequency adjustments, manual models use hand cranking, which is cheap and easy to maintain. Electric versions connect a motor to the worm gear, which lets you control it from a distance and position it repeatedly with the same amount of torque. Pneumatic types work well in places where electricity could be dangerous. The type of drive should match the duty cycle needs. For example, worm gear machine Industrial Screw Jacks can handle 20–30% duty cycle, while ball screw configurations can run continuously.

Material Selection and Its Impact

Materials directly affect how much weight they can hold, how long they will last, and how well they resist corrosion. For shock reduction, housings are made from ductile iron (GGG40) or gray cast iron (GG25). Lead screws are made of hardened alloy steel, usually 42CrMo, that is tempered or quenched to make the surface hard. Nuts are made from high-tin bronze (ZCuSn10Pb1) or engineering plastics, which are chosen based on how well they resist wear and how well they lubricate. Stainless steel versions work well in places that are acidic or dirty, while carbon steel versions can hold more weight and are cheaper in dry industrial settings.

Key Benefits and Safety Features You Should Know

Facility engineers and procurement managers often want to know why Industrial Screw Jack work better than other options when there is a sustained load. The answer lies in a mix of mechanical strength and built-in safety features that passive hydraulic and gas systems just can't match.

Here are the core advantages that make this device a preferred choice across heavy industries:

• Self-Locking Stability: Trapezoidal screw types lock automatically under load without any power input. This stops back-driving that wasn't meant to happen during long-term support operations.
• Precision Positioning: The thread pitch precisely controls the travel increments, which lets you change the height within the ISO 2768 tolerances. This is important for aligning machinery and lifting multiple points at the same time.
• Overload Protection Compliance: Good units have mechanical stop nuts that limit movement in case something goes wrong. You can also get external limit switches that turn off the motor power before it hits something.
• Corrosion-Resistant Surface Treatment: Housings that are spray-painted or epoxy-coated, dust covers that can be added, and special lubrication surfaces keep interior parts safe in dusty or wet field conditions.

These benefits directly help construction contractors, woodworking plant engineers, and HVAC installation teams who need to be sure of holding loads without having to keep an eye on them all the time.

It's also easy to do routine upkeep. By lubricating the worm gear and lead screw on a regular basis and using dial indicators to check the axial backlash every three months, service intervals can be greatly increased. Monitoring the rise in gearbox temperature during run tests and keeping delta T within the manufacturer's limits proves that the oil is working and stops the gearbox from wearing out too quickly.

How to Choose the Right Screw Jack for Your Project?

To choose the right Industrial Screw Jack, you need to match four technical factors: the rated load capacity, the needed travel stroke, the working environment, and the drive setup. To get a rough idea of the torque, use the formula T = (F × p) / (2π × η), where F is the axial load, p is the lead screw pitch, and η is the drive efficiency. This calculation tells you how big an electric motor you need.

Consider the following when evaluating options:

• Load Capacity: Always add at least 1.5 times your peak operational load as a safety factor. Before shipping, housings from good manufacturers are put through static overload tests at this multiplier.
• Translating vs. Rotating Screw: For loads that are not being led, use a translating screw (the screw extends upward). Pick a screw that rotates (nut moves) when there isn't much room for vertical movement.
• Multi-Jack Synchronization: A single motor can mechanically drive two, four, six, or more units through connecting shafts, couplings, and miter gearboxes. This is a great way to level large production platforms or bridge deck panels.
• Certifications: Before you commit to a provider, make sure they have ISO 9001, CE marking, and meet DIN/AGMA/EN dimensional standards. This is especially important for building and utility projects in the U.S.

Real-World Applications Across Heavy Industries

The versatility of mechanical lifting devices becomes clear when examining actual deployment scenarios across sectors.

In steel mill roller gap adjustment, Industrial Screw Jack units with high-temperature seals and bellows boots keep the threads safe in rough, hot places. Solar tracking systems for concentrating solar arrays use high-stiffness screw motors with epoxy-coated housings to withstand wind loads and weathering outside for 20 years or more. Theatrical stage platforms use multi-jack assemblies that are mechanically linked and have anti-drop safety nuts. This design meets strict safety rules for workers and makes the operation almost silent.

Construction contractors use synchronized lifting systems to level prefabricated structural modules, achieving millimeter-level accuracy that cannot be reached by hand shimming. Furniture manufacturing plants use small trapezoidal Industrial Screw Jacks to change the height of production jigs, where repeatable positioning directly affects the quality of the Products" target="_blank" style="color:blue" >products and the consistency of throughput.

Screw Jacks vs. Hydraulic and Pneumatic Lifting Alternatives

Hydraulic cylinders can move quickly and produce a lot of force, but they also have a risk of fluid leaks, pressure drift under long-term load, and the need for regular seal replacement. In clean areas, pneumatic systems are faster, but they don't have the mechanical strength needed for precise placement.

A machine Industrial Screw Jack is mechanically self-contained. It stays in place forever without using any power, doesn't need to be managed by fluids, and has positioning accuracy that hydraulic systems need active compensation to match. Ball screw versions get very close to the speed gap, allowing linear travel up to 300 mm/s, but they lose the passive self-locking feature and need a brake motor to hold their position.

For procurement engineers balancing total cost of ownership, screw-based actuators usually offer lower long-term upkeep costs, easier installation, and more reliable positional accuracy than fluid-power options for height adjustment jobs.

Conclusion

When it comes to adjusting the height of heavy equipment, a well-specified Industrial Screw Jack offers mechanical precision, load-holding reliability, and a long service life that few other technologies can match. Choosing the right materials, setting up the drive, rating the load, and protecting the environment all have a big effect on how well the machine works. It doesn't matter if your application needs synced multi-point leveling or single-axis positioning under steady load; what matters is that the specs fit the practical needs.

FAQ

What load capacities are typical for heavy equipment applications?

Industrial-grade Industrial Screw Jacks come in a wide range of strengths, from 2.5 kN for moving light machinery to 3,500 kN for building structures and mills. The weight of most heavy equipment projects is between 50 and 500 kN. When you specify units, you should always add a safety factor of 1.5 to your calculated peak load.

How often should maintenance be performed?

When to lubricate depends on the job cycle and the setting in which the machine is used. In normal business situations, the oil of worm gears and lead screws should be checked every 500 hours of use or every three months, whichever comes first. With every lubrication service, the axial backlash should be measured, and the housing should be inspected.

Are customized stroke lengths and mounting configurations available?

Yes, reputable makers can work with stroke lengths, flange shapes, clevis ends, and surface treatments that aren't normal. By sending in your load data, stroke requirements, and environmental conditions, suppliers can create a solution that is perfect for your needs.

Is every screw jack model self-locking?

No, trapezoidal screw models automatically lock themselves because of the way the threads rub against each other. Ball screw models don't lock themselves; they need a brake motor to stay in place when they're loaded.

Partner With FLA Industrial & Trading Co., Ltd. for Your Next Screw Jack Project

FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing experience to every Industrial Screw Jack supplier relationship. Our lifting devices are certified to ISO 9001, CE, and DIN/AGMA/EN standards, with 2,000 tons of inventory ready for rapid dispatch and custom solutions delivered within 7–15 days. Reach our engineering team at sales@flaindustrial.com or visit flaindustry.com to request specifications, 3D drawings, or bulk pricing within 48 hours.

References

1. Machinery's Handbook, Industrial Press, 2020.

2. Power Transmission Engineering — "Worm Gear Screw Jack Selection Criteria," 2019.

3. AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors, American Gear Manufacturers Association, 1992 (reaffirmed 2018).

4. DIN 509: Technical Product Documentation — Relief Grooves, Deutsches Institut für Normung, 2006.

5. ISO 2768-1: General Tolerances — Tolerances for Linear and Angular Dimensions, International Organization for Standardization, 1989.

6. Construction Equipment Magazine — "Mechanical vs. Hydraulic Lifting Systems in Heavy Civil Projects," 2021.
