Why Are Coupling Grooved Connections Used in Modern Fire Protection Pipelines?

Fire protection systems demand reliability, speed, and adaptability—qualities that traditional piping methods struggle to deliver under modern construction timelines and safety regulations. Coupling grooved connections have emerged as the industry standard for joining fire protection pipelines because they eliminate hot work hazards, reduce installation time by up to 70%, and provide inherent flexibility that accommodates thermal expansion and seismic movement. Unlike welded or flanged systems, these mechanical joints utilize a roll-formed or cut groove on the pipe end, secured by a ductile iron housing and pressure-responsive gasket that creates a leak-tight seal through compression rather than fusion.

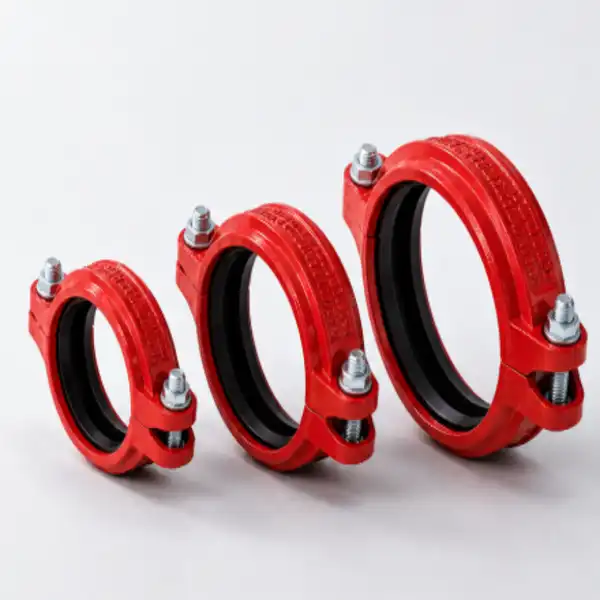

Specifications

Specification	Size (inch)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

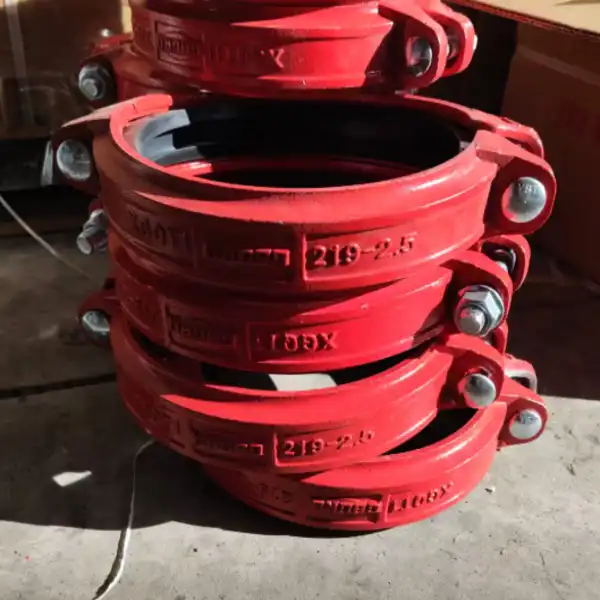

Understanding Coupling Grooved Connections in Fire Protection Pipelines

Modern fire safety infrastructure needs ways to join things that are fast, don't damage the building, and follow strict rules. Grooved mechanical couplings meet these needs with a design principle that is both complex and simple.

How Grooved Coupling Systems Function

For grooved pipe joints to work, they need a mechanical barrier instead of standard threading or welding. When the housing segments are put in place, they fit into the groove that is machined or rolled into the end of each pipe. The main seal is made by a rubber gasket placed between the pipe ends. Pressure inside the pipe improves the sealing performance, which is known as pressure-responsive sealing. This design can work with both stiff and flexible joints, based on the needs of the system.

Compliance with Fire Protection Standards

Multiple sets of rules must be followed when using fire safety apps. Grooved coupling systems made to ANSI/AWWA C606 standards make sure that all installations have the same dimensions. The UL and FM approval labels show that these parts have been through a lot of tests to make sure they work well in fire safety situations. These tests include changing the temperature and pressure, as well as simulating an earthquake. Our grooved couplings at FLA Industrial & Trading Co., Ltd. are made in accordance with ISO 9001 quality management standards and have CE safety compliance marks. This shows that we follow international rules that protect both workers and people who live or work in buildings.

Key Components and Their Roles

Procurement professionals can make better decisions when they understand how these connections work. The system is made up of three main parts: the grooved pipe ends (which can be roll-grooved for standard wall thickness or cut-grooved for heavier schedules); the housing segments (which are usually made of ASTM A536 Grade 65-45-12 ductile iron with a minimum tensile strength of 65,000 psi); and the gasket (which is made of EPDM Grade E for water service applications and is rated from -30°F to +230°F). Track-head bolts hold the housing segments together, which creates the compressive force needed for a good seal. This modular method lets field changes happen and makes inventory management easier for distributors who serve a variety of market groups.

Advantages of Grooved Couplings Over Traditional Methods

The time frames for building projects get shorter every year, and safety rules get stricter. There are some problems with traditional ways of joining that grooved systems always get around.

Installation Speed and Labor Cost Reduction

To weld fire protection piping, you need certified welders, hot work permits, fire watch staff, and post-weld inspections. These things all add time to projects and cost more in labor. Studies that compare different types of building projects show that installing grooved couplings is three to five times faster than welding and twice as fast as flanging. In the same working conditions, a four-person crew can usually put in 40 to 60 grooved joints per shift, but only 10 to 15 welded joints. This efficiency directly leads to fewer hours of work and faster project finish, both of which are very important for building contractors who have to manage multiple projects at once and meet strict targets.

Elimination of Fire Hazards During Installation

Hot work is still one of the main reasons for fires on construction sites, especially in occupied buildings that are being fixed up or made bigger, and using a Coupling Grooved eliminates this risk. When you use grooved mechanical connections instead of welding or torch work, you get rid of all the sources of ignition in places where flammable materials are present. Because operations can still happen while the system is being installed or changed, this benefit is especially useful in healthcare facilities, schools, and factories. Site supervisors like cold-work joining methods because they make the permit process easier and lower the risk of insurance claims.

System Flexibility and Vibration Dampening

When rigid piping systems are exposed to changes in temperature, pump vibration, or earthquakes, stress builds up at the connection points. Flexible notched joints let you decide how much they expand or contract linearly, angularly, or rotationally, all while keeping the seal intact. The elastomeric gasket absorbs vibration energy that would have gone through welded or threaded connections. This lowers the noise level in mechanical rooms and makes equipment last longer. Because this built-in support for pipe movement is there, there is no need for separate expansion loops or joints. This makes system design easier and cuts down on the number of parts needed.

Maintenance Accessibility and System Modifications

Fire safety systems need to be checked, tested, and sometimes changed to fit changes in the building. With grooved connections, maintenance teams can take joints apart, rotate pipe sections to spread out wear, or replace parts without having to cut and re-weld them. Visual inspection, which checks for proper fitting by letting the housing pieces touch each other, means that special inspection tools are not needed. When changes need to be made to the system, grooved connections make it possible to do so in hours instead of days. This means that building owners can keep their businesses running smoothly while minimizing system downtime.

Types and Materials of Grooved Couplings Suitable for Fire Protection

By choosing the right coupling configurations and materials, you can get the best performance in a wide range of fire protection situations and environments.

Rigid Versus Flexible Coupling Designs

Rigid grooved couplings have a tongue-and-groove housing design that holds the pipes in place like welded joints. This makes them good for straight runs where there is no need for movement accommodation. These connections give the structure the most support and work well in vertical risers and other places where pipes are used to support the structure. Depending on the size of the pipe, flexible connections have housings that can bend up to 4 degrees and move linearly up to 5 inches. When purchasing things, engineers make sure that flexible joints are used where pieces of equipment are connected, where different levels of settlement may happen, and in seismic zones where building movement must not affect the stability of the system.

Material Selection for Durability and Corrosion Resistance

When made to ASTM A536 standards, ductile iron housings offer great strength-to-weight ratios and are a good value for most fire safety uses. Carbon steel options are stronger for high-pressure uses, but they need to be properly protected against rust. Surface treatment choices have a big effect on how long something will last in tough environments. Painted finishes work well for most indoor installations. Epoxy coating is better at resisting rust in wet places, and hot-dip galvanization is the best way to protect outdoor installations or those that are in harsh industrial settings. At FLA Industrial & Trading Co., Ltd., we offer all three finish choices to meet the needs of each project and the level of exposure to the environment.

Pressure Ratings and Size Ranges

Standard grooved connection systems like a Coupling Grooved can handle working pressures between 300 PSI and 1,000 PSI. This covers most fire protection system needs, even in high-rise buildings with a lot of standing head pressure. It comes in sizes ranging from 1 inch to 48 inches, but for fire safety purposes, the most usual sizes are 2 inches to 8 inches. The people in charge of buying things have to make sure that the joints they choose meet or go beyond the design pressure of the system. This includes taking into account water hammer and pressure surge limits that are set by hydraulic calculations.

Gasket Material Compatibility

EPDM (ethylene propylene diene monomer) gaskets are the standard for fire protection water service because they are very resistant to ozone, temperature changes, and wear and tear. When the temperature range is between -30°F and +230°F, the Grade E label means that the water is safe for drinking and fighting fires. Different types of gasket materials are available to meet specific needs. For example, Grade T nitrile gaskets are good for oil service applications, and Grade G gaskets can handle higher temperatures up to 250°F. Material verification is an important part of buying things because it makes sure that the gasket material and system fluid don't break down too quickly, which could damage the seal.

Installation and Maintenance Best Practices for Grooved Couplings

Following the right steps for installation and regular upkeep will make the system more reliable and extend its useful life while also stopping common failure modes.

Correct Groove Preparation Techniques

Roll grooving is the best way to work with schedule 10 and schedule 40 pipe because it forms the groove cold without taking away any material, so the thickness and strength of the pipe wall are kept the same. In this process, a uniform groove profile is made, which makes sure that the gasket seats properly and the housing engages properly every time. Cut-to-length cutting is needed for wall pipes that are larger than schedule 80 or when the inside linings must not be disturbed. Dimensional verification makes sure that the groove's width, depth, and distance from the pipe end all meet the requirements set by ANSI/AWWA C606. If you go outside of these limits, the housing won't connect properly, and the seal won't work as well.

Gasket Installation and Lubrication Protocols

Placing the gasket has a direct effect on the integrity of the seal. The seal needs to be in the middle of the pipe ends and have the same amount of space on both sides of the joint. A lot of fitting problems are caused by gaskets that aren't lined up right or not being oiled enough during assembly. Lubricants made from petroleum attack EPDM gaskets chemically, making them swell and fail early. Installers must use non-petroleum oils that are recommended by the maker and work with the gasket material. At FLA Industrial & Trading Co., Ltd., we make sure that field crews understand these important needs by sending full installation instructions with every shipment.

Housing Assembly and Torque Application

Before the bolt can be tightened, all of the housing segments must fit into the grooves. When installing most standard grooved couplings, you can tell they're installed correctly by seeing that the metal bolt pads hit all the way around the joint. This is called pad-to-pad contact between housing segments. In most situations, this visible sign takes the place of torque wrenches. To make sure there is even compression, certain high-pressure models need specific torque values to be applied in a cross-pattern sequence. When you over-tighten, you damage the seals and housing threads. When you under-tighten, system pressure can cause leaks.

Routine Inspection and Maintenance Schedules

Testing fire protection systems on a regular basis gives people a chance to look at them together. A visual inspection checks for rust in the case, gasket extrusion, and the state of the bolts. Because grooved joints are replaceable, the gasket can be checked without having to take the whole thing apart and damage it. When to change a gasket depends on how the system is being used, but in well-kept systems, they usually last between 15 and 25 years. Recording joint sites during installation is something that facilities managers should do to make planning future maintenance easier and to make sure that all inspections are done before the building is turned over to a new owner.

Procuring Grooved Couplings: What B2B Buyers Need to Know?

To deliver value throughout the entire system lifecycle, good procurement for a Coupling Grooved strikes a balance between product quality, supplier capability, and project logistics.

Evaluating Supplier Credentials and Manufacturing Capability

Established makers show quality by keeping their certifications up to date and keeping records of their past performance. ISO 9001 certification means that quality is managed in a planned way throughout the whole manufacturing process, from checking the raw materials to doing the final inspection. For Products" target="_blank" style="color:blue" >products to be listed by UL or FM, the factory has to go through regular inspections and tests that make sure the products meet fire safety standards. To make sure something is real, buyers should ask for proof of certification and check the ad status directly with certifying bodies. A manufacturing capability review looks at things like production capacity, inventory depth, and the ability to customize. These are all things that affect how reliable delivery is for big projects.

Understanding Total Cost of Ownership

The price of the system is only one part of its total cost. Usually, 60% to 70% of the cost of installation goes to the labor. This makes fast installation a very important economic factor. When compared to welded or flanged systems, grooved systems require a lot less work in the field. Accessibility for maintenance affects lifecycle costs by making inspection, testing, and modification easier. Long-term dependability and replacement times are affected by corrosion defense. When B2B buyers look at all of these factors, they often find that slightly higher component costs save them a lot of money over the course of the project and the system's service life.

Bulk Ordering and Inventory Management

For big fire safety projects, hundreds or even thousands of couplings need to be supplied on time and in the right order to match the building timeline. Suppliers with a lot of stock can ship common designs right away, so the building doesn't have to be held up because of a lack of materials. FLA Industrial & Trading Co., Ltd. keeps more than 2,000 tons of stock of all of our products to make sure they are available for both urgent needs and planned orders. Custom setups usually take 7 to 15 working days to make. If you need non-standard sizes or special finishes that make production take longer, you need to plan your purchases early.

Technical Support and Engineering Resources

During the specification development and value engineering phases, supplier engineering help is useful for fire protection systems that are very complicated. Suppliers with skilled technical teams offer services that lower project risks, such as reviewing system designs, helping with material choices, and helping with installation. Within 24 to 48 hours, we give you quotes, weight confirmations, and 3D designs, so you can make quick decisions during the fast-paced project development. Our engineering team works with builders and other engineers to create unique solutions for difficult installation situations or unique size needs that can't be met by standard catalog goods.

Certification Verification and Traceability

For fire safety systems to work, they need proof that the parts that were installed meet all the rules and codes that apply. Each coupling is linked to production records, material certificates, and test reports that prove compliance through full material traceability. Buyers should ask for and keep this paperwork so that they can show it to the right authorities and make changes to the system in the future. Having certification marks stamped on housings makes it easier to show that they meet building codes throughout the lifespan of the building.

Conclusion

Installing fire protection pipes has become faster, safer, and more reliable with grooved mechanical links like a Coupling Grooved that can't be beat by older methods. These systems get rid of the dangers of welding, cut down on labor costs by a huge amount, and offer flexibility that makes systems last longer and is easier to maintain. Different types of environments can be used with different types of materials, such as ductile iron and carbon steel, and different finishes. Different pressure ratings can be used for different types of buildings, from low-rise to high-rise. With proper construction and regular upkeep, a security system will protect people and property for decades to come. For procurement workers in charge of fire safety infrastructure projects, choosing experienced sources with a wide range of products, technical know-how, and well-documented quality systems gives them peace of mind that the systems they install will work when they're needed the most.

FAQ

What distinguishes rigid grooved couplings from flexible versions in fire protection systems?

Rigid grooved couplings use tongue-and-groove housing designs to keep pipes in place. They work the same way as welded joints for straight runs and vertical risers where there is no need for movement accommodation. Flexible couplings are necessary at equipment links, in seismic zones, and anywhere differential settling or temperature expansion happens because they can bend up to 4 degrees and move up to 0.5 inches in a straight line. When structural support is very important, system designers choose rigid couplings. When movement is allowed, they choose flexible couplings so that stress doesn't build up.

How do I verify that grooved couplings meet fire protection code requirements?

Check that the products have UL and FM approval marks stamped right on the housing. These marks show that the fire prevention service has been through strict testing by a third party. Ask suppliers for proof of certification and check the status of your listing in the UL Product iQ database or the FM Approvals online directory. Make sure that the groove sizes meet the requirements of ANSI/AWWA C606. Shipments should come with full material traceability paperwork that needs to be given to the officials in charge during the permit approval and final review processes.

Can grooved coupling systems accommodate seismic requirements?

Flexible grooved connections meet the needs of seismic design by letting the pipe move in a controlled way without affecting the integrity of the seal. The design of the gasket and housing lets them bend and move in a straight line, which is not possible with rigid connections. In places that are prone to earthquakes, many places need flexible parts and equipment links at certain times. System designers should look at local building rules and seismic design guidelines to figure out where to put the couplings and how much movement they can handle based on how the ground is expected to move and how the building will react.

Secure Reliable Fire Protection With FLA Industrial & Trading Co., Ltd.

People who live in buildings rely on fire prevention systems that work perfectly in an emergency, and the components you choose make that possible, including a Coupling Grooved. We at FLA Industrial & Trading Co., Ltd. have been making grooved couplings for almost 40 years and use malleable iron and carbon steel in our products. We also have strict quality control that meets ISO 9001, CE, and UL/FM standards. As a Coupling Grooved maker, we can quickly customize your order and send you quotes and technical help within 24 to 48 hours. Our team can help you with technical questions and make sure your projects stay on track by ensuring the stability of our supply chain and shipping products right away from our 2,000-ton inventory or in special configurations for specific uses. Get in touch with our experts at sales@flaindustrial.com to talk about your fire protection pipeline needs and find out how our tried-and-true products and quick service can meet your needs.

References

1. American Water Works Association. (2020). ANSI/AWWA C606 Standard for Grooved and Shouldered Joints. Denver: American Water Works Association.

2. National Fire Protection Association. (2019). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: National Fire Protection Association.

3. Underwriters Laboratories. (2018). UL 213: Standard for Safety Rubber Gasketed Fittings for Fire Protection Service. Northbrook: Underwriters Laboratories Inc.

4. American Society for Testing and Materials. (2017). ASTM A536: Standard Specification for Ductile Iron Castings. West Conshohocken: ASTM International.

5. Factory Mutual Research Corporation. (2021). FM Approval Standard 1680: Couplings Used in Fire Protection Systems. Johnston: FM Approvals LLC.

6. Mehta, M. and Scarborough, W. (2016). Building Construction: Principles, Materials, and Systems. Upper Saddle River: Pearson Education Limited.
