Fire Protection Flanged Valve Ensures Reliable Control in Commercial Fire Systems
2026-09-01 17:18:35
When commercial buildings face fire emergencies, every component in your fire suppression system must perform flawlessly. The Fire Protection Flanged Valve serves as a critical control point in these life-safety systems, designed specifically to manage water flow during the moments that matter most. Built from durable materials like ductile iron and carbon steel, these valves feature robust flanged connections that withstand extreme pressures while providing reliable shutoff and flow control. With certifications from UL and FM, they meet the stringent safety standards required for commercial fire protection applications across office towers, manufacturing facilities, and public infrastructure.
Specifications
| Model (DN) | Valve Body Type and Rod Weight (kg) | Valve Body Length |
|---|---|---|
| DN40 | National Standard Medium Body Steel Rod, 5.5 kg | Approx. 14.3 cm |
| DN40 | National Standard Large Body Steel Rod, 7.5 kg | Approx. 16 cm |
| DN50 | National Standard Body Steel Rod, 6.5 kg | Approx. 17.3 cm |
| DN50 | National Standard Medium Body Steel Rod, 7.5 kg | Approx. 17.5 cm |
| DN50 | National Standard Large Body Steel Rod, 9 kg | Approx. 17.2 cm |
| DN65 | National Standard Body Steel Rod, 7.5 kg | Approx. 18.5 cm |
| DN65 | National Standard Medium Body Steel Rod, 8.5 kg | Approx. 18.6 cm |
| DN65 | National Standard Large Body Steel Rod, 10.5 kg | Approx. 18.5 cm |
| DN80 | National Standard Body Steel Rod, 9 kg | Approx. 20 cm |
| DN80 | National Standard Medium Body Steel Rod, 10.5 kg | Approx. 20 cm |
| DN80 | National Standard Large Body Steel Rod, 12 kg | Approx. 19.7 cm |
| DN100 | National Standard Body Steel Rod, 10 kg | Approx. 21.5 cm |
| DN100 | National Standard Medium Body Steel Rod, 12.5 kg | Approx. 22.5 cm |
| DN100 | National Standard Large Body Steel Rod, 17.5 kg | Approx. 22 cm |
| DN125 | National Standard Body Steel Rod, 19 kg | Approx. 24.5 cm |
| DN125 | National Standard Medium Body Steel Rod, 21 kg | Approx. 25 cm |
| DN125 | National Standard Large Body Steel Rod, 24 kg | Approx. 25 cm |
| DN150 | National Standard Body Steel Rod, 20 kg | Approx. 26 cm |
| DN150 | National Standard Medium Body Steel Rod, 23 kg | Approx. 26.2 cm |
| DN150 | National Standard Large Body Steel Rod, 29 kg | Approx. 26.3 cm |
| DN200 | 8-hole National Standard Body Steel Rod, 36 kg | Approx. 28 cm |
| DN200 | 12-hole National Standard Body Steel Rod, 36 kg | Approx. 28 cm |
| DN200 | 8-hole National Standard Medium Body Steel Rod, 40 kg | Approx. 28 cm |
| DN200 | 12-hole National Standard Medium Body Steel Rod, 40 kg | Approx. 28 cm |
| DN200 | 8-hole National Standard Large Body Steel Rod, 50 kg | Approx. 28.4 cm |
| DN200 | 12-hole National Standard Large Body Steel Rod, 50 kg | Approx. 28.4 cm |
| DN250 | National Standard Medium Body Steel Rod, 70 kg | Approx. 32.5 cm |
| DN250 | National Standard Large Body Steel Rod, 80 kg | Approx. 32.5 cm |
| DN300 | National Standard Medium Body Steel Rod, 85 kg | Approx. 35 cm |
| DN300 | National Standard Large Body Steel Rod, 111.5 kg | Approx. 35 cm |
| DN350 | National Standard Large Body Steel Rod, 150 kg | Approx. 37.5 cm |
| DN400 | National Standard Large Body Steel Rod, 175 kg | Approx. 40.5 cm |
| DN450 | National Standard Large Body Steel Rod, approx. 251.5 kg | Approx. 430 cm |
| DN500 | National Standard Large Body Steel Rod, approx. 340 kg | Approx. 45.5 cm |
| DN600 | National Standard Large Body Steel Rod, approx. 450 kg | Approx. 50.7 cm |
Understanding Fire Protection Flanged Valves
What Makes These Valves Different?
Fire suppression valves work in a totally different environment than regular plumbing parts. Normal industrial valves handle everyday tasks, but fire prevention valves often don't do anything for long periods of time until they have to deal with extreme conditions in an emergency. This one-of-a-kind pattern of operations needs special engineering.
When it comes to structural stability, the flanged form is better than the threaded options. Standard flanged fittings that meet ANSI B16.1 or DIN standards make parts that are safe, won't leak, and can handle pressures from 150 to 600 PSI. This way of connecting makes checking and maintenance easier, which are both very important for making sure that business fire systems work well for a long time.
Common Valve Types in Fire Systems

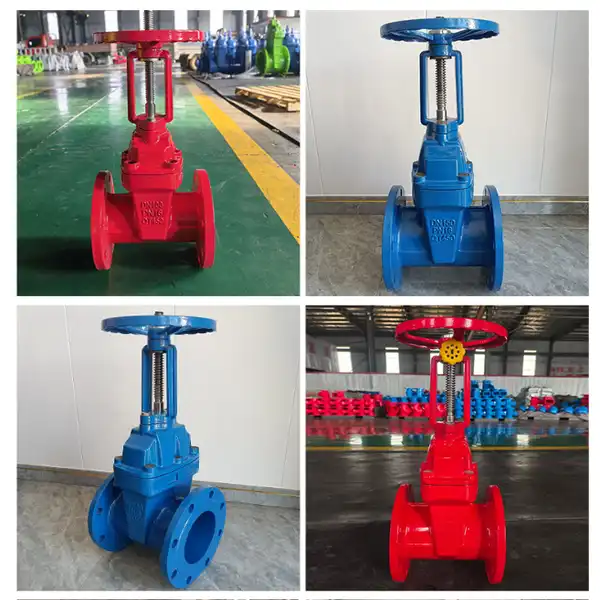

In different fire safety situations, different valve configurations are needed. When it comes to gate valves, the OS&Y (Outside Screw and Yoke) design lets full-bore flow routes with little resistance. The rising stem makes it easy to see where the valve is right away, which is useful for emergency workers who need to check on the system quickly.
Butterfly valves are small options for uses with a bigger diameter. Their quarter-turn operation lets them shut off quickly, and the streamlined disk design keeps the flow characteristics that are good. Check valves stop backflow, which keeps the system safe and makes sure water flows in the right direction through the sprinkler network.
Material Selection Matters
Cast iron is a cheap option for many installs, but ductile iron is stronger and less likely to break when it hits something. Because ductile iron has better mechanical properties—usually meeting ASTM A536 Grade 65-45-12 standards—it is the best choice for tough business uses where valve failure is not an option.
Carbon steel valves work best in places with a lot of pressure and physical stress. The anti-corrosion coating that is put on during production stops rust and mineral buildup, which means that the product will last longer even in standby fire systems where water pools. This protective layer, which is often more than 250 microns thick, stops tuberculation, which over time lowers flow capacity.
Key Features and Benefits of Fire Protection Flanged Valves
When it comes to commercial fire systems, the parts need to work the same way for decades. When flanged valves are made for fire prevention uses, they have features that help with the problems that these systems have.
Design Advantages That Ensure Reliability
Quality gate valves for a Fire Protection Flanged Valve use a resilient wedge design that fixes a problem that keeps happening: valves seizing up after years of not being used. EPDM rubber completely surrounds the wedge, making a seal that works even if something gets into the valve body. Bubble-tight shutoff is made possible by the way the rubber is compressed around the particles. This important feature was confirmed through seat leaking tests at rated pressures.
Full-bore design gets rid of flow limits that aren't needed. This design factor has a direct effect on the hydraulic calculations used in system engineering. This lowers head loss and makes sure that faraway spray heads have enough pressure. When choosing parts for big business installations, procurement managers and engineers who are looking at specs should put this feature at the top of their lists.
Certification Standards Build Trust
UL listing under Standard 262 and FM approval based on Class 1120/1130 standards are more than just legal boxes that need to be checked. These approvals show that valves have been through a lot of tests, such as hydrostatic shell tests at multiples of the normal working pressure and a lot of cycle tests to make sure they will last.
The physical casting marks that show these certifications make it possible to track and be responsible. These markings show that the building meets life-safety rules during checks by fire officials and insurance companies. Buying certified parts shields building owners from legal issues and makes sure that people who live or work in the building are safe.
Operational Benefits for Facility Management
Accessibility for maintenance has a big effect on how reliable a system is in the long run. Standard flanged connections make it easier to replace valves without having to use special tools or make big changes to the pipeline. The tightened bolt assembly makes it easy for maintenance teams to service valves quickly, which cuts down on system downtime during regular checks.
Temperature tolerance from -20°C to 120°C allows for a wide range of placement settings. These valves keep working properly whether they are put in climate-controlled mechanical rooms or open-air pump houses on rooftops. The anti-corrosion layer gives extra security in tough places, like seaside areas and factories with corrosive air.
How to Select the Right Fire Protection Flanged Valve for Commercial Systems?
When it comes to fire protection, purchasing decisions are very important. If you choose the wrong valves, the system might not work properly in an emergency, putting people at risk and putting you at risk of liability.
Pressure Rating Considerations
Valve specifications are based on the system pressure needs. Multistage fire pumps in high-rise buildings create a lot of barometric pressure, especially on the lower floors. Not only do valves have to deal with normal operating pressures, but they also have to handle surge pressures when the pump starts up. Custom pressure values that are made for particular uses make sure that there are enough safety gaps.
When choosing a size, you have to weigh the needs for flow against the limitations of room and the cost. Most business uses are covered by the range from 2" to 12" (DN50 to DN300). When valves are too small, they limit flow too much, and when they are too big, they waste money and make installation harder in crowded pipe runs.
Material Compatibility Analysis
The installation setting affects the choice of material for a Fire Protection Flanged Valve. Better corrosion protection is good for marine applications and facilities close to saltwater. Chemical-handling facilities need materials that are resistant to certain contaminants. Procurement experts should carefully look at the conditions of exposure and talk to sources about the best material specs for tough spots.
When choosing between carbon steel, malleable iron, and cast iron, you have to think about how strong the metal is and how much it costs. Even though ductile iron is more expensive, its better resistance to impact and tensile strength make it worth it in critical situations. Building owners and builders shouldn't just look at the original costs of buying something; they should also look at the costs over time.
Flange Standard Matching
Installation delays that cost a lot of money can be avoided if valve flanges can fit with the existing pipes. Different bolt hole patterns and pressure-temperature ratings are given by ANSI and DIN standards. To join flanges that don't match, you need adapter plates, which are expensive and could cause leaks. These problems can be avoided by checking the flange specs before buying them.
The face-to-face dimension, which usually follows ANSI B16.10 guidelines, tells you how much space you need. Accurate measurement information allows for the right pipe space when designing a system, which keeps them from interfering with nearby equipment or structural elements.
Installation, Maintenance, and Common Issues
When something is installed correctly, it will last for decades and work reliably. In contrast, shortcuts during installation lead to issues that show up in situations when system speed is most important.
Installation Best Practices
During assembly, you need to pay close attention to how the flanges are lined up. When things aren't lined up right, the gasket doesn't contract evenly, which can cause problems when pressure is applied. Tightening bolts in a star design according to the manufacturer's instructions is the right way to make sure that the flange face is loaded evenly.
When it comes to OS&Y gate valves, the direction of the valve is important. The stem should be facing outward so that it is easy to see and use. Supporting the valve body while it is being installed keeps the pipe from being stressed, which can damage the seal. Enough space around the working mechanism makes it easier to do repairs in the future.
Preventive Maintenance Protocols
NFPA 25 rules require that inspections and tests be done on a frequent basis. Visual inspections once a week or once a month make sure the valve is in the right place and look for obvious problems like stem leakage or corrosion. Fully cycling valves once a year during operational testing keeps them from seizing and makes sure they work right.
Stem packing needs to be checked on a regular basis. Because of vibrations or changes in temperature, gland nuts can come loose, letting small amounts of fluid leak around the stem. This problem is generally fixed by partially closing the valve without having to take it all apart. Too much tightening is bad because it raises the operating torque and speeds up the wear on the packing.
Troubleshooting Common Problems
A common problem is that valves seize up after being inactive for a long time. By breaking up mineral deposits and redistributing lubricants, regular exercise cycles stop this problem before it starts. When valves don't want to work, you should never use too much force, because bent stems mean the valve has to be replaced completely.
Most of the time, leakage past the seat means that something is stuck between the wedge and the seat. The flexible wedge shape can handle small particles, but bigger blockages might need to be flushed out of the system. Constant leaks could mean that the wedge is damaged or the rubber is breaking down, which are both problems that need to be looked at by a professional and may require replacing the valve.
Holiday testing finds flaws in coatings for a Fire Protection Flanged Valve before they cause rust. High-voltage holiday detectors find tiny holes in the fusion-bonded epoxy lining. Taking care of the integrity of the coating early on stops the internal corrosion that causes valves to fail too soon in systems with standing water.
Procurement Insights: Buying Fire Protection Flanged Valves
Strategic buying choices affect how long a project takes, how well it stays within budget, and how reliable the system is in the long run. Smart procurement professionals look at more than just the initial cost of an item to figure out its total value.
Supplier Evaluation Criteria
When it comes to specialized fire defense uses, the knowledge of the distributor is very important. Suppliers with a lot of expert understanding can help you with questions about specifications and government rules. Responding to technical questions with feedback within 24 to 48 hours speeds up project planning and avoids costly delays.
Verification of product authenticity keeps you safe from fake parts that could be dangerous. Reliable sellers give proof that their goods came from certified makers. This ability to track becomes very important during inspections and when proving warranty claims.
Bulk Procurement Advantages
When builders and wholesalers buy in bulk, they can save money by taking advantage of economies of scale. Clear information about wait times makes it possible to schedule projects correctly. Customized solutions from suppliers, like special sizes or non-standard pressure values, are very helpful for uses that need to be flexible.
Shipments should come with test results and material certifications. Conformity of the product is checked by chemical makeup certificates, pressure test records, and measurement inspection reports. This paperwork meets the needs of the engineer and makes permanent project records that will help with future maintenance decisions.
Warranty and Support Considerations
A full guarantee shows that the maker trusts the quality of the product. Knowing what the warranty covers, how long it lasts, and how to file a claim will keep you from being surprised when problems happen. Technical support after the sale of a product increases its value by helping users get the most out of it and fix any problems that come up.
Projects with odd needs can benefit from custom engineering services. Suppliers that offer help with 3D modeling make it possible to check the fit virtually before production starts. This joint method makes installation easier and makes sure that parts fit together well with the building's architecture and structure.
Conclusion
Fire protection systems that work well depend on having high-quality parts like a Fire Protection Flanged Valve that are installed and kept in good shape. Flanged valves made of ductile iron or carbon steel and coated with anti-corrosion and durable materials give business buildings the performance they need. Choosing certified goods from informed sellers protects building occupants and makes sure that regulations are followed. Contractors and building managers can be successful in the long run if they make smart purchasing decisions that balance beginning costs against lifecycle value. Investing in fire protection valves that are properly defined and professionally installed gives you peace of mind that systems will work when an emergency happens.
FAQ
What distinguishes OS&Y from NRS valve designs?
Outside Screw and Yoke (OS&Y) valves have stems that rise when the valve opens, so you can see right away what the status is. This design is required for major water supply lines and lets first responders see right away where the valve is located in an emergency. NRS (Non-Rising Stem) valves work well in places with limited space or underground installations when paired with wall post indicators. However, they don't give as clear position feedback as OS&Y designs do.
Can different flange standards be mixed?
Even though they have similar pressure values, mixing PN16 and ANSI Class 125 flanges usually leads to trouble. Different standards have different bolt hole designs (PCD), which makes it impossible to match properly unless the valves have universally slotted holes or adapters are put in. Both methods are harder to use and cost more. By matching flange standards to existing pipes, these problems can be avoided, and connections can be trusted.
How often should valve maintenance occur?
Depending on the type of guidance, NFPA 25 calls for reviews once a week or once a month to check the position of valves and look for problems that can be seen. Fully rotating valves once a year during practical testing keeps them from seizing and confirms wedge movement. If these maintenance tasks aren't done, problems can happen without being noticed, which could lead to system failures in an emergency.
Partner with FLA Industrial & Trading Co., Ltd. for Your Fire Protection Valve Needs
We are your reliable source for Products" target="_blank" style="color:blue" >products">Fire Protection Flanged Valves because we have been making high-quality products for almost 40 years. We use advanced casting methods, precise cutting, and strict quality control to make valves that meet UL and FM approval standards. When you ask a technical question, our engineering team answers within 48 hours with detailed specs and 3D models that help you make a decision faster.
You can get parts for high-rise sprinkler systems, industrial fire loops, or retrofits for business buildings from us. Our solutions are flexible and can be tailored to your needs. Custom pressure ratings, special dimensions, and changes to the material can help with problems that only happen in certain applications. Email our team at sales@flaindustrial.com to talk about the details of your project. Visit flaindustry.com to see our full line of products, which are backed by ISO 9001 approval and decades of performance in global markets.
References
1. National Fire Protection Association. (2020). NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. Quincy, MA: NFPA Publications.
2. American Water Works Association. (2019). AWWA C550: Protective Interior Coatings for Valves and Hydrants. Denver, CO: AWWA Standards.
3. Factory Mutual Research Corporation. (2018). FM Approval Standard Class 1120/1130: Fire Protection Valves. Johnston, RI: FM Global Publications.
4. Underwriters Laboratories. (2021). UL 262: Standard for Gate Valves for Fire-Protection Service. Northbrook, IL: UL Standards.
5. American Society of Mechanical Engineers. (2017). ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings. New York, NY: ASME Press.
6. International Code Council. (2021). International Building Code: Chapter 9 Fire Protection and Life Safety Systems. Washington, DC: ICC Publications.
