Why Are Mech Grooved Fittings Preferred for Fast Industrial Piping Installation?

Mech Grooved Fittings have revolutionized industrial piping by drastically cutting installation time while maintaining superior reliability. These mechanical coupling systems eliminate the need for welding, threading, or flanging, allowing contractors to assemble secure pipe joints in minutes rather than hours. The grooved coupling technology uses a simple yet robust design—grooved pipe ends, housing, and gasket—that creates leak-proof connections under high pressure. This efficiency translates directly into reduced labor costs, minimized project downtime, and enhanced safety on job sites where hot work permits would otherwise delay progress.

Specification

Specification	Size (mm)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding Mech Grooved Fittings: Features and Functionality

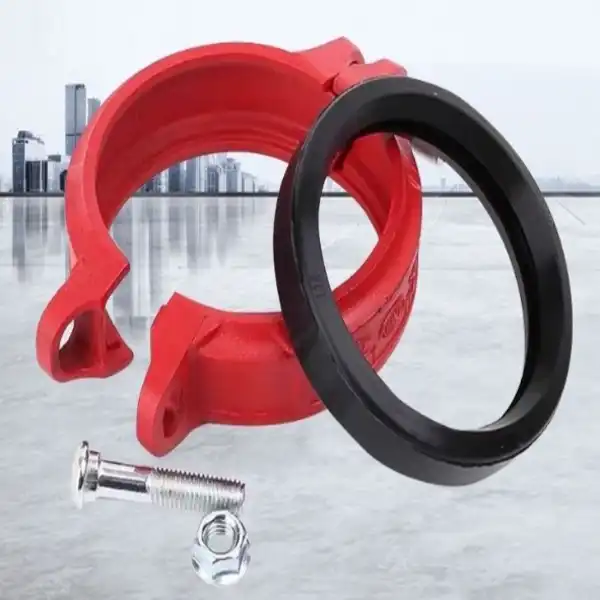

Grooved pipe connection systems are a big step forward in the technology of industrial pipes. Basically, these fittings are made up of three important parts that work together to make strong connections.

How Grooved Coupling Systems Work

The first step in fitting is to make a groove near the end of the pipe. This can be done by either rolling or cutting the groove. Roll grooving is great for thin-wall pipes because it keeps the wall thickness by forming the groove through cold deformation. When you cut grooves, you remove material to make the groove shape. This method is often used for heavy-wall uses or when working with fluids that are rough. Once the grooves are made, workers put an elastomeric seal around both ends of the pipe and then use bolts to hold the coupling box in place. Tightening the nuts brings the housing pieces closer together, where they engage the groove and press down on the gasket to create multiple seal points that stop leaks even when the temperature rises.

Common Types and Material Specifications

For manufacturing, ductile iron that meets ASTM A536 Grade 65-45-12 is used. This type of iron has a tensile strength of 65,000 psi and is more resistant to impact than gray iron. Different types of carbon steel are used for tasks that need better protection from rust or specific temperature ranges. There are stiff couplings for straight runs, flexible couplings that can bend up to a few degrees, and special parts like caps, elbows, tees, and reducers in the product line. Sizes range from 1 inch to 48 inches in diameter, so they can be used for anything from water mains in cities to sprinkler branches in homes. Different types of gaskets are used for different situations. EPDM rubber gaskets work with water systems from -30°F to 230°F, nitrile gaskets work with oil-based media, and silicone gaskets work in settings with very high temperatures.

Installation Advantages Over Traditional Methods

For traditional welding to work, you need trained welders, hot work permits, fire watchers, and people to check the work afterward, which can take days for big jobs. Threading needs special cutting tools, creates metal trash, and weakens the walls of pipes. Flanged connections need to be perfectly lined up, have a lot of bolts, and be torqued with a lot of force. These problems are not a problem at all with Mech Grooved Fittings. A 4-inch link can be made by two people using simple hand tools in about five minutes. The method doesn't need a spark, doesn't make fumes, and doesn't need any special trade licenses. When compared to welded systems, these connections cut installation work by 30 to 50 percent. They are also easy to take apart for system changes or yearly maintenance.

Why Mech Grooved Fittings Enhance Industrial Piping Speed and Reliability

The switch from old-fashioned ways of joining to Mech Grooved Fittings solves problems that have been plaguing industrial pipe projects for a long time. Performance gains that can be measured are made possible by speed, flexibility, and long-term longevity.

Eliminating Time-Intensive Traditional Methods

For threaded connections, you have to cut, ream, and apply thread sealant. Each step takes a few minutes and can lead to leaks if it's not done right. For flanged joints to work, the bolt patterns and gasket placement must be exact, and the installation time increases a lot as the pipe diameter grows. Welded parts are the most difficult because they need to be prepared on the surface, welded multiple times, cooled, inspected with an X-ray, and possibly fixed if problems show up. Welders usually need 45 to 60 minutes to make a 6-inch link, not counting the time it takes to set up and check the quality. When grooved technology is used for the same connection, it takes about eight minutes from start to pressure-ready status. This huge speedup of time adds up over hundreds of links in most industrial settings, which could cut the total time it takes to finish a job by weeks.

Flexibility and Vibration Control Benefits

Pumps, compressors, and fluid turbulence cause large amounts of vibration in industrial systems. Rigid connections send these forces straight to the pipe walls, which leads to wear, cracks, and equipment that is attached getting out of alignment over time. Flexible Mech Grooved Fittings allow controlled movement, usually 4 degrees of angular deviation and limited linear motion. This stops vibration energy from spreading through the system. This trait is especially useful in HVAC systems where the cycling of the chiller and boiler causes thermal expansion cycles. The coupling allows the pipe to expand and contract without putting stress on the joints or sending noise into areas that are already occupied. Uneven ground and earthquakes make alignment difficult, but flexible couplings can handle this without compromising the integrity of the seal. This is useful for both mining operations and oil field installations.

Real-World Performance in Fire Protection Systems

A business high-rise building project in Chicago shows that grooved connection has clear benefits. The 42-story building needed a full sprinkler system with more than 800 connection spots that were 1.5 to 8 inches in diameter. At first, the mechanical worker thought it would take 12 weeks to place pipes using the old-fashioned threaded and welded ways. When Mech Grooved Fittings were used instead, the installation took only 7.5 weeks, which is 37% less time. The cost of labor went down by the same amount, which saved about $127,000 in direct pay. There was no leak in the system when it was tested hydrostatically at 300 psi, showing that grooved connections that are installed correctly are reliable. After 12 and 24 months, follow-up inspections showed that the gasket had not worn down or the joint had moved, which confirmed that the long-term performance expectations would be met. Adding sprinkler heads during renter build-outs was especially easy, according to the building's facility manager. Workers just had to loosen coupling bolts, insert new tees, and tighten them back up. This could be done during normal business hours, without needing hot work permits or building evacuations.

Comparing Mech Grooved Fittings with Other Popular Fitting Types

Before making a purchase choice, it's important to know how different joining methods compare in terms of cost, installation difficulty, and long-term value. Comparative analysis shows that grooved systems are clearly better than other methods.

Grooved vs. Threaded Connections

Threaded pipe fittings have been used in light commercial and residential settings for many years because they are easy to use and don't cost much to buy at first. But when used in bigger systems, their flaws become clear. Threading takes away a lot of wall thickness, which lowers the pressure rating. For example, a 2-inch Schedule 40 pipe loses about 25% of its strength where it is threaded. For installation, you need cutting tools, threading dies, and the right thread compound. The quality of the work depends a lot on how skilled the workers are. When threads aren't engaged properly, leaks happen that usually don't show up until the system is under pressure. Because roll grooving moves material around instead of taking it away, Mech Grooved Fittings keep the full wall strength of the pipe. The mechanical housing makes sure that the right engagement happens every time, no matter how experienced the worker is. When taking things apart for repair, there is another difference: removing threaded connections often damages the threads, which means that the pipe needs to be replaced. Grooved joints, on the other hand, can be unbolted and reassembled many times without breaking.

Grooved vs. Flanged Systems

Flanged connections work great when parts need to be taken apart often or when valves and equipment need to be lined up exactly. The method has been shown to work reliably in high-pressure situations and makes it easy to check the sides of gaskets. Flanged systems, on the other hand, are much heavier and cost more. A 6-inch 150-pound flange with bolts weighs about 45 pounds, while a Mech Grooved Fittings connection of the same size weighs only 8 pounds. For flanged assemblies, the cost of materials is usually 60–80% higher. Installation requires accuracy—bolt holes must line up perfectly, gaskets must be carefully centered, and bolts must be tightened in a certain order to the right torque levels. Many grooved couplings are approved to 500 psi and have similar pressure values. However, they are lighter, cheaper, and easier to install. On the other hand, rigid grooved couplings are a little less flexible when it comes to adjusting angles than flanged joints. However, flexible grooved couplings mostly make up for this problem.

Total Cost of Ownership Analysis

Looking at fitting systems takes more than just the original purchase price. You also need to think about the labor needed for installation, the upkeep that the system needs, and how long it will last. By looking at a 100-joint industrial pipe system side by side, these factors become very clear. Using threaded connections, the cost of materials is about $12,000, and the cost of installation labor is $28,000, for a total project cost of $40,000. The cost of materials for flanged systems goes up to $19,500, and the cost of installation labor goes up to $24,000 because of all the bolts that need to be used. This makes the total project cost $43,500. Mech Grooved Fittings cost $14,500 for the materials and only $16,500 for the installation work. This makes the total cost of the project $31,000, which is 22% less than threaded systems and 29% less than flanged systems. When a threaded joint needs to be fixed, the pipe section has to be replaced, which costs an average of $450 per incident. When a flanged joint needs to be fixed, new gaskets and possibly new bolts have to be bought, which costs an average of $180 per incident. But when a grooved coupling needs to be fixed, only the gasket has to be replaced, which costs $35 per incident and doesn't require any special tools or hot work permits.

Procurement Guide: How to Source and Order Mech Grooved Fittings

Partnering with suppliers who offer quality Products" target="_blank" style="color:blue" >products at reasonable prices and quick technical support is key to completing a project successfully. Strategic procurement practices get the best value while making sure that deadlines are met.

Identifying Qualified Suppliers

Certification qualifications are the basis for judging a seller. The ISO9001 quality management system approval shows that a company is dedicated to using consistent production methods and making improvements all the time. UL and FM approvals make sure that joints meet strict performance standards for life safety systems, which is important for fire protection uses. The CE mark shows that a product meets European safety standards, which is important for international projects. Look at manufacturing skills directly instead of just certifications. Suppliers who do their own casting, cutting, and surface cleaning have better quality control than those who outsource these steps. Ask about the traceability of the materials; reputable manufacturers give mill certificates that list the chemical make-up and mechanical properties of the ductile iron used in each batch of production. The availability of technical support is very important. Suppliers who give engineering help for product selection, pressure estimates, and installation instructions help keep specification mistakes from costing a lot of money.

Bulk Purchasing and Customization Options

Volume agreements unlock big savings on costs and make sure that products will always be available during the project. When purchasing managers negotiate orders of more than 500 units, they usually get 15–25% off of small-lot prices. Payment terms get better as the order size increases. For example, larger orders can often get net-60 or net-90 terms instead of the standard net-30 terms. Customization lets you meet the specific needs of a project that regular catalog goods can't. Pipe sizes that are unique to the process industries often need non-standard dimensions. Branch connections can be made without adding extra fittings thanks to special outlet designs. This makes the system simpler and reduces the number of possible leak points. Different coating requirements are needed for different environments. For example, heavy hot-dip galvanizing works well in sea settings, but FDA-compliant epoxy coatings are needed in food processing plants. Rapid prototyping services let you test custom designs before committing to full production runs. This lowers the risk when the requirements are too specific for standard uses.

Current Market Trends and Lead Times

The state of the market has a direct effect on how to buy things and when to do projects. Since the supply chain will be stable until 2024, lead times are better than they have been in recent years. Standard Mech Grooved Fittings in common sizes (2 to 8 inches) usually ship within two to three weeks from reputable suppliers who keep stock in regional warehouses. Because most of the time, production is made to order, it takes 4-6 weeks for larger sizes (10-24 inches) or special materials. With custom configurations, wait times can go up to 6 to 10 weeks, based on how complicated the order is and how busy the factory is right now. Prices change based on the cost of raw materials. For example, the price of ductile iron couplings has been stable after being unstable in previous years. For normal 4-inch couplings, you should plan to spend between $45 and $85 per unit. The price goes up or down depending on the width and pressure grade. Setting up blanket purchase orders with scheduled releases helps keep prices stable and makes sure that the availability of materials matches up with construction milestones.

Maintenance and Long-Term Performance of Mech Grooved Fittings

When you follow the right repair steps, you can make your system last longer and keep it from breaking down when you least expect it. Having proactive inspection schedules and following the right troubleshooting steps will get the most out of your Mech Grooved Fittings investments.

Routine Inspection Procedures

Maintenance schedules should be in line with how important the system is and how it is being used. According to NFPA 25 standards, fire protection systems need to be inspected once a year. Industrial process piping, on the other hand, does better with visual checks every three months and more thorough exams once a year. Three main things are looked at visually: the condition of the gasket, the integrity of the coupling housing, and how tight the bolts are. Look for cracks, hardening, or extrusion on the sides of the gasket that can be seen between the housing pieces. These are all signs that the gasket needs to be replaced. Check the castings in the housing for corrosion, especially if they are near the coast or in chemical processing plants where the atmosphere is harsh, and the corrosion happens faster. Use the pad-to-pad method to make sure the bolts are tight. Couplings that are properly placed have metal bolt pads that touch all the way around, which shows that the torque and gasket compression are right. Gaps between the pads show that they are not tightened enough or that the seal might be failing. Use a feeler gauge to get a precise reading on any gaps. Any clearances greater than 1/16 inch should be looked into right away and fixed.

Troubleshooting Common Issues

The most common problem with Mech Grooved Fittings systems is leakage, but couplings that are installed correctly almost never leak during their design life. Systematic diagnosis quickly finds the root causes of leaks when they happen. Most of the time, weeping at the gasket interface means that either the installation wasn't done right or the gasket is wearing down because of fluids that don't work well together or too much heat. Take the coupler apart and check the gasket to make sure it fits correctly in the housing groove, is in the right place over the pipe groove, and doesn't have any cuts or pressure set. If the gasket looks like it's broken, make sure that the material rating matches the system fluids and temperatures. For example, using EPDM gaskets in oil service will cause them to break down quickly, and nitrile gaskets will fail too soon in hot water above 180°F. When systems are hit by strong water hammer or earthquakes, cracks in the housing can appear. Cracked housings need to be replaced right away because they can't be fixed reliably and are unsafe. Most bolt failures are caused by overtorquing them when they are being installed or rust in harsh conditions. When you replace all the bolts and nuts, make sure that the new gear meets the original grade and finish standards.

Extending Product Lifespan

Getting the most out of the life of a grooved coupler starts with choosing the right product for the job. Check that the pressure ratings are higher than the maximum system pressure, which should include surge allowances. For example, a system that runs at 150 psi should specify couplings that are rated for 300 psi to give itself enough of a safety margin. Temperature compatibility includes more than just choosing the right gasket. Standard painted finishes work fine indoors, but for outdoor installations, hot-dip galvanizing or heavy epoxy coatings are needed to protect them from the weather. Checking the compatibility of fluids keeps things from breaking down too soon. Look at chemical resistance charts to make sure that the gasket and covering are compatible with process fluids, especially solvents, acids, or caustic solutions that damage normal materials. Keep couplings from getting damaged while they're in use by making sure the pipes are properly supported so they don't move around too much, which puts stress on the joints. Place couplings away from areas with a lot of traffic where they could be damaged by impacts, or put up physical barriers to protect weak parts. Keep track of all maintenance tasks, such as inspection results, gasket replacements, and any changes to the system that affect coupling loads. This history of maintenance lets us look at patterns that help us spot problems before they become system failures.

Conclusion

Industrial pipe projects in a wide range of fields can benefit greatly from Mech Grooved Fittings technology. Construction contractors, facility managers, and procurement specialists can rest easy knowing that the product can be set up quickly, is flexible, and will last for a long time. Getting rid of the need for hot work speeds up project timelines while lowering safety risks and making things easier. The mechanical joining method keeps the full strength of the pipe, allows the system to move, and makes it easier to make changes in the future than standard methods like welding, threading, or flanges. Total cost analysis always favors grooved systems because they require less installation labor, less maintenance, and last longer. As industrial projects are pushed to finish faster while still meeting quality and safety standards, grooved coupling systems offer tried-and-true solutions backed by decades of field experience and ongoing technology improvement.

FAQ

What size range do grooved fittings cover?

Mech Grooved Fittings systems can connect pipes with diameters ranging from 1 inch to 48 inches, so they can be used for everything from residential sprinkler branches to large-diameter water transmission mains in cities. Manufacturers keep a lot of stock of common sizes (2–12 inches), but they also make larger diameters and custom shapes on a make-to-order basis to meet the needs of specific projects.

Can I mix different groove types in one system?

Cut-grooved and roll-grooved pipes can both use the same connections as long as the groove sizes meet ANSI/AWWA C606 guidelines. Compatibility is based on the groove shape, not the way of forming. Roll grooving works well for thin-wall pipe because it keeps the strength of the material, while cut grooving works well for heavy-wall pipe because it removes material without lowering the pressure ratings. Using both types together in the same system doesn't affect its speed.

How do I verify proper installation?

The pad-to-pad inspection method is a reliable way to check something in the field. After tightening the coupling bolts to the torque recommended by the manufacturer, check the bolt pad areas all the way around the coupling's circumference. When units are placed correctly, these metal surfaces touch each other fully, with no gaps that can be seen. Any separation between the pads means that they are not tightened enough or that there are problems with the gasket that need to be fixed before the system is pressurized.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Grooved Coupling Solutions

To find high-quality Mech Grooved Fittings, you need to work with a company that has a lot of experience and knows what your project needs. FLA Industrial & Trading Co., Ltd. has been making ductile iron and carbon steel grooved fittings that meet strict international standards for almost 40 years. These standards include ISO9001, CE, and UL/FM certifications. Our factories do the whole process of production, from casting to machining to surface treatment. This makes sure that the quality is the same for over 1,000 different product specifications. Our technical team is ready to help you right away, whether you need standard couplings for fire safety systems or custom-engineered solutions for specific industrial uses. Quotes and specifications are sent to you within 24 to 48 hours. Get in touch with sales@flaindustrial.com to talk about your needs with a reliable Mech Grooved Fittings source that works with contractors and wholesalers all over North America.

References

1. American Water Works Association. (2020). ANSI/AWWA C606-20: Grooved and Shouldered Joints. Denver: AWWA Standards.

2. National Fire Protection Association. (2021). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.

3. Parisher, R. A., & Rhea, R. B. (2019). Pipe Drafting and Design (4th ed.). Houston: Gulf Professional Publishing.

4. ASTM International. (2019). ASTM A536-84: Standard Specification for Ductile Iron Castings. West Conshohocken: ASTM Standards.

5. Menon, E. S. (2018). Piping Calculations Manual (2nd ed.). New York: McGraw-Hill Education.

6. Hydraulic Institute. (2017). Pump System Assessment and Optimization: A Sourcebook for Industry. Parsippany: Hydraulic Institute Press.
