How Do Stainless Steel Rope Clips Prevent Cable Loosening in Outdoor Applications?

Wire rope assemblies face continuous challenges in outdoor environments where temperature swings, moisture, vibration, and dynamic loads threaten cable stability. Stainless steel rope clips provide mechanical locking solutions that maintain secure connections under these demanding conditions. These precision-engineered fasteners work by clamping the dead end of a wire rope against its live end, creating friction-based grip pressure that prevents slippage. When manufactured from grade 304 or 316 stainless steel through precision casting and forging processes, these clips resist corrosion while maintaining structural integrity even when exposed to saltwater spray, UV radiation, or industrial chemicals.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Cable Loosening and Its Challenges in Outdoor Environments

When cables in outdoor systems come loose, they pose serious risks to work areas, building sites, and ships. When wire rope links break, the problems don't just stop with the tools not working; they also cause safety risks and expensive downtime.

Environmental Factors That Compromise Cable Integrity

Metal parts constantly expand and contract because of changes in temperature. This thermal cycling slowly loosens connections that were tightened correctly when they were installed. UV light breaks down the protective coatings on cheap fastening hardware, which speeds up the corrosion process. When moisture gets into metal surfaces, like from rain, humidity, or saltwater spray, it turns them rusty, which makes them less stable. These environmental stressors work together to make the effects of each one stronger.

Mechanical Stresses in Dynamic Applications

Micro-movements happen at connection points because of vibrations from machinery, wind-driven movement, or operational cycling. With each small change, the clamping force that holds cables in place slowly weakens. Dynamic loading, in which tension changes while the device is being used, adds more stress to the fastening hardware. These changing loads are always being put on construction tools, cranes, and lifting systems. Without the right way to secure them, wires become loose over time, lowering safety gaps and needing to be fixed more often.

Financial Impact of Cable System Failures

Industrial businesses lose a lot of money when their equipment breaks down. When wire systems suddenly stop working, fixes have to be done right away, which often means buying extra parts at high prices. Maintenance visits on a regular basis raise operational costs, especially for installations that are far away or hard to get to. The total cost of owning cable systems that aren't properly secured is much higher than the money you saved at first by picking less-than-ideal fixing options. Managers in charge of buying things know that spending money on good security hardware lowers costs over time and makes the workplace safer.

How Stainless Steel Rope Clips Work to Prevent Cable Loosening

The technical ideas behind Stainless Steel Rope Clips have been improved over many years of use in industry. When procurement teams know these basics, they can better choose the right tools for each job.

Mechanical Locking Through Grip Pressure

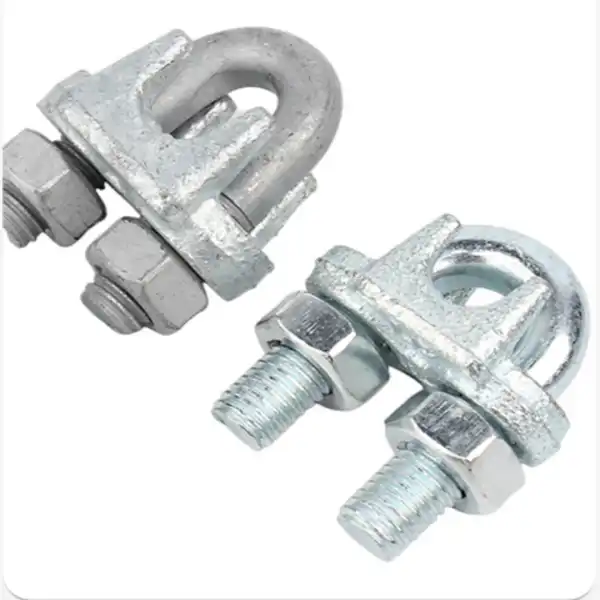

Stainless Steel Rope Clips have a U-bolt part that goes around the dead end of the rope and holds it against a saddle that holds up the live end. The saddle squeezes both rope pieces together when the hex nuts are tightened onto the U-bolt holes. This makes the rope strands stick to the saddle surface, which keeps the dead end from moving. The clamping force needs to be strong enough to keep the grip on the rope even when it is under its highest rated tension. When installed correctly, Stainless Steel Rope Clips usually reach 80 to 90% of the rope's breaking strength, making them reliable for a wide range of uses.

Material Advantages of Stainless Steel Grades

Using stainless steel 304 to make these Stainless Steel Rope Clips gives them great corrosion resistance for most outdoor uses. Because it has chromium in it, the metal doesn't rust because it forms a passive oxide layer that fixes itself when it gets scratched. Because it contains molybdenum, grade 316 stainless steel is better at protecting places like the ocean or chemical processing plants. This addition makes the resistance to chloride attack and pitting corrosion a lot better. The mechanical qualities of both grades stay the same over a wide range of temperatures, from very cold to very hot. The bright, polished finish makes the item look better and protects it from corrosion better.

Installation Best Practices for Maximum Holding Power

By following the right steps for installation, Stainless Steel Rope Clips will work as they were meant to. The basic rule is to never put a saddle on a dead horse. This means that you have to put the saddle on the live end of the rope while the U-bolt squeezes the dead end. If you flip this arrangement around, the load-bearing strands get crushed, which makes the assembly much less strong. Based on the diameter of the rope, more than one Stainless Steel Rope Clip must be used, with the right amount of space between each one. To get the right clamping force without damaging the rope fibers, you need to use certain torque values when tightening. Retightening the Stainless Steel Rope Clips after the first load makes sure they stay in place as the rope settles into the hardware.

Maintenance Requirements for Long-Term Reliability

Regular checks find problems as they start to form before they become major problems. Visual checks can show that maintenance is needed if there is corrosion, deformation, or loose nuts. As shaking and temperature changes work against bolt tension, torque verification makes sure that Stainless Steel Rope Clips stay properly tight. When reusing hardware, damaged rope sections near the Stainless Steel Rope Clips should be cut off because fibers that are compressed lose strength and won't work reliably. These simple upkeep steps keep safety margins while extending the service life. Safety rules and quality management systems are easier to follow when inspection schedules and results are written down.

Comparing Stainless Steel Rope Clips to Other Cable Securing Solutions

Before making a purchase decision, you need to know how well each security method works in the real world. When choosing a Stainless Steel Rope Clip, you need to look at its material qualities, how easy it is to install, and how much it will cost over its lifetime.

Stainless Steel Versus Galvanized Options

Carbon steel doesn't rust when zinc is coated on galvanized Stainless Steel Rope Clips. This method works fine in mild settings, but it quickly stops working when it comes into contact with saltwater or industrial chemicals. At stress points, the zinc layer wears away, letting rust attack the steel below. This wear and tear lowers the gripping force and finally causes the structure to break. These worries are gone with Stainless Steel Rope Clips because the material doesn't rust anywhere, not just on the surface. Even though galvanized gear costs less at first, it needs to be replaced more often and has a higher chance of breaking. For outdoor uses, Stainless Steel Rope Clips are the more cost-effective option.

Performance Under Dynamic Loading

Aluminum Stainless Steel Rope Clips are lighter than stainless steel Stainless Steel Rope Clips, which makes them a good choice for uses that need to be careful with weight. But because aluminum isn't as strong as steel, it can't be used in high-load situations. When the material is mixed with stainless steel wire rope, it experiences galvanic corrosion, which causes electrochemical reactions that speed up the breakdown. Stainless Steel Rope Clips work well with stainless steel rope, so there are no worries about electrical issues and the rope has a higher tensile strength. This compatibility makes sure that the product will work well even when it is loaded and unloaded many times, which is common in industrial and construction equipment.

Grade 304 Versus Grade 316 Selection Criteria

Grade 304 Stainless Steel Rope Clips work well in most outdoor settings and is a great choice for building projects, design uses, and general industrial use. The material can handle mild chemical contact, moisture, and corrosion from the air. It is necessary to use Grade 316 for marine sites, wastewater treatment plants, and chemical processes. The molybdenum addition is very important for protecting against pitting and crevice corrosion caused by chloride. The purchasing teams weigh the costs of these materials against the needs of the job, and they only choose 316 grade when the environmental conditions warrant it. This method makes the most of project budgets while still leaving enough room for performance margins.

How to Choose the Right Stainless Steel Rope Clips for Your Procurement Needs

Before choosing the right fastening hardware, you need to compare the technical specs to the project requirements. Systematic review methods help people who work in buying make choices that are good for both performance and cost-effectiveness.

Technical Specification Assessment

The diameter of the rope determines the Stainless Steel Rope Clip size that is needed to properly engage the wire rope strands. When figuring out load capacity, you have to take into account working loads, safety factors, and possible shock loads. Manufacturers give out thorough standard sheets that list breaking strengths, torque values, and fitting instructions. These papers let engineering teams check that the chosen gear meets the needs of the design. Thread specs, like whether they are UNC or metric, affect how tools work together and how to install them. Full dimensional data helps keep compatibility issues to a minimum while the project is being carried out.

Supplier Quality Verification

Reputable manufacturers keep their ISO9001 certification, which shows that they are dedicated to quality management. The CE mark shows that a product meets European safety standards, which gives foreign projects extra confidence. Chemical composition testing is used to make sure that material certifications are valid for the right grades of Stainless Steel Rope Clips. Testing with a salt spray confirms that the properties of corrosion resistance meet requirements. Load testing makes sure that a machine works as it should under rated conditions. Before putting in large orders, procurement managers should ask for proof that these quality checkpoints have been met. This extra work keeps fake goods from getting into the project and putting safety at risk.

Bulk Purchasing and Custom Solutions

Bulk buying agreements lower unit costs and make sure there is enough inventory for large tasks. Standard product Stainless Steel Rope Clip specs work for most uses, but custom solutions are better for projects that have specific needs. When projects need certain qualities, Products" target="_blank" style="color:blue" >products can be made with custom sizes, non-standard materials, or changed designs. Custom orders usually take between one and three weeks to make, but this depends on how complicated they are and how many are being ordered. Suppliers with a lot of stock can fill regular orders right away, which keeps projects from being held up. Talking about the number needs early on in the buying process helps sellers make sure they have enough stock and plan their production capacity.

Case Studies: Successful Applications of Stainless Steel Rope Clips in Outdoor Settings

Performance in the real world shows that using the right fastening solutions can produce reliable results in tough conditions. These examples show what real benefits procurement teams can look forward to when they choose good tools.

Marine Rigging and Mooring Systems

The dock systems at a port on the Gulf Coast were upgraded from zinc clips to grade 316 Stainless Steel Rope Clips. The saltwater environment was causing early failures, so every 18 months, they had to be replaced. After switching to stainless hardware that doesn't rust, the marina hasn't had to do any unplanned maintenance for more than five years. Even though they were constantly exposed to saltwater, the Stainless Steel Rope Clips kept their bright look and structural integrity. This upgrade cut down on the yearly cost of upkeep and made it safer for mooring vessels. Within the first three years, the marina's procurement team showed a positive return on investment.

Construction Site Safety Cable Installations

A business building company only used Stainless Steel Rope Clips that were made using precise forging methods. For their big buildings, they need temporary safety cable systems that keep workers safe while the main steel is being put in. Earlier gear had problems coming loose because of vibrations from using power tools and other equipment. The upgraded Stainless Steel Rope Clips kept the right tension throughout the project, which cut down on safety inspection failures. Consistent quality across large orders made it easier to keep track of inventory and train new employees. Project managers said that maintenance on safety equipment caused fewer delays, which improved the overall performance of the schedule.

Industrial Machinery Applications

Stainless Steel Rope Clips are used to support wire rope assemblies in overhead crane systems used in manufacturing facilities. Equipment is exposed to changes in temperature, moisture, and constant shaking in the production environment. By following the right steps for construction and checking every three months, the facility increased the service life of the wire rope by 40%. During routine inspections, maintenance teams retorque Stainless Steel Rope Clips to make sure that the clamping force stays the same. Unexpected cable breakdowns that used to stop output were no longer a problem thanks to this proactive method. The facility's maintenance manager figured that fewer emergency repairs and more uptime for equipment would save a lot of money.

Conclusion

If you need to secure cables outside, grade 304 or 316 Stainless Steel Rope Clips are a reliable choice because they can handle the stresses of the environment and mechanical loads. When installed and kept correctly, their mechanical locking design creates a friction-based grip that keeps the wire from coming loose. Compared to galvanized or metal options, stainless steel gear is better at resisting corrosion and maintaining its structural integrity over a longer period of time. Professionals in procurement can get more out of the parts they buy by understanding their technical specs, how to check for quality, and the right way to install them. The case studies show real benefits—lower upkeep costs, better safety, and longer equipment life—that show buying good fastening gear is worth it.

FAQ

What distinguishes rope clips from traditional wire rope clamps?

In the business world, the terms are often used interchangeably, but some professionals only use "clamp" for devices that fully surround the rope. The U-bolt and saddle design, which has become the standard for field installs, is what Stainless Steel Rope Clips are all about. Both terms refer to gear that holds wire rope in place by compressing it mechanically instead of using a fixed method like swaging.

Can wire rope clips be reused after removal?

The Stainless Steel Rope Clips can usually be used again as long as the U-bolt doesn't bend and the threads are still in good shape. However, the part of the rope that was squeezed must be cut off because the fibers are no longer flexible and will not stay strong. Because of this rule, using old Stainless Steel Rope Clips again may result in waste that cancels out any cost savings.

How do I verify quality when sourcing from new suppliers?

Ask for material certificates that show the real makeup of the Stainless Steel Rope Clips grade, which can be proven by spectrometry testing. Ask for test results that show rust resistance after being exposed to salt spray. Need records from dimensional inspections that match thread specs and saddle geometry. Manufacturers who are doing business legally keep records that show they meet international standards and can easily provide these certifications.
