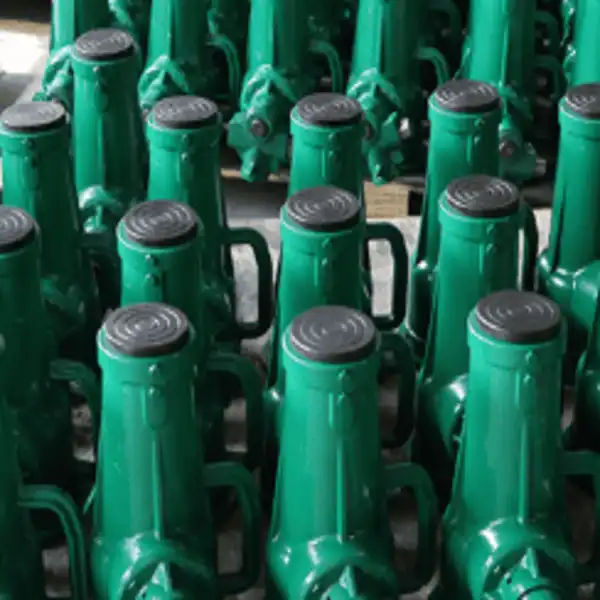

3 Ton Screw Jack Provides Stable Lifting for Automotive and Industrial Repairs
2026-08-21 16:39:10
When precision meets power in heavy-duty lifting, the 3 Ton Screw Jack emerges as an indispensable tool across automotive repair shops, construction sites, and manufacturing facilities. This mechanical lifting device translates rotational force into controlled vertical movement, safely elevating loads up to 6,600 pounds without relying on hydraulic fluid or electrical power during operation. Unlike hydraulic alternatives prone to gradual position loss, this equipment offers absolute mechanical self-locking capability, ensuring loads remain securely elevated throughout extended repair procedures or structural adjustments.
Specification |
|||||
| Model (t) | Top Cover (mm) | Bottom Cover (mm) | Minimum Height (mm) | Lifting Height(mm) | Weight (kg) |
| 3.2 | 49 | 93 | 220 | 110 | 17.4 |
| 5 | 49 | 93 | 250 | 130 | 21.5 |
| 8 | 49 | 104 | 260 | 140 | 22.3 |
| 10 | 59 | 104 | 280 | 150 | 27.2 |
| 16 | 64 | 118 | 320 | 180 | 21.1 |
| 20 | 64 | 128 | 325 | 180 | 23.1 |
| 25 | 64 | 128 | 275 | 130 | 20.9 |
| 32 | 69 | 142 | 395 | 200 | 37.2 |
| 50 | 88 | 186 | 452 | 250 | 36.1 |
| 100 | 125 | 238 | 452 | 200 | 71.3 |
| D10 | 59 | 104 | 200 | 75 | 22.4 |
| D20 | 64 | 128 | 225 | 90 | 19.3 |
| D32 | 69 | 142 | 320 | 150 | 33.4 |
| D50 | 88 | 186 | 330 | 150 | 28.9 |
Understanding the 3 Ton Screw Jack: Structure, Functionality, and Benefits
Core Mechanical Architecture
The main part of the design is a precisely carved worm gear that turns a trapezoidal holed screw. The high-strength cast iron housing is very good at reducing vibrations, and the heat-treated alloy steel (usually 42CrMo) worm shaft engages with a bronze worm wheel to reduce friction coefficients. This combination of metals gives lifting speeds between 1.5 and 4 millimeters per revolution, which lets operators get exact positioning tolerances that are important for assembly line work and leveling structures.
The lifting screw goes through a lot of tough heat treatments, like quenching or tempering, to get its surface hardness to between HRC 58 and 62. This mechanical standard stops threads from wearing out too quickly, even when they are loaded and unloaded many times. Bronze alloys (ZCuSn10Pb1) are used for heavy-duty uses, while engineering plastics are used for lighter-duty situations that need chemical protection.
Operational Advantages Across Industrial Settings
3 Ton Screw Jacks that are mechanical are used to fix certain problems with hydraulic systems in factories. The self-locking ratio, which is usually more than 20:1 in Acme thread configurations, keeps the load from falling down by accident. This built-in safety feature comes in very handy during long checks of a vehicle's undercarriage or when holding building members during repairs.
Cost efficiency is more than just thinking about the original buy. Its simple mechanical design means it can work in temperatures from -20°C to +80°C without the need for extra heating or cooling systems. Maintenance periods are much longer than for hydraulic peers because there are no seals to change, fluids to keep an eye on, or pumps to fix. The strong construction can handle harsh environments like marine applications, bridge maintenance projects, and construction sites outside where the weather can shorten the life of equipment.
Another useful benefit for workers and repair teams is portability. Because they have small footprints, they can be installed between machine parts or under car frames, which isn't possible with regular floor jacks. The space-saving shape keeps its full lifting capacity even though it has to work with limited dimensions. This means that multiple units can be used at the same time for coordinated lifting operations.
Manual and Motorized Configuration Options
Manual operation with a rotating handle gives the user full control without relying on a power source. This is a huge benefit for work that needs to be done in rural areas or during emergencies. Because the worm gear system has a mechanical advantage, less force is needed to move it. This means that heavy loads can be safely lifted by one person.
Electric motor-driven versions speed up the lifting process for factories that make a lot of things. Motor-driven units usually have brakes to help with mechanical self-locking, especially when working with moving loads or in places that are prone to shaking. Whether a configuration is powered or manual depends on the duty cycle needs, the infrastructure that is available, and the operational priorities.
Operating and Maintaining Your 3 Ton Screw Jack for Optimal Performance
Safe Operation Procedures
To use a 3 Ton Screw Jack safely, you must first figure out how much weight is on it. During production, each unit is put through a static load test at 1.5 times its rated capacity (4.5 tons) to make sure the structure is sound. Before lifting, operators should check the load's weight and make sure it rests evenly on the mounting surface. Putting the jack right under the center of gravity of the load stops horizontal forces that could make the load less stable.
Before you start pulling, check to see if the mounting area is level and can hold the weight. If the surface isn't level, steel base plates may be needed to spread the forces out evenly. When using multiple jacks to lift at the same time, mechanical linkage through connecting rods and couplings makes sure that all lift points are at the same level. This is necessary when leveling heavy machinery or raising structural beams.
Maintenance Protocols for Extended Service Life
Systematic maintenance keeps operations running smoothly and stops costly downtime. Extreme pressure lithium grease or synthetic gear oil made for high-load applications needs to be added to the worm gear housing on a regular basis. Regularly using open gear lubricant on external lifting screws keeps the threads from scoring and slows down the rate of wear.
Several important factors should be checked during routine checks. Using dial indicators to measure axial backlash makes sure that the positioning accuracy stays within the acceptable range. Standard backlash is between 0.15mm and 0.25mm, and anti-backlash models keep tolerances below 0.05mm. By looking at the thread surfaces with the naked eye, you can find early signs of galling or strange wear patterns that could make the threads less able to hold weight.
In toxic environments, protecting the environment makes tools last longer. Anticorrosion coatings and optional dust covers keep dirt and other things from getting into internal parts. Cleaning the outside of things that have been in marine environments or chemical processing areas gets rid of corrosive residues before they get through protective coatings.
Troubleshooting Common Operational Issues
Recognizing early danger signs lets people act quickly. Higher input force needs could mean that the thread isn't properly oiled or is contaminated. Damaged bolts or misaligned mounting hardware are common causes of pulling that doesn't move straight. Strange noises during operation should be checked out right away because they could mean that a bearing is wearing out or a gear tooth is damaged.
Professional buyers use non-destructive testing methods to find problems below the surface. Dye penetrant testing on lead screw threads shows tiny cracks that can't be seen with the naked eye. If these tiny flaws aren't fixed, they will get worse under repeated loading until a catastrophic failure happens. Regular NDT screening during planned maintenance intervals keeps equipment from breaking down when it's needed most during important operations.
Comparing 3 Ton Screw Jack With Alternative Lifting Solutions
Mechanical Versus Hydraulic Lifting Systems
The main difference between mechanical 3 Ton Screw Jacks and hydraulic alternatives is how the power is transferred and how the jacks work. Pressurized fluid in hydraulic systems allows for fast moving speeds, which makes them useful for high-cycle uses that need to be moved around a lot. In stationary situations where loads stay high for long periods of time, this speed advantage becomes less important.
In precision uses, hydraulic drift, which is the slow loss of position caused by internal seal leaks, is a constant problem. Mechanical 3 Ton Screw Jacks don't have this problem because they can automatically lock themselves. Once they are in place, loads stay at the same height forever without needing constant power or stopping force. This quality is very important for precise building tasks, leveling structures, and supporting loads for a long time.
The level of difficulty in maintaining these systems is very different. Regular checks of the fluid, replacement of seals, and maybe even rebuilding of the pump are needed for hydraulic systems. When hydraulic fluid leaks damage nearby equipment or work areas, the risk of polluting the environment goes up. On the other hand, mechanical jacks only need to be oiled and checked every so often, which can be done with simple tools and little training.
Electric Screw Jacks Versus Manual Models
Motor-driven 3 Ton Screw Jacks work well in production settings where lifting things often is worth the investment in automation. Electric actuation shortens cycle times and keeps operators from getting tired when they have to do the same thing over and over. When programmable logic controllers are integrated, precise position control is possible in automated manufacturing cells.
Manual models work best in situations where they need to be used in places without stable electrical connections or where they need to be lifted occasionally. Since there are no electrical parts, there is no chance of an explosion happening in dangerous places with flammable gas or dusts that can catch fire. Because they are safer by nature, manual 3 Ton Screw Jacks are better for maintenance work in chemical plants, grain handling businesses, and oil refineries.
Duty cycle limits should be thought about. Standard Acme thread configurations work well at 20 to 30 percent duty cycles because they create heat through friction. For continuous operation, ball screw versions that achieve 90% efficiency are needed, though they cost more and can't self-lock as well. Matching the configuration of the jack to the needs of the operation improves performance and keeps costs low over its lifetime.
Procurement Guide: How to Select, Source, and Purchase the Best 3 Ton Screw Jack
Critical Specification Evaluation
Verification of load ability goes beyond nominal numbers. Professional buying teams look at safety factors—usually 4:1 for industrial uses—to make sure that the stated capacity leaves enough room for unexpected loading conditions. Dynamic load testing at 1.25 times capacity confirms that power transmission is smooth in real-world settings.
Specifications for materials have a direct effect on how long they last and how well they work in different environments. The best strength-to-weight rates for general industrial use can be found in alloy steel building. Stainless steel types don't rust in places like the ocean, food processing plants, and chemical plants where regular steel would break down quickly. Cast steel is very good at resisting shocks for uses that involve vibration or impact loading.
Certification and Compliance Standards
Quality assurance certifications show that the producing process is controlled and the result is reliable. Getting ISO9001 certification shows that you manage quality in a planned way throughout the whole production process. The CE mark shows that the product meets European safety standards for mechanical equipment. DIN, AGMA, and EN guidelines, which are industry-specific, make sure that measurements are correct and that performance is consistent.
Each unit should come with testing paperwork that shows the load capacity through real tests, not just theoretical estimates. Dimensional verification records show that the production tolerances meet the standards set by the specification. Surface treatment inspection records show how thick the coating is and how well it sticks to the surface. These are two things that directly affect how resistant the material is to corrosion and how long it lasts.
Supplier Evaluation and Sourcing Strategy
Established companies that have been making Products" target="_blank" style="color:blue" >products for decades are more reliable than new companies that are just starting out. FLA Industrial & Trading Co., Ltd. has been making precision lifting equipment for almost 40 years and works with Fortune Global 500 companies in the manufacturing, construction, and automotive industries. This long-term business shows that quality control and technical skill development are ongoing.
Response time is a practical thing to think about when buying something. It's easier to stick to a project timeline when suppliers give technical feedback and quotes within 24 to 48 hours. Customization lets you meet non-standard needs like mounting setups, longer travel lengths, or unique material choices that can't be met by standard catalog goods.
Total ownership cost is affected by the system for after-sales assistance. Full expert support from the first design meeting to the final delivery makes sure that the right equipment is chosen and used. When maintenance needs to be done, having replacement parts on hand cuts down on downtime. The terms of the warranty show that the manufacturer is confident in the durability and quality of the product.
Applications and Industry Use Cases of the 3 Ton Screw Jack
Automotive Repair and Service Operations
3 Ton Screw Jacks are used by auto repair shops to safely reach the underside for work on the brakes, transmission, and exhaust system. The self-locking mechanism makes sure that mechanics are safe during long procedures that take place under vehicles that are raised. Small sizes let you place them between frame rails and suspension parts, which is where regular floor jacks can't go.
Synchronized 3 Ton Screw Jack systems are used on assembly lines to precisely place parts while cars are being made. Multiple units connected by mechanical links keep the height of all support points the same. This stops stress concentrations that could damage vehicle structures. Accurate positioning over and over again helps meet the quality control needs of current car production.
Construction and Structural Applications
When renovating a building, 3 Ton Screw Jacks are used to hold the structure temporarily while beams are being replaced and foundations are being fixed. Verifying load capacity through approved testing gives engineers peace of mind when supporting important structure elements. The mechanical self-locking feature takes away any worries about the foundation slowly sinking over several days of construction.
3 Ton Screw Jacks are used for controlled lifting during bearing replacement and expansion joint service, which is an important part of bridge maintenance. The equipment's ability to stay in place precisely even when temperatures change and traffic vibrations happen protects workers while infrastructure is being fixed. Corrosion-resistant coatings make things last longer outside where they are exposed to harsh weather and chemicals used to melt ice.
Manufacturing and Production Environments
When machine leveling, for example, precise positioning has a direct effect on the quality of the work that is produced. Installing 3 Ton Screw Jacks under heavy machinery allows for small adjustments, which keeps the machinery level even if the floor moves or the temperature rises. The fixed installation feature allows for long-term load handling without the upkeep issues that come with hydraulic systems.
3 Ton Screw Jacks are used to change the height of a conveyor system so that it can accommodate changes in product size or workflow configuration. Controlled lifting speeds stop sudden moves that could hurt automatic machinery or mess up production systems that work together. Synchronized multi-jack installations keep the alignment of the belts over long conveyor spans.
Conclusion
When choosing the right lifting tools, you need to think carefully about the load requirements, the working area, and the long-term reliability needs. 3 Ton Screw Jacks have been used for years in building, manufacturing, and car repair jobs where accuracy, safety, and trustworthiness are very important. Inherently safer, the self-locking mechanism keeps loads securely positioned, and simple maintenance requirements keep costs down over a long service life. Working with experienced manufacturers to get this important equipment will make sure that the quality of the products, their expert support, and their ability to be customized meet your unique operational needs.
FAQ
What maintenance frequency do you recommend for heavy-duty applications?
The length of time between inspections depends on the duty cycle intensity and the environment. For normal industrial use, inspections every three months are enough to check the condition of the threads, make sure there is enough oil, and measure the backlash tolerances. Applications with a lot of cycles or settings that rust should be checked every month. Usually, lubrication needs to be changed every 500 hours of operation, but the exact time depends on the load and the temperature outside. Recording the results of inspections creates trend data that shows how things wear down over time before they become dangerous for use.
Can screw jacks safely lift uneven or off-center loads?
Load eccentricity adds lateral forces that make things less stable and speed up wear. When you put the 3 Ton Screw Jack right under the center of gravity of the load, the forces are spread out evenly across all the mounting surfaces. When the shape of the load makes it impossible to place it in the middle, using multiple timed jacks spreads the forces out evenly. Finding the moment arm that results from the load offset helps you decide if you need more support points. Talking to technology experts before implementing something makes sure it is safe when the application limits the best placement.
Which certifications should procurement teams prioritize?
The ISO9001 certification shows that the quality management is systematic, and the CE marking shows that the product meets European safety standards. Technical assurance is given by industry-specific standards like DIN dimensional specs and AGMA gear quality grades. Load testing records that show real performance at stated capacity are more convincing than certification promises. Material certifications that confirm the compositions of alloys and the processes used for heat treatment make sure that the metallurgical properties meet the needs of the application. This is especially important in safety-critical installations where a failure of a component could hurt someone or damage property.
Partner With a Trusted 3 Ton Screw Jack Manufacturer for Superior Lifting Solutions
FLA Industrial & Trading Co., Ltd. combines nearly four decades of manufacturing expertise with comprehensive quality management systems, delivering precision lifting equipment to discerning industrial buyers worldwide. Our engineering team responds within 24-48 hours with detailed technical specifications and application guidance tailored to your operational requirements. Every unit undergoes rigorous testing protocols including static load verification at 1.5 times rated capacity and dimensional accuracy checks ensuring ISO9001 and CE compliance. Whether you require standard configurations or custom solutions with specialized mounting arrangements and extended travel lengths, our production capabilities accommodate diverse procurement needs. Contact our technical specialists at sales@flaindustrial.com to discuss your lifting requirements and receive competitive pricing backed by responsive after-sales support that keeps your operations running smoothly.
