Can an Industrial Screw Jack Improve Equipment Alignment During Factory Installation?

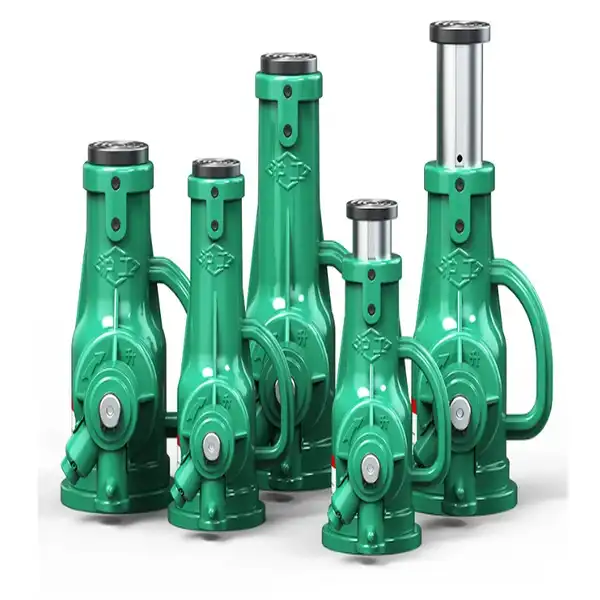

Yes — an industrial screw jack can significantly improve equipment alignment during factory installation. These mechanical lifting devices convert rotary motion into precise linear movement, allowing engineers to make fine, controlled adjustments to heavy machinery with sub-millimeter accuracy. Unlike hydraulic systems that are prone to pressure drift or fluid leaks, a screw jack holds its position mechanically, which means once you set a load, it stays there. For factory teams dealing with tight tolerances, heavy base frames, or multi-point synchronization requirements, this level of control makes a measurable difference in installation quality and long-term machine performance.

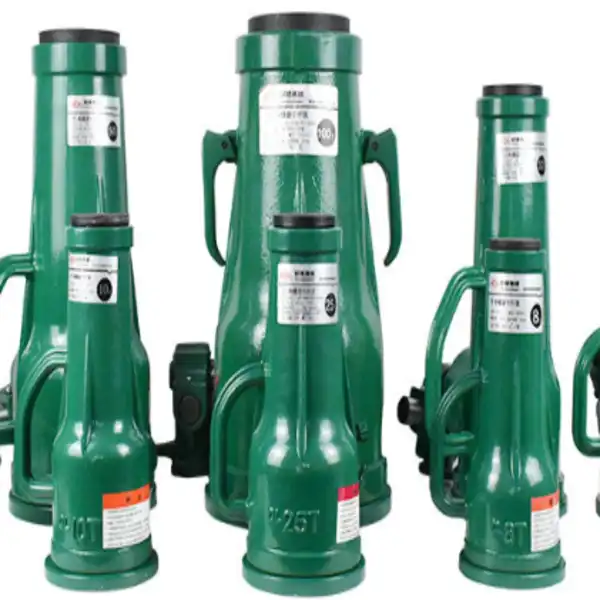

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3

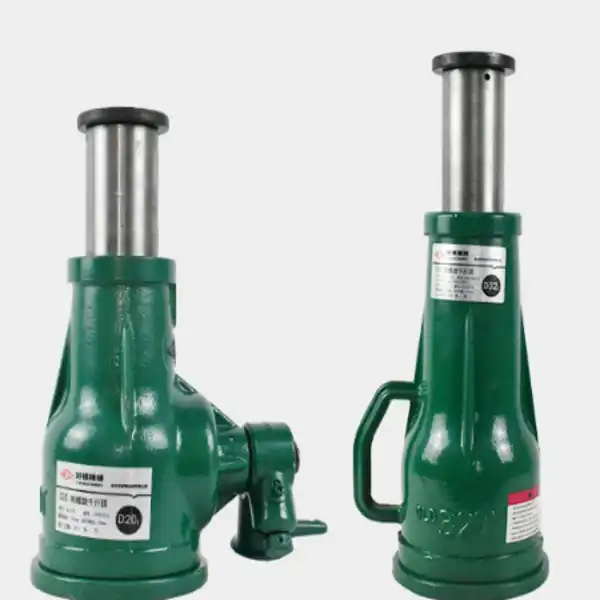

D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks and Their Role in Equipment Alignment

What Is a Screw Jack and How Does It Work?

A screw jack is an electrical device that changes rotational input into linear output by using a worm gear set to move a lead screw, which usually has an Acme or trapezoidal thread. The housing holds the gearbox assembly in place, and the lead screw, which is usually made of alloy steel that has been quenched or tempered, sends force to the load. Materials for nuts, like bronze or engineering plastics, cut down on friction and make them last longer. This mechanical setup allows for controlled, repeated motion, which is exactly what is needed for precise equipment positioning.

Types Available for Factory Use

For factory installation jobs, there are three main options. For low-frequency changes in tight areas, manual screw jacks work well. Electric types have motors that let workers control the lifting speed and position from a distance. This makes them perfect for multi-point lifting that is coordinated. Pneumatic types work well in places where electrical equipment could be dangerous. One benefit of all of them is that they are mechanically self-locking. Trapezoidal screw types can stay in place without constant power, which is something hydraulic cylinders can't do.

Key Technical Properties Worth Knowing

The dynamic load capacities of screw jacks range from 2.5 kN to 3,500 kN, according to data from the industry. A lot of the time, gear ratios are between 5:1 and 32:1. Ball screw versions can go up to 300 mm/s in straight motion. For shock protection, the housing is made of gray cast iron (GG25) and ductile iron (GGG40). Worm shafts are made of hardened alloy steels like 42CrMo and are paired with bronze wheels that don't wear down easily. This makes them strong enough to handle heavy loads for long periods of time.

Challenges in Equipment Alignment During Factory Installation

Why Misalignment Is a Serious Problem?

When fitting isn't done correctly, mechanical misalignment puts extra stress on bearings, connections, and seals. Studies in the field of maintenance engineering show that about half of all failures of rotating equipment are caused by the shaft not being aligned correctly or the baseframe not being leveled correctly when it was installed. A small change of 0.1 mm in a big pump or compressor can make bearing wear three times faster. These aren't small numbers when you think about how much unexpected plant shutdown costs, which is often thousands of dollars per hour.

Limitations of Conventional Alignment Methods

Traditional means, such as shims, wedges, or hydraulic cylinders, have real flaws. Shims need to be moved by hand several times and are sensitive to shifting caused by vibrations. When under active load, hydraulic systems work perfectly, but when they are static for a long time, they leak fluid and lose pressure. The mechanical rigidity that an Industrial Screw Jack worm-gear lifting screw offers is not offered by either method. For installations that need to keep a multi-ton machine at a set height for hours while other parts are attached, these common tools don't always work.

Safety and Compliance Risks

As you can see, bad alignment doesn't just damage tools; it also puts close workers in danger. According to OSHA rules, machinery systems must meet certain levels of steadiness. When teams rush through alignment with tools that aren't up to the task, they run the risk of reaching load limits or making conditions unsafe. Picking a positioning device that works well physically from the start cuts down on rework, keeps the project on track, and makes it easier for site managers to meet the paperwork requirements for compliance without stress.

Advantages of Using Industrial Screw Jacks for Equipment Alignment

Screw jacks directly fix the main problems with traditional ways of aligning things. For your next factory installation project, here are the main benefits you should think about:

• Micro-adjustment capability: The worm gear mechanism allows incremental positioning with high repeatability, enabling operators to dial in exact equipment height or angle without overshoot.
• Mechanical self-locking: Trapezoidal screw models automatically lock the load in position when input force is removed. No external brake or power supply is needed to hold position during extended installation work.
• Synchronized multi-point lifting: A single motor can drive multiple jacks through connecting shafts and miter gearboxes. This keeps all lifting points moving in unison — critical when leveling large base frames or industrial skids across four or more contact points.
• Corrosion-resistant construction: Spray-painted or corrosion-resistant coated surfaces, combined with optional dust covers and lubrication interfaces, extend service life in harsh factory environments including steel mills, HVAC plants, and outdoor solar installations.
• Certification compliance: Quality-grade units meet ISO 9001, CE, and DIN/AGMA/EN standards, supporting procurement teams that need traceable documentation for safety audits.

rust-resistant construction: Spray-painted or coated surfaces that are resistant to rust, along with available dust covers and lubrication interfaces, make the product last longer in harsh workplace settings like steel mills, HVAC plants, and outdoor solar installations.

Quality-grade units meet ISO 9001, CE, and DIN/AGMA/EN standards, which helps procurement teams that need safety checks to have paperwork that can be tracked.

How to Select the Right Industrial Screw Jack for Factory Installation Projects?

Match Load Capacity to Your Application

Before choosing an Industrial Screw Jack unit, you should figure out how much weight is on each jack, as well as any forces that might change during use. A jack that is rated at the exact amount you need doesn't offer any extra safety. It is common practice in the industry to choose a unit that can handle at least 1.5 times the maximum load. Make sure that the treatment of the lead screw (tempered or quenched) fits the duty cycle needs of your installation.

Choose the Right Drive Mechanism

When changes need to be made rarely and the load is low, manual jacks can be used. Electric motor-driven models are the best choice for factory installations that need speed or can be controlled from a distance. When installing big pieces of machinery, you may need to sync up more than one lifting point. To do this, look for setups that allow mechanical shaft coupling between units. Ball screw versions move faster, but they need a stop motor to stay in place because they aren't designed to do that on their own.

Evaluate Build Quality and Certifications

Not all lifting jacks work the same when they're under constant load. Check to see if the product is ISO 9001 certified, has a CE mark, and meets important measurement standards such as DIN or AGMA. Look for companies that can give you information on axial backlash tests, static overload tests (with a 1.5× stated capacity), and the strength of the materials used for both the worm shaft and the bronze wheel. These quality checks make sure that the unit will work as expected for as long as it's supposed to.

Practical Guide: Using Screw Jacks to Improve Equipment Alignment

Step 1 — Pre-Installation Setup

Place each jack at its designated support point under the frame of the equipment. Make sure the surface of the base is flat and can hold the load that has been spread out. If your system is timed, connect the lifting shafts between the units. Before putting any weight on it, make sure that the lubrication surfaces are filled the way the maker says they should be.

Step 2 — Incremental Adjustment for Accurate Positioning

Gradually add load, and use dial indicators or laser alignment tools to keep an eye on the position at all times. Do not try to move big lengths quickly; instead, make small, measured rotations of the input. Use the fine control that the worm gear ratio gives you. Keep track of each adjustment value so that you can repeat or go backward with the positioning if needed during the final alignment check.

Step 3 — Maintenance to Prevent Alignment Drift

After the work is done, check the jacks regularly. As needed, re-oil, check the bronze nut or lead screw thread for wear, and make sure that dust covers stay in place in rough places. As a failsafe against over-travel, put mechanical stop nuts on the screw. You might also want to add external limit switches to cut the motor's power before it hits something.

Conclusion

Installing factory equipment with an Industrial Screw Jack is more accurate in terms of position and more stable mechanically than other ways. These devices solve real problems that engineers and buying teams face every day, from small changes during the initial baseframe leveling to long-term static load support. Making sure you choose the right model with the right load grade, drive type, and approved build quality can mean the difference between a clean installation and one that needs to be serviced often. A simple way to improve installation results for hardware stores, construction companies, and plant engineering teams is to add quality lifting jacks to their list of things to buy.

FAQ

Can one motor drive multiple screw jacks simultaneously?

Yes. With connected shafts, couplings, and miter gears, a single motor can move two, four, or more jacks that work together mechanically. This is a common way to set up support points for lifting big industrial skids or base frames, where making sure that all of them are the same height is important for alignment.

Are all screw jacks self-locking?

No, trapezoidal (machine) screw jacks usually lock themselves in place by thread friction, which means they don't need power. Ball screw jacks don't lock themselves; they need a stop motor to stay in place. Before specifying a unit for static load support during installation, you should always check to see what kind of screws it uses.

How often should screw jacks be lubricated during continuous factory use?

How often you need to lubricate depends on the load and job cycle. Under normal intermittent use (20–30% duty cycle), check and re-grease every 500 hours of use or as directed by the manufacturer. Applications that are used all the time or on a regular basis may need to be serviced more often. The worm gear and lead screw system won't wear out as quickly if the lubrication contact stays clean and full.

How do I prevent screw over-travel?

As a backup plan, put mechanical stop nuts on the screw and add electric limit switches or proximity sensors on the outside to cut power before the screw hits its mechanical stop. This two-layer protection keeps both the jack and the equipment being placed from getting damaged.

Partner with FLA Industrial & Trading Co., Ltd. for Precision Lifting Solutions

Every product that FLA Industrial & Trading Co., Ltd. sells is made with almost 40 years of experience. Our Industrial Screw Jacks are made to meet ISO 9001, CE, and DIN/AGMA/EN standards and come in a wide range of load sizes, drive setups, and surface treatments. Our team gets back to you within 24 to 48 hours with pricing and technical details, whether you are a hardware wholesaler looking for bulk SKUs or a plant engineer looking for a precision lifting device for a new installation. You can email us at sales@flaindustrial.com or go to flaindustry.com to talk about your needs as a reliable screw jack supplier.
