Stainless Steel Rope Clip for Food Processing Equipment and Washdown Areas

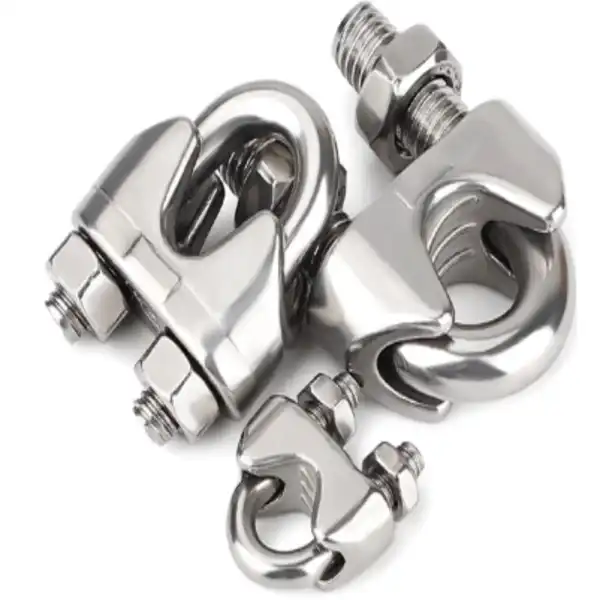

A stainless steel rope clip is a precision-engineered wire rope fastening component used to secure, terminate, or connect wire rope ends in demanding environments. In food processing facilities and washdown areas, these clips face constant exposure to moisture, cleaning chemicals, and strict hygiene regulations. Grades 304 and 316 stainless steel are the standard material choices, with 316 offering superior chloride resistance for wet zones. For B2B buyers—whether purchasing managers, procurement engineers, or site supervisors—selecting the right wire rope clip directly affects equipment safety, regulatory compliance, and long-term operational cost.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips in Food Processing Applications

Some of the harshest conditions that hardware can be put through are in food processing plants and washdown zones. Materials that don't rust and don't hold germs are needed because of high-pressure water jets, acidic cleaning Products" target="_blank" style="color:blue" >products, and strict FDA or USDA cleanliness standards.

Why Wire Rope Fasteners Are Critical in These Environments

The safety guard lines, ceiling rigging, and tensioning systems for conveyors are all held in place by wire rope clips. If just one clip breaks or corrodes, it can slow down equipment or, worse, lead to a safety issue. Stainless steel wire rope clamps don't break when they're washed over and over again, but carbon steel or galvanized clamps would pit and rust in just a few weeks.

Material Grades: 304 vs. 316 in Food-Grade Settings

Grade 304 stainless steel can be used in a wide range of indoor settings, from dry storage places to light-moisture zones. Grade 316 has 2–3% molybdenum in it, which makes it much more resistant to the chlorides that are in cleaning products. The standard in the food preparation business is 316 for any direct-contact or high-moisture area.

Load Capacity and Hygiene Compliance Together

A wire rope clip needs to be able to clamp things together and have a surface that bacteria can't stick to. It is better to have forged saddle clips with polished surfaces because smooth, bright steel finishes leave fewer surface bumps where dirt can gather. This takes care of both food safety requirements and structural load requirements at the same time.

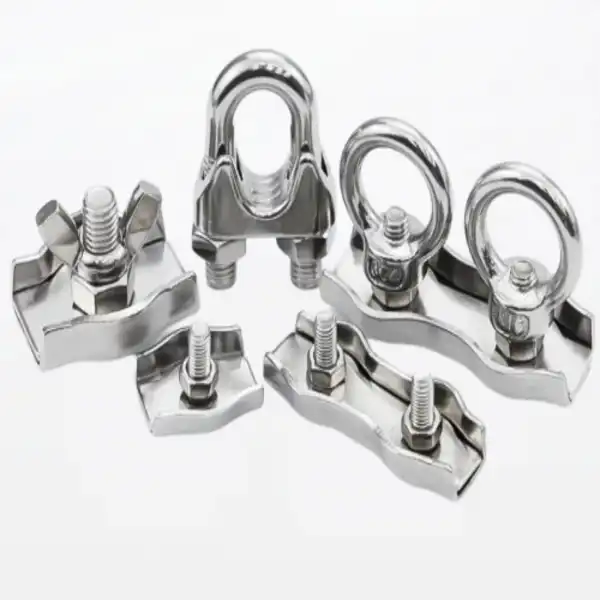

Types and Specifications of Stainless Steel Rope Clips for Hygienic Environments

It's not enough to just pick a size when choosing the right clip type. Whether or not a clip will last through years of daily washing depends on its form, grade, and surface state.

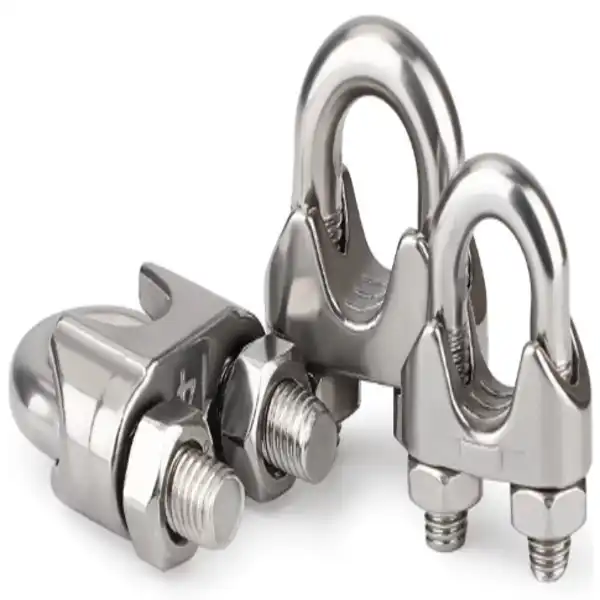

Forged Saddle vs. Cast Saddle Designs

High-pressure forming is used to make forged Stainless Steel Rope Clip saddle clips, which give them a denser grain structure and higher tensile strength. Cast saddle clips are cheaper, but they have a slightly higher risk of porosity, which can be a problem in food-grade settings where the consistency of the surface is important. A skilled procurement worker will tell you that forged designs are best for washdown uses.

Size Range and Load Ratings

Standard wire rope clamps are available in sizes M2 to M32, which cover the rope diameters that are usually used for safety restraints, equipment rigging, and conveyor systems. Each size has a different working load limit (WLL), and people who buy things for food processing should always make sure that the WLL is higher than the maximum predicted load for the application by a safety factor that is right for the job, which is usually 4:1 or 5:1.

Installation Best Practices for Food-Grade Environments

Correct installation has a direct effect on how well the holding works. One rule that is easy to remember is "never saddle a dead horse." The saddle should always be on the live end of the rope, never the dead end. The manufacturer's torque recommendations must be followed to the letter. It is best to re-torque after the first load. In places that are washed, anti-galling lubricant on the threads stops cold welding, which is known to be a problem with austenitic stainless steel bolts.

Comparing Stainless Steel Rope Clips: Optimizing Procurement Decisions

Before committing to a bulk order, procurement teams benefit from understanding how stainless steel wire rope clamps compare to alternatives and what quality markers to verify.

Stainless Steel vs. Aluminum Wire Rope Clips

Aluminum clips are lighter and lower in cost, but they lack the corrosion resistance and load-bearing strength required in washdown food processing environments. Stainless steel maintains mechanical properties across temperature fluctuations and chemical exposure. For any application involving sanitizers, steam cleaning, or outdoor exposure, aluminum is not an adequate substitute.

Certifications and Quality Standards to Verify

Here are the key certifications and quality marks buyers should confirm before selecting a supplier:

• ISO9001 certification confirms that the manufacturer follows documented quality management processes across production, from raw material sourcing through final inspection.
• CE marking demonstrates compliance with European safety and environmental standards, a useful benchmark even for U.S.-based buyers sourcing internationally.
• Salt spray testing (ASTM B117) validates corrosion resistance by subjecting samples to 72+ hours in a 5% neutral salt fog—critical for washdown environment performance.
• Positive Material Identification (PMI) using XRF spectrometry confirms the actual chromium, nickel, and molybdenum content, ensuring the batch is genuine 316 or 304 grade and not a substandard substitute.

These checks protect procurement teams from receiving non-compliant goods that could fail regulatory audits or create liability risks on the production floor.

Bulk Pricing and Supply Chain Considerations

Lead times, minimum order quantities (MOQ), and packaging quality directly affect the total procurement cost. Buyers sourcing stainless wire rope fittings in volume should request test reports alongside samples before placing large orders. Suppliers with 2,000+ tons of stocked inventory can fulfill standard specifications quickly, reducing project delays.

Procurement Best Practices for Stainless Steel Rope Clips in Food Processing Industry

When buying Stainless Steel Rope Clip hardware for food preparation plants, you have to be more careful than when buying hardware for other businesses. More weight is given to compliance, traceability, and supplier reliability.

Evaluating Suppliers for OEM and Custom Requirements

Standard rope diameters and shapes aren't always used in food preparation. Custom-sized clips are often needed by facilities with their own unique conveyor designs or rigging setups. Custom-shaped parts can be sent by manufacturers that offer OEM services and 3D design approval in as little as 7–15 days. This is a lot faster than getting them from catalog-only distributors, which increases project wait times.

Verifying Compliance Documentation

Every supplier should give procurement engineers full compliance documentation, such as material test reports (MTRs), dimensional inspection records, and load test data. This paperwork backs up internal quality checks and shows that care was taken when getting ready for third-party food safety checks like FSMA or SQF reviews.

Building a Reliable Supply Chain

A supplier who already knows how to handle logistics for the U.S. market, such as consistent packaging standards and quick technical support, makes the buying process easier. Response times for price requests, weight proof, and drawing review should be between 24 and 48 hours for a provider that you want to work with for a long time.

Case Studies and Future Trends in Stainless Steel Rope Clips for Food Processing

Food processing plants that switched from galvanized wire rope clamps to equivalents made of 316 stainless steel saw a drop in the number of times they had to replace them for maintenance reasons. After switching to forged 316 clips in their overhead conveyor system, one chicken processing company saw a 60% drop in the number of times they had to change clips. This saved them money on labor and downtime.

Emerging Material and Coating Technologies

In the production of clean tools, advanced electropolishing methods are becoming more popular. Electropolishing gets rid of the iron on the surface, makes the passive chromium oxide layer thicker, and creates a finish on the surface that is better at keeping bacteria from sticking than regular mechanical cleaning alone. Some companies now make electropolished Stainless Steel Rope Clips that are designed to work in food and drug environments.

Anticipating Regulatory Shifts

The Food Safety Modernization Act (FSMA) in the United States keeps pushing places to clean their tools more thoroughly. When rules get stricter, procurement professionals who build relationships with suppliers now—with companies that can make certified, trackable hardware—will be in a better position. Buying compliant screws now will save you money on reaction updates in the future.

Conclusion

It's not easy to choose the right Stainless Steel Rope Clip for areas that handle food and are cleaned up afterward. How well these parts work when exposed to chemicals and water every day depends on the type of material used, the design, the surface finish, the load rate, and the supplier's certification. For applications that need to be clean, forged saddle clips made of Grade 316 stainless steel with polished finishes are the best choice. Certifications that have been checked, proof of compliance, and a provider that can customize products for OEMs are the things that set reliable buying apart from expensive guesswork.

FAQ

Which stainless steel grade is better for washdown areas: 304 or 316?

Grade 316 is the preferred choice for washdown environments. Its molybdenum content provides substantially better resistance to chlorides found in cleaning agents and sanitizers. Grade 304 is suitable for dry or low-moisture settings but is not recommended for direct-contact food zones or areas subject to frequent chemical cleaning.

How many clips are needed to secure a wire rope end?

A minimum of three clips is the standard recommendation for most wire rope terminations. The number increases with rope diameter. Always follow the manufacturer's specification sheet for your specific rope size and load application.

Can I get custom-sized clips for non-standard food processing equipment?

Yes. Reputable manufacturers with OEM capabilities can produce custom-shaped wire rope clamps based on 3D drawings or sample parts. Standard lead times for custom production typically range from 7 to 15 days.

What is the correct saddle placement during installation?

The saddle must always bear on the live load-bearing end of the rope. Placing the saddle on the dead end reduces holding efficiency and is a common installation error that compromises safety.

How do I confirm the material is genuine 316 stainless steel?

Request a material test report (MTR) and ask whether the supplier conducts PMI testing using XRF spectrometry. This method confirms the actual elemental composition of the batch before shipment.

Partner With FLA Industrial & Trading Co., Ltd. for Your Wire Rope Clip Needs

FLA Industrial & Trading Co., Ltd. has been making hardware tools, clamps, and industrial fittings for almost 40 years. They have customers in the U.S., Germany, and Australia, including Fortune Global 500 partners. We are a reliable source for Stainless Steel Rope Clips, and our goods come with ISO9001 and CE certifications. They come in types 304 and 316, and they come in sizes from M2 to M32. Requests for quotes are answered by our team within 24 to 48 hours, and our 2,000-ton inventory makes it possible for regular orders to be filled quickly. Need something not typical? Our OEM team makes clips that are specifically designed for food preparation machines.

You can get a quote right now by emailing sales@flaindustrial.com or going to flaindustry.com.

References

1. American Iron and Steel Institute (AISI). Stainless Steel: The Role of Molybdenum in Corrosion Resistance. AISI, 2018.

2. ASTM International. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM, 2019.

3. U.S. Food and Drug Administration. Food Safety Modernization Act (FSMA): Equipment and Utensil Standards for Food Facilities. FDA, 2021.

4. Wire Rope Technical Board. Wire Rope Users Manual, 4th ed. Wire Rope Technical Board, 2005.

5. British Standards Institution. BS EN 13411-5: Terminations for Steel Wire Ropes – Safety, Part 5: U-Bolt Wire Rope Grips. BSI, 2016.

6. Safe Food Alliance. Hygienic Equipment Design Standards in Food Processing Facilities. Safe Food Alliance, 2020.
