Can an Industrial Screw Jack Support Precise Leveling of Heavy Steel Mill Equipment?

Yes — an industrial screw jack can absolutely support precise leveling of heavy steel mill equipment. These mechanical actuators convert rotational motion into controlled linear movement through a lead screw and worm gear assembly, delivering sub-millimeter positioning accuracy even under loads exceeding hundreds of kilonewtons. Unlike hydraulic systems, a screw jack holds its position mechanically without continuous power input, making it well-suited for long-term load support in steel mill environments. With proper selection, installation, and maintenance, screw jacks provide the stability and repeatability that heavy rolling mills, press frames, and alignment platforms demand.

Specification

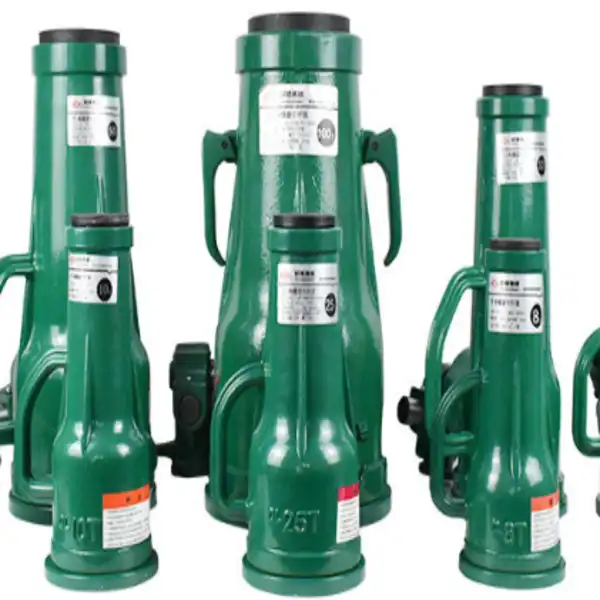

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3

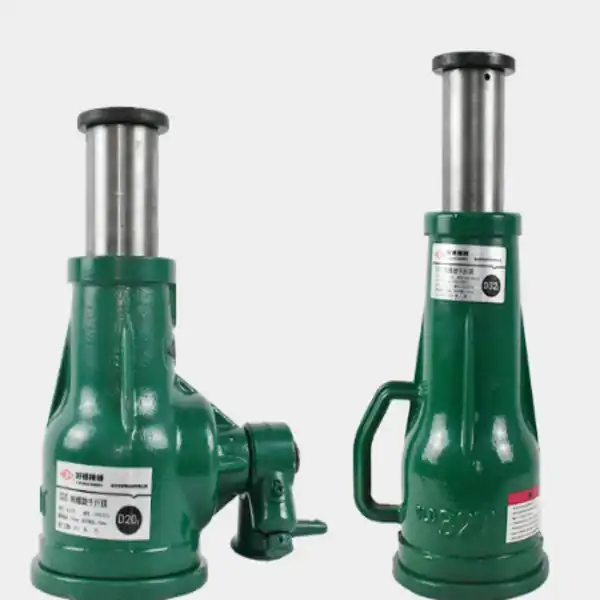

D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding the Role of Industrial Screw Jacks in Heavy Equipment Leveling

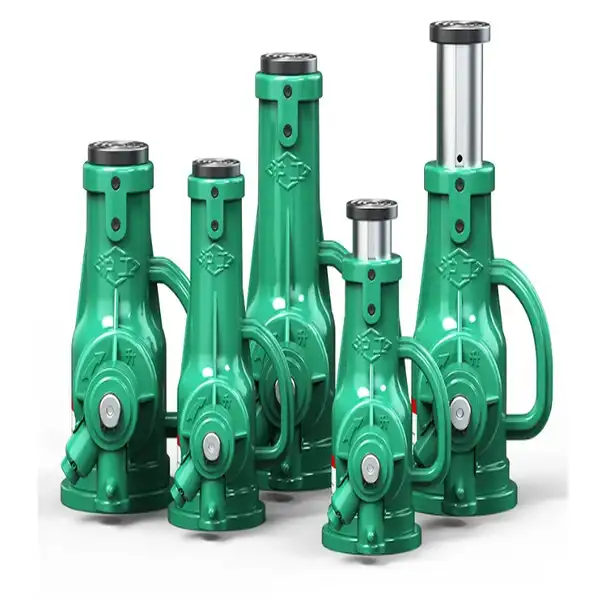

How a Screw Jack Works

A worm gear set drives a trapezoidal or Acme lead screw in a screw jack, which changes torque into linear force. The worm shaft turns the worm wheel, which moves the screw along its axis. One person can place things that weigh several tons with accuracy measured in tenths of a millimeter thanks to this mechanical setup that makes a lot of force from a small amount of torque.

Types Available for Steel Mill Environments

Heavy-duty industrial jacks come in three main types: manual, electric, and machine-screw jacks that are powered by gearboxes. Manual models are good for changes that don't happen very often, while electric models with motor mounts let you operate them from a distance and control multiple lifting points at the same time. Trapezoidal screw models automatically lock into place because the thread friction stops back-driving. Ball screw models are more efficient for frequent spinning but need a brake motor to stay in place.

Safety Features and Certifications

Good lifting jacks made for steel mill work have mechanical lock nuts, overload protection collars, and dust covers to keep threads safe from rough mill scale. When Products" target="_blank" style="color:blue" >products are certified to ISO 9001, CE, and appropriate DIN/AGMA/EN standards, procurement experts can be sure that the units will be the right size, made of good materials, and pass load tests before they even get to the job site.

Challenges in Precise Leveling of Heavy Steel Mill Equipment

Why Is Leveling Difficult in Steel Mills?

When steel is rolled, the floors of mills go through thermal cycles, base settlement, and steady shaking. If you measure the level of a mill stand when it is cold, it may move by a few millimeters when the temperature inside the mill goes above 200 °C. Because of these things, one-time shimming isn't a good idea; any static answer loses its accuracy as the building moves and the load and temperature change.

Limitations of Traditional Methods

In the past, people have mostly used hydraulic jacks and rigid shim sets instead of an Industrial Screw Jack. Over time, seals wear out, fluid leaks, and pressure changes in hydraulic systems. All of these problems are very dangerous in places with open flames or hot metal. For each small adjustment, shifting needs the whole machine to be turned off and taken apart. Neither method lets an engineer make fine-pitch adjustments over and over again without having to wait a long time.

Why Screw Jacks Address These Gaps?

With high-temperature seals and bellows boots that keep out scale and debris, a worm-gear lifting jack can handle the dirt and heat of steel mill work. Since the adjustment is only mechanical, there is no fluid that can leak or pressure that can change. The self-locking thread design keeps the position set indefinitely, even when the power is turned off. Hydraulic cylinders can't do this without extra holding valves.

How Industrial Screw Jacks Enable Precise Leveling: Technical Insights

Backlash Control and Fine-Pitch Lead Screws

The vertical gap between the screw and nut needs to be kept as small as possible for accurate positioning. To keep backlash to less than 0.05 mm, good machine-screw jacks have ground trapezoidal threads with controlled limits. Fine-pitch lead screws let you make very small adjustments: a small angle change causes very little linear progress, which is exactly what a steel mill's roller-gap setting needs.

Synchronized Multi-Jack Systems

Through connecting shafts, couplings, and miter gearboxes, a single motor can power more than one jack at the same time. This setup makes sure that all pulling points move at the same speed, which stops the angular twist that would throw off the alignment of a heavy mill frame. To balance speed and output torque for a certain load condition, engineers give gear ratios, which are usually between 5:1 and 32:1.

Maintenance Practices That Sustain Precision

Replacing the grease through the greasing contact on a regular basis makes thread and worm wheels last a lot longer. A dial indicator is used to check the axial backlash on a regular basis to make sure that nut wear hasn't affected the accuracy of positioning. If you replace the bronze or engineering-plastic nuts on time, before they wear down to the point where they damage the threads on the hardened lead screw, the system will keep working the way it was meant to.

Choosing the Right Screw Jack for Heavy Steel Mill Leveling

Matching Load Capacity and Safety Factor

Industrial Screw Jack models can hold between 2.5 kN and 3,500 kN of dynamic force. Before choosing a model, procurement engineers at steel mills usually add a safety factor of 1.5 to the calculated working load. Things used for housing are also important: It is important to keep this in mind near rolling-impact zones because GGG40 ductile iron can handle shock loads better than regular gray cast iron.

Actuation Type and Duty Cycle

Because the friction between the worm gears generates heat, standard worm-gear screw jacks are only rated for intermittent duty (20–30% of the time). For uses that need to move a lot or all the time, a bevel-gear or ball-screw version can handle the heat without getting too hot. With electric actuation and variable-speed drives, you can get feedback on the position and watch it from afar, so you don't have to go into dangerous places by hand to do inspections.

FLA Industrial & Trading Co., Ltd. Product Specifications

Fla makes screw jacks out of alloy steel, carbon steel, cast steel, and stainless steel. The lead screws are tempered or quenched to make them resistant to wear. Depending on the load and job cycle, nuts can be made of bronze or industrial plastics. Each unit has a covering that doesn't rust, a dust cover that can be added if desired, and a lubricant interface. Custom orders can be made with non-standard thread pitches, special flange mounts, and matched bellows boots for high-temperature or high-dust mill environments. All of these items ship within 7–15 days.

Real-World Case Studies: Screw Jacks in Steel Mill Precision Leveling

European Steel Mill Roller Gap Adjustment

A European flat-rolling mill got rid of its hydraulic gap-control cylinders and replaced them with electric machine-screw jacks that had high-temperature seals and protective bellows built in. After the installation, measurements showed that the rollers were parallel to within ±0.03 mm across a 2-meter roll face. This was something that the hydraulic system had never been able to do because of pressure drift. When hydraulic fluid servicing was taken away, the amount of time needed for yearly maintenance dropped by about 40%.

North American Facility Upgrade

A North American company that makes structural steel switched from hand-shimming to a timed four-jack electric system for four press-frame leveling places. The synced setup cut the time it took to adjust frames from a full shift to less than two hours. Set stroke limits automatically took into account thermal expansion during production runs. This cut scrap from uneven billets by about 15% in the first quarter after installation.

Key Lessons from Both Projects

Both projects show that choosing the right lead-screw pitch, using the right duty-cycle rates, and adding protective gear for the mill setting are the three choices that have the most impact on long-term performance. In terms of total cost of ownership, off-the-shelf jacks that were adjusted with seals and mounts made specifically for the job always did better than general hydraulic options.

Conclusion

Heavy steel mill equipment needs an Industrial Screw Jack that can stay in place, hold its load, and last for a long time in harsh conditions. The self-locking thread design gets rid of the risk of pressure drift in hydraulic systems, and synchronized multi-jack setups keep big frames lined up to within a few millimeters. Whether the system lasts for years or needs to be replaced early depends on how well the lead-screw pitch, housing material, job cycle rate, and protective accessories are chosen. Based on the case studies we looked at, it's clear that sites that make this investment see a clear drop in downtime, repair work, and product waste.

FAQ

Is every screw jack self-locking?

No. Trapezoidal machine-screw jacks are generally self-locking because thread friction prevents back-driving. Ball-screw jacks are not self-locking and require a brake motor to hold position when power is removed. Always confirm the screw type before specifying a jack for a static load-retention application.

How does maintenance compare to hydraulic jacks?

Screw jacks require periodic grease replenishment and nut wear inspection. Hydraulic systems need fluid changes, seal replacement, and monitoring for pressure drift. In contaminated mill environments, eliminating hydraulic fluid also removes a fire and leak hazard.

How do I prevent over-travel damage?

Install mechanical stop nuts on the screw as a physical fail-safe, and add external limit switches or proximity sensors to cut motor power before the screw reaches its mechanical stop.

Can one motor drive multiple jacks?

Yes. Connecting shafts, couplings, and miter gearboxes allow a single motor to drive two, four, or more jacks in mechanically synchronized motion — a standard configuration for leveling large mill frames.

What certifications should I require?

Specify ISO 9001 for quality-management traceability, CE for product safety, and compliance with DIN/AGMA/EN dimensional and gear-quality standards to ensure consistent performance and interchangeability.

Get a Quote from FLA Industrial & Trading Co., Ltd. — Trusted Screw Jack Supplier

FLA Industrial & Trading Co., Ltd. has been making Industrial Screw Jack products for almost 40 years and is certified by both ISO 9001 and CE. Our screw jacks can handle loads ranging from light-duty settings to heavy mill uses, and they can be customized in 7–15 days. Get in touch with our engineering team right away for details, 3D designs, or a quote on buying in bulk. To get your product catalog, email us at sales@flaindustrial.com or go to flaindustry.com.

References

1. American Gear Manufacturers Association (AGMA). AGMA 6022 — Standard for Design of General Industrial Coarse-Pitch Worm Gearing. AGMA, 2014.

2. Shigley, J. E., & Mischke, C. R. Mechanical Engineering Design. McGraw-Hill, 2011.

3. International Organization for Standardization. ISO 9001:2015 — Quality Management Systems: Requirements. ISO, 2015.

4. Deutsches Institut für Normung. DIN 103 — Trapezoidal Threads: Dimensions and Tolerances. DIN, 2010.

5. Spotts, M. F., Shoup, T. E., & Hornberger, L. E. Design of Machine Elements. Pearson Education, 2004.

6. World Steel Association. Steel Statistical Yearbook 2023. World Steel Association, 2023.
