Stainless Steel Rope Clip for Shipbuilding, Dockside Rigging and Marine Hardware

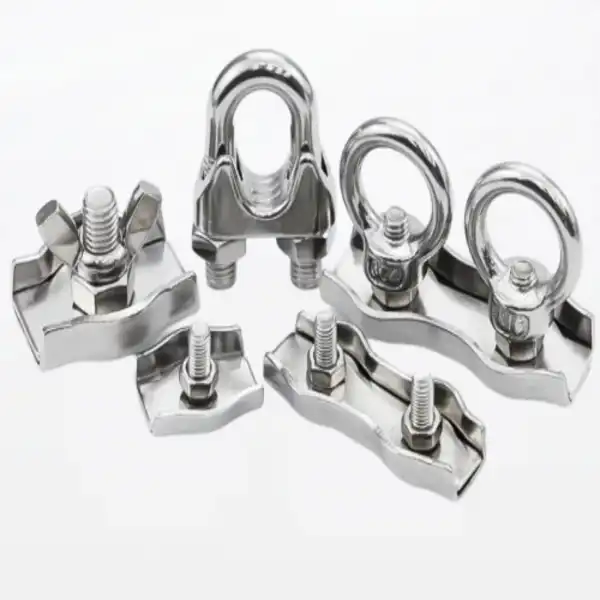

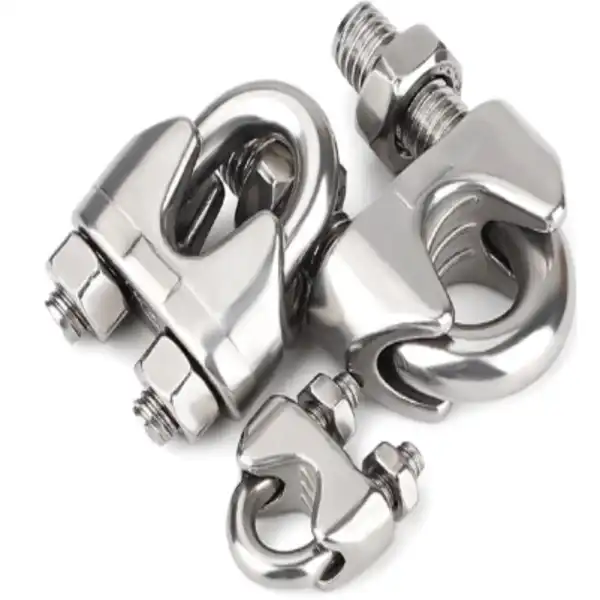

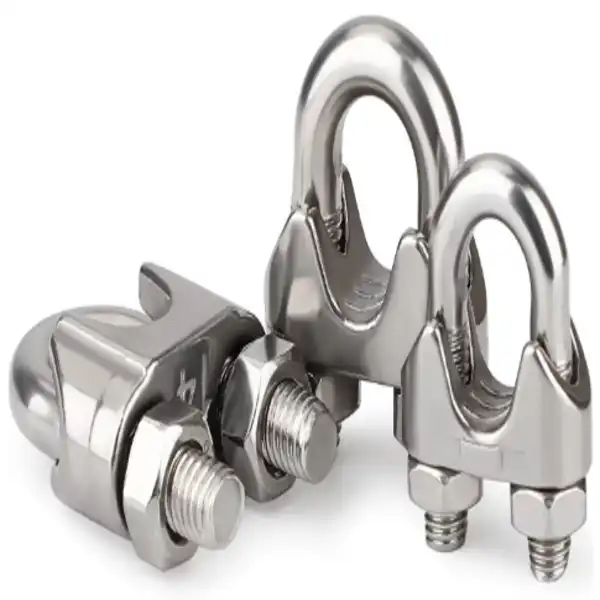

When it comes to securing wire ropes in demanding marine environments, a stainless steel rope clip is one of the most dependable fastening solutions available. These precision-engineered components — consisting of a U-bolt, a forged saddle, and two hexagonal nuts — are designed to terminate, connect, or form load-bearing eyes on wire ropes. Built from AISI 304 or 316 stainless steel, they resist corrosion, maintain structural integrity under dynamic loads, and perform reliably in saltwater exposure. For shipbuilding yards, dockside rigging crews, and marine hardware procurement teams, choosing the right wire rope clamp directly affects job-site safety and long-term operational cost.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips in Marine Applications

What They Are and How They Work?

The "live end" of a wire rope is clamped against the "dead end" of the rope in the saddle. Friction holds the two ends together. A set of clips can handle 80–90% of the rope's rated breaking strength when they are put together properly. Because of this, they are a good choice when swaging equipment isn't available on-site or when terminations need to be changeable in the field.

Common Types Used in Marine Settings

When building ships or working on docks, three configurations are used most often. Most of the time, U-bolts are used for general rigging. By holding both ends of the rope equally, the double-saddle clip gets rid of the "never saddle a dead horse" mistake. It is better to use the fist-grip or bolt-type clip for load-critical tasks like mooring lines and mast stays because it clamps more tightly.

Material Standards and Certifications

Grade 304 stainless steel works well in protected coastal or inland settings. Grade 316 adds 2–3% molybdenum, which makes it much more resistant to cracking caused by salt. This is why it is the standard for installations in open water and along the coast. Clips that you can trust have ISO9001 and CE certifications, and the sizes are usually checked against DIN 741 or similar standards.

How to Choose the Right Wire Rope Clamp for Marine Hardware?

304 vs. 316: Matching Grade to Environment

Which one you choose depends on how much salt and chemicals you will be touching it. 304 works well and doesn't cost too much for protected harbor structures or freshwater dock systems. 316 is the right standard for offshore platforms, boat rigging, and any other use that will be exposed to salt spray all the time. Using the wrong grade can speed up pitting rust and cause clips to break before they should.

Sizing and Load Compatibility

The diameter of the wire rope must be exactly the same as the size of the Stainless Steel Rope Clip. When put on 12 mm rope, a clip made for 10 mm rope will not hold as well as it is supposed to. Most product lines cover standards from M2 to M32, so they can be used for everything from light-duty ornamental wire setups to heavy industrial and shipyard rigging. Always compare the working load limit (WLL) to the load that is supposed to be applied with the right safety factor, which is usually 4:1 or 5:1.

Stainless Steel vs. Galvanized Alternatives

Galvanized clips are cheaper up front, but in saltwater, they turn white rust within months, which makes them look bad and weakens the structure. Stainless steel wire rope clamps don't need to be coated to protect them, and their mechanical qualities stay the same for a much longer time. The lower total cost of ownership makes stainless the best material to buy in bulk for naval sales or project supply for business-to-business buyers.

Installation, Maintenance, and Safety Best Practices

Step-by-Step Installation Guidelines

Correct installation follows a consistent sequence. First, form the wire rope eye to the required diameter. Second, place the saddle on the live end and the U-bolt over the dead end — never reverse this orientation. Third, tighten the nuts evenly to the specified torque for the clip size. Fourth, apply the initial working load, then re-torque the nuts to the same specification. The minimum number of clips per termination follows DIN 741 or ASME B30.26 guidelines based on rope diameter.

Routine Inspection and Maintenance

Inspect clips at regular intervals — at minimum before each use for critical rigging and quarterly for permanent installations. Look for thread deformation, saddle cracking, and corrosion at the U-bolt bends, where crevice corrosion concentrates. Re-torque nuts after any significant loading event. For stainless threads, apply a molybdenum disulfide or nickel-based anti-seize compound during installation to prevent galling, which is a common issue with austenitic stainless steel under high contact pressure.

Safety Compliance and Load Testing

Never exceed the stamped WLL without recalculating the full assembly. Load testing at 1.5× WLL before commissioning a new installation provides confidence in the clip set's performance. For overhead lifting applications, verify that clips carry an explicit lifting-rated designation — general-purpose DIN 741 clips are not approved for overhead lifting under OSHA 1926.251 without additional engineering review.

Procurement Insights: Sourcing Wire Rope Fasteners for Marine Projects

Wholesale Buying and MOQ Considerations

When business-to-business buyers buy a lot of marine-grade Stainless Steel Rope Clip fasteners, they get better prices per unit, faster lead times, and consistent batch quality. For both standard and special orders, most reputable makers set MOQs at levels that are easy to meet. Standard sizes usually have lead times of 7–15 days from the time the order is confirmed. Custom non-standard sizes may need a little longer to make. Make sure that each order comes with batch traceability paperwork, such as material certificates and test reports.

Evaluating Supplier Quality

Reliable suppliers set themselves apart by having clear quality control methods and certificates that can be checked. Some important quality checks are Positive Material Identification (PMI) using XRF spectrometry to prove 304 or 316 chemistry, salt spray testing according to ASTM B117 for at least 72 hours, measuring with measured thread gages, and tensile slip testing to make sure the part holds together well. Before committing to big orders, buyers should ask for sample batches and look over test results from a third party.

Packaging and Logistics for International Buyers

Proper packaging is important for hardware dealers and retailers who sell to the U.S. market. Clips should come in clear, labeled export boxes grouped by SKU and protected against surface scratches. The cartons should also have full packing lists and paperwork from the country of origin. As part of their quality management system, production facilities that have been verified to be ISO9001-certified keep written packaging standards.

Advantages of Stainless Steel Rope Clips in Shipbuilding and Marine Hardware

When shipyards and dockside contractors switch from galvanized to stainless wire rope clamps, they consistently report two measurable benefits: fewer maintenance cycles and fewer replacement cycles due to corrosion. Galvanized clips may need to be replaced every 12 to 18 months in a saltwater dockside mooring system, but 316-grade stainless clips in the same kind of service usually last 5 to 10 years with the right maintenance.

These are the main reasons why marine workers choose Stainless Steel Rope Clips over other types:

• Corrosion resistance in chloride-rich environments: The chromium oxide passivation layer, reinforced by molybdenum in 316 grade, resists pitting and crevice corrosion that would degrade standard steel within one season of saltwater exposure.
• Consistent tensile holding strength: Precision-machined saddle grooves and calibrated U-bolt thread engagement maintain 80–90% rope efficiency across the product size range, from M6 deck hardware clips to M32 heavy rigging clamps.
• Reusability and field adjustability: Unlike swaged fittings, wire rope clips can be repositioned and re-tensioned on-site, reducing rework cost when rigging configurations change during a project.
• Broad application range: A single product family covers yacht lifelines, cargo securing systems, overhead cable trays, and architectural cable railings, giving distributors a versatile SKU to serve multiple trade channels.

Because of these features, stainless wire rope clamps are a good long-term investment for buying teams that are in charge of large naval projects.

Conclusion

Picking a wire rope clamp that is properly rated and installed is a simple choice that can have big safety effects if not done right. 304 or 316 grade Stainless Steel Rope Clips offer the corrosion protection, tensile performance, and service life that shipbuilding, dockside rigging, and marine gear uses really need. For procurement teams in charge of large supply chains or project-specific sourcing, the easiest way to get reliable, legal Products" target="_blank" style="color:blue" >products is to work with a verified manufacturer who provides clear quality documentation. Pick based on grade, size, and approval, and then take care of what you put in.

FAQ

How do I match clip size to wire rope diameter?

The clip's saddle groove diameter must match the nominal wire rope diameter. For example, an M10 clip is designed for 10 mm wire rope. Using an oversized or undersized clip reduces clamping efficiency and may cause the rope to slip under load. Always follow the manufacturer's sizing chart and verify the WLL against your application.

How often should marine rope clips be inspected?

For permanent marine installations, inspect every three months and after any significant storm or shock loading event. Check for corrosion at U-bolt bends, thread deformation, and saddle cracking. Re-torque nuts to the specified value after each inspection.

Can stainless steel rope clips be reused after removal?

Clips can be reused if they show no visible deformation, thread damage, or corrosion. Discard any clip where the U-bolt threads have stretched, the saddle groove shows wear grooves from the rope, or the nuts no longer torque to the specified value. When in doubt, replace rather than reuse — the cost of a new clip is negligible compared to the risk of a failed termination.

Why do stainless threads sometimes seize during tightening?

Austenitic stainless steel is prone to galling under high contact friction. Apply a molybdenum disulfide or nickel-based anti-seize compound to U-bolt threads before installing the nuts. This prevents cold welding and allows nuts to be torqued accurately.

Is 316 stainless always necessary for marine use?

In continuously submerged or open-sea saltwater environments, yes. In sheltered freshwater dock systems or indoor marine facilities, 304 grade performs adequately. When uncertain, specify 316 — the cost difference is modest relative to the service life benefit.

Partner with FLA Industrial & Trading Co., Ltd. for Marine-Grade Fastening Solutions

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and brings that experience to every order. We are a reliable seller of Stainless Steel Rope Clips to distributors, contractors, and shipbuilding buying teams in the U.S. We back up every shipment with ISO9001 and CE certifications, XRF-verified material composition, and full batch tracking. Today, ask for samples, custom specifications, or a quote on a large order. To start the buying process, email our team at sales@flaindustrial.com or go to flaindustry.com.

References

1. Wire Rope Users Manual — Wire Rope Technical Board, 4th Edition, 2005.

2. ASME B30.26: Rigging Hardware — American Society of Mechanical Engineers, 2015.

3. DIN 741: Wire Rope Clips — Requirements and Testing — Deutsches Institut für Normung, 2003.

4. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019.

5. Stainless Steel: The Role of Molybdenum in Corrosion Resistance — Nickel Institute Technical Series, 2020.

6. OSHA Standard 1926.251: Rigging Equipment for Material Handling — Occupational Safety and Health Administration, U.S. Department of Labor, 2010.
