Can an Industrial Screw Jack Provide Repeatable Lifting for Automated Equipment?

Yes — an industrial screw jack can absolutely provide repeatable lifting for automated equipment. By converting rotational motion into precise linear displacement through a lead screw and worm gear assembly, this mechanical actuator delivers consistent stroke length and positioning accuracy across thousands of cycles. Trapezoidal screw models achieve sub-millimeter repeatability and mechanically lock loads in place without continuous power. When integrated into automated production lines — from automotive assembly to solar tracking — a quality screw jack maintains dimensional accuracy that hydraulic systems often struggle to match due to fluid compressibility and pressure drift.

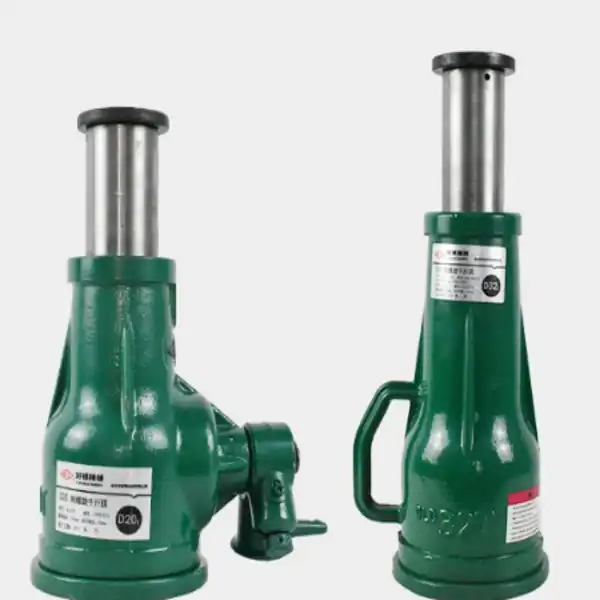

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

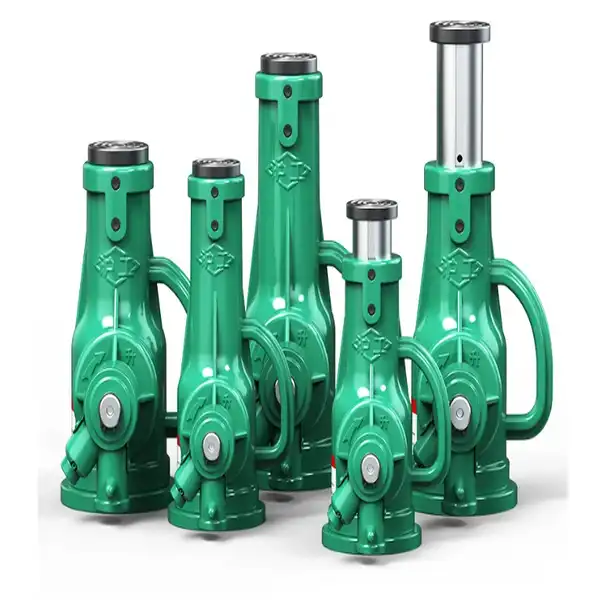

Understanding Industrial Screw Jacks in Automated Systems

What Makes a Screw Jack Tick?

A mechanical screw jack takes input that rotates and turns it into controlled linear motion. A lead screw, usually a trapezoidal (Acme) or ball screw, is driven by the worm gear set. The lead screw can push, pull, lift, or lower with measured force. Gray cast iron (GG25) or ductile iron (GGG40) is used to make housings that can handle shock loads. Hardened alloy steels like 42CrMo are used to make lead screws, and bronze worm wheels (ZCuSn10Pb1) don't wear out easily over time.

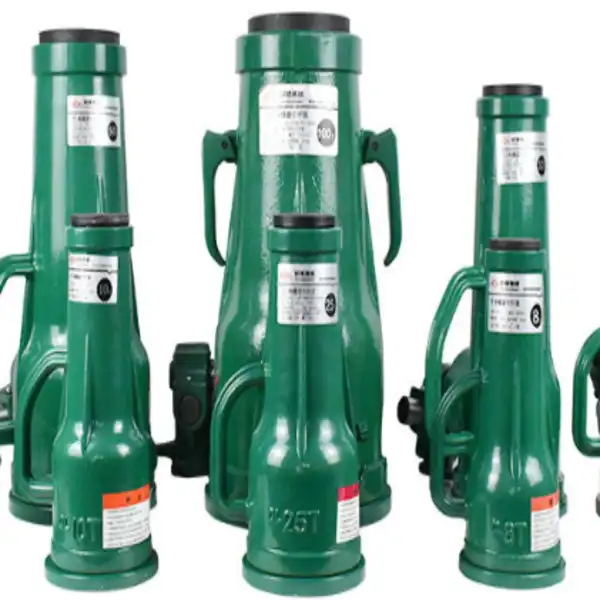

Types Most Relevant to Automation

There are three types that work best with automatic devices. Without electricity, manual screw jacks can handle irregular placement. Electric screw jacks have an engine and a worm gear system that work together to control the stroke. The dynamic load range of worm gear screw jacks with translating or turning screws is from 2.5 kN to 3,500 kN. This means that they can be used in both light production lines and heavy pressing presses.

Industry Applications That Prove the Point

Body shops for cars use synchronized multi-jack systems to lift chassis parts evenly. Jacks are used to change the height of packaging equipment between runs of Products" target="_blank" style="color:blue" >products. Jacks tilt big mirror arrays in concentrated solar power (CSP) plants so they can watch the sun. Wind loads are not a problem because the structures are very stiff. The wide range of uses is shown by the fact that theatrical stage lifts mechanically connect many jacks to raise orchestra pits in perfect sync and without making any noise.

Can Industrial Screw Jacks Ensure Repeatable Lifting Performance?

Design Elements That Drive Precision

It depends on three things: the shape of the lead screw, how well the slack is kept to a minimum, and the quality of the gears. Axial backlash is kept very low by trapezoidal thread profiles and tight ISO 2768 tolerances. On precision-grade units, it is often within 0.05 mm. If you heat treat the lead screw the right way (by tempering or quenching it), the thread geometry stays the same over time. Over time, wear-induced play is lessened by nuts made of brass or high-grade industrial plastics. This protects positional accuracy by increasing the service life.

Comparing Screw Jacks to Hydraulic Alternatives

While hydraulic cylinders are quick, they have problems like fluid compressibility, seal decay, and pressure drift, which cause the position to change from one turn to the next. It is impossible for a trapezoidal Industrial Screw Jack to leak fluid or change the pressure, and the load path is mechanically rigid. This makes it stronger in situations where the load needs to stay in place for a long time without power, like when setting up press tools or supporting bridge repair. Ball screw versions go faster without losing accuracy, but they need a brake motor to stay in place because they don't lock themselves.

Evidence from Real Production Environments

One of the most difficult tasks is to change the gap between steel mill rollers. Jacks work in rough, high-temperature environments and need to go back to the same gap settings between production runs. Operators say that worm gear jacks that are well taken care of can keep their positional tolerance even after thousands of adjustment cycles as long as the bellows boots keep scale from getting on them. Industrial automation programmers have found that mechanical screw actuators are better than pneumatic cylinders at keeping a steady load and repeating positions accurately.

Selecting the Right Screw Jack for Automated Applications

Define Load, Duty Cycle, and Safety Margin First

Procurement engineers need three numbers before they can choose a lifting actuator: the maximum load, the duty cycle, and the needed safety factor. Because worm gear contact makes heat when they are used continuously, standard worm gear jacks are only rated for about 20 to 30 percent duty cycle. Applications that need higher duty rates should ask for either a bevel gear or a ball screw design. It is common to use a safety factor of 1.5 times the rated load, and this is checked during static overload tests as part of quality control.

Electric Versus Manual: Matching Automation Complexity

Manual screw jacks are good for making occasional adjustments when someone is there to help. Electric drive units are needed when a process needs to be able to program stroke lengths, be operated from a distance, or work with a PLC control system. Through linking shafts, couplings, and miter gears, a single motor can power multiple jacks at the same time. This mechanical timing benefit is a main reason why engineers prefer screw jack systems to separate hydraulic actuators for lifting from multiple points.

Translating vs. Rotating Screw Configuration

Choosing between a translating screw (screw extends upward) and a rotating screw (nut moves along a fixed screw) changes the shape of the installation. Loads that are connected straight to the screw end can be translated with translating designs. When vertical placement height is limited, rotating designs are better because the screw doesn't need to have room above the case. If you make this choice correctly during the design phase, you won't have to pay for expensive changes after installation.

Maintenance and Safety Guidelines to Ensure Consistent Performance

Lubrication and Inspection Schedule

How well a worm gear works depends directly on how well the grease is working in an Industrial Screw Jack. When you add more grease or change the oil at the intervals recommended by the manufacturer, the gearbox temperature rise (delta T) stays within safe limits. A dial sign should be used to measure axial backlash against ISO 2768 limits during routine checks. Any rise above the specified level means the nut is worn out and needs to be replaced before location error builds up. FLA's screw jack types have built-in lubrication ports and dust covers that make maintenance easier and more reliable.

Safety Protocols for Automated Integration

When it comes to mechanical screw jack systems, these are the safety rules that matter the most:

• Install mechanical stop nuts on the lead screw as a hard fail-safe against over-travel, independent of electrical limit switches.
• Add external proximity sensors or limit switches to cut motor power before the screw reaches its mechanical stop, preventing impact loads on the housing.
• Conduct static overload testing at 1.5x rated capacity after installation to verify structural integrity before live production begins.
• Verify Rockwell C hardness (HRC) of worm shafts and Brinell hardness of bronze wheels against material certificates to confirm wear life meets project expectations.

– Put mechanical stop nuts on the lead screw as a failsafe against over-travel that doesn't depend on electrical limit switches.

Warranty and After-Sales Support

When a jack is deep inside an automatic machine, warranty support is important. Certifications from suppliers like ISO 9001, CE, and meeting DIN/AGMA/EN standards show that the supplier has a good control over the process. When a jack needs to be inspected or parts replaced, having access to authorized service centers and quick technical support cuts down on unplanned downtime.

Procurement Considerations for Screw Jacks in Automation Projects

Evaluating Suppliers and Lead Times

When looking for precision lifting motors around the world, you need to pay attention to more than just unit price. U.S. automation installers buy a lot of their parts from makers in China who are ISO 9001 certified and keep records on their materials that can be tracked. Standard configurations can be shipped within days from stock. Custom configurations, which include stroke lengths that aren't standard, special coatings, or changed mounting flanges, usually need 7–15 days to be made. Installation delays can be avoided by making sure of these dates before planning the project.

Custom Manufacturing and Bulk Options

When hardware wholesalers and OEM equipment makers buy standard screw jack SKUs in bulk, the cost per unit goes down while the quality of the whole line stays the same. When you ask for a custom-made unit, like one made of stainless steel for a corrosive environment or a jack with an epoxy coating for solar applications outside, you need to be very clear about the technical details you want. By asking for 3D design files and dimensional drawings before placing an order, you can be sure of the fit without having to do expensive trial-and-error on the production floor.

Pricing Factors That Influence the Decision

Price is based on the type of material, the load capacity, the screw type, and the surface finish. Trapezoidal models made of normal carbon steel cost less than those made of stainless steel or ball screws. Corrosion-resistant finishes that are sprayed on work well in most industrial settings that are inside. For outdoor or chemical-exposure settings, epoxy or other specialized coatings are worth the extra cost. A good way to judge how responsive a supplier is is to see if you can get prices, specs, and design files within 24 to 48 hours of asking for them.

Conclusion

A well-designed Industrial Screw Jack lifts things correctly and consistently over thousands of automated cycles. With their trapezoidal thread geometry, hardened lead screws, bronze wear nuts, and mechanical self-locking, these motors are better at holding a steady load and staying in the right place. Whether the unit works reliably for its whole life depends on whether it is manual, electric, ball screw, or worm gear, and on how well the duty cycle, load rating, and installation geometry are matched to the job. That investment is safe as long as it is oiled regularly, has its reaction checked, and follows safety rules.

FAQ

Is every screw jack self-locking?

No. Trapezoidal (machine) screw jacks are generally self-locking due to thread friction and hold position without power. Ball screw jacks are not self-locking and require a brake motor to maintain position when the drive is off.

What duty cycle should I specify?

Standard worm gear jacks are limited to roughly 20–30% duty cycle because worm gear friction generates heat. Continuous or high-frequency applications require bevel gear or ball screw configurations designed for higher thermal loads.

Can one motor drive multiple jacks?

Yes. Connecting shafts, couplings, and miter gearboxes allow a single motor to drive two, four, or more jacks in mechanical synchronization — a practical solution for even lifting of large or uneven loads.

How do I prevent over-travel damage?

Install mechanical stop nuts on the lead screw as a hard fail-safe. Add external limit switches or proximity sensors to cut motor power before the screw reaches its mechanical stop under normal operating conditions.

How do I choose between translating and rotating screw types?

Choose a translating screw when the load attaches directly to the screw end. Choose a rotating screw when vertical installation height is limited and the screw cannot extend above the housing.

Partner with FLA Industrial & Trading Co., Ltd. for Precision Lifting Solutions

Every screw jack that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. We are a reliable supplier of Industrial Screw Jacks made to ISO 9001, CE, DIN/AGMA/EN, and other standards. Our jacks are available in alloy steel, carbon steel, cast steel, and stainless steel. We have 2,000 tons of standard units ready to ship, and custom designs are quoted within 24 to 48 hours. You can email our sales team at sales@flaindustrial.com or go to flaindustry.com to get details, 3D drawings, or a price quote for buying in bulk right now.
