Small Pneumatic Jack for Vehicle Service Bays and Compact Maintenance Equipment

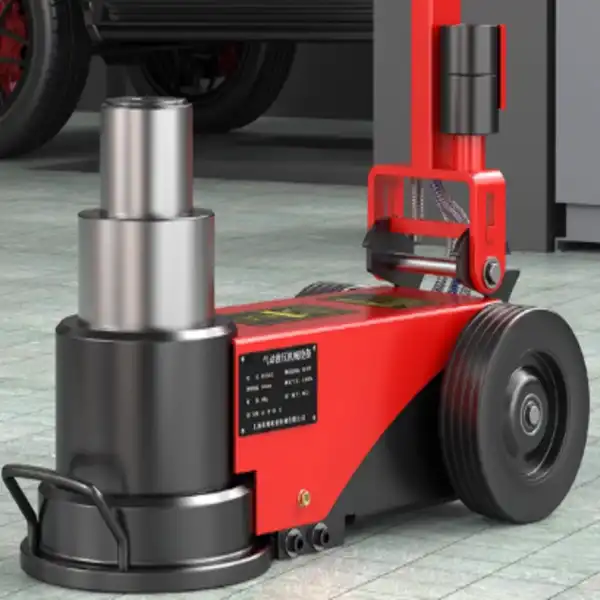

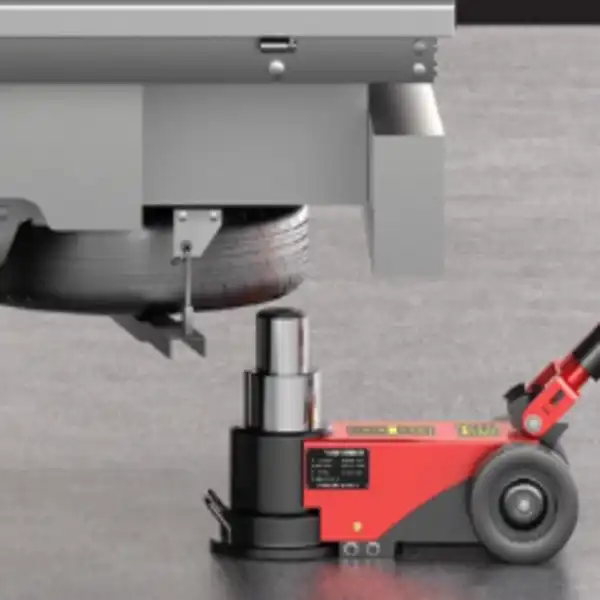

A small pneumatic jack is a compact, air-powered lifting device built for fast, precise operation in vehicle service bays and industrial maintenance settings. Unlike traditional manual jacks, it connects directly to a compressed air supply and achieves full lift in seconds, significantly reducing technician fatigue during high-frequency tasks. At FLA Industrial & Trading Co., Ltd., our air jacks are manufactured from carbon steel, alloy steel, or aluminum alloy with chrome-plated cylinder interiors and Fluororubber or Nitrile Rubber seals — meeting ISO9001 and CE standards for safe, consistent performance across demanding environments.

Specifications

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg

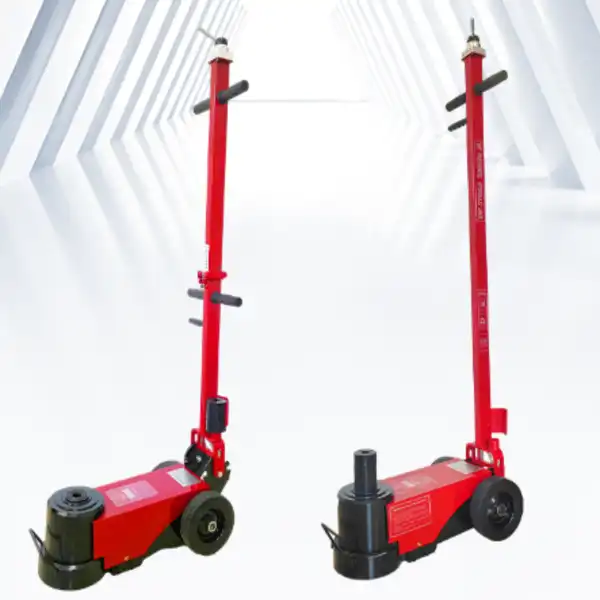

Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Small Pneumatic Jacks and Their Operating Principles

Prior to buying any lifting equipment, it is helpful to know how it works and why the way it is designed is important for daily tasks.

How Compressed Air Drives the Lift?

Through a precisely machined cylinder, a pneumatic jack turns compressed air pressure, which is usually between 0.4 and 0.8 MPa (58 and 116 PSI), into vertical lifting force. The chrome-plated inside makes it easier to move, and a safety valve inside stops the dangerous over-pressurization. It's possible to fully extend in less than five seconds, which is very important in tire shops or production lines with a lot of work to do.

Core Materials and Construction

Frames made of carbon steel, alloy steel, or aluminum alloy are used in our air jacks. Fluororubber or Nitrile Rubber seals are used on them. For corrosion resistance, the surface is either sprayed with paint or anodized. Each step of the manufacturing process, such as turning, casting, welding, testing for leaks and pressure, and full life-cycle validation, is governed by ISO9001 quality standards.

Pneumatic vs. Hydraulic, Electric, and Manual Jacks

Most of the time, hydraulic jacks can hold more weight, but they need to be refilled with fluid more often and are harder to manually pump. Electric jacks can be automated, but they need to be plugged in and cost more per unit. Manual screw jacks are cheap, but they are hard on your body when you have to use them over and over again. Pneumatic types are fast, comfortable, and low-maintenance, making them a good choice for places like auto service bays where speed and comfort are important every day.

Benefits of Using Small Pneumatic Jacks in Industrial Vehicle Maintenance

When you switch to air-powered lifting equipment, both productivity and worker health improve in a clear way. These gadgets are great for busy repair jobs because of the following main benefits:

• Rapid lifting cycles: Full extension in under five seconds dramatically cuts turnaround time in tire service centers handling dozens of vehicles daily.
• Reduced operator fatigue: Compressed air does the work, eliminating the physical strain of manual hydraulic pumping during repetitive shifts.
• Compact, portable form factor: The low-profile design fits beneath low-clearance vehicles — including modified or lowered cars — without requiring ramps or pre-lifting stages.
• Integrated safety features: A built-in exhaust muffler and safety valve protect both the operator and the load during every cycle.
• Wide temperature tolerance: Rated from -20°C to +80°C, these units perform consistently in cold-climate shops and heated industrial facilities alike.

Because of these benefits, operators are less likely to get hurt, the equipment lasts longer, and it costs less to maintain over its lifetime with a Small Pneumatic Jack. When procurement teams look at how to cut down on downtime, they often find that air jacks give them a better return on investment than human options.

Safety Protocols for Industrial Users

Before each use, you should always check the links on the air hoses, make sure the safety valve works, and make sure the jack is sitting on a flat, stable surface. Pneumatic jacks aren't meant to hold something still for a long time. When working under a raised vehicle, mechanical lock stands must be used.

Maintenance Best Practices

Regularly drain water from air lines to keep internal valve parts from rusting. To keep the rated capacity, check the rubber seals every three months and replace them with OEM-grade Fluororubber or Nitrile Rubber parts. If brake fluid or chemical solvents get on the outside of the cylinder, clean it.

Comparing Small Pneumatic Jacks with Other Jack Types

Procurement managers frequently ask how air jacks compare in real-world scenarios. The answer depends on the specific application, frequency of use, and load requirements.

Pneumatic vs. Hydraulic Floor Jacks

Hydraulic floor jacks can support heavier maximum loads and are widely available, but they require periodic fluid checks and manual pumping. In contrast, air-powered jacks lift faster, require no hydraulic oil, and reduce physical strain in high-volume shops. For tire rotation and brake inspection tasks repeated dozens of times daily, the speed advantage of a pneumatic model is substantial.

Pneumatic vs. Bottle Jacks

Bottle jacks offer impressive lifting capacity in a small footprint but involve slow, manual operation. They are better suited to occasional use or emergency situations. Pneumatic bottle jack variants exist but remain less common. For assembly lines or service centers where consistency matters, a dedicated air jack outperforms traditional bottle jack configurations.

Pneumatic vs. Electric Scissor Jacks

Electric scissor jacks are convenient for light-duty passenger vehicles but carry higher unit costs and depend on battery or outlet availability. Air jacks require only a standard shop compressor — which most service bays already operate — keeping operational complexity low and procurement costs manageable.

How to Choose the Right Small Pneumatic Jack for Your Business?

To choose the right Small Pneumatic Jack air lifting equipment, you need to make sure that the specs match up with what you need for your work. If you make this choice too quickly, you might buy tools that aren't right for the job or purchases that are too big for the budget, which will cost more.

Assess Your Load and Clearance Requirements

Find the heaviest vehicles that your team usually repairs. The smallest Small Pneumatic Jacks can hold between 2.5 and 3 tons and have a minimum height of 130 to 150 mm. Check the folded height before buying for low-clearance vehicles or changed cars.

Verify Certifications and Safety Compliance

For purchases in the U.S. market, make sure the seller has at least ISO9001 and CE approvals. ATEX certification is needed for applications that can't go off, like mines or places near fuel. FLA Industrial & Trading Co., Ltd. sells jacks that meet these standards as well as the pressure safety requirements set by PED and GB.

Evaluate Supplier Reliability and Customization Capability

A supplier that lets you change parameters like load capacity, mounting configuration, and material choices based on environmental conditions makes it less likely that you will receive equipment that doesn't meet the exact needs of your site. During the order process, FLA gives real-time information on production and 3D design proof.

Procuring Small Pneumatic Jacks: Pricing, Suppliers, and Bulk Purchase Options

Getting the procurement strategy right protects both budget and operational continuity. Several factors determine total cost of ownership beyond the unit price.

Understanding Cost Drivers

Material grade, seal quality, surface treatment type, and certification level all influence pricing. Aluminum alloy models tend to cost more than carbon steel variants but offer weight savings that matter for portable applications. Chrome-plated cylinders add durability that reduces replacement frequency over time.

Bulk Purchasing and Logistics Efficiency

For hardware distributors sourcing air jack SKUs in volume, consolidated shipments from a single manufacturer reduce per-unit freight costs and simplify customs documentation. FLA Industrial & Trading Co., Ltd. supports bulk orders with flexible lead times and packaging configurations suited to retail distribution or direct industrial supply.

Warranty and After-Sales Support

Confirm that your supplier provides written warranty terms covering seal integrity and structural components. A supplier offering technical support post-delivery — including troubleshooting guidance and spare part availability — significantly lowers the risk of extended equipment downtime.

Conclusion

A practical mix of speed, safety, and portability that manual or hydraulic alternatives fail to match in high-frequency applications is Small Pneumatic Jack equipment made for car service bays and small repair settings. The difference between a smart tool purchase and an expensive mistake is finding the right air jack for your load needs, licensing needs, and purchasing volume. FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and makes sure that every unit we make meets strict quality standards set by ISO9001 and CE.

FAQ

What is the maximum lifting capacity of a small pneumatic jack?

The small class of compact air jacks can hold between 2.5 and 3 tons. Dynamic overload testing of units at 125–150% of their estimated capacity shows that the structures are strong in real-life situations.

Is a pneumatic jack safer than a hydraulic jack?

If used incorrectly, both types can be dangerous. Pneumatic jacks have built-in check valves that keep air in the jack even if the supply line breaks. This keeps the load safely raised. During long work under a car, neither type should be used instead of motorized lock stands.

How often should I service an air jack?

If they get a lot of use, check the seals and air connections once a month. Regularly drain the air lines of moisture, especially in cold places where condensation can freeze valve parts inside. Only OEM-grade parts should be used to replace seals.

What compressor output is required?

It's enough to have a basic shop compressor that constantly delivers 85–115 PSI. You don't need a high CFM output because the amount of air needed to fill a small cylinder isn't as big as it is for impact tools or spray equipment.

Can these jacks operate in outdoor or harsh environments?

Yes. FLA's air jacks are good for outdoor building sites, mines, and workshops where the temperature changes a lot because they can work in temperatures ranging from -20°C to +80°C. The surface treatments make them immune to corrosion.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Air Jack Order

Professional moving tools from FLA Industrial & Trading Co., Ltd. have been sold to purchasing teams in the US, Germany, and Australia for almost 40 years. We are a reliable Small Pneumatic Jack manufacturer, and all of our Products" target="_blank" style="color:blue" >products come with ISO9001 and CE certification, as well as strict pressure and life-cycle testing and full customization support. Our team gets back to you within 24–48 hours, whether you need a single model evaluated or a bulk pneumatic jack supply arrangement. To get pricing and specifications, email us at sales@flaindustrial.com or go to flaindustry.com.
