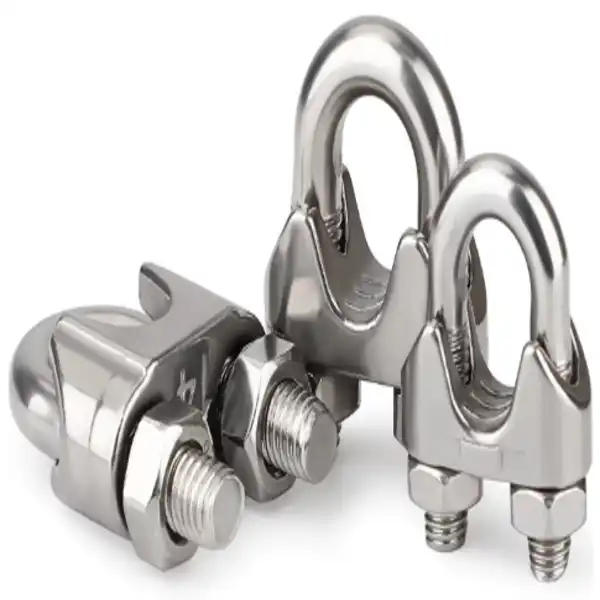

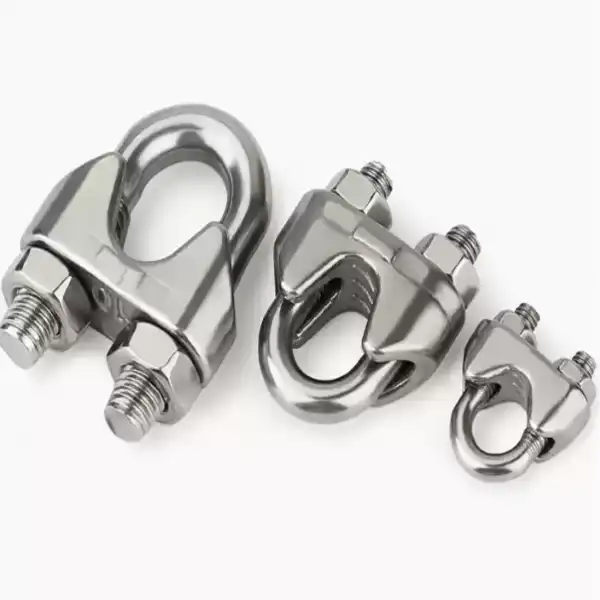

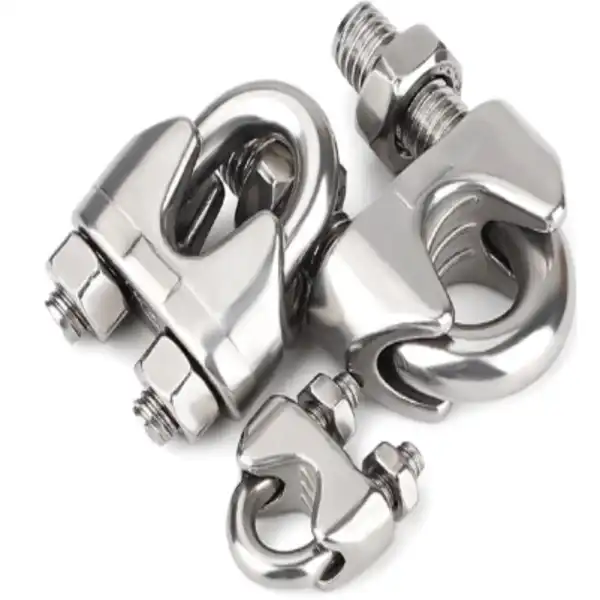

Stainless Steel Rope Clip for Solar Mounting Structures and Outdoor Cable Support

When engineers and procurement teams search for a wire rope fastening solution built for solar mounting structures and outdoor cable support, the stainless steel rope clip stands out as a proven choice. Composed of a U-bolt, saddle, and two hexagonal nuts, this fitting secures wire rope ends and load-bearing connections in demanding outdoor environments. Available in AISI 304 and AISI 316 grades, these clips deliver consistent corrosion resistance, dimensional accuracy, and holding efficiency typically reaching 80–90% of the rope's rated breaking strength — making them a dependable standard across construction, solar, and utility installations.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips in Solar and Outdoor Applications

Solar mounting structures face wind loading, thermal cycling, UV exposure, and moisture year-round. A wire rope clamp that fails under these conditions risks panel displacement or structural collapse. That is why material selection and clip construction are taken seriously by procurement engineers and site supervisors alike.

Construction and Function

Each stainless steel rope clip consists of three components: a U-bolt, a forged or precision-cast saddle, and two hexagonal nuts. The saddle grips the live end of the rope, while the U-bolt clamps the dead end. This friction-based clamping mechanism holds the rope termination in place under both static and dynamic loads.

Corrosion Resistance in Outdoor Conditions

Grade 304 stainless steel contains 18% chromium and 8% nickel, forming a passive oxide layer that resists rust in most outdoor environments. Grade 316 adds 2–3% molybdenum, which significantly increases resistance to chloride-induced pitting — a property critical for coastal solar farms and marine cable support systems.

Size Range and Compatibility

Wire rope clamps are available from M2 to M32 specifications, covering rope diameters commonly used in solar cable trays, tensioning systems, and structural cable railings. Matching clip size to rope diameter is not optional — it directly affects grip force and load distribution. Always consult the manufacturer's size chart before specifying.

How to Install Stainless Steel Rope Clips Correctly for Solar Mounting Structures?

A big reason why wire rope terminations fail is that they were not installed correctly. Most wiring guides and the DIN 741 standard say that the saddle should always be on the live (load-bearing) end of the rope and never on the dead end. If you flip this direction around, it can make holding less effective by up to 40%.

Step-by-Step Installation Process

First, make the hole or eye in the rope the right size. Place the first Stainless Steel Rope Clip about one to two rope diameters from the dead end. Place the saddle on the live end and then tighten the nuts to the torque level recommended by the manufacturer. Add more clips evenly spaced apart—three clips at the very least are needed for most solar mounting jobs—and tighten again after the first load.

Common Installation Mistakes to Avoid

"Saddle to dead end" placement is a common mistake that makes the connection much weaker. Another problem is under-tightening. Installers sometimes only tighten by hand, which leaves the assembly open to slipping when it shakes. Mixing stainless clips with galvanized rope can also speed up galvanic corrosion at the contact surface.

Maintenance and Inspection Protocols

Check the clips again and tighten them again after 24 hours of load application, since the initial stretch in the rope can make the assembly loose. Visual checks should be done on solar field installations every three months to look for surface oxidation, thread damage, or saddle deformation. If you put it somewhere with salt air, clean it with fresh water.

Choosing the Best Stainless Steel Rope Clips for Outdoor and Solar Applications

Whether you choose stainless steel, galvanized steel, or aluminum wire rope fittings depends on your price, the environment, and how long you expect them to last. Galvanized clips are cheaper at first, but the zinc coating usually wears off in three to five years if they are used in humid or coastal areas. Aluminum is very light, but it doesn't have the tensile strength needed to hold up structure cables under a lot of weight.

When buying, teams choose wire rope fittings; these are the main things they should think about:

• Grade 304 vs. 316: For inland solar farms with limited salt exposure, 304 grade performs well and keeps costs manageable. For coastal installations or environments with chemical exposure, 316 grade is the standard choice — its molybdenum content resists crevice corrosion that would compromise 304 over time.
• Load rating and safety factor: Structural and overhead applications require clips stamped with a Working Load Limit (WLL). A safety factor of 4:1 or 5:1 between minimum breaking load and WLL is standard practice in construction rigging.
• Certification compliance: Clips meeting ISO9001 quality management and CE safety certification confirm that manufacturing processes and finished products meet verified international standards — not just supplier claims.

Together, these factors show whether a wire rope clamp will work consistently for 20–25 years or need to be replaced within the first few years of a solar project.

Procurement Guide: Buying Stainless Steel Rope Clips for Bulk Solar and Outdoor Projects

When buying in bulk, people who need wire rope clamps for solar projects need more than just a low price per unit. Just as important as the product itself are the supplier's skills, the number of certifications they have, and how well they handle transportation.

Supplier Certifications and Quality Verification

Ask for proof that the supplier is ISO9001 certified and find out if they do salt spray testing (ASTM B117) and positive material identification (PMI) using XRF spectrometry for Stainless Steel Rope Clip. Before the grade is shipped, these tests make sure it is real and that it won't rust. CE certification shows that the product meets European safety standards, which is important for projects that will be exported.

Minimum Order Quantities and Lead Times

Suppliers who keep a lot of finished goods in stock can quickly meet standard M6–M20 requirements without having to wait for longer lead times. For custom sizes or configurations, a production cycle of 7–15 days is normal for manufacturers with a lot of experience. Check the standards for packaging—putting items in individual poly bags and marking them by batch helps with managing goods on-site.

Cross-Border Logistics Considerations

If you are a wholesaler or contractor in the U.S. and you want to buy something from China, make sure the seller gives you clear business bills, material test reports (MTRs), and HS code paperwork. These papers make it easier to get through customs and help with quality checks when the goods arrive.

Real-World Applications: Case Studies of Stainless Steel Rope Clips in Solar Mounting and Outdoor Cable Support

Coastal Solar Farm — 316 Grade Performance

A solar EPC contractor who was putting up panels 800 meters below the Pacific Ocean said that 316-grade wire rope clamps should be used for all cable tensioning and panel frame tie-downs. Molybdenum-enhanced corrosion protection meant that after three years of use, post-inspection reports showed that none of the over 4,000 installed fasteners had any surface rust or clip loosening.

Industrial Outdoor Cable Support — Load Integrity Under Vibration

A utility company ran power lines above an industrial yard and used heavy-duty 304-grade wire rope clamps to hold the cables in place. After 18 months, re-torque checks showed that the grip was still strong and there was no visible rope slipping. The system's continued load integrity was credited to the organized maintenance program, which included inspections every three months and re-torques once a year.

Architectural Cable Railing — Aesthetic and Structural Balance

A business building company used polished 316 stainless steel wire rope clamps for a cable balustrade on a terrace outside that was open to the weather at the coast. After two years, the bright surface finish kept its look, meeting both the needs of the structure inspector and the building owner's visual standards.

Conclusion

Stainless Steel Rope Clips are a simple but important part of solar mounting structures and outdoor cable support systems. Grade choice, proper installation, and source verification all play a role in how safe an installation is over its intended service life. When purchasing in bulk, procurement managers, site engineers, and distributors should choose a supplier with verified certifications, grade-authentic materials, and quick technical support to lower project risk by a large amount. It saves money, time, and safety risks throughout the whole installation process if this standard is correct from the start.

FAQ

How many rope clips do I need per wire rope termination?

Most rigging standards, including DIN 741, recommend a minimum of three clips per termination for wire ropes used in solar or outdoor structural applications. Larger rope diameters may require four or more. Always follow the manufacturer's clip spacing table based on rope diameter.

Can stainless steel rope clips be reused after disassembly?

Yes, they can be reused if the saddle, U-bolt, and nuts show no deformation, thread damage, or stress cracking after removal. Inspect each component individually before reassembly. Replace any clip that shows visible wear — the cost of replacement far outweighs the risk of reusing a compromised fitting.

What is the difference between a rope clip and a swage sleeve?

A rope clip is a mechanical, adjustable fastener that can be field-installed and re-tensioned without special tools. A swage sleeve is a permanent, crimped connection that requires hydraulic swaging equipment. Rope clips allow on-site adjustability; swage sleeves offer a cleaner, lower-profile termination for permanent installations.

Are stainless steel clips suitable for overhead lifting?

Only if the clips carry a stamped Working Load Limit (WLL). Many standard commercial clips are not rated for overhead lifting. Always verify the product's certification before using it in a lifting application.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Project

Every Stainless Steel Rope Clip order comes from FLA Industrial & Trading Co., Ltd., which has been in business for almost 40 years and makes Products" target="_blank" style="color:blue" >products. Our expert team gets back to you within 24 to 48 hours, whether you need ISO9001-certified standard sizes or custom-engineered designs for solar or outdoor cable uses. Visit flaindustry.com or email our Stainless Steel Rope Clip supplier team at sales@flaindustrial.com to get samples or a bulk quote right away.

References

1. Wire Rope Users Manual — Wire Rope Technical Board, 2018.

2. DIN 741: Wire Rope Clips — Dimensions and Technical Requirements — Deutsches Institut für Normung, 2018.

3. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019.

4. Stainless Steel: Tables of Technical Properties — Euro Inox / Materials and Applications Series, 2007.

5. Rigging Hardware and Wire Rope Fittings: Selection and Use — Crosby Group Technical Publication, 2020.

6. Solar PV System Installation Best Practices Manual — Solar Energy Industries Association (SEIA), 2021.
