Can a 6 Swing Check Valve Reduce Backflow Risks in Large Process Pipelines?

Backflow in large industrial pipelines is not just an inconvenience — it can contaminate process media, damage expensive pumps, and trigger costly shutdowns. So, can a 6 swing check valve effectively reduce these risks? The short answer is yes. A DN150 (6-inch) swing check valve uses a gravity- and pressure-driven hinged disc to block reverse flow automatically, without requiring external power. When properly specified and installed, it protects upstream equipment, maintains one-way flow integrity, and meets strict compliance standards — making it one of the most dependable unidirectional flow control solutions for large process pipelines.

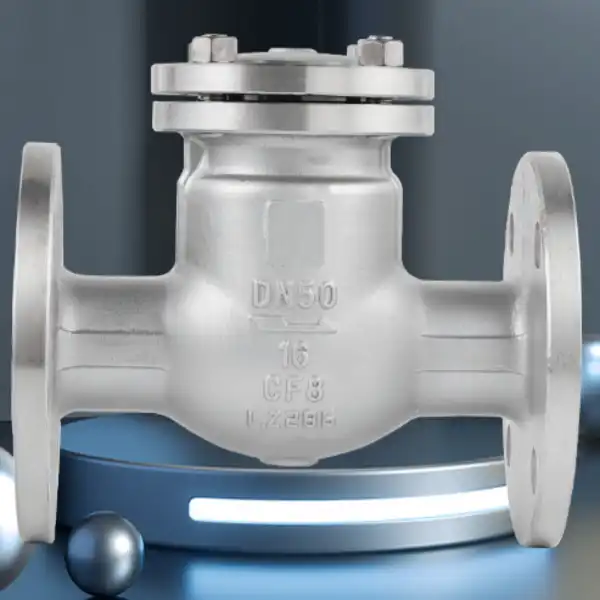

Specification

Model (DN)	Type	Material Options	Connection Type
DN50	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded

How Does a 6 Inch Swing Check Valve Work to Prevent Backflow?

Engineers and procurement teams can make smart choices about adding this type of valve to a system if they understand how it works.

The Hinged Disc Mechanism

There is a hinge pin inside the valve body that holds the internal disk in place. The disk swings open to let air flow when the forward flow pressure is higher than the cracking pressure. As soon as the pressure drops or turns around, back-pressure and gravity push the disk back against the seat, sealing the line.

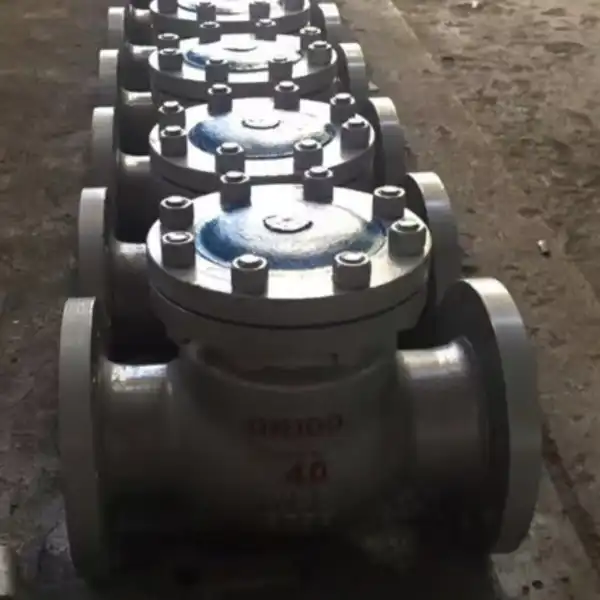

Key Components Working Together

This valve has three parts: the valve body, the hinge arm, and the seating surface. All three work together. A leak-tight seal is made possible by precisely machined seat sides that are often hardened or Stellite-overlaid for tough services. The bolted bonnet design that is common in ASME B16.10 setups lets repair be done from the top without taking the valve out of the stream.

Common Challenges and How to Address Them

When the flow speed drops below the minimum needed to keep the disk fully open, valve chatter can happen. It is possible to slow down the closing stroke and reduce hydraulic shock in systems that tend to surge by adding an external handle and weight or a hydraulic dashpot. The best way to avoid this is to make sure that the sizes you use are based on real flow rate data.

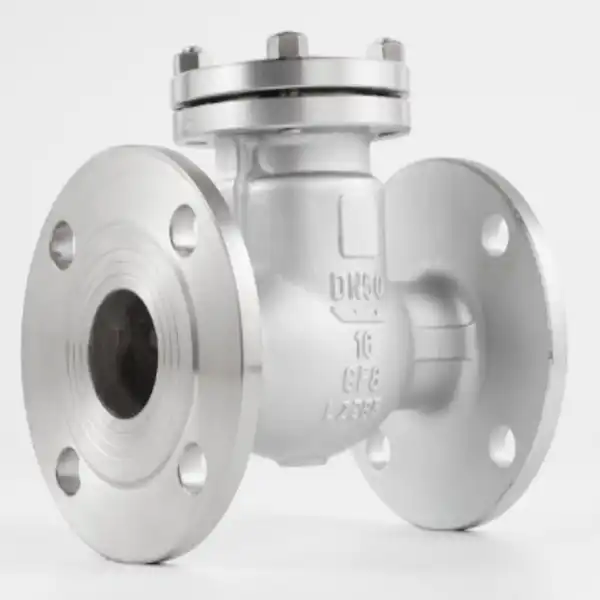

Advantages of Using 6 Inch Swing Check Valves in Large Pipeline Systems

This valve size is often chosen by procurement teams and site engineers because it provides a good mix between flow performance and long service life. Here are the main benefits you should think about:

• Full-bore flow path: The unobstructed bore keeps pressure drop low, which directly reduces energy consumption in pumping circuits. Studies on industrial pumping systems show that each PSI of unnecessary pressure loss adds measurable operating cost over a year-long cycle.
• Material versatility: Available in cast iron, carbon steel (ASTM A216 WCB), and stainless steel (ASTM A351 CF8M), the valve can be matched to media ranging from municipal water to corrosive chemicals without over-engineering the spec.
• Low maintenance demand: With fewer moving parts than lift or ball check valves, annual inspection intervals are longer, and replacement parts — primarily the disc and seat — are straightforward to source.

These benefits directly lead to lower total cost of ownership in places like fire safety networks, water treatment plants, and process industries where unexpected downtime costs a lot of money with 6 Swing Check Valve applications.

Comparing 6 Inch Swing Check Valves with Alternative Check Valve Types

To pick the right type of check valve, you need to compare them fairly. There is a clear application envelope for each design. If you choose to use it outside of that envelope, it will fail early or not work well.

Swing vs. Wafer Check Valves

It costs less up front and takes up less space to install a wafer check valve. But when the flow rate changes or is low, the spring-loaded disks in chip systems can chatter a lot, which speeds up seat wear. Swing check valves can handle changes in flow more steadily because the disk trip arc automatically smooths out small changes in pressure.

Swing vs. Dual Plate Check Valves

When water hammer is a big problem in long horizontal lines, dual plate (butterfly check) valves are better because they close faster. On the other hand, swing designs have more space for sitting and usually do a better job of sealing off dirty or solid-carrying fluids, which is an important thing to think about in sewage lift stations and slurry lines.

Material Selection Guidance

Cast iron can be used in general water service and HVAC tasks where the medium doesn't corrode and the temperature stays below 250°F. In oil and gas transmission lines, carbon steel can handle higher pressures. Stainless steel is best for chemical processing, water that is safe for drinking, and installations near the coast, where salt air speeds up corrosion on the outside.

Selecting the Right 6 Inch Swing Check Valve for Your Pipeline Needs

Getting the specifications right before you buy keeps you from having to make costly changes in the field later on. Here are the most important technical and business factors.

Technical Criteria: Pressure, Temperature, and Media

Check the valve's pressure class against the highest pressure that can be used in your system with a 6 Swing Check Valve. For most utility services, ASME Class 150 is enough. However, industrial and high-pressure water input lines may need Class 300 or higher. Always check the temperature limits against the type of body material and seat. For example, soft seats (PTFE/EPDM) keep clean water out but have smaller temperature ranges than metal seats.

Standards Compliance and Connection Types

Make sure that pipeline valves meet API 6D standards and pressure testing meets API 598 standards. Standard for 6-inch process lines are flanged end connections that follow ASME B16.5; threaded connections can be used for lower-pressure utility tasks. Manufacturing that is ISO 9001-certified and marked with the CE mark show that the standard is uniform from start to finish.

Supplier Evaluation for B2B Procurement

Check the 6 Swing Check Valve supplier's OEM certificates, wait times, and make sure that the maker can handle unique designs like non-standard face-to-face measurements or special coatings. For fire pump discharge applications, where code compliance is a must, UL and FM listings are very important.

Case Studies: Successful Backflow Risk Reduction Using 6 Inch Swing Check Valves

Field performance data is the best way to see how reliable a valve is in the real world.

Water Treatment Plant Upgrade

Cast iron swing check valves were used instead of old wafer check valves on six-inch pump discharge headers by a municipal water authority. Testing the pressure after installation showed that the check valve unit lost 15% less pressure. Maintenance logs show that there were no seat leaks in the first 18 months of operation.

Chemical Processing Facility

A medium-sized petrochemical plant put in stainless steel swing check valves in a cooling water recycling loop that dealt with vapor that was slightly acidic. When compared to the lift check valves they replaced, these valves saved money because they didn't need to be replaced for two years and passed hydraulic shell tests at 1.5× rated pressure according to API 598.

Fire Protection Network

Several commercial construction projects in the U.S. have called for swing check valves at the outlets of fire pumps to meet NFPA 20 installation standards. The valves' UL and FM listings were very important for getting through local authority having jurisdiction (AHJ) checks quickly and without having to wait for retesting.

Conclusion

If you choose the right 6 Swing Check Valve, it will protect big process pipes from backflow, reverse pump rotation, and cross-contamination. Its simple internals make field maintenance easy, and its full-bore design keeps pressure losses low. It can be made from a variety of materials that work with a wide range of industrial media. This type of valve always gives measurable protection when it is the right size and placed properly, whether you are in charge of a water treatment plant, a fire protection system, or a chemical processing loop.

FAQ

Can a swing check valve be installed vertically?

Yes, but only in vertical pipelines that use upward flow. In that position, gravity helps the disk close. Installing it in a straight line that goes down will make the disk stay open all the time, which is not what it's supposed to do.

Does a swing check valve prevent water hammer?

If the disk closes quickly, standard swing check designs can make slam-induced surge worse. Choose a model with an external handle and weight or a hydraulic dashpot to ease disk travel for systems that are sensitive to surges.

What is the minimum flow velocity needed?

The flow speed must be high enough to keep the disk fully against its open stop. Not enough speed leads to disk flutter and hinge pin wear before it should. During choosing, you should always compare the minimum Cv to your real flow rate.

Metal seat or soft seat — which is better?

Metal chairs can handle rough materials and high temperatures. If you use PTFE or EPDM soft seats, they can shut off clean water or gas more tightly, but they can't handle as high of temperatures. Make sure the material of the seat fits the conditions of your service.

How often should these valves be inspected?

Most manufacturers say that visual inspection and seat leak testing should be done once a year at intervals set by API 598. The fixed cap design lets you get to the inside without breaking the pipeline flanges because you can enter from the top.

Partner With FLA Industrial & Trading Co., Ltd. for Your Next Valve Order

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and brings that experience to every order. Our 6 Swing Check Valve line comes in cast iron, carbon steel, and stainless steel, and is certified by ISO 9001, CE, UL, and FM. Standard goods ship right away because we keep 2,000 tons of them in stock; custom versions take 7–15 working days to finish. To get a price right away, email our expert team at sales@flaindustrial.com or go to flaindustry.com.

References

1. American Society of Mechanical Engineers. ASME B16.34: Valves — Flanged, Threaded, and Welding End. ASME, 2020.

2. American Petroleum Institute. API 6D: Specification for Pipeline and Piping Valves. API, 2021.

3. American Petroleum Institute. API 598: Valve Inspection and Testing. API, 2016.

4. Crane Co. Flow of Fluids Through Valves, Fittings, and Pipe — Technical Paper No. 410. Crane Co., 2013.

5. National Fire Protection Association. NFPA 20: Standard for the Installation of Stationary Pumps for Fire Protection. NFPA, 2022.

6. Manufacturers Standardization Society. MSS SP-55: Quality Standard for Steel Castings and Forgings for Valves, Flanges, Fittings, and Other Piping Components. MSS, 2011.
