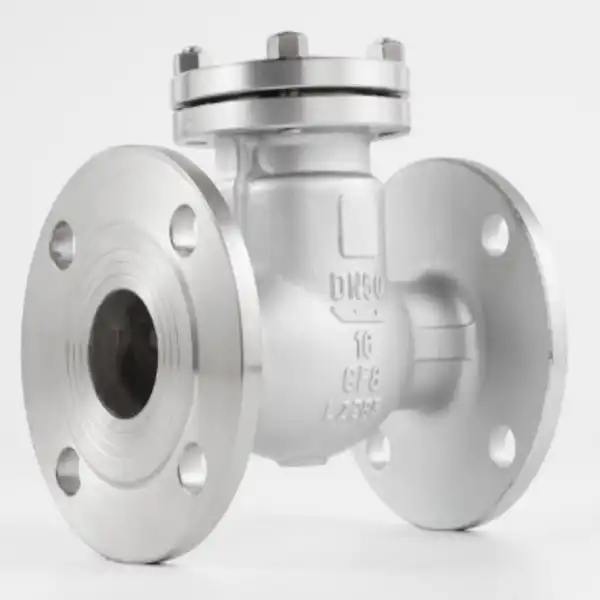

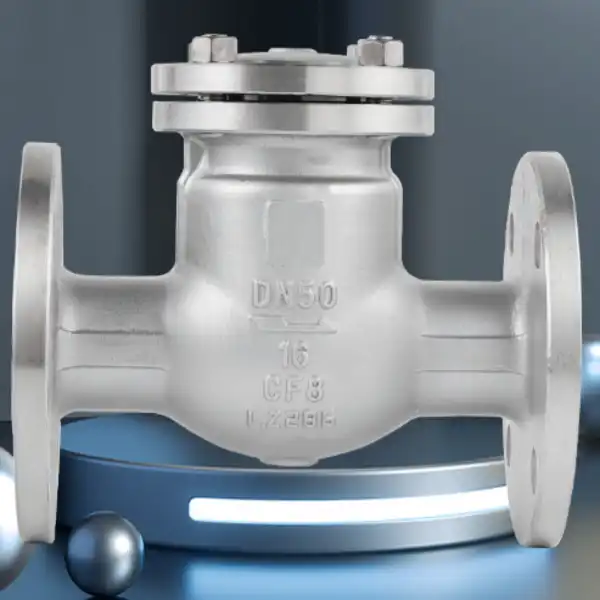

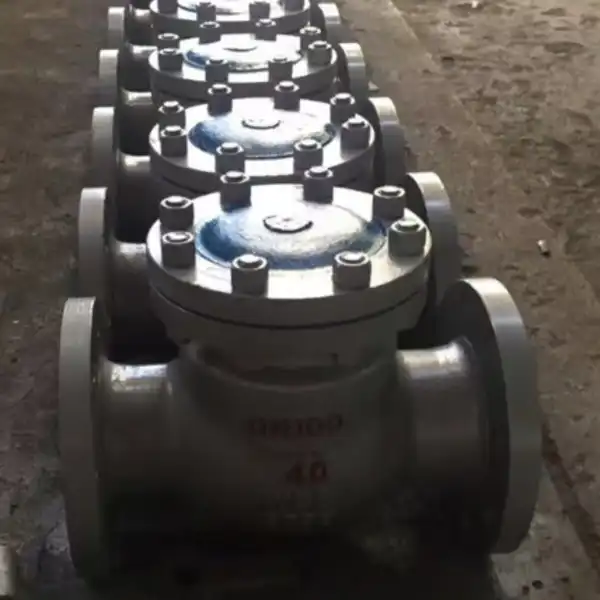

Cast Steel Steam Check Valve for Industrial Boilers and High-Temperature Steam Lines

A cast steel steam check valve is an automatic flow-control device engineered to block reverse flow in high-pressure, high-temperature steam piping. Built from ASTM A216 WCB carbon steel or alloy steel grades such as WC6 and WC9, these valves operate without external power—the disc opens under forward flow and closes the instant flow stops. In boiler systems, feedwater networks, and steam distribution headers, that automatic response prevents water hammer, protects pumps from reverse rotation, and keeps turbine blades free from condensate impingement. For procurement teams sourcing steam line components, understanding how these valves work is the first step toward a sound buying decision.

Specifications

Model (DN)	Type	Connection	Pressure Rating	Temperature Range
DN50	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN50	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN50	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN65	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN65	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN65	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN80	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN80	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN80	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN100	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN100	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN100	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN150	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN150	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN150	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN200	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN200	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN200	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN250	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN250	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN250	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN300	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN300	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN300	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20°C to 425°C

Understanding Cast Steel Steam Check Valves

How the Valve Works

A disk that pivots or lifts in response to line pressure is inside the valve body. The disk opens when the flow of steam moves forward. When the flow drops or turns around, gravity and line pressure push the disk back onto the seat, instantly sealing the line. This design is great for boiler rooms and automatic process plants where no one is present because it doesn't require any actuator or user input.

Key Components

Long-term performance is based on three parts. The body, which is made of carbon steel or stainless steel and is cast, can withstand multiple heat cycles. The closing load is on the disc, which is often made harder with Stellite 6 (Co-Cr-W metal) to stop high-speed steam from wearing it away. The tight specs on the seat ring make it the perfect fit for the disc, stopping leaks when it closes.

Valve Type Options

Three setups work with different types of steam lines. This type of check is mounted horizontally, has a low pressure drop, and works well in headers with stable flow. A tilting disk check stays stable at slower speeds, which lowers disk chatter. For high-cycle work and straight upward flow, where the disk would wear out quickly from opening and closing, a piston or lift check is used.

Technical Specifications and Installation Best Practices

Standard Sizes and Pressure Ratings

As per ASME B16.34, FLA's steam check valves can handle pressures and temperatures from Class 150 to Class 600 and have DN50 to DN300 sizes. WCB bodies made of carbon steel can handle steam up to 425 °C (797 °F). For extraction lines in power plants, alloy steel grades WC6 and WC9 can handle superheated steam above 538 °C (1000 °F).

Correct Installation Steps

Most problems in the field can be avoided if the Cast Steel Steam Check Valve work is done right from the start. To keep the valve and the whole steam system safe, do these things:

• Verify flow arrow alignment: Every valve body carries a cast or stamped flow arrow. Installing against the arrow direction is the single most common field error and will cause immediate backflow failure.
• Check flange face condition: Clean the flange face per ASME B16.5 before bolting. Any burr or weld spatter on the seating surface creates a leak path under thermal cycling.
• Apply torque in a star pattern: Tighten flange bolts in a cross-sequence to reach the specified torque evenly and prevent gasket distortion that leads to steam leaks.
• Confirm pipe support positioning: Cantilever loads from unsupported pipe runs transfer stress into the valve body, accelerating fatigue cracking near the flange.

Make sure the flange face is clean according to ASME B16.5 before you bolt it on. Any burrs or weld spatter on the seating surface make a way for water to leak when the temperature changes.

To apply torque in a star pattern, tighten the flange bolts in a cross-sequence. This will make sure that the torque is applied evenly and stop the gasket from distorting, which can cause steam leaks.

Ongoing Maintenance

After the work is done, an API 598 test must be done on the line: a seat closure test at 1.1× rated pressure and a hydraulic shell test at 1.5× rated pressure

Comparing Cast Steel Steam Check Valves with Alternative Materials

Cast Steel vs. Cast Iron

Cast iron is cheaper up front, but it can only handle up to 230 °C of temperature and 125 or 250 psi of pressure according to ASME B16.1 requirements. For steam systems that work above those temperatures, you need a higher-grade material. Cast steel can handle a bigger range of pressures and temperatures, and it doesn't crack easily like cast iron bodies do when the boiler first starts up.

Cast Steel vs. Bronze

Bronze valves work well in low-pressure plumbing systems and on boats, but they start to lose their zinc and become soft above 200 °C. When used in industrial steam situations where line temperatures regularly reach 300 °C, bronze bodies can't hold up under the constant load. Cast steel stays the same size and strength throughout its service life.

Cast Steel vs. Forged Steel

Forged steel has a denser grain structure and a slightly higher tensile strength, which is why it is the standard for Class 900 and above. Cast Steel Steam Check Valve Products" target="_blank" style="color:blue" >products, on the other hand, need special tools and longer wait times, which greatly increases the cost per unit. Cast steel gives the same performance in service at a lower total cost of ownership for Class 150 to 600 steam service, which includes most industrial boiler and process heating needs.

Selecting and Procuring the Right Steam Check Valve

Criteria That Matter Most

Begin with three numbers: the highest working pressure, the highest temperature of the steam, and the slowest flow rate. The main reason for disk chatter, which speeds up seat wear and makes noise, is a swing check that is too big compared to the minimum flow velocity. The Cv rating of the valve should be matched to the flow data, not just the pipe diameter.

Verifying Supplier Credentials

Test reports (CMTR) that confirm the tensile strength, yield strength, and Charpy V-Notch impact values according to ASTM A216 WCB or A217 WC6/WC9 should be asked for. For Class 300 and up, you should ask for radiographic testing (RT) reports, which can find internal casting shrinkage or voids that a visual inspection can't. Suppliers with ISO 9001, CE, and, if needed by U.S. fire safety authorities, UL and FM certifications provide paper trails that make the internal audit process easier.

Bulk Procurement Advantages

Ordering DN50 to DN300 valves in large groups across a project's full size range lowers the cost per unit, standardizes spare part inventory, and cuts lead times because the manufacturer only has to schedule one production run instead of several small ones.

Industrial Applications and Real-World Case Examples

Power Generation: Turbine Extraction Lines

In thermal power plants, steam extraction lines use low- to medium-pressure steam from the engine to heat the feedwater. A check valve on each extraction line stops backflow into the turbine when the load is rejected. This keeps condensate from getting into the blade path, which would do a lot of damage to the machine.

Industrial Boiler Feedwater Systems

A high-pressure feedwater pump pushes water out against the pressure in the boiler pan. When the pump trips, the check valve at its outlet stops the pressurized contents of the boiler from going backward through the pump. This keeps the motor from overspeeding and the internal impellers from getting damaged by reverse spinning.

Petrochemical Steam Headers

In a case study about a refinery on the Gulf Coast, carbon steel swing check valves were used instead of old cast iron check valves on 12-inch steam distribution headers. During the 24 months that the system was being watched, maintenance-related steam leaks on those headers went down by 60%, and unexpected power cuts caused by valve failure went down to zero. The expense of replacing the valve paid for itself in less than 14 months.

Conclusion

Picking the correct backflow protection valve for a steam system can have a big impact on its safety, performance, and maintenance costs. Three things set a Cast Steel Steam Check Valve that lasts 20 years apart from one that needs to be replaced every two years: carbon steel bodies, Stellite-hard-faced seats, and configurations that are matched to real flow conditions. If you want to protect both the system and your budget, you need to size the pipe based on real flow data and buy it from a certified supplier. This is true whether you are using it for a district heating boiler, a turbine extraction line, or a petrochemical process header.

FAQ

What determines a steam check valve's pressure rating?

ASME B16.34 says that the pressure-temperature number is based on the wall thickness, the grade of the body material, and the shape of the joint. At the same temperature, carbon steel WCB has higher scores than cast iron. Always make sure that the rated class of the valve matches the system's highest working pressure, not just its normal working pressure.

How often should I inspect a steam check valve?

In continual boiler service, check the state of the disks and seating surfaces every 12 months. When it comes to lower-cycle heating systems, every 18 to 24 months is usually fine. Check right away after a water hammer event, because the hydraulic shock could damage the disk hinge or crack the seat ring.

Can these valves be installed vertically?

A swing check valve only works in a vertical direction when the flow is going up. For downward or variable-orientation runs, a lift check with a spring is the best option. This is because the spring makes sure that the disk sits back down against gravity when the flow stops.

What causes disc chattering, and how do I fix it?

When the flow speed is too low to keep the disk fully open, chattering happens. The disk goes back and forth between partially open and partially closed, which wears down the seat quickly. Either the valve needs to be resized to have a smaller hole that matches the flow speed, or the design needs to be changed to a rotating disk that stays stable at lower speeds.

Partner With FLA Industrial & Trading Co., Ltd. for Reliable Steam Valve Solutions

Every steam check valve that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. Our products pass ISO 9001, CE, UL, and FM tests and can handle steam temperatures up to 425 °C. They cover DN50 to DN300. We are a reliable source for Cast Steel Steam Check Valves, and we offer low prices for large orders, OEM customization, and quick lead times. You can get a catalog or technical quote right now by going to flaindustry.com or emailing our team at sales@flaindustrial.com.
