Stainless Steel Rope Clip for Architectural Cable and Outdoor Structure Projects

A stainless steel rope clip is a precision-engineered wire rope fastening component used to secure, connect, and terminate wire rope ends in architectural cable systems and outdoor structures. Made from AISI 304 or 316 stainless steel, these clips deliver strong holding efficiency—typically 80–90% of the rope's breaking strength—while resisting corrosion in demanding environments. From cable railings on commercial buildings to suspension systems in public infrastructure, the right wire rope clip ensures structural integrity, safety compliance, and long-term durability. This guide covers everything procurement teams, contractors, and distributors need to make confident sourcing decisions.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

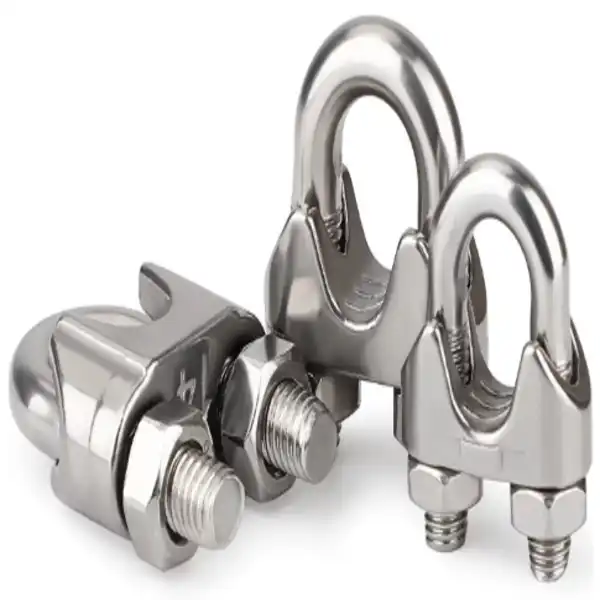

Understanding Stainless Steel Rope Clips for Architectural and Outdoor Use

What Are Stainless Steel Rope Clips?

A forged or cast saddle, two hexagonal nuts, and a U-bolt make up a Stainless Steel Rope Clip, also known as a wire rope clamp or wire rope grip. While the U-bolt presses against the "dead end," the saddle holds the "live end" of the rope. This creates a clamping force based on friction. This design lets you put it together in the field without swaging any tools, which makes it useful for building sites, architectural cable projects, and outdoor rigging where being able to change things is important.

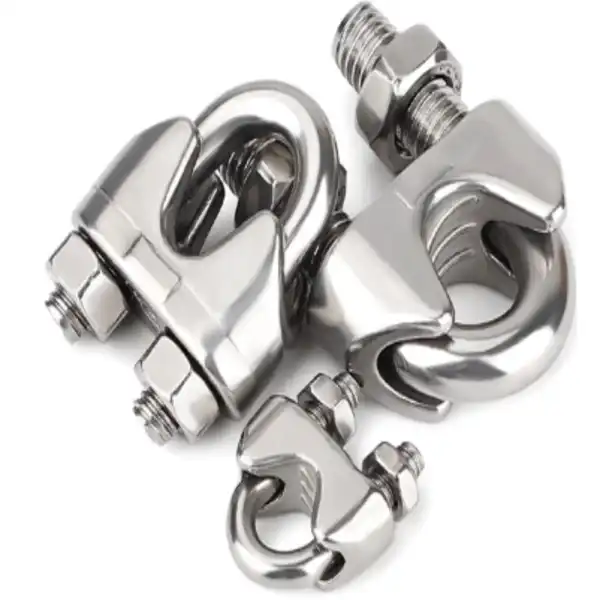

Types Available and Their Applications

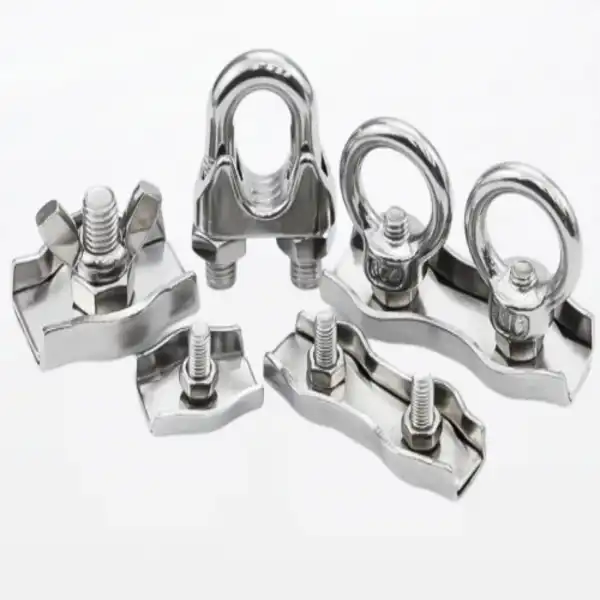

People mostly use the U-bolt clip (DIN 741), the double saddle clip, the wire rope clamp (fist grip), and the wedge-type clip. The most common type of clip used in building and design wire railings is the U-bolt clip. When there is a dynamic load, double saddle clips are better because they spread the load out more evenly. Wire rope clamps are better at holding things in place. Wedge types work best for tensioned stay wire systems on bridges and canopy structures.

304 vs. 316 Stainless Steel: Choosing the Right Grade

In inland outdoor settings, like city wire railings, building facades, and covered walks, Grade 304 stainless steel works well. Grade 316 has 2–3% molybdenum in it, which makes it much more resistant to rusting by chlorides and cracks. For places near the coast, in the ocean, at wastewater treatment plants, or anywhere else that de-icing salts might be present, 316 is the right standard. Picking the wrong grade speeds up pitting failure, which has been linked to structural problems in cable systems.

How to Use and Install Stainless Steel Rope Clips Correctly

Preparation and Sizing

To do a proper installation, you must first match the clip size to the diameter of the wire rope. FLA Industrial has sizes ranging from M2 to M32, which can be used for many different building and structural tasks. Before installing, make sure that the saddle groove radius and rope diameter are within a reasonable range of each other. If they are not, the clamping area and holding power will be reduced. Check the end of the rope for broken wires or kinks and clean it. As per DIN 741 and ASME B30.26 rules, you should use at least three clips per termination for most wire rope sizes.

Correct Positioning and Torque

Always put the U-bolt on the dead end and the saddle on the live end of the Stainless Steel Rope Clip. "Never saddle a dead horse" is a common installation mantra used to help people remember safety rules. Place space clips every six times the diameter of the rope. To get the nuts to the right torque for the clip size, put the working load on them and then torque them again. EN 13411-5 says that this re-torquing step must be taken to make up for the rope sitting under initial stress.

Common Installation Errors to Avoid

Most problems in the field are caused by three mistakes. First, turning the saddle around makes it up to 40% less effective at holding. Second, using only one or two clips on bigger ropes is dangerous because it leads to under-termination. Third, skipping the re-torque after the first loading lets the slippage happen slowly. When procurement teams order these parts for contractors, they should include fitting instructions and pressure value tables in the package. FLA's technical documentation service backs this up.

Stainless Steel Rope Clip vs. Alternatives: Making the Right Choice

Stainless Steel vs. Galvanized and Aluminum

Galvanized clips are cheaper up front, but the zinc covering wears off in marine and chemically active areas, exposing the base metal to corrosion within two to five years. Aluminum clips are light, but they don't have a high tensile strength, so they can't be used to hold up structures. Stainless steel wire rope clips, especially 316 grade, keep their mechanical qualities and surface state for decades without needing to be re-coated. This means that they are cheaper over their lifetime than galvanized alternatives in any outdoor building project.

Wire Rope Clip vs. Wire Rope Clamp: Key Differences

People often use the terms equally, but there is a difference in how they work. A wire rope clip (U-bolt type) can be used more than once and can be adjusted in the field. This makes it good for temporary rigging and cable systems that need to be re-tensioned every so often. A fist-grip wire rope clamp has two saddles that are opposite each other. This removes the chance of making a mistake during installation and makes the load distribution more even. In commercial projects, fist-grip clamps are becoming more popular for permanent architectural cable installations that need to meet both esthetic and structural standards.

Matching Clip Size to Wire Rope Diameter

Choosing the right clip size is important for safety reasons and can't be skipped. No matter how tight the nuts are tightened, a clip made for 6 mm rope won't be able to clamp 8 mm rope with the rated force. FLA's product range includes sizes M2 through M32 in both 304 and 316 grades. When making an order, procurement experts should always include both the standard wire rope diameter and the material grade. This way, mistakes in replacement won't happen at the seller level.

Procuring Stainless Steel Rope Clips: What B2B Clients Need to Know?

Sourcing Strategies for Volume Buyers

Hardware dealers and wholesale buyers can save money by placing all of their orders for Stainless Steel Rope Clip Products" target="_blank" style="color:blue" >products with a single manufacturer that is ISO9001 certified and keeps a lot of stock on hand. Because FLA Industrial keeps 2,000 tons of stock on hand, standard specifications ship quickly without having to wait for longer lead times. Volume pricing is available for large orders, and the company accepts mixed-SKU pallets, which is a useful option for distributors who need to keep track of different clip size inventories across multiple product categories.

OEM and Custom Manufacturing Options

Many architectural projects need non-standard clip geometries, specialty finishes, or private-label packaging. Because FLA Industrial can precisely cast, forge, machine, and polish, it can make to your exact specifications in 7–15 days. This process helps keep projects on track without making engineers give up on size. OEM clients get confirmation of the 3D design before production starts, and quality checks are done in the middle of the process to make sure the final product meets the approved specifications.

Evaluating Supplier Reliability

Check that the Stainless Steel Rope Clip provider has both ISO9001 certification for quality system management and CE certification for safety standards in Europe. Ask for material test records that show the composition is 304 or 316 grade, as well as salt spray test results that meet ASTM B117 (at least 72 hours without red rust formation). As standard, FLA Industrial offers full certification paperwork, Positive Material Identification (PMI) reports, and dimensional inspection records to help with procurement.

Maintenance, Safety Standards, and Longevity of Stainless Steel Rope Clips

Routine Inspection and Cleaning

In normal outdoor settings, check installed clips every six to twelve months. In coastal or chemically active areas, check them every three months. Look for surface rust spots (which could mean contamination instead of base metal rusting), nuts that are coming loose, and saddle wear where the rope touches the part of the machine. A light cleaning solution and a soft cloth can be used to clean. If you live near the coast and use cleaners with chloride on 304-grade clips, the chlorides will speed up crevice corrosion at the thread interfaces.

Applicable Safety Standards

A number of rules control the use of stainless steel wire rope clips in structural and design settings. In the European market, EN 13411-5 covers metal fittings used to connect steel wire bands. In the United States, ASME B30.26 controls how well rigging hardware works. DIN 741 sets the standards for U-bolt type clips in terms of their size and material. ISO 9001 sets the rules for quality control in all industry. Choosing goods that meet these standards lowers the risk of responsibility for the project and meets testing needs during the commissioning of the construction.

Real-World Application Insights

In five-year inspection cycles, 316 stainless steel clips have regularly beaten galvanized options in architectural cable railing systems on business buildings. They have also shown no measurable corrosion in coastal urban settings. In marine engineering, rope clips that hold mooring lines and deck hardware in place on working ships have been shown to last longer than ten years if they are properly torqued and checked every year. These results show that choosing the right material type and installing it correctly are both important for long-term success.

Conclusion

Paying attention to the material grade, clip type, size compatibility, and installation method of Stainless Steel Rope Clip is important when choosing the right wire rope fastening option for architectural cable and outdoor building projects. In harsh settings, Grade 316 stainless steel clips are the most resistant to rust. On the other hand, Grade 304 clips work well for outdoor uses in sheltered areas. Installing things correctly according to DIN 741, EN 13411-5, or ASME B30.26 makes sure that the structure is safe and that the rules are followed. Regular inspections greatly increase the life of a product. Working with a certified manufacturer who has a lot of stock and can make things to order is the best way for B2B buyers to get consistent quality and a reliable supply chain.

FAQ

What is the difference between a stainless steel rope clip and a wire rope clamp?

A U-bolt type rope clip holds two pieces of rope together with a single saddle and U-bolt. The two opposite saddles on a fist-grip type wire rope clamp eliminate the risk of installation going in the wrong direction. Both types of clamps can be used to connect wire ropes, but fist-grip clamps are better for permanent structural installations because they distribute load more evenly.

How many clips are needed for a secure wire rope termination?

For most wire rope diameters, both DIN 741 and ASME B30.26 say that you need at least three clips. For bigger diameter ropes, you might need four or more. Always use the manufacturer's table, which is based on the diameter of the rope and the load that is expected.

Can stainless steel clips be used in marine environments without additional coating?

For marine use, Grade 316 stainless steel clips don't need an extra coating. The molybdenum content makes it resistant to chloride for use in saltwater. Without extra protection, Grade 304 clips shouldn't be used in direct water settings.

Do stainless steel clips require re-torquing after installation?

Yes, EN 13411-5 says that the nuts must be re-torqued after the first working load is put on them. When the stress on the rope is high, the nut relaxes, and one of the most common reasons why cable terminations slowly fail is that the torque is not re-torqued.

Partner with FLA Industrial for Your Next Project

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and brings that experience to every order. We are a reliable provider of Stainless Steel Rope Clips with ISO9001 and CE certifications. We offer large purchases, OEM customization, and fast shipping from a 2,000-ton stock inventory. To get a quote, email our team at sales@flaindustrial.com or go to flaindustry.com. Within 24 to 48 hours, our expert team gets back to you.
