Heavy Pipe Wrenches for Industrial Maintenance: Jaw Capacity and Grip

When industrial maintenance demands maximum torque on large-diameter pipes, the right pipe wrench makes all the difference. A heavy pipe wrench is a high-leverage manual tool built specifically for gripping and turning threaded pipes and fittings under demanding load conditions. Its jaw capacity — the maximum pipe diameter the tool can securely hold — directly determines whether a job gets done safely and efficiently. From plumbing installations to oil and gas pipeline work, understanding how jaw capacity and grip mechanics interact is the first step toward selecting the right tool for the job.



Specification

Model	Total Length	Total Width	Maximum Opening	Product Weight
European Heavy Duty 10"	24.5cm	6.5cm	5.5cm	0.68kg
European Heavy Duty 12"	27.5cm	7.5cm	6.5cm	0.97kg
European Heavy Duty 14"	31.5cm	8.0cm	8.7cm	1.28kg
European Heavy Duty 18"	40cm	9.0cm	9.5cm	1.89kg
European Heavy Duty 24"	51cm	10cm	11.0cm	3.00kg

What Is a Heavy Pipe Wrench and Why Does Jaw Capacity Matter?

The Self-Tightening Jaw Mechanism

A heavy-duty pipe wrench is different from other flexible wrenches because the jaws of the hook are free to move and pinch when force is applied to the handle. The more you push on them, the tighter the jaws hold on to the thing. This design that tightens itself is very important so that the fittings don't slip on rounded, corroded, or oil-slick pipe surfaces. This can happen in both city water systems and oil fields.

Jaw Capacity and Torque Performance

The wrench's jaw size tells you the widest pipe that it can safely hold. Most of the time, a 24-inch wrench can handle pipes that are up to 3 inches in diameter. Pipes with a diameter of up to 6 inches can be tightened with a 36-inch wrench. If the mouth is too small or too big for the pipe, the sharper teeth won't be able to grip the pipe as well. The power transfer is much less effective, and the tool is more likely to slide when heavy work is being done.

Why Grip Pattern Matters as Much as Size?

They can get a good grip because the mouths are made of cast alloy steel and have precisely polished teeth. The tool stays in place on cast iron supply lines that have been buried for decades and have a lot of surface rust because of its aggressive tooth shape. According to ASME B107.100, proof torque load testing makes sure that the jaw teeth are still physically sound when they are pushed all the way up.

Types of Heavy Pipe Wrenches and Their Impact on Jaw Capacity and Grip

Straight-Handle Pipe Wrenches

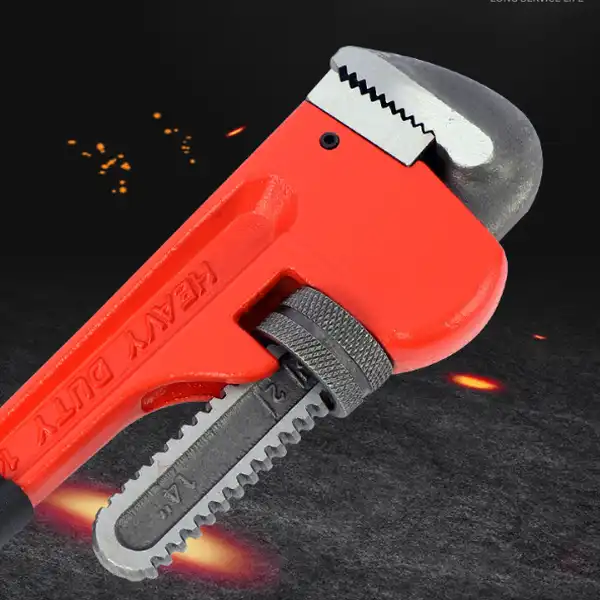

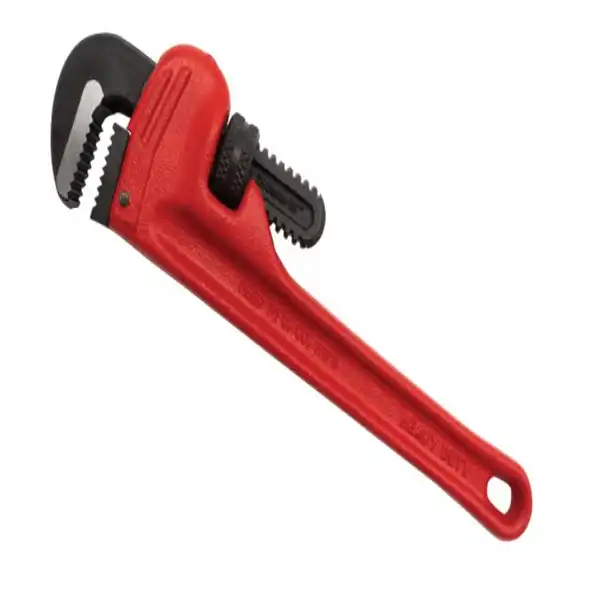

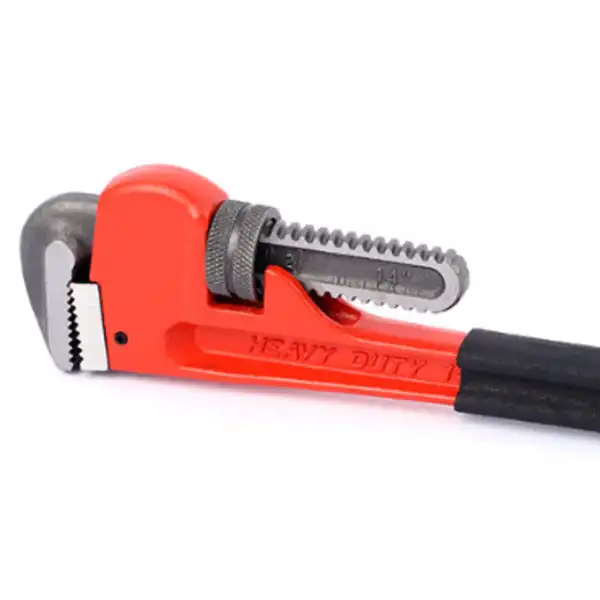

Most tools used in plumbing, HVAC, and building have a straight handle. Because it is made of an I-beam handle, it is strong for its weight, and the jaw is easy to change thanks to its linear geometry. There is a straight handle on the FLA Heavy Pipe Wrench. This style has been used for a long time. The handle is made of malleable iron, and the teeth are made of drop-forged alloy steel. They work with all types of pipes.

Offset and End Pipe Wrenches

Offset wrenches have a jaw that is at an angle to the handle. This lets you work in tight spaces where a straight wrench would be hard to turn. With an end pipe wrench, you can keep the pipe's end close to a wall or flange. Choose the right jaw capacity when handle arc is limited by space. This is because both types change how much contact can be made between the jaw and the pipe.

Compound Leverage and Heavy-Duty Aluminum Models

Compound leverage Heavy Pipe Wrench models increase the force applied mechanically. They can be used to break apart joints that have become stuck without using cheater bars, which manufacturers and ASME standards strongly advise against because they apply excessive torque to the tool. Models made of heavy-duty aluminum weigh about 40% less than malleable iron versions that do the same job. They are easier for workers to carry when working overhead or for long periods, but they generally cost more.

How to Select the Right Heavy Pipe Wrench for Industrial Maintenance?

Match Handle Length to Pipe Diameter

The wrench size number tells you how long the handle is, not how wide the jaws open. The wrench with the largest handle can turn pipes that are up to 2 inches wide. A wrench with a 24-inch handle can work on pipes that are up to 3 inches wide. A wrench with a 36-inch handle can work on pipes that are up to 5 inches wide. When procurement managers buy tools for site surveys, they should know both how long the handle is and how wide the jaws can open.

Evaluate Material and Manufacturing Standards

It takes a lot longer for jaws made of chromium-molybdenum (Cr-Mo) or chromium-vanadium (Cr-V) alloy steel to wear down to HRC 55–60 on the teeth than jaws made of regular carbon steel. FLA's Heavy Pipe Wrench is made with precise forging, machining, and advanced heat treatment that meets the standards for ISO9001 and CE approval. The production process follows the rules in US Federal Specification GGG-W-651E and DIN 5234 to make sure that the test force and hardness are always the same.

Bulk Procurement Considerations for Distributors

When hardware stores and tool sellers buy in bulk, they should make sure that the sources they work with are qualified. It's important that the dimensions are accurate across all production batches, that you can get replacement jaw sets for tools so that you don't have to buy new ones all the time, and that the tools are safely packed while they're being shipped. When you place an order with FLA, you can get real-time updates on the production process and a wide range of SKU sizes. Every one of these features is helpful for buyers who need to keep track of a lot of items.

Best Practices for Using and Maintaining Heavy Pipe Wrenches

Correct Jaw Adjustment and Grip Setup

First, make sure that the pipe fits close to the back of the jaw hole and not right at the tip of the mouth. To make the teeth touch more, put them in this position. This also spreads the weight over a bigger area of the mouth. It starts to wedge itself when force is put on the fixed heel jaw, not when force is put on it away from it. This is how you should always hold the wrench.

Routine Inspection and Lubrication

A lot of repair teams using a Heavy Pipe Wrench forget to look for worn threads on the adjustment nuts. The threads on good pipe tools clean themselves, getting rid of dirt and grime. At least once a week, clean and lightly oil the mouth to keep it moving smoothly. Check the jaw teeth for worn or flattened serrations every time you use them. If you see any, it's time to get a new set. If the hook's jaw is bent or there are small cracks near the shank, the tool has to be thrown away right away.

Safety Precautions on Site

You should always wear gloves that can take being hit when you work with big pipe wrenches. Hand accidents happen a lot when the handle springs back after a joint quickly comes loose. With a pipe cheater bar, you should never stretch the handle. When the tool can't handle the force, you should switch to a bigger wrench. Steel-toed boots are a common piece of safety gear to wear when dealing with big diameter pipes.

Comparing Heavy Pipe Wrench Performance: Case Studies and User Reviews

Oil and Gas Rig Floor Applications

The pipe wrenches that are on the floors of drilling rigs have to be strong enough to handle drilling mud, high power loads, and quick temperature changes. Reports from the field in 2024 say that in joint break-out tests, wrenches with ductile iron housings and Cr-Mo jaw inserts always do better than lower-grade tools. Fewer jaw replacements were needed over the course of six months of operation.

Municipal Water System Maintenance

Maintenance crews for cities that work on old cast iron supply lines say that having jaws with sharp teeth is the best way to hold pipes that have a lot of rust on the outside. Everyday wrenches don't have the right design of serrations to break away threaded joints that have been stuck for decades.

Hydraulic System Repairs in Mining

Heavy Pipe Wrenches are used by mining equipment repair teams to work on high-pressure hydraulic cylinders that have frozen up because of changes in temperature. Maintenance logs from 2024 show that ergonomic handles that don't slip really help repair workers stay awake while working long hours in small equipment bays. This makes work go more quickly and without as many mistakes.

Conclusion

For repair work in an industrial setting, you need to pick a Heavy Pipe Wrench whose jaws are the right size for the pipe's diameter, whose material is suitable for the pipe's surface, and whose handle length gives you the power you need. Teams that buy tools know that projects will run smoothly and last a long time if the tools meet ASME B107.100, ISO 9001, and CE standards. These details must be correct if you're in charge of a plumbing business, a construction site, or a distribution inventory. Failing to do so could hurt your team and cause projects to run late.

FAQ

How is pipe wrench size determined?

Wrench size refers to the handle length (e.g., 18-inch, 24-inch), not the jaw opening. Handle length correlates to maximum pipe capacity — a 24-inch model generally handles pipe up to 3 inches in diameter.

When should jaw teeth be replaced?

Replace jaws when the serrated teeth become flattened or rounded, causing slippage on the pipe. Also replace immediately if the hook jaw shows bending or hairline cracks near the shank.

Can I extend the handle for more torque?

No. Extending the handle with a pipe section exceeds the tool's design torque limit and can shear the jaw pin or bend the handle. Use a larger wrench size instead.

What is the floating jaw and why does it wobble slightly?

The floating hook jaw design allows slight pivoting to create the self-tightening wedging action as force is applied. Excessive lateral movement indicates a worn pivot pin and warrants inspection.

What materials are heavy pipe wrench jaws made from?

Professional-grade jaws are drop-forged from Cr-Mo or Cr-V alloy steel, induction-hardened to HRC 55–60 on the teeth for wear resistance while retaining toughness in the shank.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Bulk Order

For almost 40 years, FLA Industrial & Trading Co., Ltd. has been making tools. Every Heavy Pipe Wrench we make has forged alloy steel teeth and a finish that won't rust. In the U.S., Germany, and Australia, you can trust us to sell you Heavy Pipe Wrenches. We back up every order with ISO9001 and CE approval, full material tracking, and great customer service after the sale. To get product information, price ranges, or help with a unique solution, go to flaindustry.com or email our sales team at sales@flaindustrial.com right now.
