Stainless Steel Rope Clips for Marine Rigging: Corrosion and Load Checks

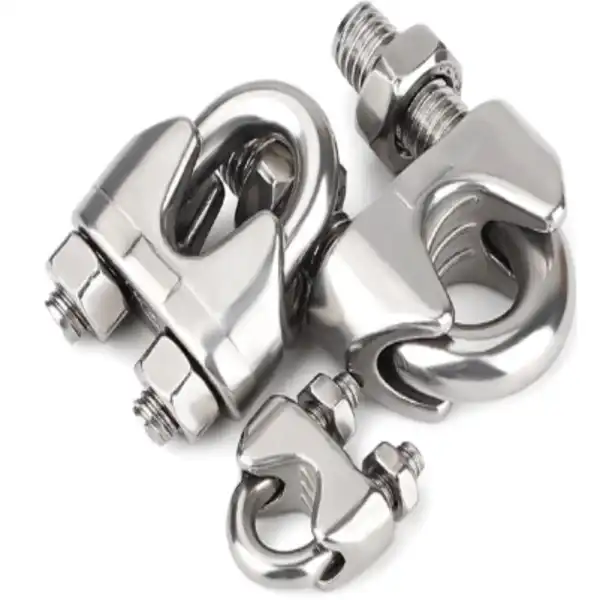

Stainless steel rope clips are mechanical fittings used to secure, terminate, or adjust wire ropes in marine rigging systems. Each clip consists of a U-bolt, a forged saddle, and two hexagonal nuts, working together to clamp the dead end of a rope against the live end. Manufactured from AISI 304 or AISI 316 stainless steel, these wire rope fasteners deliver corrosion resistance and holding efficiency typically between 80–90% of the rope's rated breaking strength. For procurement professionals sourcing hardware for marine engineering, shipbuilding, or construction, understanding corrosion risks and load check procedures is essential for safe and cost-effective rigging decisions.

Understanding Stainless Steel Rope Clips in Marine Applications

The gear for naval rigging needs to be able to handle being in salt water, UV light, and being pushed and pulled over and over again. Anchor cables, lifelines, mooring lines, and sail rigging can all be joined together on both business and pleasure boats with wire rope clamps.

What Makes These Clips Suited for Marine Use?

The chromium oxide passivation layer in stainless steel keeps it from rusting and can fix itself if it does. A little over 3% molybdenum is added to Grade 316 to make it much less likely to split because of chloride. This is a typical way for salty gear to break. Because it can be worked with metal, 316 is the best grade for use near the coast and at sea.

Common Designs in Marine Rigging

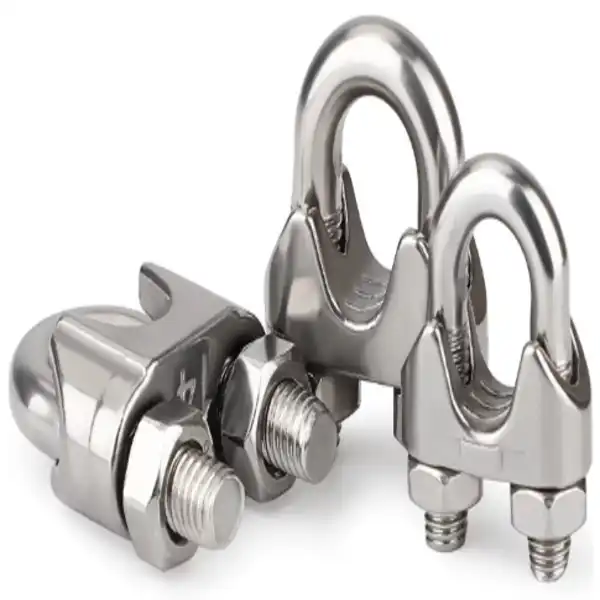

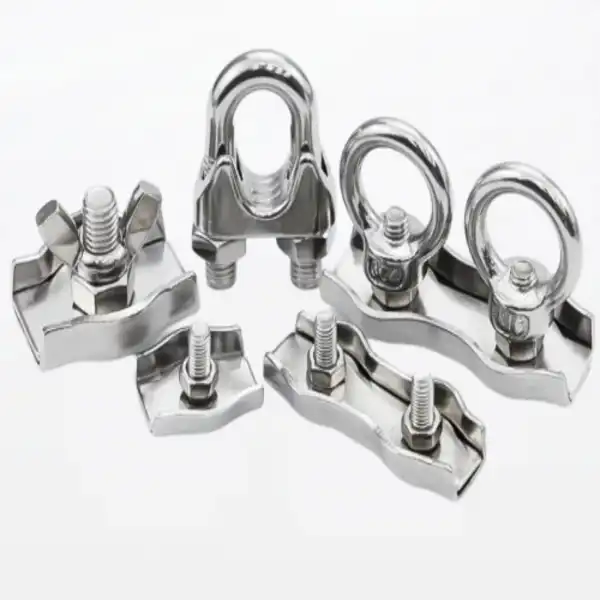

U-bolt clips are the best way to end a naval wire rope most of the time. The U-bolt holds the rope's dead end firmly in place on the seat. The two parts are locked together when the rope is pulled. When you use a double saddle design, the grip's force is spread out more evenly. It can hold more weight since the wires aren't all pushed together in one place.

Where These Clips Are Used on Vessels?

There are different kinds of moorings at the dock, as well as safety gear and tools for the deck. The mast stays have wire rope grips on them. Boats with beautiful cable railings use them to hold the outer safety lines in place as well. Because they are flexible, they can be used in places that don't have swaging tools.

Corrosion Challenges in Marine Environments and Prevention Strategies

Under harsh conditions, rust can happen to even the best stainless steel. Electrochemical reactions happen faster in saltwater. When metals that are not the same touch, like a stainless steel clip touching a galvanised shackle, galvanic corrosion starts slowly but quickly.

Identifying Early Corrosion Signs

The first thing you should do to protect yourself is to look at a Stainless Steel Rope Clip regularly. Check for dings or pits on the U-bolt threads, coloured spots on the saddle seat or reddish-brown spots where the rope touches the saddle. In the space between the saddle and the wire rope, where the amounts of air and moisture are different from the rest of the area, crevice rust often forms.

Practical Prevention Methods

Here are some steps for marine maintenance that will make things last longer:

• Rinsing with fresh water after being in salt water gets rid of the chloride layers that speed up the pitting rust on clip surfaces.
• Putting a nickel-based anti-seize lube on U-bolt threads before tightening them stops galling, which happens when high friction causes austenitic stainless steel to cold-weld.
• The ratio of chromium to iron on the surface is raised by protective coats or passivation processes like electropolishing. This makes the passive layer stronger.
• Keeping stainless steel tools away from carbon steel tools in a dry, well-ventilated area is the best way to keep them from getting rusty.

If you follow these steps every time, you'll avoid unplanned downtime and the cost of having to repair something during busy sea activities.

When to Replace Rather Than Maintain

Damage to the structure can't be fixed by cleaning it up. If you see thread damage on the U-bolt, cracks near the saddle base, or measured extension of the clip body, you should replace the wire rope fastening. Professionals use dye penetrant testing to find surface cracks in safety-critical rigging that can't be seen with the naked eye.

Load Checks and Safety Guidelines for Stainless Steel Rope Clips

Even if a wire rope clip looks fine, it could still break under load if it wasn't installed correctly or has been used for a long time and is worn down. You have to do load checks; they are an important part of following maritime safety rules.

How to Conduct a Proper Load Inspection?

After the first fitting, put about 10% of the working load on the unit and tighten all the nuts to the number recommended by the maker. Make sure the U-bolt is on the rope's dead end and not its live end. The saddle should always rest on the load-bearing section. If the clip is not in the right place, it can lower the holding power by more than 40%.

Torque Specifications and Clip Quantity

How many clips are needed for each end varies with the thickness of the rope. As a general rule, a 1/2-inch wire rope needs at least three clips that have a certain torque value, as shown on the manufacturer's data sheets. If you torque the rope too much, the wire strands can get crushed, which lowers the rope's breaking strength.

Establishing a Replacement Schedule

Set up how often inspections should happen based on how the machine is being used. In naval work that lasts a long time, wire rope grips should be checked every 30 days or after any event that involves shock loading. Keep track of the date each part was installed, its power records, and its health notes. If the total amount of wear or deformation goes beyond what is acceptable, you should replace the whole set. Reusing broken clips increases the chance that the whole rigging will fail under dynamic load.

Comparing Stainless Steel Rope Clips: Choosing the Right One for Marine Use

To get the right wire rope clip, you need to do more than that. When things are made with certain materials and to a certain level, they cost more and last longer. The skills of the service are also important.

304 vs. 316 Grade: Which One Do You Need?

The Grade 304 (A2) Stainless Steel Rope Clip can be used inside or outside, as long as it doesn't get too close to salt. Grade 316 (A4) is the best metal to work with if you are going to be near salt water, ocean air, or salts that are used to break ice. 316 clips don't get weak over time in salty settings like 304 clips do because they contain molybdenum. Should they need clips for docks or ship repairs, you should pick 316 instead of 304.

Stainless Steel vs. Galvanized Alternatives

You can get galvanised steel clips for less money at first, but they need to be replaced more often in saltwater areas because the zinc coating wears off faster. Stainless steel screws cost more at first and take longer to keep up. It's clear that this helps projects that need to buy big things, like those that build roads, ships, or utility lines.

Certifications That Matter in B2B Procurement

When you buy wire rope grips for the government or a business, you should make sure that they are approved by both ISO 9001 and CE. These prove that the specs, material makeup, and load rates have been looked over by someone else. To be sure the goods are up to par, you should also ask the people who made them to test them with X-Ray Fluorescence (XRF) and salt spray.

Procurement Guide: How to Source Stainless Steel Rope Clips for Marine Rigging?

It takes more than checking costs on a catalogue sheet for hardware dealers, building procurement heads, and MRO teams to find the right wire rope fastener provider.

Key Factors in Supplier Evaluation

Check to see if the supplier has valid ISO9001 and CE certifications, offers dimensional inspection reports, and can give you salt spray test data if you ask for it. Consistency in lead time is just as important as price—delayed hardware shipments can stop a whole phase of building or refitting a ship. That risk is greatly reduced by suppliers who keep stock on hand.

Customization and Volume Capacity

Some naval or industrial projects need clip sizes or shapes that aren't standard and aren't covered by off-the-shelf specs. Custom wire rope grips can be made to specific tolerances by a supplier that does precision casting, forging, and machining in-house. This is especially helpful for project engineers who need to choose hardware for complicated rigging shapes.

Why FLA Industrial Fits This Profile

FLA Industrial & Trading Co., Ltd. has nearly 40 years of manufacturing experience and carries over 1,000 product specifications. Our stainless steel rope clip range covers M2 to M32 sizes in both 304 and 316 grades, manufactured under ISO9001 and CE-certified processes. We hold 2,000 tons of standing inventory for standard specifications, and custom orders ship within 7–15 days. Our team responds to pricing inquiries, drawing confirmation, and sample requests within 24–48 hours, giving procurement managers a short decision cycle without sacrificing accuracy.

Conclusion

Of course, all Stainless Steel Rope Clip wire rope fixings in military gear need to be in great shape. The person in charge of making sure the structure is safe must choose the correct type of stainless steel, apply the correct tightening force, and check it often for load security and rust. When there is a lot of chloride in the air, grade 316 stainless steel works better than other types. Also, it's better to buy from licensed sellers who can track all goods. It's important to use the right clip with proper documentation when outfitting a commercial ship, maintaining dock infrastructure, or selecting hardware for an industrial rigging assembly. This will protect the job and the people who depend on it.

FAQ

How often should I inspect wire rope clips for corrosion in marine service?

In salt water with lots of life, you should check at least once every 30 days. After a shock load event, the part should be checked right away before it is used again. Each time you check, write down the state and force that were checked. This will help you remember them.

Can I reuse a stainless steel rope clip after removing it?

As long as the threads are still straight and there are no cracks near the saddle, you can use the same clip more than once. Also, check to see if the clip has grown longer. If any of these are true, the clip needs to be changed. If you use broken bolts again, they will probably break again when things move, which is not okay.

What is the difference between 304 and 316 stainless steel in marine applications?

Chloride doesn't pit grade 316 like it does grade 304 in air near the ocean or sea because it has 2–3% molybdenum in it. 316 is the right standard for any job that involves salt water or the ocean.

Why do stainless steel threads sometimes seize during tightening?

It is more likely for austenitic steels to gall. When a lot of torque is put on a thread, galling happens because of the high friction between the threads. This won't happen if you use molybdenum disulfide grease or nickel-based anti-seize lubricant to grease the U-bolt threads before putting them together.

Are these clips rated for overhead lifting?

Work Load Limit (WLL) stamps aren't always on wire rope grips that are used to move things from above. It is important to know what the item is meant to do before adding it to a lifting set. Clips that follow the rules set by DIN 741 can sometimes be used with ceiling lifts, but not always.

Partner with FLA Industrial for Your Marine Rigging Hardware Needs

FLA Industrial & Trading Co., Ltd. offers Stainless Steel Rope Clips in Grades 304 and 316 that are approved by ISO9001 and CE. Sizes for these grades range from M2 to M32, and they can be made to fit standard needs or special ones. You can trust us because we've been making Stainless Steel Rope Clips for almost 40 years. You can ask for big things, change how things are set up, and get things done quickly. You can get a price quote or a sample of our goods right now by emailing sales@flaindustrial.com or going to flaindustry.com.
