How Do Buyers Select a Fire Protection Flanged Valve for Large Systems?

Selecting the right fire protection flanged valve for a large system is not a simple purchase decision — it is a safety-critical commitment. Procurement engineers and site supervisors must evaluate pressure ratings, material compatibility, certification compliance, and long-term maintenance costs before committing to any product. A flanged isolation valve that fails during an emergency can compromise an entire suppression system. This guide walks through the essential technical and commercial factors that experienced buyers consider, helping you make a confident, well-informed decision for your next large-scale fire protection project.

Understanding Fire Protection Flanged Valves

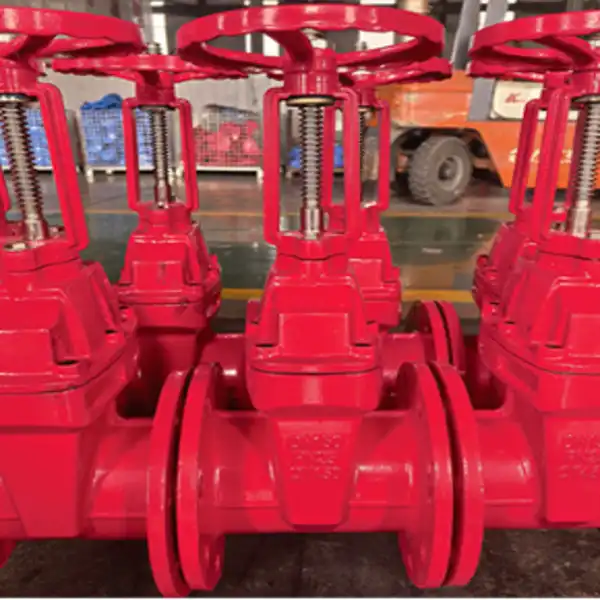

At its heart, a Fire Protection Flanged Valve is an isolation part that is designed to open, stop, or control the flow of water in fire suppression pipes, such as sprinkler arrays, wet riser systems, and hydrant networks. A flanged valve is different from grooved, threaded, or socket weld valves because it has a bolted flange connection, which makes the structure more rigid under high hydrostatic pressure, especially in pipelines bigger than 2 inches.

Common Valve Types and Material Choices

Large fire safety systems usually have three types of valve configurations:

• OS&Y Gate Valves — The rising stem makes it easy to see whether the valve is open or closed right away, which is required by NFPA 13 and NFPA 25 for fire water supply mains.
• Butterfly Valves with Tamper Switches — These are small and can be operated with a quarter-turn. They work well on risers that don't have a lot of room and can be connected to building management alarm systems.
• Check Valves — These are put in place to stop backflow, which protects pump assemblies and keeps the system's pressure stable.

The choice of material is based on the purpose needs. ASTM A536 Grade 65-45-12 ductile iron has a high tensile strength and is resistant to impact, so it is the best choice for most industrial and business projects. Cast iron works well in moderate-pressure settings, while carbon steel is better for high-temperature or high-pressure industrial settings. There are different rust limits for each material, which directly affects how long it will last in fire systems with still water.

Key Criteria for Selecting Fire Protection Flanged Valves

It's not enough to just know the types of valves for a Fire Protection Flanged Valve. Before accepting a seller, procurement managers with a lot of experience compare them to a number of technical standards.

Pressure Rating and Sizing Compatibility

Depending on the height of the building and the way the pumps are set up, the standard working pressure for fire protection devices is usually between 175 PSI and 300 PSI. When used in high-rise buildings, multi-stage fire pumps can create large hydrostatic loads that need at least ANSI Class 150 or Class 300 valves. Not just the theoretical pipe size, but also the hydraulic formulas in the system design should always be matched to the valve's pressure class.

Certification Requirements You Cannot Skip

For the U.S. market, fire safety valves need to have both UL Listing (UL 262 for gate valves) and FM Approval (FM Class 1120/1130) to meet the needs of the Authority Having Jurisdiction (AHJ). In fire systems, NFPA 13 says that all control valves must be UL Listed or FM Approved. The manufacturer's quality management system is further solidified by ISO 9001 certification. If you accept valves that don't have these physical casting marks, you could be sued, and the project could be rejected during inspection.

Manual vs. Actuated Operation

Large devices often need switches that can be controlled from a distance. Electric and pneumatic actuators separate zones from a main panel, which speeds up emergency response times. But actuated valves need more money up front and regular electrical maintenance. A well-designed handwheel gear operator lowers the torque needed on valves bigger than 6 inches for systems that can be operated by hand.

Comparing Flanged Valves with Alternative Connection Types

Teams in charge of buying things often compare flanged connections to threaded bolts or grooved joints. Before finishing the specification, it's important to understand the trade-offs that come with each choice.

Manufacturers like Victaulic have made grooved-end valves very popular. They are easier to install and reduce vibration, which is helpful for retrofit projects or pump room assemblies. Threaded valves can still be used on pipes with sizes less than 2 inches, but they pose a blowout risk when used on pipes with larger diameters and higher pressures. Socket weld connections work well in high-pressure industrial settings, but they need skilled welders and are hard to take apart later.

Flanged valves, like the Fire Protection Flanged Valve, are the easiest to take apart. For example, bolted flanges make it easy to remove valves quickly during system turnarounds without having to cut the pipe. This is useful for petroleum fire loop repair. The flanged configuration is always the most reliable, code-compliant, and easy-to-maintain option for any system larger than 3 inches in diameter that handles pressures greater than 150 PSI. Apollo, Mueller, Crane, and Anvil are all well-known brands in the U.S. market, and all of their Products" target="_blank" style="color:blue" >products are listed with UL and FM.

Practical Considerations for Procurement and Installation

Just getting the basic details right is half the battle. The buying and installing process adds its own set of variables that experienced buyers plan for ahead of time.

Before you place a large order, you should think about these key practical factors:

• Flange standard alignment — ANSI B16.1 (Class 125) and ANSI B16.5 (Class 150) have different designs for pin holes. Standards that don't match up with existing pipework require expensive adapters and cause delays in commissioning. Before you place an order, you should always check that the flange cutting design matches the specifications of the pipe.
• Coating integrity verification — Both the inside and outside of the structure should have a fusion-bonded epoxy (FBE) coating that meets AWWA C550 standards and has a dry film thickness greater than 250 microns. Before putting the coating in systems with still water, where corrosion happens quickly, a holiday (pinhole) test with a high-voltage detector makes sure that the coating is continuous.
• Maintenance scheduling per NFPA 25 — NFPA 25 says that fire control valves must be visually checked at least once a week or once a month, based on how they are supervised, and they must be fully operational cycled at least once a year to avoid stem seizure and check the position of the wedge.

These things for a Fire Protection Flanged Valve have a direct effect on the long-term reliability and total cost of ownership of a system. Fixing them in the field after installation is very expensive, so it's better to deal with them during the procurement stage.

The most common problem after fitting is stem packing that leaks. It's usually caused by gland nuts coming loose during shipping or installation vibration, and it can be fixed by slowly tightening the gland instead of replacing the valve. By teaching your repair team these basic fixing skills, you can avoid needless warranty claims and downtime.

How to Finalize Your Fire Protection Flanged Valve Purchase?

Before you place an order, make sure that the valve's specifications match an organized plan that includes the minimum pipe size, pressure class, flange standard, material grade, necessary approvals, working method, and coating specification. This stops packages that don't match up, which slows down projects.

Look at the total cost of ownership as well as the unit price. A cheaper valve that doesn't have FM Approval might need to be replaced after an AHJ review, which would double the cost of buying it. In 10-year lifecycle cost analyses, ductile iron valves with resilient wedge seating and FBE coating always do better than bare cast iron options. This is because they don't develop tuberculation and need fewer seal replacements in the middle of the cycle.

The chance of buying something is greatly reduced when you work with a qualified maker whose products have ISO 9001 quality management, UL Listing, and FM Approval. At FLA Industrial & Trading Co., Ltd., we have Fire Protection Flanged Valves in cast iron, ductile iron, and carbon steel. They come in sizes from 2" to 12" (DN50–DN300) and can handle 150 to 600 PSI of pressure. Before being shipped, each unit goes through full dimensional verification against ANSI B16.10, seat leakage testing to a zero-bubble standard, and hydrostatic shell testing at up to twice the rated working pressure.

Conclusion

An effective fire control system starts with choosing the right valves like the Fire Protection Flanged Valve. When buyers look at total lifecycle costs along with pressure ratings, certification marks, material durability, and connection compatibility, they always get safer results and spend less in the long run. Before a single bolt is tightened, procurement risk is greatly reduced by comparing flanged valves to other connection types and carefully checking the qualifications of the seller. Working with a qualified, experienced maker turns a difficult task of defining requirements into an easy, sure choice. Work with a qualified technical team early on in the project cycle to make sure that the valves you choose are in line with the hydraulics of the system and the requirements of the code.

FAQ

What certifications are essential for fire protection flanged valves in the U.S.?

In the U.S., what kinds of certifications do Fire Protection Flanged Valves need? UL Listing (UL 262) and FM Approval (FM Class 1120/1130) are musts for most fire safety systems in the U.S. NFPA 13 makes it clear that all sprinkler systems must have control buttons that are named or approved. ISO 9001 approval proves that the company manages quality well, and CE marking shows that the product is safe for the European market.

What is the difference between OS&Y and NRS valves?

When the valve opens, the OS&Y (Outside Screw and Yoke) stem rises, making the state clear right away. This is required on fire water supply mains. NRS (Non-Rising Stem) valves are good for installations that are underground or have limited space and can't have the stem stick out. For NRS setups, wall post indicators show what the state is.

How often should flanged isolation valves be inspected?

According to NFPA 25, fire control valves need to be visually checked at least once a week or once a month, depending on whether electronic supervision is present. They also need to be fully opened and closed at least once a year to keep the inside from seizing up.

Can a manual valve be upgraded to actuated operation?

Yes, you can place an electric or gas actuator on most flanged gate and butterfly valve bodies. Before retrofitting, check with the valve maker to make sure that the stem nut measurements and actuator force output are compatible.

Partner with FLA Industrial for Certified Fire Protection Flanged Valve Solutions

Every flanged valve FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making things. Our Fire Protection Flanged Valve supplier catalog has UL Listed, FM Approved, and ISO 9001 certified valves made of ductile iron, cast iron, and carbon steel. Our technical team gets back to you within 24 to 48 hours, whether you need standard sizes or custom pressure ratings. To get a list of our products and a bulk quote right away, email us at sales@flaindustrial.com or go to flaindustry.com.

References

1. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

2. National Fire Protection Association. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. NFPA, 2023.

3. Underwriters Laboratories. UL 262: Standard for Gate Valves for Fire Protection Service. UL, 2021.

4. Factory Mutual Global. FM Approval Standard Class 1120: Valves for Fire Protection Service. FM Approvals, 2020.

5. American Water Works Association. AWWA C550: Protective Interior Coatings for Valves and Hydrants. AWWA, 2022.

6. American Society of Mechanical Engineers. ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings. ASME, 2020.
