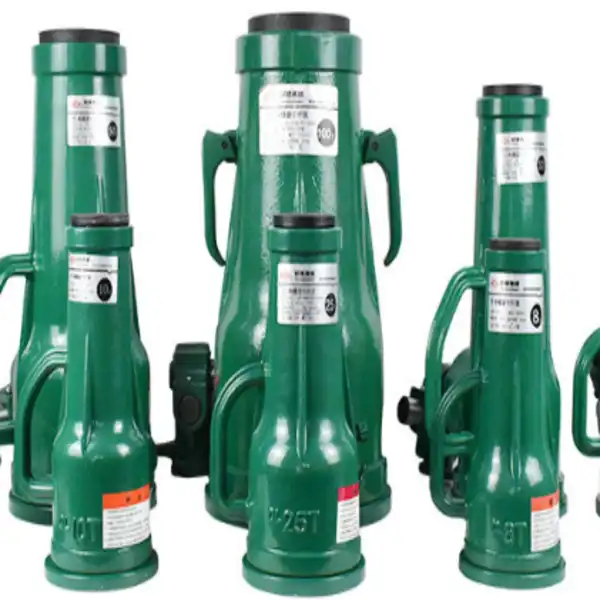

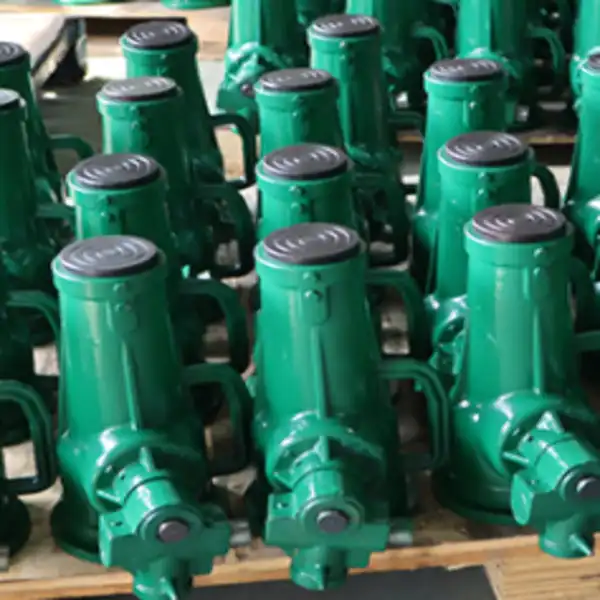

Industrial Screw Jack for Machine Tool Leveling and Positioning

When machine tools drift even a fraction of a millimeter out of alignment, the consequences ripple across entire production lines — rejected parts, accelerated wear, and unplanned downtime. An industrial screw jack addresses this challenge directly. By converting rotational input into controlled linear movement, it delivers the sub-millimeter precision that machine tool leveling and positioning demand. Whether you manage a high-volume manufacturing floor, coordinate procurement for a construction firm, or source bulk tooling for distribution, understanding how these mechanical actuators work — and how to select the right one — is essential to keeping operations both accurate and safe.

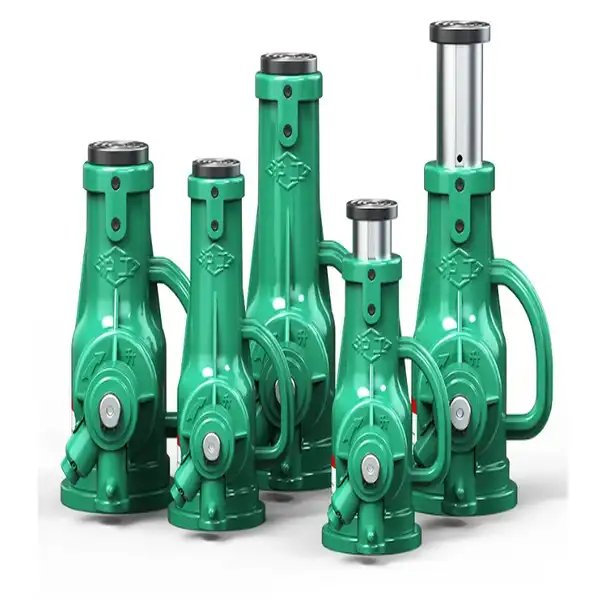

 Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks and Their Mechanism

How Rotational Motion Becomes Precise Linear Force?

A Industrial Screw Jack is made up of a worm gear set and a trapezoidal or Acme lead screw. The worm gear set turns rotational torque into controlled axial travel. To handle pressure loads, housings are usually made of GG25 gray cast iron or GGG40 ductile iron. Worm shafts are made of hardened alloy steels like 42CrMo and bronze worm wheels to make them wear-resistant. Catalogs list dynamic load capacities between 2.5 kN and 3,500 kN, and ball screw versions can reach 300 mm/s of linear travel.

For low-cycle, intermittent tasks, manual models use a hand wheel or crank. Electric types connect a motor directly to the worm shaft. This lets you control them from a distance and sync multiple Industrial Screw Jacks by using connecting shafts and miter gears. Both types have a key safety feature that all trapezoidal screw designs must have: they mechanically lock themselves in place. Back-driving is stopped by thread friction, so the load stays right where you put it, even if there is no hydraulic pressure or electricity.

For planning an installation, it's important to know the difference between a translating screw (the screw sticks out) and a rotating screw (the nut moves along a set screw). Designs that translate work well with unguided or cantilevered loads, while designs that rotate save vertical clearance, which is important on crowded machine floors.

Key Benefits of Using Screw Jacks for Machine Tool Positioning

Accuracy, Durability, and Built-In Safety Working Together

Unlike hydraulic cylinders, mechanical Industrial Screw Jacks don't leak fluid or lose pressure, which are two ways that hydraulic cylinders can fail and make positioning less repeatable. A correctly defined unit keeps its positional accuracy within the limits set by ISO 2768. This is exactly what quality-conscious procurement engineers check when they inspect new Products" target="_blank" style="color:blue" >products.

Here are the main structural and functional benefits of these Industrial Screw Jacks that make them the best choice for heavy industry:

• Sub-millimeter positioning repeatability: The trapezoidal thread shape and pre-loaded metal or engineering plastic nuts reduce slack. A standard workplace test is to use dial markers to check for axial backlash and make sure that what leaves the production floor meets the tolerances that have been set.
• Indefinite load retention without power: Self-locking trapezoidal models hold their position mechanically, so they can hold a load indefinitely without power. This directly lowers risk during long-term machine setups, since hydraulic systems need to be checked for pressure all the time.
• Synchronized multi-point lifting: A single motor with shafts and links connects to several Industrial Screw Jacks to lift uneven loads evenly. In big gantry alignment jobs and precise machine bed leveling, this setup is the norm.
• Harsh-environment resilience: Corrosion-resistant coatings, customizable dust covers, and specialized lubrication interfaces keep interior parts safe in foundry, HVAC, and outdoor civil engineering settings.

Each of these benefits directly addresses the problems that purchasing managers and plant engineers face every day, such as machine drift that comes up out of the blue, repair delays, and safety risk. Instead of reactive repair cycles, a mechanical Industrial Screw Jack gives you predictable, controlled performance.

How to Choose the Right Screw Jack for Your Machine Tool?

Matching Load Capacity, Duty Cycle, and Drive Type to Your Application

Selection starts with three inputs required at the start of the process: the maximum static load, the required travel length, and the duty cycle. Because the worm gear makes heat, standard Industrial Screw Jacks only work at about 20–30% duty cycle. Bevel gear or ball screw configurations are needed for applications that need to cycle continuously.

When choosing a drive type for an Industrial Screw Jack, these useful differences should be taken into account. Low-frequency leveling jobs, like aligning tools during installation or adjusting bridge supports, can be done by hand. Electric drive is good for situations that need to be controlled from a distance, be repeatable, or have synced multi-jack systems.

The specification of the material also affects the choice. In normal indoor machine tool settings, housings made of alloy steel or carbon steel with spray-painted finishes that prevent corrosion work well. Stainless steel parts and an epoxy-grade surface treatment are required for environments that are outside or have a lot of moisture. When put under repeated load, lead screws that have been quenched or tempered have a longer useful life.

When buying in bulk, purchasing teams should make sure that the suppliers they're looking at follow DIN, AGMA, or EN dimensional standards. These standards govern thread geometry and gear quality, and they also say whether replacement parts from different production runs can still be used together.

Procurement Guide: Buying Screw Jacks for Machine Tool Applications

What Bulk Buyers and Project Engineers Must Verify Before Ordering?

There's more to finding a good provider than just comparing unit prices. Total cost of ownership is based on the following factors for B2B buying teams that handle large orders of Industrial Screw Jacks:

• Certification compliance: For the U.S. and European markets, ISO9001 quality management and CE product safety certification are basic needs. For screw geometry and gear precision, suppliers should also look at DIN/AGMA/EN requirements.
• Quality control documentation: Reliable makers do axial backlash tests, no-load and full-load run tests (to check for noise, vibration, and temperature rise in the gearbox), static overload tests at 1.5× stated capacity, and Rockwell C hardness checks on worm shafts.
• Lead time and inventory depth: For projects with tight production or building plans, providers need to keep a lot of finished goods on hand and be able to do special manufacturing quickly. Standard units should ship quickly, but non-standard combinations usually take 7–15 days.
• Aftersales support: A long-term supply partner is different from a transactional seller in terms of warranty terms, the availability of extra nuts and seals, and access to technical drawings.

Before signing off on a purchase order for an Industrial Screw Jack, it is common practice to ask for material test reports (MTRs), dimensional inspection reports, and load test certificates.

Maintenance and Troubleshooting Tips for Screw Jacks

Protecting Your Investment Through Scheduled Preventive Care

The single most important maintenance factor for an Industrial Screw Jack is lubrication. The worm gear interface creates friction heat. If the lubrication interface doesn't replace enough grease, the brass wheel wears out faster and the efficiency goes down. Manufacturers usually suggest a lithium-based grease for general use, and high-temperature versions for places with high temperatures.

A practical maintenance schedule includes the following actions:

• Check the dust covers and seals every 200 hours of use or whenever the unit is exposed to rough particles.
• According to the product manual, you should re-oil through the special interface at set times, usually every 500 hours of normal use.
• Do an annual check of the dial indicator's backlash; increasing backlash shows that the nuts are wearing out and need to be replaced.
• Once the lead screw has been used too much, look at the surface to see if there are any pits, corrosion, or thread deformation.

Fixing small wear issues early on stops failures from spreading. If you leave an old nut in service, it puts extra stress on the screw threads, which shortens the life of the part and, in the end, makes it harder for your machine tools to keep the Industrial Screw Jacks in the right place.

Conclusion

There is no room for mechanical error in the leveling and positioning tolerances of a machine tool. With their self-locking trapezoidal threads, certified materials, and quality paperwork that can be checked, Industrial Screw Jack actuators offer the mechanical rigidity and positional accuracy that hydraulic options can't match when the load stays the same for an indefinite amount of time. Three things—choosing the right configuration, making sure the supplier has the right certifications, and sticking to a maintenance schedule—will determine how useful your lifting system is for its whole life.

FAQ

Are all screw jacks self-locking?

No, trapezoidal (machine) Industrial Screw Jacks usually lock themselves because of thread friction, which means they can hold a static load. Ball screw types are very efficient, but they need a stop motor to stay in place because they don't lock themselves.

Can one motor drive multiple jacks simultaneously?

Yes. A single drive motor can run two, four, or more Industrial Screw Jacks in mechanical sync with each other using connecting shafts, joints, and miter gears. This is a common way to level big machine beds or gantry frames.

How do I prevent screw over-travel?

As a backup, put mechanical stop nuts on the screw and connect the system to external limit switches or proximity sensors so that the power is cut off before the screw is hit.

What maintenance interval applies to standard units?

A common rule of thumb is to lubricate something every 500 hours of use. Places with a lot of dust, water, or high temperatures need to be inspected more often. Always follow the instructions that came with your product from the maker.

What distinguishes a translating screw from a rotating screw design?

A translating screw moves by expanding outward, which works well for things that are not being directed. A spinning screw holds the screw in place while the nut moves, which saves vertical space in tight spaces.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Screw Jack Order

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and is an Industrial Screw Jack provider. We have ISO9001 and CE certifications, 2,000 tons of stock, and custom solutions that ship within 7–15 days. We respond to price and specification questions within 24–48 hours. Talk to our technical team about your project needs right away by emailing sales@flaindustrial.com or going to flaindustry.com.

References

1. Machinery's Handbook, Industrial Press, 2020.

2. Power Transmission Engineering Magazine, "Worm Gear and Screw Jack Selection Criteria," 2021.

3. AGMA 6034-B92, American Gear Manufacturers Association — Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors, 1992 (reaffirmed 2017).

4. DIN 509, Deutsches Institut für Normung — Thread Undercuts, 2006.

5. ISO 2768-1, International Organization for Standardization — General Tolerances for Linear and Angular Dimensions, 1989.

6. Industrial Equipment News (IEN), "Mechanical Actuators in Precision Machine Tool Alignment Applications," 2022.
