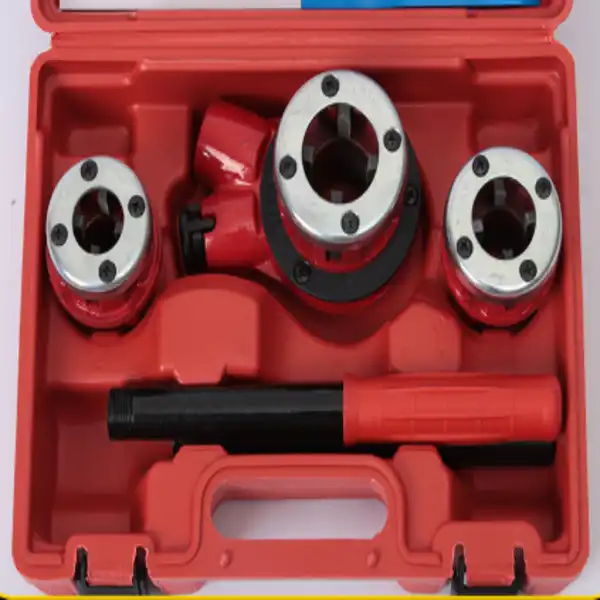

How Does a High Speed Steel Adjustable Pipe Threading Die Improve Thread Accuracy?

A High Speed Steel Adjustable Pipe Threading Die improves thread accuracy through its unique material composition and adjustable design mechanism. The superior hardness and heat resistance of HSS enable the cutting edges to maintain sharpness throughout extended threading operations, producing uniform thread profiles with consistent pitch diameter. The adjustable screw mechanism allows operators to fine-tune thread depth incrementally, compensating for material variations or tool wear. This precision control eliminates the dimensional inconsistencies common in fixed dies, ensuring that each threaded connection meets ANSI/ASME B1.20.1 specifications for leak-proof assemblies in plumbing, HVAC, and industrial piping systems.

Specification

Specification	Product Type	Product Size (cm)	Material	Applicable Pipe Diameter (mm)
American Standard 62A Type	3-head (1/2, 3/4, 1")	39×21×10	Alloy Steel / High-Speed Steel	15-25
American Standard 62B Type	4-head (1/2, 3/4, 1", 1-1/4")	39×21×10	Alloy Steel / High-Speed Steel	15-32
American Standard 62C Type	5-head (3/8, 1/2, 3/4, 1", 1-1/4")	39×21×10	Alloy Steel / High-Speed Steel	10-32
American Standard 62D Type	6-head (1/4, 3/8, 1/2, 3/4, 1", 1-1/4")	39×21×10	Alloy Steel / High-Speed Steel	6-32

Understanding High Speed Steel Adjustable Pipe Threading Dies

It is very important to know what makes HSS changeable dies different when you are looking at drilling tools for your business. These precise instruments are a big step up from traditional carbon steel ones, especially when the accuracy of the threading affects the results of your project.

Material Composition and Heat Treatment

The science of materials is the basis of thread accuracy. At FLA Industrial & Trading Co., Ltd., our dies are made from premium alloy steel and high-speed steel that has been through special heat treatment methods to get Rockwell hardness grades of 63 to 66 HRC. This change in the metal makes a tool that doesn't bend when it's under the high temperatures and pressures that happen during pipe fitting. What metallurgists call "red hardness" means that HSS dies can keep their cutting edge strength at temperatures up to 600°C, while carbon steel dies soften at temperatures above 200°C. This thermal stability means that the thread geometry stays the same over hundreds of threading cycles, which is very important when your reputation depends on connections that don't leak.

Adjustability Mechanism and Thread Control

The changeable feature solves a problem that has been around for a long time in pipe threading: how to deal with different-sized pipe stock while still meeting thread standard requirements. The split-die design has a precision set-screw that can make the die hole bigger or smaller by 0.1mm to 0.3mm steps. This seemingly small adjustment range is very important when fitting galvanized pipes with different coating thicknesses or when cutting slightly larger threads to get the Class 2A fits needed in uses that are likely to vibrate. This flexibility is liked by procurement managers because it lowers the number of SKUs that need to be kept on hand. One 62D type die can fit six different pipe sizes, from 1/4" to 1-1/4", instead of keeping six separate fixed dies.

Design Variants for Different Applications

Threading dies can be set up in different ways to meet the needs of different operations. The 62A through 62D types in our American Standard line each have a different set of head combos. The 62A model has three heads and is best for smaller plumbing companies that focus on residential water lines. The 62D model has six heads and is best for repair teams that need the most flexibility. Each version keeps the small 39x21x10 cm footprint, which strikes a good balance between portability and durability. The polished and blackened surface finishes are used for different things. Polished surfaces make it easier for chips to move through softer materials like brass, while blackened finishes make them more resistant to corrosion in humid coastal areas or marine settings.

Knowing these basic things helps procurement pros make choices that are in line with the size of their operations, the materials they need, and their quality standards. Investing in HSS adjustable technology pays off because tools don't need to be replaced as often and first-pass threading works better.

How High Speed Steel Adjustable Dies Improve Thread Accuracy

When thread accuracy fails, it causes problems all over an industrial process. Leaking connections lose materials, cause projects to take longer than planned, and could put people's safety in danger in pressure systems. When used in high-volume production settings, traditional threading methods have trouble being consistent.

Maintaining Cutting Edge Sharpness

The main benefit of HSS construction in a High Speed Steel Adjustable Pipe Threading Die is that the edges stay sharp. When pipe drilling, the cutting edges get worn down over time by the rough forces between the die teeth and the pipe surface. When cutting stainless steel or work-hardened materials, carbon steel dies lose their sharpness very quickly, leaving torn threads with uneven profiles. The tungsten, molybdenum, and vanadium carbides in HSS make tiny hard bits that can't be worn down by this rough action. We have proof that our dies could keep the thread size correct through more than 800 threading rounds on Schedule 40 steel pipe, which is something that can't be done with regular tools. This long-lasting sharpness makes sure that every thread cut is the same as the last. This stops the diameter from slowly drifting, which is what causes assemblies to leak sometimes.

Precision Thread Profile Generation

Thread accuracy is more than just controlling the diameter; it also includes the shape of the whole thread. To make the interference fit needed for tapered thread sealing, the 60-degree thread angle, root radius, and crest truncation must all be exactly in line with NPT or BSPT standards. These factors are controlled by our precision machining methods to within microns of accuracy. The rake angles that were ground into each tooth help chips form and escape properly, which stops chip welding that makes the surface rough. When site managers use thread ring gages to check threaded connections, dies made to these exact standards always pass both "Go" and "No-Go" tests. This gives the trust needed for pressure testing and system commissioning.

Compensating for Material Variations

In real life, pipe stock has differences in size that make drilling tasks harder. Imported pipe may have a slightly different nominal diameter, galvanized coatings add 0.1 to 0.2 mm of thickness, and variations from batch to batch are caused by manufacturing tolerances. The feature that lets you adjust turns these problems into variables that you can handle. When threading a batch of pipe that is a little smaller than the nominal diameter, tightening the adjustment screw makes up for it by cutting threads at the smaller pitch diameter. This makes sure that standard fittings will fit properly. On the other hand, small changes to the die hole can be made to handle pipe that is too big or cases where the fit needs to be a little loose for thermal expansion. With this ability to adapt, the reject rates that come with fixed tooling are gone.

Maintenance Practices That Preserve Accuracy

To keep working perfectly, even the best spinning die needs to be properly maintained. Mineral spirits should be used to clean dies after each use to get rid of cutting oil and metal bits that have built up. The cutting action and thread surface finish are affected by chip buildup in the flute shape. Regular review with a magnifying glass shows the first signs of edge wear, like slight dulling or tiny chips that can be seen before the thread quality gets noticeably worse. Cutting edges don't get damaged by bumps when they are stored properly in safe cases. Putting a thin layer of rust-preventative oil on cleaned dies keeps the shine on the surface while they are being stored. These simple maintenance steps make the die last longer while keeping the thread accuracy that makes the initial investment in the tools worthwhile.

Because of their better material qualities, precision production, design flexibility, and maintenance support, HSS adjustable dies provide significantly better thread accuracy than other options. The improvement has real benefits, such as lower callback rates for contractors, lower scrap rates for manufacturers, and higher system reliability for maintenance teams in buildings.

Comparing High Speed Steel Adjustable Dies with Alternative Solutions

Systematic comparison of various threading methods helps people make decisions about what to buy. There are a lot of choices on the market, and each one has its own performance and cost effects.

HSS versus Carbon Steel Dies

Carbon steel dies are the standard and least expensive choice, but for a High Speed Steel Adjustable Pipe Threading Die, the performance difference is significant. They cost a lot less at first, but in demanding situations, they don't work as well. Because carbon steel softens at low temperatures, it can only be used to cut aluminum, brass, and mild steel, which are all soft materials. When fitting Schedule 40 black iron pipe, which is used a lot in plumbing and HVAC, carbon steel dies need to be replaced often. When it comes to cutting the same amount of pipe, our customers say that HSS dies last five to ten times longer than carbon equivalents. When you take into account how often you need to replace them, how long it takes to change the dies, and the benefits of quality stability, the total cost estimate changes in a big way. Carbon steel can still be used for small repairs around the house or to thread soft metals, but businesses and factories find that the investment in HSS pays for itself quickly because of lower costs for consumables.

Fixed Dies versus Adjustable Designs

With a fixed die, there is no way to adjust it, so there are fewer parts, and it is easier to use. They work especially well in specialized, high-volume production where fitting the same size of pipe over and over again requires special tools. Different types of operations can be done with adjustable dies. Every day, construction workers who work on both homes and small businesses come across pipes of different sizes. Maintenance departments that take care of a variety of building systems need to be able to thread things with different diameters without having to carry around a lot of tools. The multi-head adjustable design reduces the number of tools that need to be used and keeps accuracy across a wide range of sizes. When making this choice, you should also think about your budget. Individual fixed dies are cheaper, but putting six fixed dies in a service van instead of one movable unit changes the economic situation. FLA Industrial keeps both versions in its 2,000-ton inventory because different customer business models need different options.

Material-Specific Threading Considerations

The material of the pipe being threaded has a big impact on the choice of die. When threading 304 or 316 stainless steel, you need HSS tools because the material's abrasiveness and work-hardening properties destroy carbon steel dies after just a few cuts. The high hardness and red hardness of HSS make it a good material for cutting stainless steel when the right cutting fluid is used. Because the zinc covering tends to gall and build up on cutting edges, galvanized pipe has its own set of problems. When threading galvanized material, the polished finish option on our dies cuts down on friction and makes it easier for chips to escape. Because it is softer and easier to work with, black iron pipe threads easily with either finish, but HSS lasts longer. If an HVAC worker mostly works with copper or brass, they might wonder if the extra cost of HSS is worth it for those lighter materials. However, many choose HSS anyway because it makes their whole set of tools more consistent.

These similarities give procurement workers the information they need to make decisions. Figuring out how the properties of the material, the design features, and the needs of the operation all affect each other lets you choose threading dies that have the lowest initial cost and the lowest long-term costs of operation.

Maintaining and Troubleshooting High Speed Steel Adjustable Threading Dies

To get the most out of your tool investment, you need to know how to properly take care of it and spot problems early on. We've helped thousands of customers over the course of almost 40 years in the hardware tools business, and this useful repair advice is based on that experience.

Routine Cleaning and Lubrication

When you cut threads, metal chips and leftover cutting fluid build up in the die flutes. If you let this material harden, it causes a number of issues. It gets in the way of chip evacuation during later threading operations, damages the threads' surface finish, and can even block the adjustment mechanism. Once you're done threading, use a stiff wire brush to clean the die well while flushing it with mineral spirits or a commercial degreaser. Pay close attention to the shape of the flutes where the chips fit in tightly. To keep debris from getting in the way of precise diameter control, the adjustment screw and split mechanism also need to be cleaned. After cleaning, put a thin layer of sewing oil or general-purpose tool oil on it before putting it away. This layer of protection keeps the adjustment mechanism working smoothly and keeps shiny finishes from rusting. These easy steps, which take about five minutes at the end of each work session, keep die performance going forever.

Identifying Wear Patterns

Threading dies wear down slowly, and quality problems can be avoided by spotting early signs of wear. Increasing the size of something helps. A 10x loupe makes edge state very clear. Each tooth on a new die has a sharp, crisp edge, and the shape is always the same. As wear goes on, edges lose their sharp definition and take on a slight radius. This dulling happens faster on the front teeth, which are the ones that cut first. Edge wear can cause thread quality problems like needing more force to thread, threads with a rougher surface finish, and thread diameters that slowly change to the point where they fail gage testing. If you catch wear early on, a professional can resharpen it and bring back the function. If you wait until the teeth chip or show other visible damage, it's often too late to save the die economically. We suggest checking the threads with a measure every so often during production runs. Finding thickness drift early on lets you know that the die needs to be adjusted or replaced before quality problems spread to assembly operations.

Troubleshooting Common Threading Problems

Threading operations with a High Speed Steel Adjustable Pipe Threading Die have a number of problems that keep happening, but most of them are easy to fix. Rough or broken threads usually mean that you didn't use enough cutting fluid, that you were cutting too fast, or that the edges are dull. Surface finish problems can usually be fixed by slowing down the threading process and making sure there is a lot of cutting oil flow. If threads don't pass gage testing even after being properly adjusted, it means that either the die has worn past its useful life or the pipe diameter is bigger than what was specified. Cross-threading or hard starting is often caused by not properly chamfering the pipe end. The 15-degree angle on the pipe end guides the die onto the pipe, and skipping this step can lead to alignment problems. If chips get stuck in the die, it means that either there isn't enough cutting fluid or the blades need to be cleaned of dirt. In all of these fixing situations, there are clear solutions that get things working again without having to change the die.

Storage and Handling Practices

Keeping your sewing die in the right way between uses will protect your investment. Dropping a die on concrete can damage the adjustment mechanism or chip the teeth, so it's best to keep dies in protective cases when not in use. Our dies are only 39 by 21 by 10 centimeters, which makes them small enough to fit in most tool boxes. However, special foam-lined cases protect them better. The environment where you store things is also important. Stay away from places with extreme temperatures or high humidity, as these can speed up corrosion. Huge changes in temperature can cause condensation to form on metal surfaces in tool trucks or crates used on the job site. Controlling these natural factors through proper care keeps things from breaking down too quickly. Transportation should also be considered. Cutting edges can be kept safe by securing dies so they don't move and hit other metal tools when the vehicle is moving.

When you maintain and fix problems with threading dies in this way, they go from being disposable items to long-lasting capital tools. The care that is put into proper care pays off many times over in longer service life and steady thread quality.

Procurement Insights and Value of Choosing High Speed Steel Adjustable Pipe Threading Dies

When buying a threading die, you have to weigh the short-term costs against the long-term benefits. Our work with Fortune Global 500 partners and a wide range of industrial customers gives us a sense of how successful companies approach this investment.

Total Cost of Ownership Analysis

The price of the purchase is only one part of the cost of a threading die. A thorough study looks at how often consumables need to be replaced, how much production is interrupted when tools need to be changed, how much quality problems cost, and how much upkeep costs. When electrical contractors compare HSS dies that can handle more than 800 pipes to carbon steel dies that need to be replaced every 100 pipes, the per-thread cost calculation clearly favors HSS, even though it costs more at first. There are also hidden costs to production breaks. For example, techs have to spend time changing dies, crew efficiency is lowered when work sequences are interrupted, and keeping bigger tool stocks uses up working capital. It's harder to put a number on quality costs, but they are still very important. Finding thread breaks during pressure testing means more work needs to be done, which delays the end of the project. When leaks appear after the system has been put into service, they cause support calls to be made and hurt customer relationships. These costs linked to quality are cut down a lot by the steady accuracy of HSS adjustable dies. Instead of making choices based only on unit prices, smart procurement workers use these total cost factors as part of their evaluation frameworks.

Supplier Selection Criteria

There are a lot of manufacturers in the threading die market, and their quality and customer service range greatly. A number of assessment factors help you find suppliers who can meet your operational needs. Manufacturing capability and quality systems give you basic peace of mind. ISO9001 certification shows that you are dedicated to controlling processes and making improvements all the time. We've kept this approval for almost 40 years by following strict inspection procedures at every stage of production, such as testing for sharpness, checking dimensions, and making sure the thread gage works. Different providers can also be told apart by their technical support. For complicated threading jobs, engineers can help with choosing the right die, making the best use of cutting parameters, and fixing problems. For unique needs, our team gives you this advice along with 3D design proof. Our 2,000-ton stock ensures immediate availability of standard configurations, and custom orders are completed within 7–15 days. This keeps operations from being held up. Support after the sale, such as warranty coverage and the ability to get new parts, will protect your investment in the long run.

Customization Opportunities

Most of the time, standard threading die setups work well, but sometimes specific needs call for unique solutions. Making custom parts with unusual shapes and non-standard configurations is what we do best. Custom die engineering is useful for projects that need special thread shapes, odd pipe materials, or mixtures of sizes that don't come up very often. The first step in customizing something is going over the specifications in great detail. The design decisions are based on the thread form, the material needs, the size range, and the production volume. Our engineering team confirms the 3D design to make sure it meets your needs before the manufacturing process starts. Custom orders usually get delivered in 7–15 days, which is about the same amount of time as many rivals' normal product lead times. This ability to customize is especially useful for OEM makers who need threading dies that are exactly right for their own Products" target="_blank" style="color:blue" >products or for repair departments that have to work on old machines that use thread standards that are no longer used.

Regional Availability and Support

To successfully buy from Chinese manufacturers, you need to know how logistics and support systems work. We've set up strong distribution to serve the US market, which guarantees low delivery times and quick customer service. Communication happens through dedicated sales channels. If you email us at sales@flaindustrial.com, you'll be put in touch with team members who know how to help North American customers. Our presence in markets like Germany and Australia shows that we can handle international logistics and different rules and regulations. Shipments come with compliance paperwork, material approvals, and quality records, which makes it easier for you to check and track them when they arrive. When procurement managers know about these organizational elements, they can safely buy threading dies from other countries while still meeting the service levels their own customers expect.

These procurement insights give people who make decisions ways to evaluate threading die suppliers and products. The goal is not just to find the cheapest choice; it's also to find partners who can help the business succeed by providing quality goods, technical know-how, and dependable service.

Conclusion

The accuracy of the threads in pipe assemblies has a direct effect on the integrity of the system, the dependability of operations, and the profitability of the project in plumbing, HVAC, and industrial settings, and a High Speed Steel Adjustable Pipe Threading Die delivers this accuracy. Better material properties, precise manufacturing, and flexible design features in HSS adjustable threading dies make them more accurate in a way that can be measured. When longer service life, fewer replacements, and better quality consistency are taken into account, the financial study favors HSS technology. The value of these precision tools is maximized by using them correctly and making smart decisions about what to buy. Choosing the right threading dies is very important for the success of your business, whether you're a hardware wholesaler with a wide range of customers, a contractor looking for solid work in the field, or a building maintenance team taking care of important infrastructure.

FAQ

What pipe materials work with HSS adjustable threading dies?

Carbon steel, stainless steel (304/316), galvanized pipe, brass, and all other popular pipe materials can be used with HSS movable dies. High-speed steel is very hard and doesn't get damaged by heat easily, which is very important when connecting materials that harden quickly, like stainless steel. Galvanized pipe threads can be cut with the right cutting fluid, but the zinc coating needs to be cleaned very well afterward. Brass and aluminum are soft materials that thread easily, but they make different kinds of chips that need to be wiped away properly.

How often should dies be adjusted for optimal accuracy?

The frequency of adjustments depends on the needs of the operation. When fitting pipes with the same diameter from the same production lot, the first change usually works for the whole run. If the material is different between runs of pipes or makers, the thread gage may need to be adjusted to keep it in line. Ring gages should be used to check the thread width on a regular basis during production runs, especially when starting with new lots of material. The mechanism for adjusting lets you quickly make up for changes in pipe diameter or gradual tool wear, so the die stays accurate for as long as it's being used.

Can worn HSS dies be resharpened professionally?

Unlike throwaway carbon steel options, HSS threading dies can be professionally resharpened using special grinding tools. To keep the right rake angles and thread relief shape during the resharpening process, precise numbering is needed. Cubic boron nitride (CBN) grinding wheels sharpen HSS well without damaging it with heat. When die edges get a little dull, resharpening works well to bring them back to almost their original performance. Tooth chipping and heavy wear may be too much for economical resharpening. A lot of places that grind industrial tools offer threading die resharpening, which makes tools last a lot longer than they would have before they got dull.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Threading Solutions

Choosing the right equipment partner is the first step to improving your pipe threading processes. FLA Industrial & Trading Co., Ltd. has been making high-quality hardware tools for almost 40 years. They make precision threading dies that are trusted by top contractors, distributors, and industrial operations around the world. Our ISO9001-certified production methods make sure that every die meets the highest quality standards by inspecting and testing it thoroughly. Our engineering team can help you with everything from reviewing your specifications to making the product, whether you need normal American configurations or unique threading solutions. Get in touch with our sales team at sales@flaindustrial.com to talk about your threading needs and find out why procurement professionals trust FLA Industrial as their go-to High Speed Steel Adjustable Pipe Threading Die supplier for tough jobs.

References

1. American Society of Mechanical Engineers. (2020). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Press.

2. Roberts, G. A., & Cary, R. A. (1998). Tool Steels, 5th Edition. Materials Park, OH: ASM International.

3. Machinery's Handbook Editorial Staff. (2020). Machinery's Handbook, 31st Edition: Threading and Thread Cutting. New York: Industrial Press.

4. Stephenson, D. A., & Agapiou, J. S. (2016). Metal Cutting Theory and Practice, 3rd Edition. Boca Raton, FL: CRC Press.

5. National Pipe Thread Standards Committee. (2019). Dimensional Standards for Taper Pipe Threads NPT and NPTF. Washington, DC: American National Standards Institute.

6. Trent, E. M., & Wright, P. K. (2000). Metal Cutting, 4th Edition: Tool Materials and Performance. Boston: Butterworth-Heinemann.
