Stainless Steel Rope Clip Offers Durable Wire Rope Protection Against Corrosion

When your wire rope assemblies face harsh environmental conditions, choosing the right fastening solution becomes critical to operational safety and long-term reliability. Stainless steel rope clips provide exceptional corrosion resistance and mechanical strength, making them indispensable for industries ranging from marine engineering to construction and beyond. These precision-engineered components secure wire rope terminations effectively, preventing rust degradation that compromises structural integrity. With their robust design and superior material properties, they deliver consistent performance under demanding loads and challenging weather conditions, ensuring your installations remain secure for years.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

What is a Stainless Steel Rope Clip and Why Is It Essential?

Understanding the Core Components

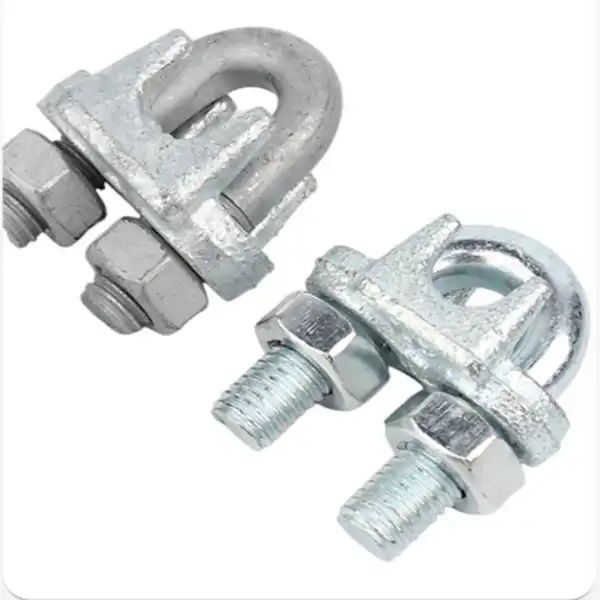

A Stainless Steel Rope Clip is made up of three main parts: a U-bolt that goes around the wire rope, a saddle that sits on top of the rope, and two hexagonal nuts that hold the whole thing together. This system, which seems easy, makes a strong mechanical connection that can hold things very well. The threaded ends of the U-bolt go through the saddle, which lets the nuts squeeze the live end and dead end of the rope together. When installed correctly, this friction-based connection usually reaches 80–90% of the rope's breaking strength, making it a reliable end point that can handle both static and moving loads.

Material Advantages That Matter

The design is made of stainless steel, which has clear benefits over galvanized or carbon steel options. The chromium in the alloy creates an inactive oxide layer on the surface that keeps growing back after being scratched or worn down. This ability to heal itself stops rust from forming even in places with a lot of moisture. Grade 304 stainless steel has a high level of protection to rust because it has about 18% chromium and 8% nickel. Grade 316 adds 2 to 3 percent molybdenum to the mix, which makes it much more resistant to chlorides found in saltwater and chemicals used to melt ice. Marine operators always choose 316 grade for yacht rigging and offshore platforms. On the other hand, construction contractors think 304 grade is fine for uses inside buildings that are sometimes exposed to the weather.

Industries Relying on Proven Performance

These fasteners are used in marine engineering to hold down mooring lines, anchor cables, and deck equipment in places where regular steel parts would break quickly in saltwater. They are used by construction companies to set up safety cables, temporary support structures, and lifting systems, all of which have a direct effect on worker safety. When ships are being built, they are used in systems like safety barriers, control wire runs, and cargo locking that must work perfectly for the whole life of the ship. In factories, they are used in equipment support structures, overhead crane assemblies, and systems for moving materials. If one of these fails, production could stop. Architects like how smooth they look and use them to make artistic wire railings, lighting fixtures that hang from the ceiling, and building tension systems that look good and do their job.

Comprehensive Guide on Types and Sizes of Stainless Steel Rope Clips

Common Design Variations Explained

The most common type is the U-bolt clip, which has a simple curved bolt that goes around the rope and through a grooved saddle, and a Stainless Steel Rope Clip typically follows this design. Their simple design makes them cheap and easy to set up, but it's still important to put them in the right way—the U-bolt should be against the dead end, and the saddle should sit on the live end. This worry is taken away by double saddle clips, which have saddles on both sides of the connection so they can be installed in either direction. Heavy-duty versions have thicker materials and a wider saddle radius so they can handle bigger rope lengths and more weight. J-bolt designs have one curved section instead of two straight sections to make fitting easier in tight areas. However, they usually have less holding power than standard U-bolt designs. Choosing the right design depends on the needs of your application, the space you have for installation, and the load ratings you want.

Material Grade Selection Criteria

Purchasing managers have to make a tough choice between 304 and 316 stainless steel. Grade 304 works well in most outdoor situations because it doesn't rust when exposed to rain, humidity, and other weather conditions. Because it is cost-effective, it can be used on projects with limited funds that aren't in the ocean. The addition of molybdenum to Grade 316 makes it much more resistant to pitting in chloride-rich environments. This makes it necessary for sites near the coast, wastewater treatment plants, and chemical processing plants. The price of 316 grade is usually 20–40% higher than 304 grade. This is because it lasts longer and needs less upkeep in acidic environments. Check that the material meets AISI standards by using positive material identification testing, which uses X-ray fluorescence spectrometry to make sure that the grade requirements for chromium, nickel, and molybdenum are met.

Sizing Considerations for Optimal Performance

As a basic safety measure, matching the size of the clip to the thickness of the wire rope is something that procurement workers can't forget. When clips are too small, they put all of their stress at the connection points, which speeds up fatigue failure. Oversized clips don't grip well, so the rope slips when it's loaded. Different sizes are used for different types of wires, from M2 for small diameters to M32 for heavy handling. Each size is based on a different rope diameter and the maximum working load that is allowed by international standards. Professional installation needs several clips spaced out according to the diameter of the rope. Ropes with a smaller diameter need at least three clips, while ropes with a larger diameter may need five or more. The distance between clips is usually six times the thickness of the rope between them, with the first clip put one saddle width from where the rope ends. These dimensional relationships make sure that the load is spread out evenly and that the link doesn't break too soon.

How to Properly Use and Install Stainless Steel Rope Clips: Step-by-Step Guide?

Installation Best Practices

The first step in a proper installation is figuring out how many clips you need based on the thickness of the rope and the standards for the application. Cut the wire rope to the right length, leaving extra for the end that will be folded back. Place the first clip one saddle width from the end of the rope to make the loop or end point you want. Put the saddle on the live end, which is the part that is under stress. Then, wrap the U-bolt around the dead end and run the threaded ends through the saddle holes. Tighten the nuts evenly in a cross-pattern on the U-bolt so that the saddle doesn't move. Gradually apply force and make sure the rope fits properly in the saddle gap without getting distorted. Place the remaining clips along the dead end at regular intervals, making sure that all of the saddles are facing the live side at all times. After putting the unit together for the first time with no load, put working force on it and then tighten all the nuts again to make up for the rope settling and initial compression.

Critical Mistakes That Compromise Safety

A number of installation mistakes keep happening in field apps, which threatens the security of the connections with a Stainless Steel Rope Clip. By putting the U-bolt on the live end instead of the working end, the clip is turned around, which puts more stress on the working rope and causes it to break early. If there aren't enough clips, the overall holding power drops below safe levels, which lets the item slip under dynamic loads. When you mix material types, like when you put together 304 and 316 parts, you get galvanic corrosion cells that speed up the breakdown at contact places. If you don't tighten nuts enough, they won't clamp properly, and if you tighten them too much, the rope structure will bend or the threads will come loose. If you don't space your clips correctly, stress builds up in a few places, or you lose material without making the link stronger. When clips are used beyond their stated capacity, they are more likely to break during high loading events. These mistakes usually happen because people weren't trained well enough or because installations were rushed to meet a deadline.

Maintenance Protocols for Extended Service

Regular inspections keep the connections reliable for as long as the assembly is used. Visual checks should be done every three months to look for visible corrosion, especially where the saddle and rope meet, where water tends to gather. Make sure that all of the nuts are still properly torqued. Over time, pressure and temperature changes can loosen screws. Check the rope for broken strands, kinks, or crushing near the clips. These are signs of bad fitting or overloading. Use fresh water and soft brushes to clean the clip surfaces of dirt, salt, and other contaminants that have built up. Do not use rough cleaners that damage the passive oxide layer. To get rid of salt spray in marine environments, use more fresh water rinses after storms. Keep notes of the results of inspections and times of torque checks so that you can use trend analysis to figure out when preventative replacement is needed. These routine repair procedures greatly increase the life of equipment while maintaining its safety during use.

Stainless Steel Rope Clip vs. Other Wire Rope Fastening Solutions: A Comparison

Performance Against Galvanized Alternatives

Galvanized steel clips cover the carbon steel base with a protective zinc coating, which temporarily stops corrosion and lowers the initial cost of the materials. However, the zinc layer wears away over time due to chemical contact and mechanical wear, letting the steel below rust. Marine environments speed up this process by a huge amount. Within 12 to 24 months, zinc clips used in saltwater settings often show red rust. Stainless steel clips don't break down in this way because they are naturally resistant to rust and don't need a layer on the outside. At first, galvanized options might be 30–50% less expensive, but the total cost of ownership changes when you consider the time and money needed to replace parts, the downtime of equipment, and the safety risks that come from fasteners that have corroded. When contractors are working on long-term projects, they are choosing stainless steel more and more to avoid having to replace things in the middle of the project, which can cause delays and increase installation costs.

Material Grade Economics

When choosing between 304 and 316 stainless steel grades for a Stainless Steel Rope Clip, you have to weigh the needs for efficiency against the available funds. Grade 304 clips are good for building projects in inland areas, woodworking shops, and light industrial settings where corrosion from the air is the main worry. Their resistance to rust works well in rain, humidity, and general outdoor contact, and they don't cost a lot. When chlorides are present, they can cause premature pitting corrosion. This can happen in coastal sites that are less than five miles from sea, wastewater treatment plants, chemical processing facilities, and any other place where deicing salt is used regularly. Adding molybdenum has been shown to extend the service life up to three to five times longer than 304 grade in chloride environments. Instead of just looking at the original purchase price, people who work in procurement should figure out the total ownership costs over the expected service term. Projects that need 316 grade standards often find that the longer durability and lower upkeep needs make the extra money spent on the material worth it.

Alternative Fastening Technologies

By mechanically compressing a metal sleeve around the rope, swaged fittings make permanent connections. They offer higher strength efficiency, but they need special hydraulic tools and can't be undone. Spelter sockets are strongest when the ends of the rope are inserted into cone-shaped housings that are filled with molten zinc. This process needs to be carefully controlled for temperature reasons and can't be undone. Mechanical join devices let you make links that are more flexible, but they usually cost a lot more than regular clips. Rope clips have special benefits for installations in the field where specialized tools aren't available, for uses that need to be adjusted on a regular basis, and for situations where taking something apart for inspection or moving is useful for operations. Their ability to be used on multiple projects also saves contractors money by reducing the need to keep a wide range of equipment on hand.

Procurement Insights: How to Choose the Right Supplier?

Certification Requirements That Ensure Quality

Professional purchasing needs to make sure that providers have documented quality control systems. ISO9001 approval shows that the manufacturing process follows standard steps from getting the raw materials to packing them up at the end. This methodical approach lowers variation from batch to batch and guarantees accurate measurements every time. The CE mark shows that a product meets European standards for health, safety, and environmental protection. This gives international projects peace of mind. Material certifications show the real chemical make-up by checking them in a lab, which makes sure that the types of stainless steel claimed meet AISI standards. According to ASTM B117 guidelines, samples are put through rapid exposure conditions to salt spray to show that they are resistant to rusting. Documentation from load tests shows that clips hold the rated amount of weight without the rope slipping or the U-bolt breaking. When suppliers refuse to provide these certificates, they put vital applications at unacceptable risk.

Evaluating Supplier Capabilities

Besides basic quality certifications, when choosing a supplier, you should think about how much professional help they offer, how much they can manufacture, and how flexible they are with customization. Established manufacturers with large stock levels can quickly meet standard requirements, keeping projects on schedule even when lead times are longer. Custom manufacturing is necessary for projects that need non-standard sizes, special grades of materials, or unique shapes that aren't covered in standard catalogs. Technical support teams that answer questions about sizing, torque specs, or 3D design confirmation within 24 to 48 hours will help you make a decision much faster. If there are problems in the field, quality investigations can be done with suppliers who offer full traceability through serial numbering or batch coding. Strong control of the supply chain ensures consistent access, even when there are material shortages across the whole industry, which can happen in the stainless steel market from time to time.

Strategic Sourcing Considerations

For ongoing activities, volume procurement methods need to be carefully looked at. Manufacturers may require a minimum order number, which could mean that you have to combine your purchases or make investments in your inventory. But buying in bulk usually gets you discounts that make the job much more cost-effective. Different lead times for stock items and custom designs affect project schedules. For example, standard clips may ship within days, but special orders take 7–15 days to make. The total landed costs are different from the mentioned prices because of things like payment terms, shipping methods, and coordinating operations. Building ties with dependable providers can help you when the market is down and materials are hard to come by. Dual-sourcing methods lower the risk of dependence while keeping prices fair by comparing suppliers.

Conclusion

Stainless Steel Rope Clips are the best way to keep wire rope systems together in tough industrial settings because they don't rust and work reliably. Knowing the differences between 304 and 316 grades, choosing the right sizes based on the thickness of the wire, and installing them correctly will ensure the best performance and safety. When compared to galvanized options, stainless steel clips have a lower total cost of ownership because they last longer and need less maintenance. To be successful at procurement, you need to work with certified makers who offer good paperwork, quick expert help, and flexible order fulfillment. Picking the correct clips and provider is important to protect your operations and investments, whether you're working on marine rigging, building safety systems, or architectural wire installs.

FAQ

How many clips do I need for my wire rope installation?

The amount needed varies on the diameter of the rope and the standards for the purpose. If the diameter of the rope is up to 3/4 inch, three clips should be used. If the diameter is 7/8 to 1-1/8 inch, four clips should be used, and five clips should be used for 1-1/4 to 1-1/2 inch diameters. Extra clips are often needed above and beyond these minimums for critical pulling uses. The right distance between clips is usually six times the thickness of the rope, with the first clip one saddle width from the end of the rope.

Can I use these clips in saltwater environments without special treatment?

Without any extra coatings or treatments, Grade 316 Stainless Steel Rope Clips work reliably in saltwater that is exposed all the time. Because it has molybdenum in it, it naturally doesn't rust when chloride causes pitting corrosion. Regularly rinsing with fresh water after storms helps get rid of salt layers that could make it hard to see during inspections. Grade 304 clips should only be used in freshwater situations where they won't come into contact with saltwater very often.

What certifications should I require for critical applications?

Ask for ISO9001 certification to show that the quality management system meets standards, CE marking to show that the product meets safety requirements, material test certificates to show that the grade of stainless steel is what it says it is, and load test paperwork to show that the quoted capacity was met. For jobs that involve lifting heavy things or keeping people safe, you may need extra qualifications that meet the rules in your area.
