How Does an Industrial Screw Jack Improve Precision Equipment Installation?

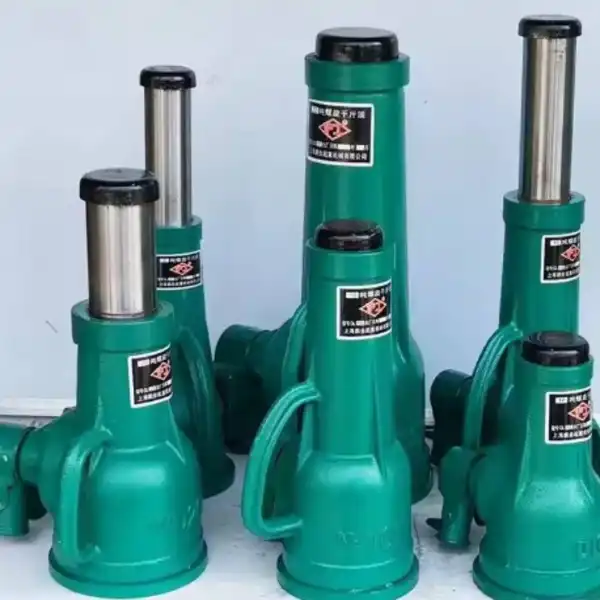

An industrial screw jack transforms precision equipment installation by converting rotational motion into controlled linear movement with sub-millimeter accuracy. Unlike conventional lifting methods that rely on unstable hydraulics or manual force, this mechanical actuator employs worm gear sets driving tempered lead screws to deliver repeatable positioning under heavy loads. The self-locking trapezoidal thread design mechanically holds equipment in place without continuous power, eliminating drift during calibration phases. When synchronized across multiple lifting points using connecting shafts, these devices ensure perfectly level installation of sensitive machinery—a capability critical for maintaining operational tolerances in manufacturing environments where misalignment of just 0.5mm can trigger equipment malfunction or accelerated component wear.

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks in Precision Equipment Installation

Core Operating Principles and Design Features

An important part of a screw jack is its worm gear drive, which works with either trapezoidal or ball screw systems. Worm gears have very high reduction ratios, usually between 5:1 and 32:1. This means that they can turn motor rotation into precise movement in either the vertical or horizontal direction. Trapezoidal screws, which are usually made to ACME or metric ISO standards, make brass nuts and screw threads rub against each other, which makes the nuts self-lock. This friction-based holding power stops back-driving, which means that things stay where they are even when the power goes out. Ball screw versions don't self-lock, but they are 90% mechanically efficient, compared to 30% to 50% mechanical efficiency for trapezoidal designs. This means they can be used in continuous-duty situations where precise speed control is more important than passive load retention.

Material Selection and Environmental Adaptation

Jack housings are made from GG25 gray cast iron or GGG40 ductile iron so they can handle shock loads during industrial processes. The lead screw goes through quenching and tempering heat processes, which raises the surface hardness to HRC 45–55 so that the thread doesn't distort when stress is applied and removed. Different types of nuts are used for different purposes. For example, bronze alloys like ZCuSn10Pb1 are better at resisting wear in high-frequency positioning tasks, while engineered plastics are lighter and don't cause metal-on-metal galling in harsh chemical environments. Surface treatments make things last longer. For example, corrosion-resistant epoxy coatings keep outdoor solar tracking installations dry, and built-in dust covers keep rough particles from getting into screw threads in steel mill roller adjustment applications where airborne scale is always a risk.

Manual Versus Electric Operation

Manual screw jacks can be used with hand cranks or torque wrenches, so they can be used without power or in dangerous areas where electrical equipment isn't allowed. Electric motor-driven units work well with PLC control systems, which lets them set up multi-jack groups and automate positioning routines. The duty cycle determines which operation mode to use: manual versions are best for making occasional changes while setting up equipment, while motorized versions are better for continuous production line support where positioning changes need to be made dozens of times per shift without operator fatigue becoming a problem.

Challenges in Precision Equipment Installation Without Proper Lifting Solutions

Accuracy Limitations of Conventional Methods

Traditional hydraulic jacks and bottle jacks can't always be used in the same place because the fluid can compress and leak through the seals. Even high-quality hydraulic systems lose 2 to 5 percent of their pressure over long hold times because the fluid temperature changes and tiny seal wear lets flow around the seals. When installing coordinate measuring machines, robotic assembly cells, or CNC machining centers, where leveling tolerances usually call for deviations of less than 0.02 mm per meter, this instability is disastrous. When screw changes are made by hand using threaded rods and jam nuts, installers have to go through a lot of trial-and-error processes that take longer to commission and cost more in labor.

Safety and Maintenance Consequences

When equipment isn't lined up right, it speeds up the wear on bearings, causes too much shaking, and spreads the load unevenly across mounting surfaces, and an Industrial Screw Jack helps address these issues. A study of industrial equipment failures found that 37% of early gearbox failures were caused by fitting errors that were only a few hundredths of a millimeter out of specification. In unreliable lifting methods, there are also safety risks. For example, when a hydraulic jack slips during adjustment, equipment falls and hurts people or damages machinery. Unplanned downtime adds to the hidden costs: every hour of no production costs thousands of dollars in lost output, rush maintenance fees, and late deliveries to customers that hurt business relationships.

Operational Inefficiencies and Production Disruption

When installation accuracy is compromised, problems in later operations get worse. When machines on a manufacturing line aren't level, they get stuck and cycle times aren't always the same. Processing equipment that isn't lined up right makes output that doesn't meet specifications and needs to be fixed or thrown away. Maintenance teams spend too much time trying to figure out why shaking problems and early component failures happen when the equipment wasn't set up correctly in the first place. These cumulative flaws cut into profits and weaken the competitive edge that modern precise machinery should provide.

How Industrial Screw Jacks Enhance Precision Installation?

Fine-Tuned Control Through Advanced Mechanics

When worm gear reducers are used in precision lifting devices, the mechanical advantage is greater than 30:1. This means that for every full spin of the input shaft, only a few millimeters of linear motion are produced. This gear reduction changes the big motor rotation into small adjustments that can be used for leveling jobs that need to be accurate to within 0.01mm. Worm gear systems have some backlash, but the positioning accuracy is so good that the backlash is almost invisible (usually less than 0.05 mm for good units). When combined with torque-limiting clutches or torque transducers, operators get real-time confirmation that they've reached the desired preload forces without putting too much stress on the equipment frames or mounting points.

Real-World Performance in Critical Applications

A company in the Midwest that makes auto parts kept having problems with calibration when they tried to set up a new 45-ton stamping press. Their old hydraulic jack system caused leveling differences of more than 0.8 mm from corner to corner, which messed up the position of the dies and led to part quality rejects. The leveling of the installation got better to 0.03 mm variation after switching to a synchronized four-jack screw system with motorized shaft linking. The press now works as it should, which has cut down on scrap by 12% and got rid of the need for weekly recalibration cycles that used to take eight hours of maintenance time. Similar success was seen at a solar concentrator plant where electrically synced jacks kept array tilt angles within 0.1 degrees even when wind loads were over 800 Newtons. This was better than hydraulic options that moved 0.4 degrees when temperatures changed.

Comparative Advantages Over Hydraulic Systems

Power packs, fluid reservoirs, and pressure maintenance that are outside of hydraulic cylinders make them more complicated and increase the number of places where they can fail. Screw jacks only use mechanical power. Manual models can work forever without power, but electric models need power when they move, not when they're carrying loads. Environmental benefits are important. Leaks of hydraulic fluid pollute work areas and make it hard to get rid of waste, but mechanical jacks don't make any harmful waste. Maintenance intervals are greatly increased because screw assemblies only need to be oiled on a regular basis, as opposed to hydraulic systems that need to have seals replaced and fluid changed on a regular basis. In contrast to hydraulics, where changes in fluid viscosity affect pressure stability and reaction times during yearly temperature swings, load holding capacity stays the same no matter what the temperature is outside.

Here are the main benefits these tools offer to precise installation processes:

• Mechanical Load Locking: Trapezoidal screw threads create self-locking angles that hold loads indefinitely without power consumption or pressure maintenance, eliminating drift during extended calibration procedures.
• Synchronized Multi-Point Lifting: Connecting shafts and miter gearboxes mechanically link multiple jacks to a single motor, ensuring perfectly coordinated movement across four or more lifting points—critical for preventing frame twist when positioning large equipment.
• Programmable Positioning: Electric actuators integrated with servo motors and encoders achieve programmable positions repeatable to 0.01mm, enabling automated setup sequences that reduce commissioning time.
• Overload Protection: Shear pins and torque limiters provide mechanical fail-safes that prevent structural damage if jacks encounter obstructions or exceed rated capacity during installation.

Installers have a lot of problems when they have to use big, precise tools. These features directly fix those problems. A company that sells pharmacy equipment said that installing screw jack systems cut installation time by 40%. They said that this was because they no longer had to make multiple leveling changes, and the crew felt more confident that they would meet all the requirements on the first try. The mechanical nature of load retention was especially helpful on multi-shift projects where equipment stayed partially installed overnight. Unlike hydraulic systems, which needed constant monitoring, screw jacks held their positions without any help, so work could start again right away the next morning without having to go through the same checks again.

Choosing the Right Industrial Screw Jack for Precision Installation

Load Capacity and Operational Requirements

To choose the right lifting capacity, you must first accurately assess the load, taking into account the weight of the equipment, its center of gravity, and the dynamic forces that act on it as it moves. Engineers should choose jacks that can handle 150 to 200% of the estimated static load. This is to account for shock loads that happen when positioning is changed and to give themselves a safety cushion. Load capacity ratings run from 2.5 kN for small instruments to 3,500 kN for steel mill machinery. Most precision machinery setups fall between 50 and 250 kN per lifting point. Ball screw designs work well in situations where the screw needs to be moved around a lot and move at high speeds (up to 300 mm/s), while trapezoidal screw designs are best for supporting loads that stay in one place for a long time.

Environmental and Integration Considerations

Corrosive air near chemical processing areas or sites on the coast requires buildings for an Industrial Screw Jack made of stainless steel or painting systems that go beyond standard spray paint finishes. Bellows boots are needed to protect screw threads from abrasive contamination in dusty places like grain handling facilities or woodworking plants. Extreme temperatures affect the choice of lube. Synthetic greases stay the same from -40°C to +150°C, but normal lithium greases break down outside of smaller temperature ranges. When planning for integration, you need to think about how the parts will be mounted. For example, translating screw models where the screw extends work well for guided loads, while rotating screw models where the nut moves along a stationary screw save vertical space in installations that are limited by height.

Supplier Evaluation and Procurement Strategy

In addition to product specs, procurement choices should also look at the credentials of the maker and the framework for support. Systematic quality management is confirmed by ISO9001 certification, and compliance with European safety directives is shown by CE marking. This is important for multinational companies that need equipment to be able to be used in different locations. Lead times are very important. Vendors with a lot of stock can deliver standard configurations within days, but custom stroke lengths or special materials may take two to three weeks to make. Support after the sale is what sets premium suppliers apart from commodity providers. Having access to application engineers who can help with system design, thorough technical documentation, and quick warranty service is very helpful when installations run into problems that were not expected.

It's important to carefully read the warranty terms. Reputable makers stand behind their goods with 12–24 months of coverage against defects, and they also offer longer service contracts that cover wear parts. When providers use well-established logistics networks, they can track shipments and keep their delivery windows, which keeps projects on schedule and avoids costly delays that happen when key parts come late.

Maintenance and Safety Best Practices for Industrial Screw Jacks in Precision Applications

Preventive Maintenance Protocols

For accuracy that lasts, maintenance schedules must be followed religiously. The first step is to visually check the machine once a month for thread damage, strange wear patterns, and a lack of grease. Every 200 to 500 hours of use, depending on the duty cycle, screw threads need to be re-oiled with lithium-based greases or synthetic lubricants that the manufacturer recommends. Worm gear housings need to have their oil levels checked every three months, and the gear oil needs to be replaced once a year or every 2,000 hours of use to keep the lube from getting dirty and speeding up the wear process. Using dial indicators to measure backlash on a regular basis can find wear before it affects the accuracy of positioning. When backlash exceeds 0.1 mm, replacing the bronze nut usually restores the original accuracy without having to replace the whole jack.

Every year, the structure should be loaded to 125% of its rated capacity to make sure it is still strong and that the self-locking feature is still working. This process finds problems like screw thread wear or housing cracks before they get bad enough to cause equipment failure during important tasks. Keeping detailed service logs makes past data that shows wear trends that help with deciding what replacement parts to buy and estimating how long the service will last.

Safety Protocols and Operator Training

To make sure the installation is safe, the load must be properly attached using mounting plates that spread the force evenly across the equipment bases. Don't use jacks on uneven areas or over their rated limits; side-loading can bend screws or crack housings. Installing mechanical stop nuts on the ends of screws protects against overtraveling, and external limit switches that are part of the motor controls cut power off before the mechanical stops contact, which stops damage from impact. Anti-drop safety nuts, which are basically spring-loaded ratchets, catch loads if the main threads fail. This makes sure that people are safe in situations like theater stage lifts where equipment works above occupied areas.

Inspection methods, the right way to lubricate, and how to spot failure warning signs like strange noises, too much heat, or odd movement should all be covered in operator training. By knowing the rated duty cycles, you can avoid thermal overload. For example, standard worm gear jacks can handle 20–30% duty cycles, which means they can be used for 10–15 minutes an hour. If you go over these limits, the gear oil will get too hot and the wear will speed up. Workers need to know how synchronized systems work. If they try to turn one jack in a mechanically linked array by hand while the others are locked, they can damage the system by side-loading, which can bend shafts or strip gears.

People are safe from pinch points and moving parts when machinery guarding standards set by OSHA and related ANSI specifications are followed. Safety checks are done on a regular basis to make sure that guards stay in place, emergency stops work properly, and lockout-tagout methods are followed during maintenance.

Conclusion

For installing precise equipment, you need lifting solutions like an Industrial Screw Jack that can provide repeatable accuracy, mechanical load retention, and synchronized multi-point control. These are things that standard methods can't always do. Screw jack technology meets these needs with its worm gear mechanical advantage, self-locking thread geometry, and ability to physically connect multiple lifting points for movement that is perfectly aligned. Improvements in material engineering and surface treatment make things last longer, even in harsh industrial settings. Plus, connecting them to modern control systems lets them be placed automatically, which cuts down on installation time and makes sure they meet specifications the first time. The operational benefits directly lead to less machine wear, fewer quality problems, and less downtime. These results support the initial investment by saving money in the long run and making production more reliable. When looking at lifting solutions, procurement managers and engineers should put mechanical stability and positioning accuracy ahead of initial cost. They should know that choosing the right equipment during installation prevents costly problems later on that hurt both safety and profits.

FAQ

Can screw jacks handle both vertical and horizontal positioning tasks?

Yes, these mechanical tools work well no matter which way they are pointing. In vertical configurations, equipment leveling and load support are common uses. In horizontal configurations, machinery is pushed or pulled during alignment processes. The self-locking feature works no matter what direction it is installed, but horizontal installations might need extra guide rails to keep them from bowing outward when eccentric loads are applied. To keep things from wearing out too quickly, engineers should make sure that side-loading stays within the manufacturer's guidelines.

What inspection intervals do you recommend during continuous production operations?

When the machine is used continuously, it should be inspected visually once a week to look for oil leaks, strange noises, or too much heat. Measure reaction once a month with dial indicators to see if wear is starting to show. Depending on how many hours the machine has been running, it needs to be oiled every 200 to 500 hours. Every year, the machine is loaded to 125% of its maximum capacity, and the gear oil is changed to keep it reliable in 24/7 production settings.

What determines load capacity ratings for precision lifting applications?

The load rating is based on the screw diameter, thread pitch, the strength of the material, and how stable the column is. Manufacturers put units through tests until the structure breaks, and then they use safety factors of two to three times to set the maximum working load. Dynamic capacity takes into account wear and tear from repeated loading processes, while static capacity looks at how much weight something can hold all the time. When giving capacity requirements, you should always take shock loading and off-center weight spread into account.

Partner with FLA Industrial & Trading Co., Ltd. for Precision Lifting Solutions

To find the best Industrial Screw Jack provider, you need to look for a company that has a track record of success and a strong support system. With almost 40 years of experience making high-quality Products" target="_blank" style="color:blue" >products, FLA Industrial & Trading Co., Ltd. makes screw jacks out of fine alloy steel, carbon steel, and stainless steel, with hardened lead screws and metal or engineered plastic nuts. Our production methods, which include precision turning, grinding, milling, and heat treatment, meet strict ISO9001 and CE certification standards. This makes sure that every unit meets the accuracy and durability requirements of your precision equipment installation.

We have over 1,000 product specs and 2,000 tons of inventory, so we can ship standard setups quickly and make custom solutions for odd shapes in 7 to 15 days. Within 24 to 48 hours of receiving your request, our engineering team responds with prices, specifications, and 3D designs, helping you with your project from the first idea to delivery. We serve the U.S. market with competitive prices and reliable quality that procurement managers and engineers depend on for important installation projects. Our Fortune Global 500 partners in the construction, woodworking, electrical utilities, and HVAC industries trust us.

You can talk to our technical experts at sales@flaindustrial.com about your precise lifting needs, get detailed specifications, or look through our full catalog of Industrial Screw Jack solutions. Our knowledge will make sure you get the best lifting solution for your needs, whether you need synchronized multi-jack systems for heavy machinery or small units for specialized equipment.
