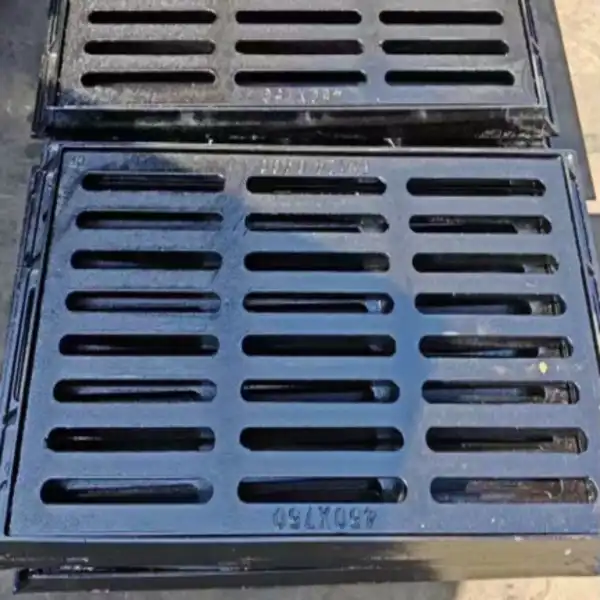

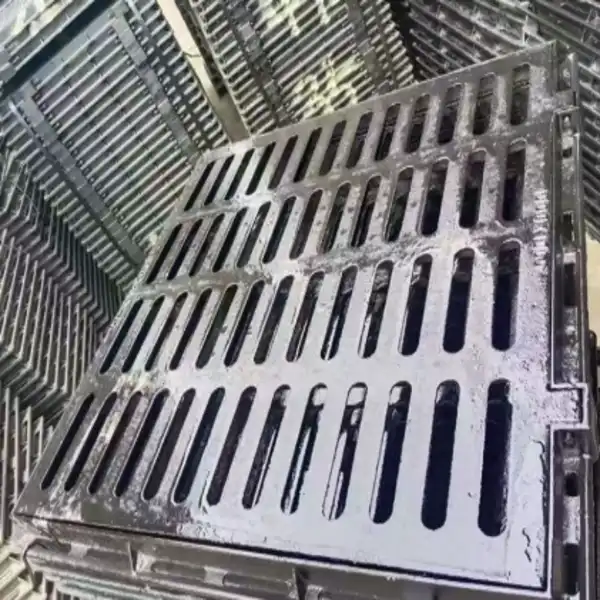

How Does a Rainwater Grate Improve Drainage Efficiency in Urban Areas?

Stormwater pooling on city streets isn't just inconvenient—it's a safety hazard and a major infrastructure liability. A properly engineered Rainwater Grate acts as the frontline defense in urban drainage systems, capturing surface runoff before it can cause flooding or damage critical infrastructure. By serving as the crucial interface between street-level water accumulation and the subsurface sewer network, these grates accelerate water flow, filter out debris, and maintain uninterrupted drainage even during heavy rainfall events. The result? Safer roads, reduced maintenance costs, and infrastructure that performs reliably year after year.

Specifications

Specification (mm)	Load Capacity	Specification (mm)	Load Capacity
590×480×20	A15	380×500×20	A15
590×300×20	A15	350×500×40	C250
500×500×40	C250	350×500×30	B125
500×500×30	A15	350×500×30	B125
450×750×40	B125	320×500×20	A15
450×750×30	A15	300×500×40	C250
400×600×40	C250	300×500×30	B125
400×600×30	B125	300×500×20	A15
400×500×40	C250	250×500×30	B125
400×500×30	B125	200×400×20	A15
394×594×30	A15	340×500×20	C250
380×500×40	B125

Understanding Rainwater Grates and Their Role in Urban Drainage

What Makes a Drainage Grate Essential for Modern Cities?

Managing stormwater in cities is harder than in other places. Surfaces that don't let water pass through, like asphalt and concrete, force runoff to move across streets and parking lots. This water is stopped by gully covers, which are sometimes called storm drain grates, before it builds up into dangerous sheets that can cause hydroplaning or structural erosion.

These devices, which are made of cast metal or composite materials, have a frame that is fixed into the drainage channel and a top grating that can be removed and has slots or holes that were carefully designed. The open area ratio tells you how fast water can flow through, and the structural design makes sure the grate can handle traffic loads without breaking or posing a safety risk.

Common Types of Storm Drain Grates

Different uses in cities require different grate configurations. Slotted patterns are good for streets with light traffic because the parallel bars catch water well and don't get clogged up with leaves. Perforated grates have a lot of small holes that work better with fine sediment but need to be cleaned more often in places with a lot of debris.

Ductile iron heavy-duty versions are very strong and can hold loads from 25 tons (C250 class) to 60 tons (E600 class) without breaking. They are great for roads and industrial areas. Some cities now require composite grates made from fiber-reinforced polymers in pedestrian areas. These grates don't rust and are hard to steal because they don't have much value as scrap.

Material Selection Impacts Long-Term Performance

How well a grate stands up to environmental stress depends on the material it is made of. Most business building projects use ductile iron grates because their nodular graphite structure gives them higher tensile strength than gray cast iron alternatives. This means that the profiles can be thinner, which makes the hydraulics work better without lowering the load capacity.

Stainless steel works well in coastal areas where salt spray causes rusting to happen quickly, but the higher cost of the material means you need to think carefully about your budget. Galvanized steel is a middle ground. The zinc coating makes it last longer in moderately corrosive environments. Even though aluminum grates are easy to place and don't weigh much, they can't hold the weight of vehicles.

Key Factors Affecting Drainage Efficiency of Rainwater Grates

Design Bottlenecks That Reduce Water Flow Capacity

Many drainage problems are caused by open area ratios that are too low on a Rainwater Grate. This is the portion of the grate surface that lets water pass through. Industry studies reveal that grates with less than 50% open area have trouble during heavy rain, causing ponding on the ground's surface even when there is extra space in the drainage system.

Another important thing to think about is the bar distance. Narrow slots less than 10 mm meet safety standards for heel guards, but they may get clogged up quickly with organic matter. Wider spaces speed up the flow of water, but they could trap bicycle wheels or let bigger trash into the system. Finding the best mix depends on the specifics of the spot, such as the plants and people who walk nearby.

Installation Errors That Compromise System Performance

When placed wrong, even high-end grates don't work as well as they should. To keep water from getting around the edges, the frame has to be level with the finished pavement grade. We've seen projects where settling frames left gaps of 5 to 8 mm, which cut the drainage capacity by almost 30% and made water flow over the grate instead of through it.

With the right stuffing and haunching around the frame, it won't move when traffic loads are put on it. Using concrete or grout that doesn't shrink will make sure that the frame is supported all the way around. Before putting down the final pavement, procurement managers should set up installation protocols that include checking the grade and making sure the frame is stable.

The Impact of Proper Sizing on Urban Drainage Systems

When grates are too small, they cause jams that make it pointless to invest in bigger underground lines. The needed grate capacity is found by using hydraulic formulas that take into account the catchment area, the amount of rainwater, and the runoff factors. A commercial parking lot with a surface area of 5,000 square meters that can't be permeated needs a lot more intake space than a residential side street with the same length.

Cities and towns that are on the cutting edge now require minimum grate sizes that are based on drainage zones. In areas with a high risk of flooding, even residential streets might need 600x400mm units, but 400x300mm units are fine in standard zones. These standards stop people from making the common mistake of choosing grates based on frame sizes instead of hydraulic needs.

Selecting the Best Rainwater Grates for High-Performance Urban Drainage

Load Classification Standards Match Traffic Intensity

The EN 124 standard lists six different types of loads, from A15 (for walking areas that can hold 1.5 tons) to F900 (for aircraft floors that can hold 90 tons). Picking the right classification keeps things from breaking down too soon and guarantees their safety in the long run. Installing B125-rated grates on the curbside, where they should be C250-rated because of vehicle tires crossing during parking maneuvers, is a common specification error.

Our ductile iron grates meet grades B125, C250, D400, and E600, and have been tested and proven to be strong enough to withstand proof loads. Every unit is tested for displacement to make sure it stays within the 1/300 span limit when it's under the most weight. We have strict quality control because we have been making things for almost 40 years and have worked on building projects in the US, Germany, and Australia.

Material Comparison for Different Urban Environments

For street uses, ductile iron is still the standard. It has a great strength-to-weight ratio that makes it easier to handle during installation. Our Grade 500-7 ductile iron spheroids more than 90% of the time, giving it the impact strength needed for heavy traffic while still allowing for precise casting to meet tight standards.

Composite materials for a Rainwater Grate work really well in places that are harsh on chemicals, like industrial parks or boardwalks along the coast. Even though they aren't used as much on major roads because they can't hold as much weight, they can get rid of problems with galvanic rust and lower overall costs in some situations. Stainless steel grates are more expensive, but they are worth it for high-profile architectural projects where both function and style are important.

Emerging Sustainable and Innovative Solutions

Environmental concerns drive new ideas in vent design. Some makers now offer choices with recycled content that keep the structural integrity while lowering the carbon footprint. When permeable grate systems are combined with bioretention cells, controlled infiltration happens. This lowers the amount of rainwater that goes into city treatment plants.

Anti-slip surface treatments make walking on wet surfaces safer without affecting how well water drains. Our frames are perfectly fitted and have gasket systems that get rid of the common problem of manhole rattling, which is the noise made by metal moving when loose grates shake under traffic. This care for detail shows that we want to provide solutions that help procurement managers and project engineers with their real-world operational problems.

Maintaining and Enhancing Rainwater Grate Efficiency Over Time

Routine Cleaning Prevents Performance Degradation

Debris builds up and cuts down on the useful open space, sometimes by more than 60% in areas with lots of plants. Setting up check plans every three months in the fall, when the most leaves fall, stops clogging before it affects drainage. The grate should be taken off, the surface and the catch bowl below should be cleaned, and the frame should be checked for damage or settlement.

High-pressure water jetting gets rid of packed sediment that can't be cleaned away by hand. This method works especially well in industrial areas where oil waste and small particles build up and are hard to get rid of. Keeping records of every repair event helps find grates that need to be fixed more often, which helps the city's network use its resources more efficiently.

Troubleshooting Common Operational Issues

Cast iron grates that are structurally cracked usually show that they were poorly made or were overloaded beyond their rated capacity. Hairline cracks weaken the structure and should lead to quick replacement instead of short-term fixes. Corrosion pitting lowers cross-sectional area and speeds up failure once it starts, so choosing the right materials during the initial purchase process is very important.

Frame sinking makes lines that are dangerous because they can cause trips and make hydraulics work less well. This usually happens because the base wasn't prepared well enough or the soil has settled in new construction areas. Instead of shimming, which only fixes the problem temporarily, remediation needs to include digging and re-bedding the area correctly. To stop this common type of failure, procurement specifications should require testing for soil compaction before the frame is put in place.

Case Study: Upgrading to High-Performance Grate Systems

Even though the pipes were big enough, a business area in a medium-sized city kept flooding, and the Rainwater Grate was the culprit. An investigation showed that the grates that were put in place in the 1980s only had a 40% open area and had a lot of rust damage. When the old grates were replaced with modern D400-rated ductile iron grates that had 65% open area, there was no more standing water, not even during the 10-year storm event.

Performance monitoring over two years showed that calls for emergency drainage went down by 45% in the zone that was improved. Maintenance costs went down by 30% because the new grates didn't need to be cleaned as often. This information shows that planned upgrades pay off in the form of higher dependability and lower running costs.

Procuring Rainwater Grates – What B2B Buyers Need to Know?

Evaluating Supplier Capabilities and Certifications

Manufacturers with a good reputation have ISO quality control certifications and send test results for all of the materials they ship. These papers prove the chemical make-up by using spectrographic analysis and show that the mechanical properties meet the requirements spelled out in the specifications. The CE mark shows that a product meets European safety standards, which gives multinational projects extra confidence.

Global leaders like ACO and Hauraton built their names over many years by making sure their Products" target="_blank" style="color:blue" >products always worked well and providing good expert support. With its full range of drainage system options, NDS controls the North American home market. Zurn and EJ make products specifically for highways and airports that are used in heavy infrastructure. When looking at different providers, you should check to see what kind of technical help they offer. The best partners do more than just quote prices for products; they also offer hydraulic calculations, 3D design verification, and installation advice.

Customization Options Address Unique Project Requirements

Standard catalog sizes work for many uses, but solutions that are made just for a complex project are often needed. Custom sizes are made to fit channel widths that aren't standard or to work with architectural limitations. In corrosive conditions, special treatments make things last longer. In high-risk areas, locking systems keep people from stealing.

Our main skill at FLA Industrial & Trading Co., Ltd. is making non-standard setups that fit the exact needs of each job. With our advanced mold creation skills and 3D modeling help, we can turn difficult needs into designs that are ready for production. Our 2,000-ton inventory of standard goods means that we can meet most needs right away, and special orders can be shipped in as little as 7–15 days for prototyping. This adaptability comes from working with picky Fortune Global 500 partners for almost 40 years, who expect both quality and quick responses.

Understanding Bulk Purchase and Logistics Considerations

When packages are combined, they cost less per unit, which is good for big building projects. Shipping containers directly from factories to job sites reduces the risk of damage and handling. Buyers should make sure that the price they are quoted includes delivery to the job site or that they need to make other transportation plans.

Payment terms and lead times are very different between suppliers. Most established manufacturers offer net-30 or net-60 terms to qualified buyers. Smaller vendors, on the other hand, may need deposits. Our fast response method gives you detailed quotes, weight confirmations, and 3D renderings within 24 to 48 hours. This cuts down on the time you need to make a purchasing choice and keeps projects on track.

Conclusion

The effectiveness of urban drainage rests on storm drain grates like the Rainwater Grate that catch runoff before it causes floods being properly chosen and kept. Ductile iron grates that are rated for the right amount of weight give modern towns the longevity and hydraulic performance they need. The choice of materials, the accuracy of installation, and regular maintenance are what determine whether these important infrastructure parts last for decades without breaking or become problem areas that need constant attention. If the people in charge of buying things know about the technical factors that affect how well a grate works, they can suggest solutions that lower overall costs while making the public safer. When you work with experienced manufacturers who can provide engineering support, quality certifications, and quick response times, buying a drainage system goes from being a simple purchase to a smart investment in your infrastructure.

FAQ

How Often Should Drainage Grates Be Cleaned?

How often you clean depends on the conditions of the place. In places with lots of plants, checks should be done every three months when the leaves fall, but once a month in industrial areas where fine particles are present. Commercial areas with a lot of foot traffic usually benefit from deep cleaning every six months and eye checks every month. Setting up a written repair plan stops emergency service calls that are caused by clogs that could have been avoided.

Which Material Offers Best Durability for Heavy Traffic?

Ductile iron that meets the specifications for Grade 500-7 works best for loading vehicles. Its nodular graphite structure makes it stronger than gray cast iron in terms of tensile strength and impact resistance. This lets smaller shapes be used, which improves water flow without lowering the load capacity. If you treat the surface correctly, either with hot-dip galvanization or an epoxy finish, it will last longer than 30 years, even in harsh conditions.

Can Grates Be Customized for Unique Installation Requirements?

Of course. Advanced mold development skills allow manufacturers to make parts with non-standard dimensions, custom slot patterns, and unique mounting arrangements. Customized solutions that standard catalog items can't handle are helpful for projects with architectural restrictions or unusual channel geometries. Before full production starts on a custom order, the 3D model is usually checked, and the sample is approved.

Partner with a Trusted Rainwater Grate Manufacturer for Your Next Project

Change the way your city's water system works with tried-and-true methods backed by decades of excellent engineering. FLA Industrial & Trading Co., Ltd. is a specialist in providing Rainwater Grate. They have been making products for almost 40 years and have ISO-certified quality management. They can make ductile iron grates that are better than EN 124 standards. Our ability to customize helps solve the problems that come up with non-standard installations, which slow down projects and raise costs. We get rid of the buying bottlenecks that slow you down by keeping 2,000 tons of ready-to-ship goods and turning around quotes in 24 to 48 hours. Get in touch with our expert team at sales@flaindustrial.com to talk about load needs, get performance data, or set up sample testing that shows why Fortune Global 500 companies trust our drainage solutions.

References

1. American Society of Civil Engineers. Urban Stormwater Management Design Manual. ASCE Press, 2019.

2. British Standards Institution. EN 124: Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas – Design Requirements, Type Testing, Marking, Quality Control. BSI Standards Publication, 2015.

3. Environmental Protection Agency. Best Management Practices for Urban Stormwater Runoff. EPA Publication Series, 2021.

4. Federal Highway Administration. Hydraulic Engineering Circular No. 22: Urban Drainage Design Manual. U.S. Department of Transportation, 2020.

5. International Code Council. International Plumbing Code: Chapter 11 – Storm Drainage. ICC Publications, 2021.

6. Water Environment Federation. Design of Urban Stormwater Controls. WEF Manual of Practice No. 23, 2018.
