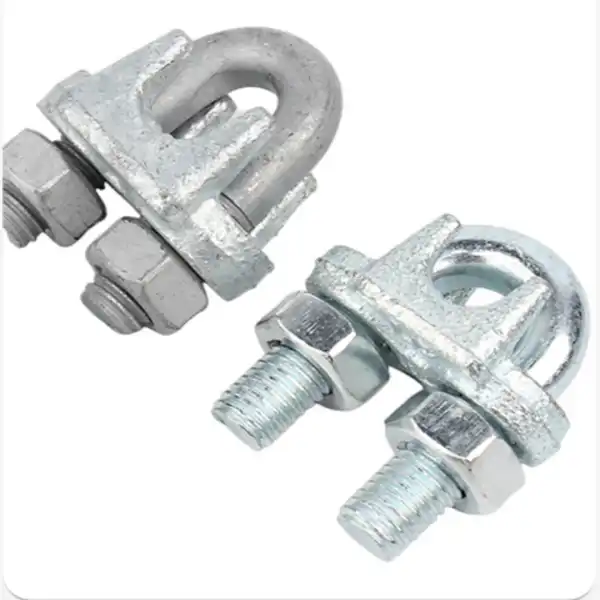

How to Choose Stainless Steel Rope Clips for Heavy-Duty Cable Applications?

Choosing the right wire rope fastening solution for demanding environments requires careful evaluation of material quality, load specifications, and environmental conditions. A high-quality stainless steel rope clip delivers secure cable termination through precision engineering that combines corrosion-resistant materials with load-bearing capacity. The selection process centers on matching clip specifications to your cable diameter, understanding grade differences between 304 and 316 alloys, and ensuring compliance with safety standards. Whether you're securing rigging systems on offshore platforms or installing architectural cable railings, the proper clip selection directly impacts operational safety and long-term performance in challenging industrial applications.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips and Their Application in Heavy-Duty Settings

When swaging tools aren't available or when flexibility is needed, wire rope clamps are mechanical fastening devices that make safe terminations. There is a U-bolt that goes around the wire rope, a saddle that holds up the live end, and two triangular nuts that clamp the rope together. Friction between the rope and saddle is what keeps the design working. When installed correctly, it usually achieves 80–90% of the rope's breaking strength.

Defining Core Functions in Industrial Applications

The main goal of these fasteners is not just to connect things. They make loops that can be adjusted for rigging systems, anchor points for lifting tasks, and reusable ends that can handle dynamic loads. In marine engineering, they hold down mooring lines and deck hardware where saltwater would quickly rust galvanized alternatives. They are used on construction sites to set up temporary safety cables and support platforms for tools. Because they can be used again and again, they are cost-effective for projects that need to be reconfigured often.

Material Grade Comparison: 304 Versus 316 Stainless Steel

The difference in these types' metal composition has a big effect on how well they work in corrosive settings. Grade 304 has about 18% chromium and 8% nickel, which together make an inactive oxide layer that stops corrosion from the air. This standard is good for building projects and artistic uses that will be mostly inside, where chloride exposure is low. Grade 316 has about 2% to 3% molybdenum mixed in with the same amount of chromium and nickel. This makes it much more resistant to chloride pitting and crevice corrosion. This better mix is necessary for installations near the coast, wastewater treatment plants, and chemical processing plants. Independent tests show that 316 grade stays structurally strong in environments with 5% salt spray for long periods of time, while 304 grade's surface breaks down in the same conditions. The molybdenum addition makes the standard valid for any marine or offshore use where the cost of new parts is higher than the cost of the initial material investment.

Advantages Over Galvanized and Aluminum Alternatives

When used in controlled settings, galvanized steel clips work fine, but they always break when they come into contact with saltwater or acidic conditions. Through protective corrosion, the zinc covering wears away, leaving the base steel open to rust formation. Aluminum clips are lightweight, but they aren't strong enough for heavy-duty uses, especially when they're being loaded or unloaded quickly. It is possible for stainless steel to keep its shape at very low temperatures and very high temperatures. Aluminum, on the other hand, has problems with thermal expansion. Because austenitic stainless steel is not magnetic, it doesn't mess up sensitive instruments in utility installations. Precision casting, forging, cutting, and finishing are some of the manufacturing processes that make sure the dimensions are correct, which has a direct effect on how well the part holds and how safe it is.

Key Criteria for Selecting Wire Rope Clamps for Demanding Environments

When making decisions about purchases, technical specifications and operational needs must be carefully compared. To keep things from breaking down too soon or causing safety problems, the selection framework needs to take into account things like load calculations, environmental stressors, and following the rules.

Matching Clip Size to Cable Diameter Requirements

The most important parameter choice for a Stainless Steel Rope Clip is the right size. Clips are made in sizes from M2 to M32 so that they can fit wire ropes with diameters from 2mm to 32mm. To make sure that the clamping pressure is spread evenly across the contact area, the saddle groove radius must be very close to the diameter of the rope. Undersized clips put a lot of stress on the U-bolt threads, which can cause the threads to break when the load is applied. Oversized clips don't hold the rope well, so it slips when the force is applied. The saddle groove meets your rope diameter requirements after being checked using precise tools to measure its dimensions. The space between the U-bolts should be big enough for the rope to fit all the way inside the saddle without getting caught on the threads of the U-bolts.

Load Capacity and Strength Requirements

For heavy-duty tasks, clips that can handle large loads and have the right safety features are needed. A 5:1 safety factor is common in professional-grade parts. This means that the minimum breaking load is five times the working load limit. Tensile forces are applied to assembled samples during load testing to make sure the clip keeps its grip on the rope and doesn't break. When dynamic loading happens, you need to think about more things because vibration and shock loads can slowly loosen up assemblies that were not properly torqued. It is important for material approvals to include yield strength values that show the clip body and U-bolt can handle the stated loads without deforming. Offshore lifting systems and industrial crane uses need proof load tests that are written down and can be traced back to material certificates for each batch.

Environmental Factors and Corrosion Resistance

The operating factors determine the material grade, which has a big effect on the cost. The main thing that changes the rate of corrosion in sea and industrial settings is the quantity of chloride. Installations along the coast that are less than five miles from saltwater must meet 316-grade standards. Chemical processing plants need to look at specific chemical exposures because different acids damage stainless steel in different ways than chloride pitting. When temperatures go from freezing to high, they create expansion stresses that can make connections loosen over time. When exposed to UV light, elastomeric parts are mostly affected, but stainless steel itself doesn't get much worse. Hydrogen sulfide, which is released by bacteria in wastewater treatment plants, speeds up corrosion. This is why the 316 standard is required for buried pump cables and aerator assemblies.

Compliance Standards and Certification Requirements

International standards set base standards for quality and provide tools for checking that quality. Getting ISO9001 approval shows that the manufacturing process follows written steps that can be tracked and reviewed. When something has a CE mark on it, it means that it meets European safety standards for things like mechanical strength and material composition. ASTM standards spell out the required performance tests, dimensional tolerances, and material grades so that Products" target="_blank" style="color:blue" >products from different makers can be used interchangeably. Purchasing managers should ask for material test results that show spectrometry analysis of the chemical composition and prove that the percentages of chromium, nickel, and molybdenum meet grade requirements. Third-party certification through classification societies boosts credibility for maritime uses that need independent verification because of liability concerns. Supplier quality management systems should show batch tracking, which means that final goods should be able to be linked to certificates and inspection records for raw materials at all stages of the production process.

Installation Protocols and Maintenance Practices for Long-Term Reliability

Using the right installation method directly affects how well made links hold together. Common mistakes made during installation lower safety gaps and cause early breakdowns that could have been avoided by following standard processes.

Step-by-Step Installation Guidelines

Find out how many clips you need based on the thickness of the rope before you start installing them. According to industry standards, you need at least two clips for small diameter ropes and four or more clips for large diameter cables in serious situations. Put the first clip one saddle width away from the thimble or loop eye. The saddle should be on the live end, and the U-bolt should be on the dead end. The U-bolt can't crush the load-bearing part of the rope because of this arrangement. Use calibrated torque wrenches instead of impact tools, which can go over limits, to tighten nuts evenly to the torque values specified by the manufacturer. To make sure that tightening pressure is spread evenly along the dead end, the distance between each subsequent clip should be about six rope diameters.

After the first fitting of a Stainless Steel Rope Clip, put weight on the unit and tighten all the clips again to the specifications. When the rope is first tightened, it slightly relaxes, so this step of retightening is needed to keep the right binding force. After the last clip, turn the dead end back so that the sharp ends of the wire don't cause snags. Putting thread protectors or cap nuts on uncovered U-bolt threads makes them last longer by stopping thread damage and moisture buildup that could lead to crevice rust.

Routine Inspection and Preventive Maintenance

Inspections that are planned ahead of time find problems before they become dangerous. When looking at something visually, you should look for signs of rusting, like red rust that means the base metal is exposed or green layers that mean dezincification in places where different metals touch. Checking the condition of the threads makes sure that the nuts are still in the right place and that the threads don't show any signs of stripping or cross-threading. Pay attention to the state of the rope in the clip area; broken wires or kinking can mean that the system is overloaded or that the installation layout is wrong.

Using calibrated tools to check the torque makes sure that the links keep the preload that was set, even when they are vibrating or going through changes in temperature. The number of inspections relies on the harshness of the environment and the changing loads. For example, important offshore applications may need checks every month, while building installations under static load may only need inspections once a year. Using fresh water and brushes that don't scratch to clean metal surfaces gets rid of salt deposits and biological growth that can trap water against them. Do not use chlorinated cleaners because they speed up rusting in cracks and under layers.

Replacement Criteria and Service Life Expectations

Instead of random time intervals, wire rope assemblies need to be thrown away when they start to break down. If you see corrosion pits in the clips, cracks in the saddle or U-bolt, or thread damage that stops you from applying the right amount of torque, you should replace them. Usually, the assembly's life depends on the rope itself. If the number of broken wires exceeds the standards, the assembly needs to be replaced regardless of the state of the clips. When something is subject to shock loads or severe shaking, it may need to be replaced sooner, even if the damage doesn't seem to be happening on the outside. This is because fatigue damage builds up inside before it shows up on the outside. Keeping thorough inspection records sets up trends of service life that help with planning when to replace things and how to get them in bulk.

Evaluating Manufacturers and Product Specifications for Procurement Decisions

There are different levels of quality and service in the market, which has a big effect on the total cost of ownership. To tell the difference between commodity products and engineered solutions, you need to look at more than just unit pricing.

Quality Indicators and Manufacturing Processes

The way a product is made is directly linked to its mechanical function and accuracy of dimensions. Precision casting makes shapes that are very close to net shapes, which means that less machining is needed while tolerances are still controlled. When compared to cast parts, forging methods produce better grain structure matching that increases strength. The gripping effectiveness is determined by the accuracy of the threads and the shape of the saddle grooves. Surface finishing with polishing gives things the shiny look of high-quality goods while also getting rid of flaws on the surface that could cause stress concentration points. Manufacturers who keep a lot of inventory on hand show that they trust their products to be consistent and can quickly meet standard requirements. FLA Industrial & Trading Co., Ltd. keeps more than 2,000 tons of stock in a wide range of specifications. This means that common needs can be met right away, and the company can also customize parts for specific uses through efficient production systems that deliver the changed parts within 7 to 15 days.

Customization Capabilities for Special Requirements

Standardized goods like a Stainless Steel Rope Clip can be used for most tasks, but some projects need different specs. Flexible manufacturing is needed for things like non-standard rope sizes, longer U-bolt lengths for split ropes, or special materials that can handle high chemical exposure. Suppliers who offer engineering support can make designs work better with different loads or shape restrictions. Three-dimensional modeling lets you check for fit and space problems before committing to large production runs. By proving design ideas before full-scale production, rapid prototype development shortens the time it takes to complete a project. This flexibility is especially helpful for OEM equipment makers who use wire rope systems in their own designs that need specific attachment geometries.

Technical Support Throughout the Procurement Process

Full customer service includes more than just completing orders. It also includes program building and helping customers solve problems. Quotes, technical specs, and design questions should be answered within 24 to 48 hours. This speeds up the decision-making process and keeps projects on track. Before orders are made, the first meeting makes sure that all application requirements are clear and that any possible standard problems are known. Mid-process updates let you see how custom things are coming along in production, which helps you stay on plan with your project. Post-delivery help answers questions about installation and fixes any problems that come up in the field during testing. With this method, suppliers become technical partners who share their knowledge to make the project a success as a whole.

Tailoring Selection to Industry-Specific Requirements

There are different problems that need to be solved in each operational setting, which changes the goals for specifications and the standards for performance. Understanding these sector-specific needs makes sure that the capabilities of the product match the needs of the application.

Marine and Offshore Rigging Systems

Submerging metal parts in saltwater is the most aggressive way for them to rust. As a minimum, 316-grade standard is needed for offshore platforms, ship gear, and dock installations. Tidal forces and waves create dynamic loading that needs higher safety factors than steady use on land. Corrosion resistance under accelerated exposure equal to years of service is confirmed by salt spray testing following ASTM B117 guidelines. Specialized coatings or cathodic protection integration may be needed for subsea applications to give them extra protection. Quality stainless steel rope clamps are essential for marine infrastructure because they are resistant to corrosion, strong, and have been proven to work reliably. Replacing them would require specialized vessels and diving operations, which would cost a lot of money.

Construction and Industrial Installations

During the construction phase, building sites need makeshift equipment for moving materials, keeping workers safe, and supporting structures. Concrete dust, welding spatter, and different construction chemicals are all part of the harsh environment. Clips have to be able to handle being roughed up during installation and still work well even when installation conditions aren't ideal. When project plans don't allow for longer wait times for specialized parts, availability becomes very important. Large projects need a lot of supplies, and bulk price systems make it possible to get them while still meeting quality standards and safety rules. The reusability factor lets contractors get parts back and use them on different projects, which increases the return on initial investment.

Architectural and Decorative Cable Systems

Components for building facades, rope fences, and suspended structures need to be strong and look good at the same time. The shiny stainless steel finish makes it look like it goes with other metals used in architecture and doesn't change color over time. When multiple clips are displayed in decorative works, dimensional accuracy makes sure that they all look the same. Documentation showing that the building meets the codes is needed for building permits and occupancy approvals. Because it isn't magnetic, it doesn't mess up electrical systems in new buildings. Long service life without visible corrosion keeps the architectural vision alive throughout the building's operational life. This keeps the building from needing to be replaced too soon, which would ruin its look and add to the cost of maintenance.

Conclusion

When choosing the right wire rope fixing parts like a Stainless Steel Rope Clip for heavy-duty jobs, you need to carefully look at the material grades, size requirements, and working conditions. The difference between 304 and 316 types of stainless steel determines how well they fight rust in chloride settings. Proper sizing also makes sure that the steel can hold its shape well. Following torque specs and clip spacing rules during installation has a direct effect on safety performance and service life. When buying something, people should weigh the cost of each unit against the total cost of ownership, which should include things like repairs and replacements. Precision casting, forging, and machining are all examples of high-quality production methods that produce parts with consistent dimensions that work well in the field. Working with suppliers who offer expert help, the ability to make changes, and quick contact changes the buying process from a one-way transaction to a relationship that improves project results in marine, building, and industrial settings.

FAQ

What determines whether I need 304 or 316 grade clips?

This choice is based on the amount of salt in the environment. Installations along the coast within five miles of saltwater need to be 316 grade because it is better at resisting rust from salt spray and absorption. For uses in inland areas with little chemical exposure, 304 grade works well and costs less. Chemical processing plants should look at specific risks because some industrial chemicals can damage all grades of stainless steel.

How many clips does my wire rope assembly require?

The minimum number of clips is based on rope thickness. Small diameter ropes (less than 10 mm) usually need at least two clips to hold them in place, while bigger wires (more than 20 mm) need three to four clips. For safety reasons, critical lifting applications should use more than the minimum amounts. Along the dead end, the distance between clips should be about six rope diameters.

Can these clips be reused after disassembly?

Reusability is determined by a careful inspection. After being cleaned properly and checking the torque, clips that don't have any thread damage, corrosion, or deformation can be used again. The threads must fit together easily, with no sticking or cross-threading. To keep safety standards, any cracks, corrosion pits, or lasting distortion that can be seen must be replaced.

What torque specifications should I apply during installation?

Manufacturers give different specs for each clip size and type of material. Different sizes of clips usually have numbers between 15 Newton-meters for small diameter clips and 200 Newton-meters or more for large industrial sizes. Always look at the instructions that came with the tool and only use calibrated torque wrenches. After the first load, tighten again to make up for the rope's tension.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Wire Rope Fastening Solutions

With almost 40 years of experience making things, we are a reliable source for Stainless Steel Rope Clips used in tough situations in the marine, building, and industry sectors. We use precise casting, forging, machining, and finishing methods that meet ISO9001 and CE approval standards to make parts in both 304 and 316 grades. We have over 1,000 product specifications and 2,000 tons of inventory, so we can fill standard orders right away and deliver custom configurations in 7–15 days. Our engineering team offers full technical support, including help with the initial design, checking 3D models, and real-time updates on production. Contact our experts at sales@flaindustrial.com to talk about your specific needs and get detailed quotes within 48 hours. Our commitment to low prices and high quality has earned the trust of Fortune Global 500 partners around the world.

References

1. American Society for Testing and Materials. "Standard Specification for Stainless Steel Wire Rope Fittings." ASTM F1166-07, 2019 Edition.

2. Bhandari, V.B. "Design of Machine Elements, Fourth Edition." McGraw-Hill Education, 2017, Chapter 12: Wire Ropes and Rope Drives.

3. European Committee for Standardization. "Wire Rope Terminations - Safety Requirements and Test Methods." EN 13411-5:2020.

4. International Organization for Standardization. "Steel Wire Ropes - Safety - Part 1: Requirements for General Applications." ISO 12947-1:2021.

5. McKenna, H.A., Hearle, J.W.S., and O'Hear, N. "Handbook of Fibre Rope Technology." Woodhead Publishing, 2004, Chapter 8: Wire Rope Terminations.

6. Verhoeven, J.D. "Steel Metallurgy for the Non-Metallurgist." ASM International, 2007, Chapter 9: Stainless Steels and Their Properties.
