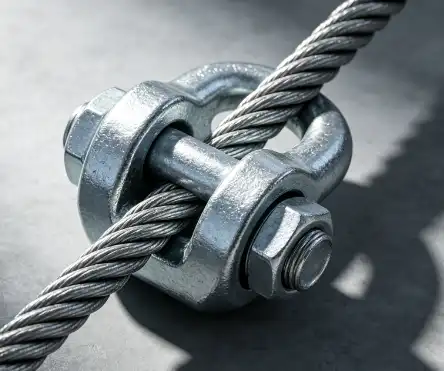

How Hot-Dip Galvanized Wire Rope Clamps Prevent Corrosion?

Hot-dip galvanized wire rope clamps are very resistant to rust because they are made by submerging forged carbon steel clamps in melted zinc that is about 450°C. This makes a thick layer of protection, about 45 to 85 microns thick, that works as both a shield and a sacrifice anode, corroding more slowly to protect the steel below. Instead of the thin electro-galvanized options that only protect the surface by 10 to 15 microns, hot-dip galvanization creates strong zinc-iron alloy layers that last for decades in marine, industrial, and construction settings where salt spray, humidity, and chemical pollutants would quickly break down untreated fasteners.

Specifications
Specification Type	Material	Surface Treatment	Specification (mm)	Features
Hot-dip Galvanized Wire Rope Clip	Carbon Steel	Hot-dip Galvanized	8	Rust-resistant / Anti-slip
Hot-dip Galvanized Wire Rope Clip	Carbon Steel	Hot-dip Galvanized	10	Rust-resistant / Anti-slip
Hot-dip Galvanized Wire Rope Clip	Carbon Steel	Hot-dip Galvanized	12	Rust-resistant / Anti-slip
Hot-dip Galvanized Wire Rope Clip	Carbon Steel	Hot-dip Galvanized	15	Rust-resistant / Anti-slip
Hot-dip Galvanized Wire Rope Clip	Carbon Steel	Hot-dip Galvanized	18	Rust-resistant / Anti-slip
Hot-dip Galvanized Wire Rope Clip	Carbon Steel	Hot-dip Galvanized	20	Rust-resistant / Anti-slip

Understanding Hot-Dip Galvanized Wire Rope Clamps and Corrosion Prevention

The Science Behind Hot-Dip Galvanization

Through controlled chemical bonding, the hot-dip galvanizing process turns regular carbon steel hot-dip galvanized wire rope clamps into corrosion-resistant ways to hold things together. During production, pickling is used to prepare the surfaces of cast and machined clamp parts by getting rid of mill scale and other impurities. After the steel is ready, it is put into a bath of liquid zinc that has been cooked to 445°C to 455°C. This soaking makes many layers of a zinc-iron mixture that attach to the base steel at the molecular level. A thick silver-gray color on the outside comes from the pure zinc layer. This is what sets high-quality hot-dip galvanized goods apart from lighter electroplated ones.

How Zinc Provides Sacrificial Protection

Through a process called cathodic protection, the zinc layer acts as a sacrifice anode. When there are small scratches or abrasions on the clamp surface that show the steel underneath, the zinc around it corrodes faster than the steel itself. This electrochemical process keeps protecting the steel even after the coating is broken. This makes the fasteners last a lot longer than coated or untreated fasteners. ASTM A153 standards say that the minimum coating thickness makes sure that this safety works for a long time in harsh weather conditions.

Environmental Challenges That Accelerate Corrosion

Corrosive substances are always trying to break down wire rope structures in industrial settings. Marine settings expose bolts to salty water that seeps through rough surfaces and starts to rust steel in just a few weeks if it is not protected. Clamps in factories are exposed to acidic pollutants, chemical fumes, and changes in temperature that speed up the rusting process. There are patterns of rain, humidity, and dryness on construction sites that make them perfect for rusting. Highways and bridges have to deal with de-icing salts all winter long. In these harsh conditions, you need fastening solutions that are made to prevent rust instead of general-purpose metal that breaks quickly.

When procurement professionals know about these environmental stresses, they can decide if standard hardware meets the needs of the project or if specialized galvanized goods offer better long-term value by lowering the costs of upkeep and replacement.

Comparing Hot-Dip Galvanized Wire Rope Clamps with Other Materials

Hot-Dip Galvanized vs. Electro-Galvanized Coatings

The performance standards are very different between hot-dip and electro-galvanized finishes. Electro-galvanizing uses electroplating to add a thin, even layer of zinc that is usually 10 to 15 microns thick. This process can only be done indoors or in climate-controlled areas. Immersion in liquid zinc during hot-dip galvanization makes coats three to eight times thicker, which makes them last longer outside. The metallurgical link in hot-dip processes keeps the coating from flaking or peeling under stress. Electroplated layers, on the other hand, can separate from the base metal when they are bent or hit, which is common in wire rope uses.

The difference in cost isn't just about width; it also shows worth. Electro-galvanized clamps are cheaper at first, but they need to be replaced after a few months of being outside. Hot-dip galvanized wire rope clamps cost more at first, but they don't need to be replaced as often, so the total cost of ownership goes down over the duration of a job.

Stainless Steel Alternatives

Because they contain chromium, which makes an inactive oxide layer, hot-dip galvanized wire rope clamp are very resistant to corrosion. Grade 316 stainless steel works really well in chemical processing plants and marine settings. Stainless steel, on the other hand, is much more expensive than carbon steel, which means it can't be used for big infrastructure projects with lots of wire connections.

Hot-dip galvanized carbon steel clamps offer the same level of corrosion protection at a much lower cost. This makes them the best choice for building companies, utility companies, and industrial sites that need to save money without sacrificing safety. Forged carbon steel is also better at supporting weight than many stainless steel types, and it has higher tensile strength for important lifting and suspension tasks.

Aluminum and Zinc-Plated Options

While aluminum clips are light and naturally resistant to rust, they don't have the tensile strength needed for heavy-duty uses. When there is a lot of pressure, the softer metal bends, which makes the wire rope grip less secure. When clamps are zinc-plated, they don't protect against rust very well; they're mostly just for looks and break down quickly in the elements.

These other options are good for some uses, but they can't compare to hot-dip galvanized wire rope clamps when it comes to strength, longevity, and resistance to rust in harsh industrial settings.

Installation and Maintenance Guide for Hot-Dip Galvanized Wire Rope Clamps

Proper Installation Techniques

The right placement has a direct effect on both efficiency and durability. Following the basic rule of "never saddle a dead horse," put the bridge section on the load-bearing "live" end of the rope and the U-bolt on the cut "dead" end. This set-up keeps the load-bearing wire strands from getting crushed, which is what keeps the rope strong when it's under strain.

Before installing, check the quality of the covering on each clamp to make sure there are no bare spots or rough spots on the zinc. Clean the part of the wire rope where the hot-dip galvanized wire rope clamps will go by getting rid of any dirt, oil, or other things that could get in the way of the clamps fitting properly. To make sure the U-bolt goes through the seat base properly, tighten the nuts by hand at first.

Torque Specifications and Spacing Requirements

To get the right holding force, you need to follow the torque specs given by the maker. These are usually given in foot-pounds and depend on the size of the clamp. When you under-tighten a wire rope, it can slip under load. When you over-tighten it, the structure is damaged or the threads are stripped. Instead of guessing how tight something is by feel, use a measured torque wrench.

How many clamps to use and how far apart they are from each other depend on the thickness of the wire rope and the needs of the application. Most of the time, industry rules say that you should use at least three clamps, with the first clamp placed one saddle width away from the rope eye. Additional clamps should be placed every six rope diameters. After the first installation, tighten all of the clamps again after the assembly has been loaded. This is because the rope rests and some of the clamp strain is lost.

Maintenance Practices That Extend Service Life

Scheduling regular inspections helps find problems early on, before they become unsafe or affect efficiency. Check hot-dip galvanized wire rope clamps visually every six months, or more often if they are in an area that is likely to rust, for white rust (zinc corrosion) or red rust (steel exposure). White rust means that the zinc is doing its normal job of being a sacrifice, so it usually doesn't need to be replaced right away. Red rust means the coating is failing, which means the clamp needs to be replaced.

During checks, make sure the nuts are tight because vibration and changing temperatures can loosen screws over time. Keep extra clamps in dry, well-ventilated places that aren't near wet ground. Do not stack metal items in a way that keeps moisture between the surfaces. By following these easy upkeep steps, you can make sure that your quality zinc clamps last for decades.

Applications and Safety Standards of Hot-Dip Galvanized Wire Rope Clamps

Construction and Infrastructure Projects

Temporary guardrails, safety lines, and structural support systems need to be fastened securely on construction sites. Hot-dip galvanized wire rope clamp keep scaffolding lines in place, make safety fences around the edge, and support systems for moving things. The clamps can handle being out in the weather for long periods of time, even years, without needing to be replaced. Bridge building and highway structures depend on galvanized clamps for fixed installations and cable tensioning systems that are hard to reach for upkeep and have bad results if they fail.

Marine and Offshore Environments

Hardware used in marine uses is put through the harshest corrosive circumstances. For dock installations, boat mooring lines, and offshore platform rigging, you need fasteners that can handle being submerged and sprayed with salt water over and over again. Quality hot-dip galvanized wire rope clamps have a thick zinc covering that protects them and makes them work well for a long time. Towing hawsers, cargo lashing, and deck equipment securing are all done with these clamps on fishing boats, cargo ships, and military activities. If they fail, it could cause major safety problems or financial losses.

Industrial Manufacturing and Utilities

Hot-dip galvanized wire rope clamps are used in factories to manage machinery cables, as well as for high cranes and equipment that moves materials. Power companies use these clamps to connect the guy wires that hold up transmission lines and utility poles. They have to work reliably for decades in all kinds of weather. Galvanized clamps, which can withstand acid rain, UV light, and temperature changes from -40°F to 140°F, are used in the telecommunications business to hold antenna lines and structure supports.

Compliance with International Standards

Following safety rules is the most important part of making sure the quality of hot-dip galvanized wire rope clamps. ASTM A153 sets the standards for hot-dip galvanizing steel tools, including the minimum thickness and consistency of the coating. ISO 1461 sets international norms for galvanizing that are accepted in all places around the world. Federal Specification FF-C-450 tells us how wire rope clips used in government and business settings should work.

FLA Industrial & Trading Co., Ltd. makes clamps that meet ISO9001 quality management standards and CE product safety approval. They make sure that every batch goes through strict tests to check the thickness of the covering, its tensile strength, and its accuracy in terms of size. These certifications give people who buy things faith that the goods they buy meet or go beyond safety standards for important uses.

Procurement Insights: Choosing and Buying Hot-Dip Galvanized Wire Rope Clamps

Evaluating Supplier Qualifications

Finding the right seller for hot-dip galvanized wire rope clamp means looking at more than just the supply of Products" target="_blank" style="color:blue" >products. It also means looking at how well the supplier can make things. Look for makers that have been in business for a long time and know how to meet the technical needs of different uses. Manufacturers of high-quality goods keep up-to-date casting and milling tools that can keep the same level of accuracy in measurements across multiple production runs. The galvanizing process needs special buildings with temperature-controlled zinc baths and good air systems. These are the kinds of investments that set serious makers apart from importers who just get products.

Certifications prove that a company can do what they say they can do. The ISO9001 quality management certification shows that you can control processes in a planned way and make improvements all the time. When a product has the CE mark, it means it meets European standards for health, safety, and the environment. If someone asks, suppliers should be happy to give them material certifications, covering thickness test results, and load testing paperwork for their hot-dip galvanized wire rope clamps.

Understanding Inventory and Customization Options

How well procurement works relies on how much material suppliers have and how flexible they are with customization. Well-known companies keep a lot of common sizes in stock, usually ranging from 8mm to 20mm in diameter, so they can ship right away for projects that need to be done quickly. When deadlines are tight, this stocking ability keeps projects from being held up, which costs a lot of money.

Custom needs often come up in unique situations where non-standard sizes or patterns need to be changed. When a manufacturer has their own engineering staff, they can come up with custom solutions that include 3D design proof and making prototypes in a fair amount of time. Flexible providers can make parts with unusual shapes, which sets them apart from stock vendors who can't meet specific needs.

Balancing Quality and Total Cost of Ownership

When comparing prices, you need to look at the total costs of owning, not just the unit buy amounts. Cheap hot-dip galvanized wire rope clamps that come from sketchy sources often have thin coatings, bad measurement standards, or base materials that aren't up to par and break quickly. The initial savings are far outweighed by the costs of replacement, labor for re-installation, and possible safety issues due to fastener failure.

Good metal clamps from reputable brands are safe purchases that will last as long as they're supposed to and won't need to be replaced prematurely. The original price difference between luxury and economy products is usually only a small part of the total project budget. However, the long-term dependability and safety of the two types of products are very different.

Instead of choosing providers based only on prices, procurement teams should ask for precise technical specs, readings of coating thickness, and material certifications. Well-known companies stand behind their goods with quick technical help that answers questions about how to use them and gives advice throughout the whole project lifecycle.

Conclusion

Hot-dip galvanized wire rope clamps are the best choice for difficult industrial uses because they protect against corrosion, are strong, and are a good value. The thick zinc coating that is metallurgically bonded lasts for decades and works well in naval, building, and infrastructure settings where other materials break down quickly. The benefits of this tried-and-true technology can be fully realized with the right choices, installation, and upkeep. Businesses can get fastening solutions that protect their investments, make sure operations are safe, and avoid expensive repairs too soon by working with experienced makers who uphold strict quality standards and help customers through the buying and installation processes.

FAQ

How long does the corrosion protection last on galvanized clamps?

How long a layer lasts depends on how it is exposed to the surroundings and how thick it is. When hot-dip galvanization is done right, it protects against rust for 20 to 50 years in most outdoor industry settings. This can be cut down to 15 to 25 years in harsh marine settings, but it can last longer than 50 years in safe interior areas. The zinc coating corrodes at a steady rate—about one micron per year in mild climates—so you can plan the coating's lifecycle based on how thick it was at the start for your hot-dip galvanized wire rope clamps.

Can galvanized wire rope clamps be used in saltwater without additional protection?

Yes, the thick zinc layer is enough to protect naval uses without any other treatments or coatings. ASTM A153 specifies a coating thickness that is specially designed to withstand contact to saltwater. The state of the coating should be checked on a regular basis, but hot-dip galvanized wire rope clamps that have been properly galvanized can work consistently in marine settings without any extra surface treatments that would mess up the sacrificial protection mechanism.

When should galvanized clamps be replaced?

When red rust shows up on hot-dip galvanized wire rope clamps, it means the zinc covering has failed and the steel is exposed. Corrosion of zinc that looks like white powder is normal and doesn't need to be replaced. Also, get new clamps if the saddle shape or U-bolt structure is compromised by damage, or if the threads come loose when you tighten them again. If you do the recommended inspections at the right times, you can catch these problems before they hurt performance or safety.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Hot-Dip Galvanized Wire Rope Clamp Solutions

To get reliable fixing parts, you need to work with makers who know how to do both great product engineering and great customer service. As a seller of hot-dip galvanized wire rope clamps with almost 40 years of experience in the business, we keep more than 2,000 tons of standard specs in stock and ready to ship right away. Our production facilities are ISO9001 and CE approved, and they use controlled galvanizing, advanced machining, and precise casting to make sure that the quality of every order is the same. No matter how many pieces your project needs—50 or thousands—our expert team is ready to help. Within 7 to 15 days, they can deliver custom designs that have been checked and unique combinations. Visit flaindustry.com or email sales@flaindustrial.com to talk to one of our experts about your unique needs and get detailed product information that will help you make an informed purchase choice.

References

American Society for Testing and Materials. (2019). ASTM A153/A153M-19: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken, PA: ASTM International.

International Organization for Standardization. (2009). ISO 1461:2009 Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles—Specifications and Test Methods. Geneva: ISO.

Porter, F.C. (1991). Corrosion Resistance of Zinc and Zinc Alloys. New York: Marcel Dekker, Inc.

U.S. General Services Administration. (2018). Federal Specification FF-C-450E: Clip, Wire Rope. Washington, DC: GSA.

Wire Rope Technical Board. (2017). Wire Rope Users Manual, Fourth Edition. Woodstock, MD: Wire Rope Technical Board.

Zhang, X.G. (1996). Corrosion and Electrochemistry of Zinc. New York: Plenum Press.
