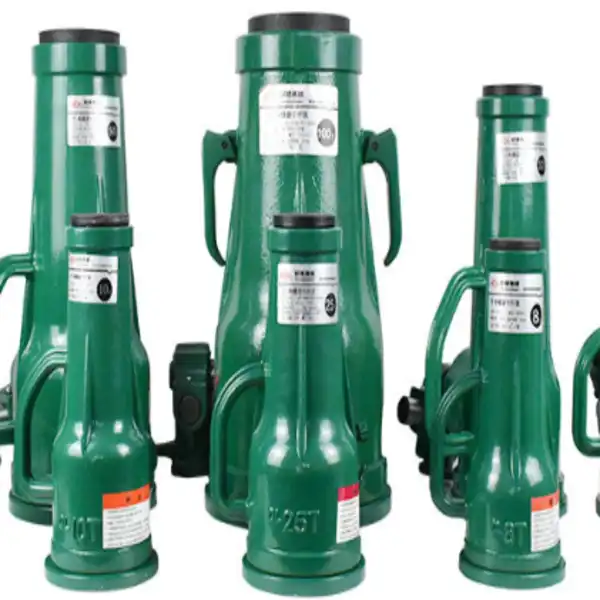

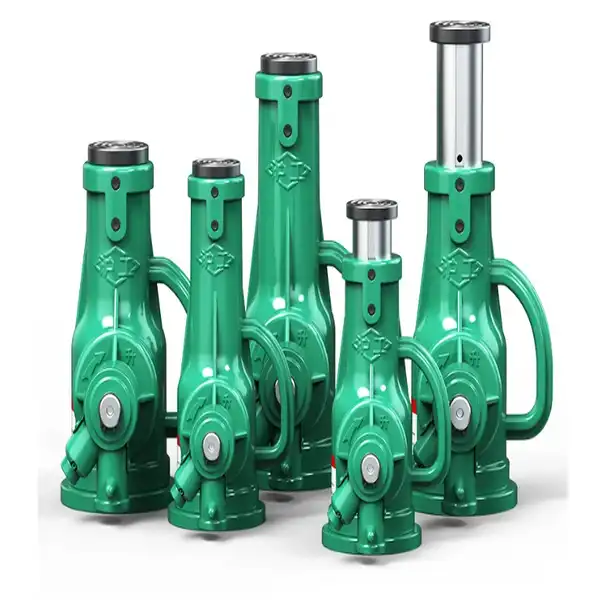

Industrial Screw Jack Selection for Heavy Machinery Installation and Alignment

Selecting the right industrial screw jack for heavy machinery installation and alignment is one of the most consequential decisions a procurement engineer or site supervisor will make. The wrong choice leads to misaligned equipment, costly downtime, and safety risks. A properly specified mechanical screw jack delivers sub-millimeter positioning accuracy, indefinite load-holding without power, and synchronized multi-point lifting across large structures. This guide walks through every factor that matters — from jack type and material to installation protocols and supplier verification — so your team procures with confidence.

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3

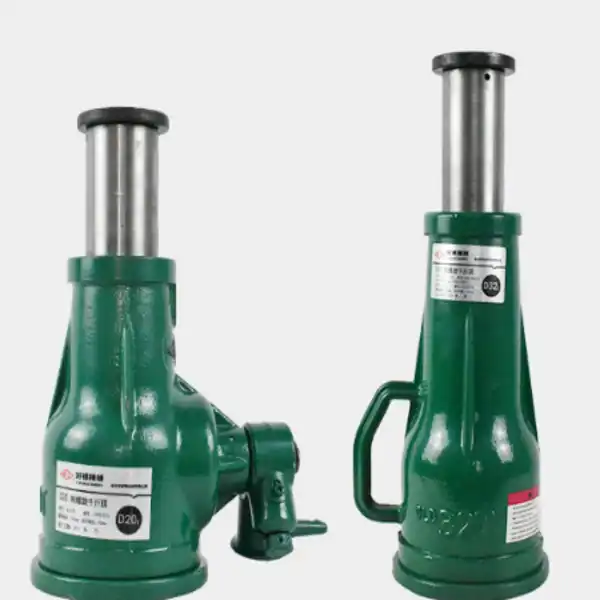

D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks and Their Key Applications

What a Screw Jack Actually Does?

Stuff moves in a straight line with the help of a lead screw that has an Acme or trapezoidal thread. The screw goes through a metal or industrial plastic nut. This shape makes the load self-locking in normal machine screw types. This means that the load stays in place even when the driving force is taken away. They can hold anywhere from 2.5 kN to 3,500 kN of dynamic load, which is enough for everything from light fixtures to bridge girders.

Core Industrial Applications

People use these pulling tools in a lot of tough spots. In order to keep rough scale from getting into the thread, the steel mill roller-gap adjustment needs special bellows boots and high-temperature seals. Solar tracking systems need to be very strong against wind loads and be made of epoxy-grade materials to keep them from rusting. A theater stage lift links several jacks to a mechanical shaft that raises the orchestra pit at the same time. There is no room for error when it comes to worker safety in this case. When it comes to thread type, housing material, and closing, each use is different.

Why Screw Jacks Outperform Alternatives in Alignment Tasks?

If you leak or move hydraulic fluid around in a worm gear screw jack, it won't happen. The positioning is accurate enough to meet the requirements set by ISO 2768. This is usually not possible with hydraulic systems without using pricey feedback controls. For long-term load support, like keeping a turbine base in place while grout dries, the mechanical lock is just more stable.

Types of Industrial Screw Jacks and How to Choose the Right One

Manual, Electric, and Worm Gear Models Compared

With a manual screw jack, the operator can put in just the right amount of torque for low-cycle, low-speed checks. Electric worm gear jacks can work with bigger loads and from farther away thanks to their motor-gearbox system. Because friction makes the gear mesh hot, most worm gear units can only handle 20 to 30 percent of their duty cycle. They can go as fast as 300 mm/s and work better with ball screws, but they don't lock themselves and need a stop motor to stay in place.

The F-1 Criteria Screening Approach

Before picking an Industrial Screw Jack unit, you should think about five things in this order: (1) the load that needs to be lifted with a 1.5 safety margin; (2) the stroke length compared to the vertical clearance; (3) the operating speed and duty cycle; (4) the temperature, moisture, and particulate exposure in the environment; and (5) the need for synchronization across multiple lift points. Putting things in this order quickly gets rid of options that don't work with each other, leaving just two or three to compare costs.

Material and Thread Selection for Heavy-Duty Use

How well the housing handles shock depends on what it's made of. This type of iron (GGG40) can handle dynamic shock better than gray cast iron (GG25) when it comes to press lines or pressing equipment. A lead screw is usually made of 42CrMo alloy steel that has been bent or cooled. How long it lasts depends on how it was made. The bronze worm wheels (ZCuSn10Pb1) have low friction and keep working well even after years of cycling on and off. Stainless steel lead screws can be used in places where chemicals or food are processed.--

Installation and Maintenance Best Practices to Maximize Performance

Pre-Installation Alignment Checklist

It takes a lot more than turning the first screw to get something set up right. Your building crew should do the following before putting any weight on the beam:

• Base surface flatness: Verify mounting surface flatness within 0.1 mm per 300 mm using a precision level; shimming corrects minor deviations without machining.
• Axial alignment: Confirm the jack centerline aligns with the load vector; side-loading accelerates thread wear and can crack housings under sustained force.
• Torque verification: Check input torque against the manufacturer's rated value before full-load commissioning; excess torque often indicates misalignment rather than overload.
• Over-travel protection: Install mechanical stop nuts on the lead screw as a hard fail-safe, and add external proximity sensors to cut power before mechanical impact.

Use a precision level to make sure the mounting area is flat within 0.1 mm per 300 mm. Shimming can fix small mistakes without having to cut them out.

In order to position the jack properly, make sure that its axis lines up with the load vector. Side-loading makes thread wear happen faster, and over time, this can break housings.

Lubrication and Routine Inspection Schedule

The most common problems that happen during installation will not happen if you follow these steps. The product will last a long time.

Troubleshooting Common Failures

The temperature of the gearbox should not rise suddenly if it is not oiled enough or if its duty cycle is too high. Noise while moving is often caused by a bronze wheel that is worn down or a connection that is not tight enough between the jack and the motor. When you put weight on a model with a trapezoidal thread and the screw back-drives, it means that the thread is worn past the point where it locks itself. The screw and nut pair should be changed before it is used again.

Comparing Industrial Screw Jacks with Alternative Lifting Solutions

Screw Jacks vs. Hydraulic Cylinders

When used in a press, hydraulic pistons are great because they can fit a lot of speed and force into a small area. However, they can move when they're under a lot of pressure for a long time because seal wear leads to small leaks. They also need a hydraulic power unit that needs fluid to keep it working. For tasks like support and alignment, an Industrial Screw Jack stays in place forever and doesn't need an outside power source to keep the load on. It also costs less to maintain over time.

Manual vs. Electric: Matching Drive Type to Task

If the person using the machine can easily get to it, making small changes by hand is still a good choice for things that need to be done often, like leveling the machine during installation. If the cycle frequency is too high for a person to handle easily, if something needs to be done automatically or from a distance, or if more than one jack needs to work together, you need an electric drive. Through connecting shafts and miter gearboxes, one motor can power four or more jacks. This gives you physically locked synchronization that you can't get from electrical settings alone.

Reference Brands and Quality Benchmarks

Brands like SKF and Rexroth make screw jack lines that meet AGMA gear quality grades and DIN-compliant dimensional standards. These rules make it easy for procurement teams to do their jobs. The worm shaft should have Rockwell C hardness (HRC) test records, and the metal wheel should have Brinell hardness data. You can get these from anyone, in the US or another country. A catalog definition by itself is not as good at telling you how long something will last as these two numbers.

Procurement Considerations and How to Buy Industrial Screw Jacks?

Key Cost Drivers and Supplier Evaluation

How much each unit costs depends on the type of material, how deep the lead screw treatment goes, how good the house casting is, and how many orders there are. Made-to-order stroke lengths or mounting flanges take longer to build, but it generally costs less than making changes after delivery. Before you order stock, make sure you have proof of ISO 9001 certification, CE conformity statements, and test records, especially the static overload test at 1.5 times the stated capacity. In the quality control report for each batch of production, the shape should be checked, and there should be no-load run tests.

What to Expect from a Qualified Supplier

An approved mechanical jack provider will answer questions with prices, datasheets, and 3D models in 24 to 48 hours. Catalog units that are standard should be able to ship right away. Special setups, on the other hand, usually take 7–15 days from the time the order is confirmed. Because of rules set by DIN, AGMA, or EN, you need at least one certification to work on projects in the US and Europe.

Conclusion

If you want to install big machinery with an Industrial Screw Jack, make sure that the load capacity, thread type, material grade, and drive setup all meet your needs. T-slot worm gear jacks are good for most alignment and long-term support jobs because they self-lock and don't need much upkeep. For high-speed or high-duty robotics, you can use different types of ball nuts. No matter what kind, look at the records of the strength tests and the overload tests. Also, make sure that the building seal meets the needs of your site. If you buy the right unit and put it in the right place, it will work for years without needing any big fixes.

FAQ

Is every screw jack self-locking?

Machine screw jacks with trapezoidal threads don't usually lock themselves. This is because the force pushing backward is weaker than the force pushing between the threads. To stay in place when the drive is turned off, ball screw jacks need a brake motor not to move.

What limits duty cycle?

Worm gear friction makes heat, but it can only be stored up to a certain point. A duty cycle of 20 to 30 percent is enough for most machine screw jacks.

Can one motor drive multiple jacks?

Yes. With connecting shafts, couplings, and miter gearboxes, several units can be linked to a single motor. Together, these machines work like a machine. To lift platforms and level big pieces of equipment at the same time, do it this way.

How do I choose between translating and rotating screw configurations?

Use a sliding screw when the load is directly connected to the end of the screw, and there is space above the jack. This kind of screw moves all the way along its length. If there isn't much space above, use a screw that spins and the nut moves.

What environmental protection options exist?

You can get dust cover spare parts and sealed lubrication interfaces for most production units. You should ask for bellows boots and grease that can handle high temperatures for places like steel mill roller lines where the temperature is high.

Partner With FLA Industrial & Trading Co., Ltd. for Your Next Lifting Project

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and sells Industrial Screw Jacks. The ISO 9001, CE, and DIN/AGMA/EN marks are on our units. We have 2,000 tons of stock that can be sent out right away, and it takes 7–15 days to ship special designs. To get a quick price, datasheets, and more, email sales@flaindustrial.com or visit www.flaindustry.com right now to talk to our engineering team.
