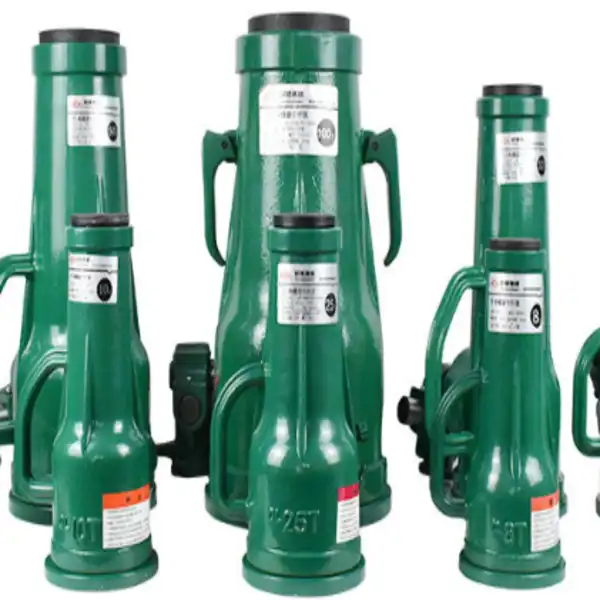

Industrial Screw Jacks for Equipment Leveling: Capacity and Thread Checks

When precision matters on the job site or in the plant, an industrial screw jack is one of the most dependable mechanical lifting devices available. These tools convert rotational input into controlled linear movement, letting operators raise, lower, or hold heavy loads with sub-millimeter accuracy. Whether you are leveling a CNC machine, supporting a structural beam, or positioning heavy assembly equipment, understanding load capacity limits and thread condition is what separates safe, productive operation from costly failure.

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3

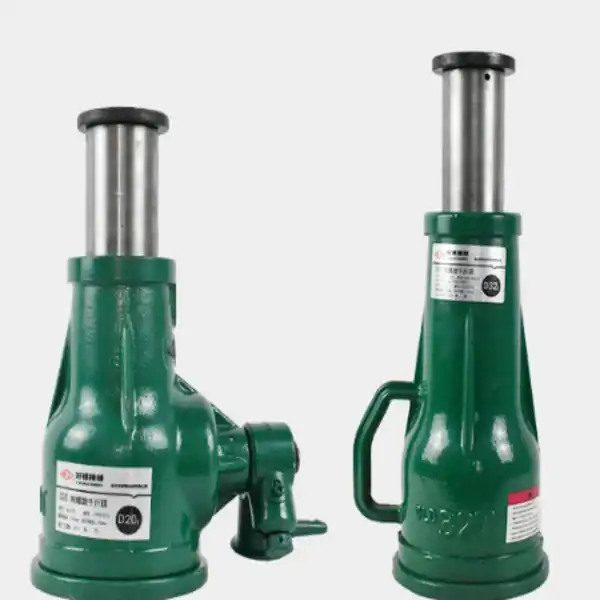

D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks in Equipment Leveling

How the Mechanism Works

As soon as you connect a nut to a threaded lead screw, a screw jack changes rotating motion into linear motion. You can change how much the screw rises or falls by moving the nut or screw itself along its length. If a thread is self-locking, it means that the friction it makes is enough to hold things in place without any power. The good thing about them is that they can hold loads for a long time in places where a hydraulic system might move.

Key Components and Their Roles

Every worm gear screw jack has a lead screw made of alloy steel, a nut made of bronze or engineering plastic, a worm gear set inside a body made of cast steel or ductile iron, and a ground base plate. The weight is spread out among the many parts. Because the surface of the lead screw has been hardened or cooled, it can't bend or lose its threads. This is because the brass nut wears down first, putting most of the stress on the screw.

Manual vs. Electric, Worm Gear vs. Ball Screw

Manual screw jacks work well for jobs that don't happen very often and where the user can apply pressure with their hands or a bar. Because they are linked to a motor and gearbox, electric models can work from farther away and have longer duty cycles. A worm gear jack can hold loads ranging from 2.5 kN to 3,500 kN and be locked in place. To stay in place, ball screw jacks need a stop motor because they don't lock themselves. They are more efficient and can move at faster linear speeds (up to 300 mm/s).

Capacity Considerations for Screw Jacks in Leveling Applications

How Load Ratings Are Established?

Companies that make screw jacks test them in controlled, stable, and moving ways that follow DIN, AGMA, or EN rules. An overload test is usually done on the housing and screw to make sure the structure is strong. This test puts them through 1.5 times their rated capacity. When you do dynamic ratings, you take into account things like vibration, shock, and job cycle. The worm gear's temperature limit tells us how long the jack can run nonstop. Most standard machine screw jacks are made to work 20 to 30 percent of the time. They buy jacks that are too small a lot of the time because they only look at the nominal equipment weight and don't think about eccentric loading and dynamic forces. If the weight isn't spread out evenly across several lift points, one jack may have to carry more weight than it's supposed to, while others carry much less. People also often make the mistake of not thinking about how the column load will affect the screw. As the screw stretches, its breaking resistance goes down. Before you finish a standard, you should always add a safety factor and check out the extension-length derating tables made by the maker.

Common Capacity Selection Mistakes

The capacity description needs to be done in an orderly way

Practical Steps for Correct Sizing

These are the main things that buying engineers do for a living:

• Measure the actual load per lift point for the Industrial Screw Jack — weigh or calculate the equipment load distributed across each jack position, accounting for off-center masses.
• Account for dynamic and shock loads — Apply at least a 1.5× safety multiplier for equipment subject to vibration or sudden load shifts.
• Check screw extension length — Verify the buckling load at maximum travel against the manufacturer's derating chart.
• Consult the manufacturer — Share equipment drawings and site conditions so the supplier can confirm suitability before purchase.

Measure the real load at each lift point. This means that you should weigh or figure out how much the equipment weighs at each jack position, including the heavy items that aren't in the middle.

Moving and shock loads should be taken into account. You should add at least a 1.5× safety factor to tools that will be shaking or having loads change quickly.

See the manufacturer's derating chart to find out what the bending load is at full motion. Also, check the length of the screw extension.

Thread Checks and Maintenance for Optimal Performance

Recognizing Wear and Damage Early

Most of the time, thread wear on a lead screw shows up as axial backlash, which is a gap between the screw and nut that can be found with a dial indicator. ISO 2768 standards are used by companies that make precision jacks. If the backlash goes over the limit, the nut needs to be replaced. Galling lines, pits on the thread sides, and trouble turning the screw when it is fully engaged are some other signs that something is wrong. When threads are stripped, the load can drop quickly and out of control. You can stop it before it happens if you see these signs early.

Routine Maintenance Protocols

Maintenance is simple to do. Check the lead screw every three months or after any unusual load. Remove any dirt or dust from the thread holes, as rough particles make side wear go faster. Fill the worm gear housing up to the level marked, and then use the lubrication interface to put on the grease that the manufacturer suggests. This is something that most jacks have. You can add the extra dust cover to your jacks if you use them in places with a lot of dust or high temperatures to keep the screw from getting dirty.

Troubleshooting Common Thread Problems

Most of the time, thread jams happen because there isn't enough oil or the load axis isn't lined up right. First, make sure the base of the mount is level, and the load is in the middle of the screw head. Then, take the load off of the screw and clean and re-grease the threads. Thread pulling, which happens when the nut material deforms, is usually caused by too much force. When you replace the bronze nut, the full capacity comes back. Do not use it with a stripped nut anymore, because it is no longer self-locking.

Comparing Screw Jacks to Other Lifting Mechanisms for Leveling

Screw Jacks vs. Hydraulic Jacks

Hydraulic cylinders generate high force in compact packages, but they can experience pressure drift over time, meaning a load held overnight may settle slightly. An Industrial Screw Jack with a trapezoidal screw holds position indefinitely without any power input due to thread friction. Hydraulic systems also require seals, fluid reservoirs, and pumps—adding maintenance touchpoints that screw jacks avoid entirely. For precision leveling where position must stay fixed for hours or days, screw jacks offer a mechanically rigid, leak-free alternative.

Electric vs. Manual Models for Different Environments

Electric screw jacks improve consistency in repetitive or synchronized multi-point lifting, since a single motor can drive several units through connecting shafts and miter gearboxes. Manual models remain practical on remote job sites without power access. The choice depends on duty cycle, cycle frequency, and available infrastructure. Both types benefit from the same self-locking trapezoidal screw geometry.

Certifications and Quality Assurance

Buying from a supplier with ISO 9001 certification and CE marking provides documented evidence that production processes meet recognized quality standards. DIN/AGMA/EN compliance for screw geometry and gear quality ensures dimensional compatibility with international engineering specifications. Material hardness verification—Rockwell C testing of the worm shaft and Brinell hardness of the bronze wheel—confirms wear life projections are grounded in measured data, not estimates.

How to Choose the Right Screw Jack for Equipment Leveling?

Evaluating Core Technical Parameters

When you compare the jack's dynamic load capacity to the per-point load you found, don't forget to check for safety. Check the trip length against the lift's height and make sure the linear speed matches your work speed. Make sure that the jack model allows devices that are in sync to use mechanical shafts. Screws made of stainless steel and housings covered in epoxy last longer in places where they might rust or be used outside.

Supplier Evaluation and Procurement Tips

When you ask, find providers who can send you 3D design files and standard sheets within 24 to 48 hours. Check to see how long it takes to make unique setups. Seven to fifteen days is a good range for builds that aren't standard. Find out if there are extra parts on hand, especially new bronze nuts, since those are the ones that break the most often. Hardware distributors and wholesalers who keep a lot of different item numbers in stock care about how much money you can save by buying in bulk and how well the items are packed.

Long-Term Investment Protection

If you heat and seal an alloy steel mechanical jack to keep it from rusting, it will last for years and won't cost much to fix. You won't have to worry about the screw moving too far when you connect the device to limit switches or proximity sensors. This will protect the threads from damage. Buying documented, approved equipment keeps buying teams from getting sued and cuts down on downtime that wasn't planned.

Conclusion

To make sure your equipment is level, pick the right Industrial Screw Jack capacity, check the thread condition often, and do general maintenance as needed. Certain types of trapezoidal screws can hold weight without locking, but hydraulic systems can't. Ball screw types are fast and good for motorized uses. By following these steps for sizing, checking, and rating sellers, procurement workers and site engineers can pick lifting equipment that works well and lasts a long time.

FAQ

Is every screw jack self-locking?

No, trapezoidal thread jacks usually don't need to be back-driven because thread friction keeps them locked. Ball screw jacks do a great job, but they need a stop motor to stay put.

How often should I inspect the lead screw?

If it's working normally, look at it every three months. If there is an overload or a strange noise while it's running, check it right away.

Can one motor drive multiple jacks?

Yes. A single motor can move two, four, or more jacks at the same time with the help of connecting shafts, couplings, and miter gearboxes. This helps a lot with heavy lifting.

What causes thread jamming?

Most of the time, it's because there isn't enough grease or load on the axis. Before you start up again, you should clean, re-oil, and check where the base is.

How do I prevent over-travel?

For added safety, add limit switches or proximity sensors to the outside and mechanical stop nuts to the screw. This will stop the motor before it hits something.

Partner with FLA Industrial & Trading Co., Ltd. for Precision Lifting Solutions

FLA Industrial & Trading Co., Ltd. works with screw jack suppliers all the time. These suppliers have made things for almost 40 years. Our pulling tools are made to meet the standards of ISO 9001, CE, and DIN/AGMA/EN. We give you prices and 3D specs within 24 to 48 hours after you ask a technical question. Email sales@flaindustrial.com or visit flaindustry.com to get a price and find the right Industrial Screw Jack for your needs.

References

1. Shigley, J. E., & Mischke, C. R. Mechanical Engineering Design. McGraw-Hill, 2019.

2. American Gear Manufacturers Association. AGMA 6022: Design Manual for Cylindrical Worm Gearing. AGMA, 2020.

3. Deutsches Institut für Normung. DIN 103: Trapezoidal Screw Threads. DIN, 2018.

4. Spotts, M. F., Shoup, T. E., & Hornberger, L. E. Design of Machine Elements. Pearson Education, 2017.

5. International Organization for Standardization. ISO 2768: General Tolerances for Linear and Angular Dimensions. ISO, 2021.

6. Juvinall, R. C., & Marshek, K. M. Fundamentals of Machine Component Design. Wiley, 2020.
