Rainwater Grates for Commercial Drainage: Load Class and Flow Capacity

Selecting the right drainage grate for a commercial project is more than a purchasing decision — it's a structural and hydraulic commitment. A rainwater grate acts as the direct interface between surface runoff and the subsurface drainage network, controlling both water intake speed and load distribution. Whether you're specifying units for a highway median, a logistics yard, or a pedestrian plaza, understanding load class ratings and flow capacity is non-negotiable. This guide breaks down what matters most, with technical clarity that procurement engineers, site supervisors, and product distributors can actually use on the job.

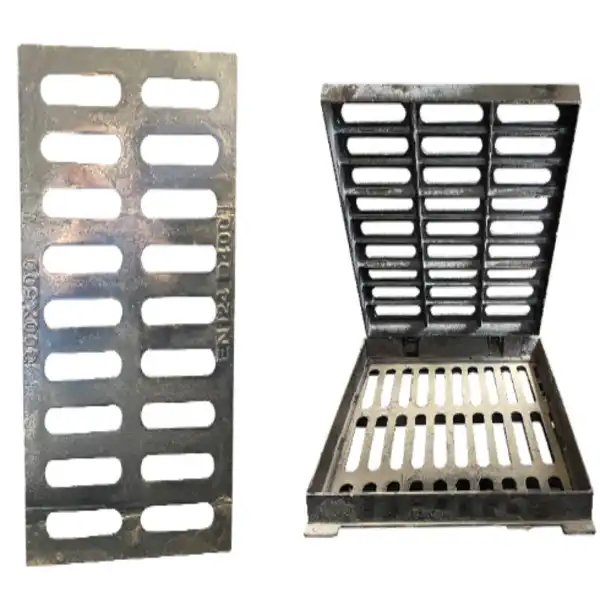

Specifications

Specification (mm)	Load Capacity	Specification (mm)	Load Capacity
590×480×20	A15	380×500×20	A15
590×300×20	A15	350×500×40	C250
500×500×40	C250	350×500×30	B125
500×500×30	A15	350×500×30	B125
450×750×40	B125	320×500×20	A15
450×750×30	A15	300×500×40	C250
400×600×40	C250	300×500×30	B125
400×600×30	B125	300×500×20	A15
400×500×40	C250	250×500×30	B125
400×500×30	B125	200×400×20	A15
394×594×30	A15	340×500×20	C250

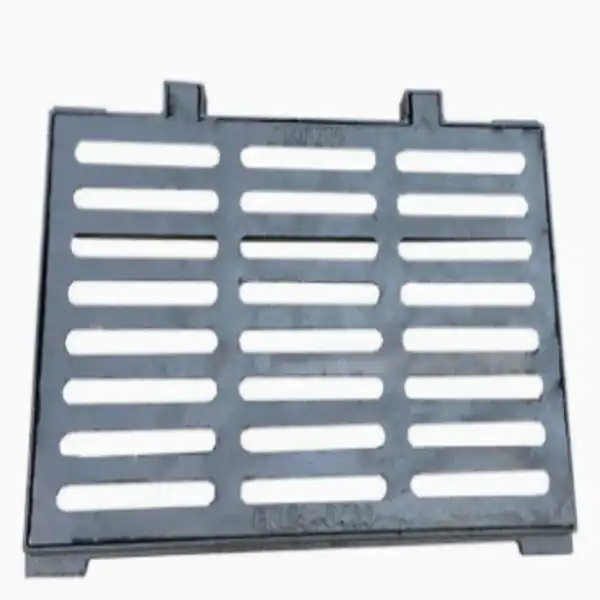

Understanding Rainwater Grates: Types, Materials, and Functions

What Does a Drainage Grate Actually Do?

A gully cover or storm grate collects water from the ground and sends it into the drainage system below before it pools. Along with that, it filters out leaves, sediment, and solid waste that would otherwise block pipes further down the line. In commercial settings, this feature works around the clock, even when it freezes and thaws, when it rains a lot, and when there is constant foot or car traffic.

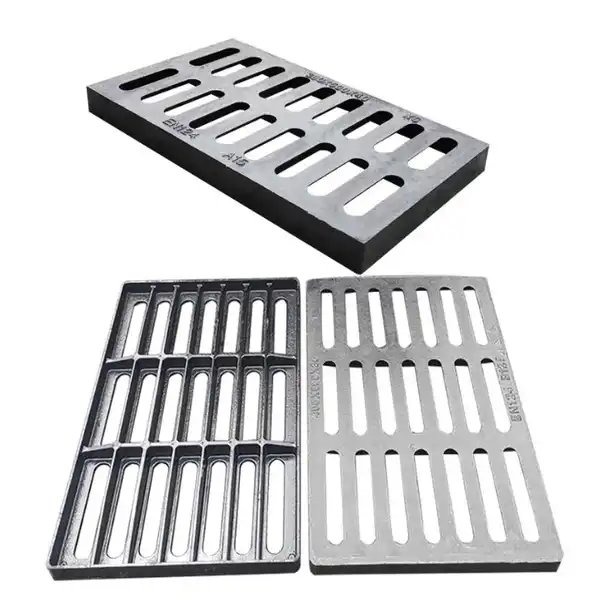

Key Grate Types and Their Applications

In business projects, slot grates, ductile iron grates, polymer/plastic grates, and stainless steel grates are the four main types. When there is a channel drainage system, slot grates work well. Grates made of ductile iron can handle big vehicle loads. Plastic grates work well in grassy areas or areas where people walk a lot. When corrosion resistance or good looks are important, like in commercial hardscapes or food processing plants, stainless steel grates are the best choice.

Why Material Selection Shapes Performance?

Material determines tensile strength, resistance to corrosion, service life, and how often maintenance needs to be done. Because its graphite forms nodules instead of brittle flakes, ductile iron (Grade 500-7) is better at withstanding impacts than gray cast iron. This difference in structure means that the grates will last longer in the field when they are loaded and unloaded dynamically. This is an important thing to think about when choosing grates for busy roads or industrial yards where load cycles are constant.

Load Class and Flow Capacity: Key Dimensions in Selecting Rainwater Grates

International Load Class Standards Explained

Drainage grates are categorized from A15 to F900 by EN 124, which is the main European standard and is also often used in U.S. commercial specifications. The number shows how much weight (in kilonewtons) the grate can hold. A15 units can hold up to 1.5 tons, making them good for green spaces. Car parks and sidewalks work well with B125. The C250 can handle slow-moving cars and lanes along the curb. D400 covers normal traffic on roads. It is safe to use the E600 and F900 in ports, airports, and heavy industrial zones.

The ductile iron gully covers made by FLA Industrial have ratings of B125, C250, D400, and E600, which means they can be used for most industrial and building projects in the U.S.

How Flow Capacity Works in Practice

The open area ratio of a Rainwater Grate, or the amount of the grate's surface that is left open for water to enter, determines the flow rate. A higher open area ratio lets stormwater be collected more quickly. Bar width and slot shape have a direct effect on this ratio. Narrow holes (less than 10 mm) meet ADA heel-guard rules but reduce the open area; wider bar spacing improves flow but needs to take into account how debris gets filtered. Engineers usually weigh these things against the amount of rain that will fall at its heaviest in a certain area.

Matching Load Class to Site Conditions

Not specifying the correct load class can lead to grate failure. There is too much engineering in a D400-class grate that is put on a road only for pedestrians. When put on a delivery car entry route, a B125 machine will break down due to fatigue loading. The general rule is to find out what the heaviest load that can be put on an axle is, add a safety factor, and then match to the right class. To give you an idea, a normal commercial delivery truck makes about 100–130 kN per axle, which is well within the D400 range.

Comparison and Decision-Making: Selecting the Best Rainwater Grate for Your Project

Ductile Iron vs. Stainless Steel vs. Polymer

Here's a direct look at how the three types compare based on important buying factors:

Ductile iron can hold loads from A15 to F900, has a long service life because it has been treated to resist rust, is easy to find, can be recycled completely, and can be used in all commercial traffic areas.

Stainless steel has a nice finish and is resistant to chemicals. It costs more per unit and is best for food-grade or marine environments (B125–D400).

Polymer and composite materials are lighter, cheaper up front, and have no value as scrap (which makes them better for preventing theft). They can only hold light loads and are good for gardening and walking trails.

• Ductile Iron: Load range A15–F900, long service life with anti-rust treatment, widely available, fully recyclable, suits all commercial traffic zones.
• Stainless Steel: Excellent chemical resistance, aesthetic finish, higher unit cost, best for food-grade or marine environments, typically B125–D400.
• Polymer/Composite: Lightweight, lower upfront cost, zero scrap value (anti-theft advantage), limited to light loads, suitable for landscaping and pedestrian paths.

It is important to know these differences because the cheapest option at purchase is not always the cheapest option over 10–15 years of use. When looking at overall lifetime costs for high-traffic installations, ductile iron grates with the right anti-rust coating always do better than polymer choices.

Sustainable and Emerging Design Options

Several companies now make designs that are better for the environment by using recycled iron or coatings that don't rust and require fewer maintenance chemicals. Anti-theft designs with captive bolt systems are becoming more popular in busy city areas where metal theft is a problem. Specifying these features up front lowers the cost of replacement and the risk of being sued.

Installation, Maintenance, and Best Practices for Optimal Performance

Site Preparation and Installation Steps

For a proper Rainwater Grate installation, work must begin before the grate even arrives. It is important that the frame recess is the right size—a wobble tolerance of less than 2mm is the norm to avoid rocking, noise, and early wear. Before traffic loads can go on, the bedding mortar must be fully set. To make sure water runs into the grate instead of going around it, check the frames' levelness against the finished surface grade.

Routine Maintenance Schedule

In commercial settings, drainage grates should be checked at least twice a year, once before the rainy season and once after the winter. When you do inspections, look for:

• Surface cracking or deformation under the frame
• Debris accumulation in the catch basin below the grate
• Gasket wear that may cause noise or frame displacement
• Corrosion at weld points or coating failures

—Wax leaks that could lead to noise or frame movement; corrosion at the welds or cracked coatings

Troubleshooting Common Problems

Taking care of these problems early on stops the kind of full-system blockage that can cause floods on the surface and possible responsibility.

Procurement Guide: Buying Rainwater Grates for Commercial Drainage

Supplier Selection Criteria

When looking for drainage grates for a business or a project, make sure the seller has both ISO quality management certification and CE product safety certification. Make sure that load ratings are tested by someone else and not just self-declared. For ductile iron Products" target="_blank" style="color:blue" >products, you should ask for material test reports that show the chemical make-up and nodularity percentages. For Grade 500-7, the nodularity percentage should be above 80%.

Bulk Order Logistics and Pricing Structure

When buying things in bulk, lead time and stock availability have a direct effect on project schedules. FLA Industrial keeps 2,000 tons of ready stock on hand, so normal requirements can be met right away. Prototyping takes 7–15 days and can be done in any size, including non-standard lengths, widths, and heights. This greatly lowers the risk of buying something before the exact measurements of the project are known.

Product Specifications Overview

The ductile iron ditch covers from FLA Industrial come in a number of tested sizes, such as 590×480×20 mm (A15), 500×500×40 mm (C250), 400×600×40 mm (C250), 450×750×40 mm (B125), and 400×500×40 mm (C250). Rates of load range from B125 to E600. As standard, all units come with an anti-rust finish. For harsh conditions, hot-dip galvanization is also available. At flaindustry.com, you can find full specifications.

Conclusion

Selecting a Rainwater Grate for commercial projects requires matching three variables: load class, flow capacity, and material durability. Getting any one of these wrong creates structural risk, hydraulic failure, or unnecessary replacement costs. Ductile iron gully covers — particularly those rated D400 and above — cover the widest range of commercial applications with the best long-term cost profile. FLA Industrial's product line, backed by ISO and CE certification, gives procurement teams a dependable path from specification to delivery.

FAQ

What load class do I need for a commercial parking lot?

For standard commercial parking lots with passenger vehicles and light delivery trucks, a B125 or C250 rating is appropriate. If the lot accommodates heavy goods vehicles or loading docks, specify D400 as the minimum.

How do I calculate the flow capacity I need?

Flow capacity depends on your site's peak rainfall intensity (measured in mm/hr), the catchment area draining to each grate, and the grate's open area ratio. Civil engineers typically use rational method calculations to size drainage systems. Grate manufacturers can provide open area data per unit to assist in hydraulic design.

What is the difference between EN 124 and EN 1433?

EN 124 covers gully tops and manhole covers, while EN 1433 covers drainage channels and their associated gratings. Both use similar load class designations. For most gully cover specifications, EN 124 is the governing standard.

Can ductile iron grates be used in coastal or chemical environments?

Yes, with appropriate surface treatment. Hot-dip galvanization per ISO 1461 or epoxy coating significantly extends service life in saline or mildly chemical environments. For highly aggressive chemical exposure, stainless steel or FRP grates are a more practical choice.

How do I prevent grate theft on commercial sites?

Specify grates with integrated captive bolt systems or hinge-and-lock designs. FLA Industrial offers anti-theft configurations as part of its custom design service.

Partner With FLA Industrial for Your Next Drainage Project

Either a B125- or C250-rated Rainwater Grate is good for standard business parking spots with cars and small delivery trucks. If the lot has space for heavy trucks or loading docks, state that D400 is the lowest level needed.  Type your question into flaindustry.com or sales@flaindustrial.com first.
