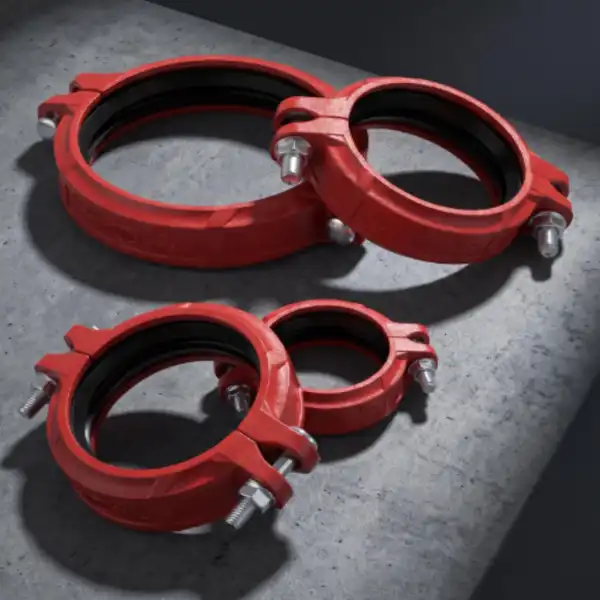

Mechanical Grooved Fittings Enable Efficient Connections for Fire and Piping Systems

Mechanical grooved fittings represent a transformative approach to piping connections in fire protection and industrial systems. These specialized components utilize a grooved coupling method that eliminates welding and threading, delivering secure, rapid assembly across diverse applications. Built primarily from ductile iron or carbon steel, mech grooved fittings address critical operational challenges including installation speed, maintenance accessibility, and system reliability. For B2B procurement professionals such as purchasing managers, construction engineers, and distributors, understanding these components' technical merits helps drive smarter decisions while ensuring compliance with stringent safety regulations like UL and FM certifications in demanding environments.

​​​​​​​

Specification
Specification	Size (mm)	L(mm)	H(mm)	Diameter (mm)
1	33	98	42	54
1/2	48	114	43	69
2	60	127	43	82
2/2	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding Mechanical Grooved Fittings: Definition and Functionality

What Are Mechanical Grooved Fittings?

Mech Grooved Fittings are high-tech pipe joints that connect pipes by using a cold-formed or machined groove on the ends of the pipes. In contrast to traditional threading or welding, these fittings use a housing device that surrounds an elastomeric seal that responds to pressure. This technology gets rid of the need for hot work permits and skilled welders. This cuts the cost of installation labor by 30 to 50 percent while making the workplace much safer. The coupling system is made up of housings, gaskets, and bolts that hold pipe sections together without changing the structure of the pipes permanently. This makes it very easy to make changes in the future.

Core Components and Installation Mechanism

A typical grooved connection has a number of important parts that work together. The main parts of most systems are couplings, elbows, tees, and adapters. Each one has a specific job to do when it comes to routing. To install, you need to put an EPDM or Nitrile seal between two pipe ends that have grooves in them and then tighten a two-piece coupling case around the connection point. Tightening the bolts to the manufacturer's recommended force levels creates multiple seal spots that stop leaks even when the temperature rises. For this assembly process, you only need basic hand tools instead of specialized equipment. This makes installation in the field much easier for construction crews that are working to tight deadlines.

Material Composition and Standards Compliance

These fittings are made by FLA Industrial & Trading Co., Ltd. from high-quality materials that meet strict international standards. Ductile iron that meets ASTM A536 Grade 65-45-12 has a minimum tensile strength of 65,000 psi and is better at resisting impact than other materials. Options made of carbon steel work just as well in some situations. Surface treatments like painting, epoxy coating, and hot-dip galvanizing keep things from rusting in tough settings. These fittings meet the requirements of ANSI/AWWA C606 groove specifications and are certified by ISO9001, CE, and UL/FM. This means they are compatible with project requirements around the world and insurance standards for fire protection systems.

Benefits of Mechanical Grooved Fittings in Fire and Piping Systems

Installation Speed and Labor Efficiency

Installation times are three times faster with grooved coupling technology than with traditional threaded or welded connections. Construction teams finish putting together parts without having to wait for them to cool down or do time-consuming tasks like cutting threads. This speeding up is especially helpful in business high-rise buildings with tight plans and lots of trades that need to work together. Automatic sprinkler installations can be finished ahead of time by fire protection workers, which lets other trades work without any delays. Getting rid of hot work also cuts down on insurance costs and paperwork for safety compliance, which makes project management a lot easier.

Maintenance Accessibility and System Flexibility

At every joint, these links work as unions, giving repair workers the best access possible throughout the lifecycle of the system. When workers need to repair equipment or make changes to a system, they can take apart grooved connections without cutting pipes or damaging parts that are next to them. This adaptability cuts down on downtime for regular maintenance and emergency fixes, which is very important for factories that run on continuous production plans. The design of the coupling can be made in both rigid and flexible ways. The flexible choices let you control the movement in both directions, which can handle seismic changes and heat growth without affecting the integrity of the seal.

Regulatory Compliance and Safety Performance

There are strict safety rules for fire prevention devices that Mech Grooved Fittings always meet or go beyond. UL and FM approvals show that they work well in automatic sprinkler systems where failure in an emergency is not acceptable. When used within certain limits, the gasket materials—usually Grade E EPDM for water services that work between -30°F and 230°F—keep their flexibility and ability to close for decades. Pressure ratings of up to 500 PSI provide enough safety margins for most uses, and testing at 150% of working pressure ensures the structure is solid before it is sent out. These certifications show purchasing managers that installations are safe and meet building codes and insurance requirements.

Lifecycle Cost Advantages

Even though the prices of the parts may seem higher at first than those of standard Mech Grooved Fittings, grooved systems are clearly more cost-effective over their entire lifespan. When installation work is cut down, project costs go down straight. This is especially true for large-diameter jobs where welding costs go up quickly. Maintenance costs go down over time because managers don't have to shut down the building for expensive repairs. The ability to absorb vibrations stops fatigue failures that happen with rigid piping systems, so installations that are well taken care of can last longer than 50 years. For business-to-business clients looking at long-term value, these factors create strong economic justifications, even though they require bigger initial material investments.

Comparing Mechanical Grooved Fittings with Alternative Connection Solutions

Grooved vs. Welded Connections

Welded connections make permanent parts with high structural strength, but they are less flexible and take longer to install. For welding to be done, you need certified workers, a hot work permit, fire watch rules, and enough air flow. These rules make it harder to get things done on busy construction sites. These problems are taken care of by Mech Grooved Fittings, which offer the same level of strength through designed connection designs. Grooved technology is very useful for places that want to make changes or get new equipment because it lets you take systems apart and put them back together again without damaging the parts.

Performance Against Flanged Systems

Like Mech Grooved Fittings, flanged joints make upkeep easier to reach, but they are harder to install and weigh more. Aligning the flanges requires exact placing of the pipes and a lot of bolting, which takes a lot of time. In flanged systems, replacing the gasket usually means taking out all the bolts. However, grooved joints let you take apart only part of the system to check the gasket. When the diameter is big, weight becomes very important because flanged assemblies need extra support, but grooved systems don't need that because their parts are lighter.

Advantages Over Threaded Fittings

Threaded connections are still popular in situations with smaller diameters, but they have a lot of problems. When you thread pipes, the walls get weaker where stress builds up, so you can't use them in places with a lot of pressure or vibration. Over time, thread wear causes leaks that need to be fixed by replacing the whole fitting. Mech Grooved Fittings spread loads evenly around the pipe's diameter, preventing stress points and improving seals through continuous gasket contact. Because of these benefits, grooved technology is the best choice for tough industrial uses where dependability is more important than original cost.

Installation and Maintenance Guide for Mechanical Grooved Fittings

Proper Installation Procedures

Making sure the pipe groove sizes meet ANSI/AWWA C606 standards is the first step to a successful fitting of Mech Grooved Fittings. This makes sure that the connection parts will work with the pipes. Roll-grooved and cut-grooved pipes both work well, but roll-grooving is better for thin-wall applications and cut-grooving is better for heavy-wall uses. Installers put the gasket squarely between the ends of the pipes and then cover the connection with coupling housings. To make sure that the gasket is compressed evenly, the bolts should be tightened gradually in a cross pattern. Torque tools should be used to check the manufacturer-specified values. An industry-standard test called "pad-to-pad" checks that the fitting is correct when the bolt pads on the coupling body touch all the way to the other pad. This means that the gasket is compressed correctly and there is a strong mechanical grip.

Routine Maintenance Requirements

To make sure the system stays together for a long time, regular inspections check the state of the gaskets, the tightness of the couplings, and the rate of rust. Visual checks every six months find early signs of damage to the coating, coupling bolts coming loose, or gaskets breaking down that could affect performance. When working in places with high temperatures or chemicals, checks need to be done more often and be tailored to the unique service conditions. Gasket materials made for water service keep their elasticity for more than 50 years as long as they are kept out of direct UV light and used within normal temperature ranges. However, for uses that aren't standard, you'll need to choose a different compound.

Troubleshooting Common Issues

Leakage is usually caused by bolts not being tightened enough or gaskets not being placed correctly, not by a broken part. Tightening the nuts to the specified level typically stops small amounts of seepage without draining the system. If leaks keep happening, it could mean that the gasket was damaged during installation. To fix this, the coupling needs to be taken apart and the gasket needs to be replaced, which is a simple process that doesn't take long and doesn't require many tools. Corrosion on coupling housings means that the covering was damaged during installation or was exposed to too much of an environment for the finish to handle. This can be fixed by fixing the affected area or replacing the affected part, based on how bad the damage is. FLA Industrial & Trading Co., Ltd. offers full expert support to help with problems throughout the entire lifecycle of a product.

Procurement Considerations: Buying Mechanical Grooved Fittings for B2B Clients

Technical Specification Matching

A good start for successful procurement of Mech Grooved Fittings is a thorough analysis of the application needs, which should include pressure ratings, temperature ranges, and compatibility with working media. Fire protection systems usually work with water at 175 PSI, which is fine for normal ductile iron valves with EPDM gaskets. Different pressure and temperature situations may happen in HVAC cold water loops, which means that certain materials need to be used. When gasket compounds are used in chemical processes, they need to be carefully matched so that they can fight certain fluids without breaking down. Giving suppliers detailed information like pipe schedules, operating pressures, and environmental conditions helps them choose the right product and avoids having to make expensive changes in the field.

Certification Verification and Supplier Qualification

Buying from approved makers keeps you safe from fake goods that could damage your system. ISO9001 certification shows that quality control systems have been in place for a long time, and UL/FM listings show that fire safety has been tested and found to be suitable. Reliable suppliers, such as FLA Industrial & Trading Co., Ltd., keep a lot of records that can be asked for, such as material test reports, pressure test certificates, and dimensional inspection records. Procurement experts should use industry databases to check the credentials of suppliers and ask for samples of goods to be tested by a third party when the specs call for them to be used in critical safety situations or in special ways.

Logistics and Lead Time Planning

When it comes to lead times and transportation planning, bulk orders get special treatment, though exact timelines depend on how complicated the order is and what customizations are needed. Catalog items that are standard sizes usually ship on time, but items with custom dimensions or special materials need longer manufacturing times. Optimizing how containers are loaded has a big effect on how much foreign shipping costs, so planning quantities is important for managing budgets. Having responsive suppliers who give accurate production updates and flexible scheduling options helps procurement teams keep projects on track, even when changes happen to the construction schedule or the project's scope.

Conclusion

Mech Grooved Fittings have been shown to improve performance in fire protection and industrial pipe uses by making installation quick, making upkeep easy, and sealing well even in tough circumstances. Their engineering solves important problems like high labor costs, limited system flexibility, and regulatory compliance, and it does so while also offering more value over the lifecycle than other connection methods. When buying managers, building workers, and facility engineers look at piping options, grooved technology has a lot of benefits that are backed up by decades of field performance and strict certification standards. Working with well-known manufacturers guarantees access to high-quality goods, professional know-how, and full help during the whole buying and setting up process.

FAQ

What is the difference between rigid and flexible mechanical grooved fittings?

What is the difference between Mech Grooved Fittings that are stiff and those that are flexible? Rigid fittings have a tongue-and-groove design that makes a firm connection with the pipe that stops it from moving. This makes them perfect for long straight runs and valve connections where stability is very important. Certain parts of flexible fittings are designed to allow controlled linear and angular movement. This means that they can handle seismic activity and heat growth cycles without affecting the integrity of the seal. Which one to choose depends on the needs of the application. Rigid fittings are best for connecting stationary equipment, while flexible options are better for dynamic systems that are vibrating or moving.

Can these fittings be used on steam systems?

Most of the time, standard grooved valves with EPDM seals are not recommended for use with steam. For steam systems to work, they need special high-temperature seal compounds and connection designs that are made to work in high temperatures. Manufacturers' temperature limits must be strictly followed, and applications that go beyond the standard ranges require clear confirmation that the part is suitable. Talking to technical experts makes sure that the right materials are chosen for steam applications, which stops premature failures and the safety risks that come with using the wrong parts.

How do you confirm proper installation?

Visual pad-to-pad inspection is the normal way to check in the business. When the bolt pads on the coupler body touch across their whole width, it means that the bolts are tight enough and the gasket is compressed enough. This easy visual check gives instant confirmation without any special tools or training, so all installation staff, no matter how experienced, can use quality assurance. Any space between the bolt pads means that the nuts are not tight enough and need to be fixed right away before the system is pressurized.

Partner with FLA Industrial & Trading Co., Ltd. for Superior Grooved Fitting Solutions

Partnering with a reliable Products" target="_blank" style="color:blue" >products">Mech Grooved Fittings maker with almost 40 years of experience in the field can make your pipe system more reliable. FLA Industrial & Trading Co., Ltd. offers a wide range of products with diameters from 1" to 48" and pressure ratings to meet a wide range of industry needs. These products are made using ISO9001 quality methods and have UL/FM certifications to back them up. You can get quick expert help with questions about specifications (within 24 to 48 hours), special engineering for non-standard uses, and cheap bulk deals that help project budgets. Get in touch with sales@flaindustrial.com to talk about your specific needs and find out how our proven quality and attentive service can help you reach your procurement goals.

References

1. American Water Works Association. (2018). ANSI/AWWA C606: Grooved and Shouldered Joints. Denver: AWWA Standards.

2. ASTM International. (2019). ASTM A536: Standard Specification for Ductile Iron Castings. West Conshohocken: ASTM Technical Publications.

3. Factory Mutual Research Corporation. (2020). FM Approval Guide: Pipe Hangers and Restraints for Automatic Sprinkler Systems. Johnston: FM Global Property Loss Prevention Data Sheets.

4. National Fire Protection Association. (2019). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Codes and Standards.

5. Underwriters Laboratories. (2021). UL 213: Standard for Rubber Gasketed Fittings for Fire Protection Service. Northbrook: UL Standards & Engagement.

6. Piping Engineering Handbook Editorial Board. (2017). Industrial Piping System Design and Installation Best Practices. New York: McGraw-Hill Professional Engineering.
