Pneumatic Bag Jack vs. Floor Jack: Which is Best for You?

Your needs will determine whether you need a pneumatic bag jack or a floor jack. Air-powered lifting tools are the fastest and most flexible way to move things quickly in tight areas, on uneven ground, or in high-frequency job settings. For standard car repair and equipment upkeep in a controlled workshop environment, traditional hydraulic floor jacks work well and don't cost too much. Figuring out your unique workflow, load needs, and working conditions will help you make the best choice for increasing safety and efficiency.

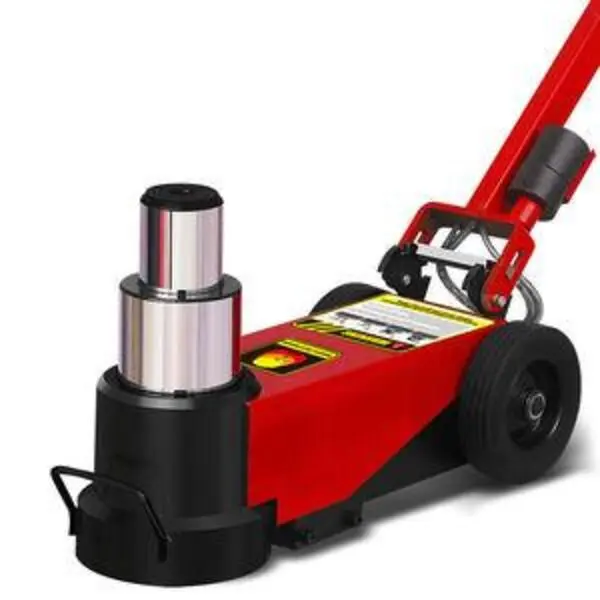

Specification
Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2 MPa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2 MPa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2 MPa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2 MPa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2 MPa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2 MPa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2 MPa	205mm	380mm	175mm	73kg

Understanding Pneumatic Bag Jacks and Floor Jacks

How Pneumatic Bag Jacks Operate?

Compressed air is used to fill strengthened rubber bellows in air-powered lifting devices, which can lift up to 150 tons. These units are made of multiple layers of vulcanized rubber that is strengthened by steel mesh or nylon cord. They are designed to handle pressures inside them that are higher than 1.2 MPa. The design includes an internal flexible steel stabilizer that stops the structure from moving side to side during filling. This makes sure that the vertical lifting is accurate. The normal working pressure is between 6 and 10 Bar, which means it can work with regular shop air sources and doesn't need special high-pressure pumps. Chrome plating on the inside of the cylinders makes them very resistant to rust, and fluororubber or nitrile rubber seals keep the airtightness even when the temperature changes a lot. Safety valves and air mufflers that are built-in protect both the workers and the equipment while it is in use. The minimum height profile of 135–150 mm makes it possible to get through tight spaces, and the highest lifting height can reach 400 mm or more, based on how the bags are set up. This design solves three important operating problems: it gets rid of the need for slow hand pumping, keeps operators from getting tired, and keeps the undercarriage from getting damaged by spreading the load over more surface areas.

Floor Jack Functionality and Variants

Hydraulic floor jacks have a lifting arm that is driven by hydraulic fluid pressure that can be created by hand pumping or with air help. For exact setting, mechanical versions use systems that are driven by screws. When working on vehicles, these tools work best where there are standard lifting spots and controlled surfaces. Industrial models usually have a potential range of 2 to 20 tons, but heavy-duty models can handle bigger loads. The strong construction has steel frames and lifting arms that are strengthened to give stable support during long service operations. Wheels make it easier to move things around on workshop floors, but they make it harder to move on rough or soft surfaces. To keep hydraulic models working properly and without leaks, the fluid needs to be checked and the seals need to be maintained on a regular basis. The design focuses on vertical lifting force through a single contact point. This means that the right placement is very important for safety and load stability.

Safety and Maintenance Fundamentals

For both types of lifting, strict safety rules and regular repair plans are needed. To keep internal valves from rusting, air-powered systems need dry compressed air. Before each use, workers check the hose connections and pressure gauges. These tools are only for lifting; they are never meant to be used as a steady support. Once the desired height is reached, automatic stands must be put in place right away. The reinforced rubber bags should not come into touch with sharp metal edges, welding sparks, or fluids that are corrosive. They should last between 3 and 5 years with heavy business use. Hydraulic floor jacks need to have their fluid amounts, seals, and release valves checked regularly. Recertification and load testing every year make sure that the gear is in line with ASME PASE or CE guidelines. Both types of tools have parts that last longer if they are stored properly, out of direct sunlight and high temperatures.

Comparing Pneumatic Bag Jacks and Floor Jacks: Core Dimensions

Load Capacity and Lifting Speed

Equipment decision is based on how much capacity is needed. Air-powered units can lift up to 150 tons and take only 3 to 5 seconds to fully expand, which is much faster than hydraulic options that need to be pumped up by hand for 60 to 90 seconds. This quick action directly leads to faster turnover rates in service bays and better process efficiency in high-volume operations. Dual-capacity designs give you options for different weight needs without having to keep track of multiple specialized units. On the other hand, hydraulic floor jacks let you precisely control the load by applying pressure slowly. These are better when exact placing is more important than speed. Hydraulic systems have a mechanical edge because they can move things with the same amount of force no matter how strong the user is. Pneumatic bag jack, on the other hand, depend on having enough air pressure and volume.

Mobility and Environmental Adaptability

Conditions of the terrain have a big effect on how well equipment works. The big base of inflatable lifting bags spreads the vehicle's weight over a larger area, keeping it from falling into soft surfaces like mud, sand, loose gravel, or snow, which is exactly what happens when narrow-wheeled hydraulic jacks fail. Because of this, air-powered choices are necessary for work sites, off-road recovery operations, and repair jobs that need to be done outside. The small minimum height profile makes it possible to get under vehicles with low ground clearance, which is a problem that comes up with low-profile sports cars or frames that are crushed. Hydraulic floor jacks work best on flat, hard surfaces like those found in workshops. Their wheeled form makes them easy to move on smooth concrete floors but hard to use on uneven ground. When it comes to weight movement, aluminum alloy air-powered models are much better than heavy steel hydraulic units. On the other hand, carbon steel pneumatic models are the same weight as hydraulic units but work faster.

Durability and Environmental Resistance

The choice of material decides how long something will last in tough circumstances. High-quality building from carbon steel, alloy steel, or aluminum alloy guarantees longer use in industry settings. Chrome-plated cylinder interiors don't rust when exposed to water and chemicals, so they keep running smoothly for a long time. High-quality seals made from fluororubber or nitrile rubber keep air out even when the temperature changes and the duty cycle is high. Precision cutting, casting, welding, and a lot of different testing methods are used during the manufacturing process to make sure that the structure is strong. Each unit is tested for leaks, construction accuracy, pressures above and below the stated limits, and life cycle testing by going through thousands of inflation and deflation cycles. Hydraulic floor jacks require more intensive maintenance due to seal degradation and fluid contamination risks, particularly when exposed to workshop debris and temperature extremes. Since pneumatic systems don't use hydraulic oil, there are no messy spills or worries about how to properly dispose of them. This makes upkeep easier and lowers running costs.

Key Advantages and Limitations for Procurement Decisions

Strategic Benefits of Air-Powered Lifting

In high-throughput settings, speed benefits change the operational economy. Being able to finish lifting cycles in less than five seconds, compared to 60 to 90 seconds for manual hydraulic pumping, directly boosts income per service bay in car shops and speeds up building project timelines. The clean operation without hydraulic oil gets rid of environmental risks and cuts down on cleanup time. This is especially helpful in places that handle food, have clean rooms, or are environmentally sensitive. The ability to work on different types of ground increases operating capability. The same equipment works well on concrete floors, muddy building sites, sandy beaches, and snow-covered landscapes. The low-profile design makes it easier to get under damaged cars during rescue operations and work to fix accidents. Less physical effort lowers the risk of operator tiredness and repetitive strain injuries during high-frequency lifting jobs. This helps meet safety goals in the workplace and lowers the risk of workers' compensation claims.

Floor Jack Consistency and Cost Considerations

Hydraulic systems provide steady, manageable lifting power that is perfect for precise placing needs in equipment setups and building work. Basic models tend to have lower starting purchase costs because their mechanical designs are simpler. This makes them appealing to buyers on a budget who are opening new facilities or adding to their current tool inventories. Another benefit is that most industrial maintenance teams already know how to service hydraulic systems, which cuts down on training needs and makes it easier to do fixes in-house. The strong steel design can handle the bumps and abuse that are usual in busy workshops. Replacement parts are always easy to find through established distribution networks. This keeps downtime to a minimum when a part fails.

Operational Constraints and Maintenance Requirements

Air-powered systems need infrastructure for compressed air, which could mean buying a compressor or laying air lines in places that don't already have pneumatic bag jack. When working in a crowded area, the reinforced rubber bags need to be handled carefully so that they don't get punctured by sharp items. These tools are only for lifting; they don't provide solid support. This means that jack stands need to be set up right away, which adds steps to the process. Rubber parts are sensitive to temperature; extreme cold makes them less flexible, and extreme heat speeds up the breakdown process. When used outside, hydraulic floor jacks can't be used on soft or uneven ground because the wheels sink or can't move. Because there is only one point of contact, the force is concentrated in a small area, which could damage fragile support parts or structures with only one body. Leaks of hydraulic fluid make surfaces slippery and raise worries about pollution in the environment. When compared to aluminum alloy options, their weight and size make them less portable.

Making the Right Choice: Practical Guidelines for B2B Clients

Application-Based Selection Criteria

Construction and removal workers can use air-powered tools on a variety of surfaces and quickly set them up, which is a big plus. The machinery is used to move structural parts into place, change big materials, and do brief lifting jobs on places that don't have flat surfaces. Accident repair shops and organizations that rescue vehicles need the low profile and speed that inflatable lifting bags offer, especially when working with broken frames or freeing parts that are stuck. Faster cycle times make manufacturing assembly lines and high-volume car repair centers more productive. The equipment pays for itself through higher output.

Traditional hydraulic floor jacks are still the best choice for general auto repair shops, places that take care of equipment, and workshops with flat, level floors. The stable performance and lower entry costs make it a good choice for operations that lift things occasionally and keep conditions under control. Hardware dealers and tool suppliers should keep both types of tools in stock so they can serve a wide range of customers. They should also make sure that the size ranges they use meet the needs of the local market.

Supplier Evaluation and Procurement Strategy

Quality certificates are very important when looking at different sources. The ISO 9001 quality management system certification makes sure that production standards are always met, and the CE product safety certification makes sure that Products" target="_blank" style="color:blue" >products are safe for the European market. Pressure equipment standards, such as the PED and GB rules, show that companies are committed to making safe, effective equipment that meets international standards. Burst pressure tests with safety factors of at least 3:1, 24-hour static load tests with less than 5% pressure loss, and cycle fatigue tests with more than 5,000 inflation-deflation cycles all show that strict quality control rules are in place.

The supply of inventory has a direct effect on project timelines. Suppliers who keep a lot of stock can meet pressing needs right away, while custom capabilities are important for unique uses that need non-standard specifications. Professional sellers can be told apart from commodity vendors by how quickly they respond to requests for quotes, technical sketches, and engineering help. Full guarantee coverage and quick after-sales help keep your investment safe and keep downtime to a minimum. Total landed costs and the accuracy of planning are affected by delivery processes, such as freight choices, lead times, and knowledge with foreign shipping. The way you set prices for bulk purchases and the level of discounts you get should match how much you plan to use and store.

Negotiation Tactics and Order Optimization

When you combine sales from different places or business groups for a pneumatic bag jack, you have a better chance of getting volume discounts. Setting up framework deals with chosen sellers ensures consistent price while still allowing for changes that are specific to the project. To make sure the promised performance characteristics are true, ask for thorough technical specifications that include material certifications, testing results, and quality documents. When comparing prices, it's more true to look at the total cost of ownership rather than just the original purchase price. This includes things like expected service life, maintenance needs, and the cost of replacing parts. Negotiate good payment terms while managing cash flow and building relationships with suppliers. Look into different ways to customize your products, such as changing the branding, the packing, or the specifications, to make your products stand out or make them work better in specific situations.

Troubleshooting and Maintenance Best Practices

Common Operational Issues and Solutions

In air-powered units, slow inflation rates are usually a sign of low air supply pressure, kinked lines, or air filters that are only partly blocked. Check that the minimum pressure requirements are met by the compressor output, look for blockages in the hose route, and clean or replace the air filters as directed by the maker. Lateral imbalance during pulling could mean that the load is not centered or that internal stabilizer parts are worn out. Move the loads so that the weight is evenly distributed, and check the telescoping rods for too much play that needs professional repair. Not holding air can cause the seal to wear out or the check valve to stop working. Do leak tests with soapy water around connections and valve systems, and replace any seals that aren't working right away.

If a hydraulic floor jack feels weak or loses its lifting ability, the hydraulic fluid needs to be checked and air needs to be bled out. Check the fluid levels, add more hydraulic oil that is recommended by the maker, and make sure you follow the right cutting steps to get rid of any air that is stuck in the cylinders. When leaks keep happening around seals, they need to be replaced with real OEM parts to keep up with performance standards. If a release valve fails and stops controlled lowering, it needs to be fixed right away before activities can resume to avoid uncontrollable load drops.

Preventative Maintenance Schedules

Daily checks before use should make sure there is no damage that can be seen, that the hoses are connected correctly, and that the safety valve works by briefly activating it. Cleaning once a week gets rid of the dirt, trash, and other contaminants that build up and speed up the wear and tear on parts. Once a month, thorough checks are done to look at the state of the seals, the surfaces of the inflation bags for cracks or visible support cords, and the accuracy of the gauge against known pressure sources. Lubricating moving parts every three months, as directed by the maker, keeps them running smoothly and stops them from wearing out too quickly. Professional service once a year, which includes full load testing, internal component checking, and seal replacement as needed, keeps the machine safe and working at its best.

Keeping specific service records shows the past of maintenance, which helps with warranty claims and gives information about how things work so that replacements can be planned. Emphasizing proper usage techniques, load placement basics, and safety procedures in operator training programs stops equipment from being abused, extends its useful life, and keeps workers safe. Setting up uniform repair processes across all sites makes sure that equipment works the same way no matter where it is used or who is working there.

Conclusion

The lifting tools you choose has a big effect on how well the job runs, how safe the workers are, and how much it costs. Pneumatic bag jacks are great for jobs that need to be done quickly, on different types of ground, or in tight spaces. They can increase productivity in building, high-volume service, and emergency response settings. Hydraulic floor jacks work reliably and affordably in normal workplace situations where conditions are controlled. When making a purchase choice, you should think about your working setting along with capacity needs, environmental conditions, usage frequency, and total ownership costs. Working with suppliers who have strict quality standards, large inventories, and quick expert help will protect your investment and make sure that you can get tools when projects call for it. The tips in this article give procurement workers the power to make smart choices that meet practical needs and stay within their budgets.

FAQ

What distinguishes operation between air-powered and hydraulic lifting devices?

Air-powered devices use 6–10 Bar of compressed air to blow up strengthened rubber bags. They reach full height in 3–5 seconds without having to be pumped by hand. Manual or gas pumps pressurize hydraulic fluid, which moves pistons that raise lifting arms over the course of 60 to 90 seconds. The air-powered method cuts down on operator tiredness caused by repeated pumping and speeds up run times.

Are pneumatic systems safe if air supply disconnects during lifting?

At the intake links, professional models have shut-off valves or non-return check valves. If the supply lines break, air stays trapped in the bag and keeps the load in place until it is released on purpose through controlled venting. This safety function keeps the load from dropping quickly when the power goes out by accident.

Can these tools function on soft ground like sand or mud?

Because air bags have a wide base, they spread the weight over a bigger area, so they don't sink into soft surfaces like narrow-wheeled hydraulic jacks do. Because of this, air-powered options are necessary for building work outside, off-road recovery, and farming on land that is easy to work with.
