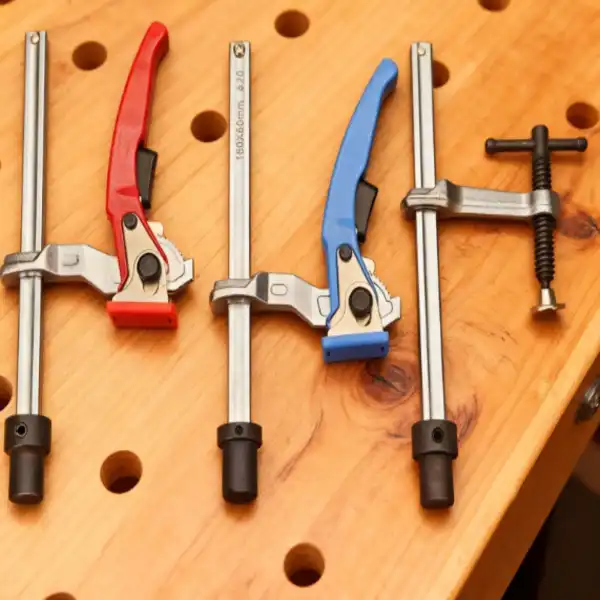

Ratchet F-Clamp for Fast and Secure One-Hand Clamping
2026-07-21 14:34:16
Finding clamping tools that balance speed, strength, and operator comfort becomes a must when project profitability depends on how well the work gets done. This problem is tackled head-on by the F-Clamps/ratchet-f-clamp">Ratchet F-Clamp, which allows for quick, safe clamping with one hand, which makes repetitive assembly tasks much easier. This tool is made of precision steel screw rods and bendable cast iron rails. It blends the reliability of a standard F-clamp with new ratcheting technology. These clamps keep the pressure steady while preventing hand fatigue and shortening cycle times in woodworking, building, and industrial settings. They can be used to hold cabinet panels in place during glue-ups, steady metal parts for welding, or manage complicated assembly sequences.
Specification |
|||
| Model | Overall Length(mm) | Shearing Capacity(mm) | Plier Handle Length(mm) |
| Track Ratchet F-Clamp 120x60 | 160 | 110 | 150 |
| Track Ratchet F-Clamp 160x60 | 210 | 160 | 150 |
| Track Ratchet F-Clamp 200x60 | 250 | 200 | 150 |
| Track Ratchet F-Clamp 300x60 | 350 | 300 | 150 |
What Is a Ratchet F-Clamp and How Does It Work?
When you understand how one-handed glueing tools work, you can see why procurement managers are choosing them over traditional choices more and more.
Core Design Philosophy
The Ratchet F-Clamp combines the classic shape of an F-frame with a trigger-activated mechanism that lets you position and lock it with one hand. Traditional screw-based clamps need to be turned all the way around to change the distance between the jaws. This design, on the other hand, has a moving jaw that moves easily along a steel bar with serrations. When the user squeezes the ergonomic handle, friction plates inside the handle connect the bar's serrations, instantly locking the moving jaw in any position. This gets rid of the annoying "third hand" problem that happens when you need to hold a piece of work steady while also changing the clamp pressure.
Key Components and Their Functions
At FLA Industrial & Trading Co., Ltd., we engineer each part by using controlled manufacturing methods like forging, casting, machining, and careful assembly. The fixed jaw is attached to the bendable cast iron rail, which makes the structure stable and unable to bend under loads of up to 2000N. The ratchet mechanism is inside the movable jaw. The sharpened steel teeth engage with the bar's serrations to block movement. The screw rod, which is made of high-quality steel, lets you adjust the binding force after the initial ratcheting contact. Painted or zinc-plated finishes keep metal from rusting in damp workshops and on construction sites outside, so they last a lot longer than uncoated options.
Operational Advantages in Demanding Environments
The quick-release lever lets you disengage the jaws right away, which is very important when you need to move workpieces during multi-stage assemblies. Construction site managers like this feature because it lets them quickly change temporary holds as projects change. Managers of woodworking plants like how the constant pressure distribution keeps softwood edges from being crushed or veneers damaged, which can happen when screw clamps are too tight. The incremental locking of the device lets workers use just the right amount of force, which protects both materials and final goods.
Advantages of Ratchet F-Clamps Over Other Clamps
When you compare clamping technologies, it's easy to see why Ratchet F-Clamps give you the best return on investment for high-volume tasks.
Speed and Efficiency Gains
Usually, you need to use two hands to use a traditional bar clamp. One hand holds the item steady while the other turns the screw handle many times. During high-volume production runs, this motion that is done over and over again slows things down. Ratchet F-Clamps get rid of this waste. Our clients say that moving to one-handed clamping cuts assembly time by 40% during cabinet installation jobs. The person using it sets the jaw with a single squeeze and then goes right on to the next fastening point while the clamp keeps applying constant pressure.
Versatility Across Applications
G-clamps are great for working with metal, but they don't have a very deep throat. Long spans can be held by Pipe Clamps, but they don't have the rigid frame you need for precise work. Quick-grip clamps are quick, but they don't have as much gripping power. The Ratchet F-Clamp does a good job of filling these holes. Electricians use them to hold conduit in place while it is being installed because they are strong and can handle the conditions on the job site. Furniture makers use them for edge-gluing, which requires uniform pressure across different wood thicknesses to keep the joint together. The ability of flexible cast iron to resist heat is valued by welding shops. This type of iron stays stable in size when placed near, but not directly in, join zones.
Durability and Load Management
Our manufacturing process is ISO9001-certified, which means that every clamp meets strict quality standards. The impact resistance of the malleable cast iron rail is better than that of competitors made of aluminium. This is important when tools are dropped or handled roughly while being moved from one work area to another. Precision threading is done on steel screw rods so that they keep working smoothly even after thousands of tightening rounds. It is important for hardware wholesalers to have reliable supplies over the long run because this leads to fewer warranty claims and happier customers.
How to Choose the Right Ratchet F-Clamp for Your Business Needs
When you use strategic buying, you have to match the specs of a tool to what it needs to do its job, instead of just choosing based on how much it costs to buy.
Assessing Throat Depth and Opening Capacity
How deep the clamp can go into a piece of work is based on its throat depth, which is the distance from the bar to the jaw face. For securing face frames, cabinet installers usually need throat depths of 50 to 100 mm. Furniture manufacturers who work with deep case goods may need 200 to 300 mm capacities. At FLA Industrial & Trading Co., Ltd., we can make any configuration you want, with throat lengths from 50mm to 300mm and opening sizes from 100mm to 1000mm. Procurement engineers should make a list of the most common sizes of workpieces and choose Ratchet F-Clamps that can fit 80% of those needs. For those rare cases, they should request unique solutions.
Evaluating Clamping Force Requirements
Clamping force is based on the mass of the material and the type of joint. For softwoods like pine, modest pressure (600–1000N) is needed to keep them from getting damaged by compression. Hardwood joinery and metal production, on the other hand, need higher forces (1500–2000N) to make sure the glue cures properly and the pieces stay in place. Our engineering team can help you match the right force requirements to your application. This way, you won't have to worry about under-clamping, which hurts the quality of the joint, or over-clamping, which breaks the materials.
Environmental and Ergonomic Considerations
Zinc-plated finishes are better than painted ones at resisting oxidation, which is good for workshops that get wet, dusty, or have changes in temperature. This corrosion protection is a must for HVAC workers who work in unconditioned areas during installation jobs. Ergonomic handle design affects how tired operators are after long shifts. The curved grips on our handles spread pressure evenly across the palm, making repeated clamping jobs easier on the hand. When comparing options, production managers who keep track of injury reports should think about this factor because better ergonomics have a direct effect on safety metrics in the workplace.
Maintenance and Safety Tips for Prolonged Ratchet F-Clamp Performance
Protocols for preventive maintenance make tools last longer and keep their consistent performance, which is important for businesses that care about quality.
Regular Inspection Routines
The steel bar's serrations should be checked once a week to make sure they stay sharp and properly spread. Serrations that are worn down or rounded off can slip when they are loaded, which makes the object less secure. The friction plates on the Ratchet F-Clamp mechanism need to be looked at visually to see if they are cracking or glazing, which are signs that they are about to break. Plant managers should set up cycle plans that get rid of tools with noticeable wear before they break down in the middle of production, which would save a lot of money and time.
Cleaning and Lubrication Protocols
Particles of dust, glue, and metal build up on bars and gears, making them less smooth to use. When working in places with a lot of debris, like sawmills or fabrication shops, operators should wipe down bars with cloths that have been dampened with solvent to get rid of any dirt or dust. Dry lubricants, like PTFE sprays, should be applied to the pivot points of the ratchet system every three months. Stay away from greases made from petroleum, as they attract dust and make films on the bar that reduce friction, which makes the ratchet slip when pressure is applied.
Safety Best Practices
When clamping angles are off, lateral forces happen that bend bars or break jaws. As much as possible, teach workers to put clamps so that they are straight out from the work surface. When you overtighten beyond the stated limits, you put too much stress on parts too soon, which voids warranties. Site managers should keep an eye on how the site is used and give new users more training when they start to misuse it. Instead of stacking clamps, hang them on racks to store them. Stacking can warp bars and break gears.
Top Ratchet F-Clamps for 2024: Reviews and Recommendations
Choosing tried-and-true solutions lowers the risk of procurement and speeds up adoption by the workforce.
FLA Industrial Ratchet F-Clamp Series
Our flagship line is the result of 40 years of manufacturing experience and the idea of ongoing growth, which keeps efficiency high. The strong-to-lightness ratio of the flexible cast iron rails makes it possible for workers to carry multiple units without getting too tired. Special needs that off-the-shelf Products" target="_blank" style="color:blue" >products can't meet can be met with custom throat depths and opening capacities. Partners in the Fortune Global 500 know that our ISO9001-certified processes will produce consistent quality on orders of tens of thousands of units or more. Our 24-48-hour quote turnaround and expert support, which includes 3D modelling for special applications, are helpful to procurement directors.
Case Study: Efficiency Improvements in Furniture Manufacturing
During panel glue-ups, a medium-sized furniture maker that sold to store chains ran into production problems. Screw clamps from the past took three to four minutes to put together, which limited daily output. After switching to our Ratchet F-Clamps, the time it took to put together each unit dropped to 90 seconds, which is a 50% increase in output. The one-handed operation let workers stabilise panels with their free hand, which cut down on misalignment mistakes that used to cause 8% of rejects. The maker got their money back on the clamps over the course of six months by increasing output and lowering waste.
Trusted Procurement Sources
Hardware dealers and tool wholesalers looking for trusted inventory partners should look at how quickly they are, how much they can customise their products, and whether they have quality certifications. At FLA Industrial & Trading Co., Ltd., we keep a lot of SKUs in stock and use strong packing that is made for shipping internationally. Our direct production model gets rid of markups for middlemen, so we can offer affordable prices without lowering the quality of our products. Email our sales team at sales@flaindustrial.com for specifics and price plans based on numbers that are made to fit your needs for distribution.
Conclusion
Ratchet F-Clamps are a smart investment for businesses that need to achieve speed, stability, and operating efficiency that directly affects profits. The long-lasting, mouldable cast iron, precise steel parts, and new one-handed operation solve major problems in the industrial, building, and woodworking industries. FLA Industrial & Trading Co., Ltd. puts almost 40 years of experience into every unit we make. We are also ISO9001 certified and can make changes to fit your specific needs. By choosing the right throat depth, clamping force, and finish options and following the right maintenance procedures, procurement teams can get tools that increase productivity and last longer.
FAQ
Which projects benefit most from ratchet F-clamps?
One-handed clamping speed is most useful for high-volume assembly tasks like installing cabinets, making furniture, and temporary construction holds. Compared to regular screw clamps, this method saves a lot of time when clamping and unclamping things over and over again.
Can these clamps replace specialized C-clamps or pipe clamps entirely?
The majority of general tightening jobs are successfully handled by Ratchet F-Clamps. Extremely heavy mechanical tasks that need to focus all of your force may still need special G-clamps, but spans longer than 1000mm need pipe clamp systems. Ratchet F-Clamps of good quality are flexible enough for 70–80% of common workshop tasks.
What warranty coverage should B2B buyers expect?
Manufacturers with a good reputation, like FLA Industrial, cover mistakes in the products and work with guarantees. Coverage terms vary, but are usually between one and three years, based on the type of product and how often it is used. Custom solutions often come with longer support terms that were negotiated during the buying process.
Partner with a Leading Ratchet F-Clamp Manufacturer
FLA Industrial & Trading Co., Ltd. has a wide range of Ratchet F-Clamps that are designed to work well in tough professional settings and can improve your gripping tasks. As a reputable company that sells to customers all over the world, such as in the US, Germany, and Australia, we offer low prices and the peace of mind that comes from using ISO9001-certified methods. Our expert support team helps you choose the right specifications, create a unique configuration, and handle logistics for large orders, which speeds up the buying process. No matter if you need standard solutions or custom modifications for specific uses, we offer quick service backed by 40 years of manufacturing excellence. Get in touch with us right away at sales@flaindustrial.com to talk about your needs, get detailed specs, or set up product demos that show how committed we are to your business success.
