Small Pneumatic Jack Delivers Compact Lifting Solutions for Automotive and Industrial Maintenance

When maintenance downtime costs hundreds of dollars per hour, choosing the right lifting equipment becomes critical. A small pneumatic jack represents a breakthrough in compact lifting technology, transforming how automotive workshops and industrial facilities approach vehicle servicing and machinery maintenance. These air-powered tools convert compressed air into rapid vertical force, lifting heavy loads in confined spaces where traditional hydraulic or mechanical jacks simply cannot reach. The operational speed, low-profile design, and minimal physical effort required make these tools essential for high-throughput environments where efficiency directly impacts profitability.

Specifications
Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg

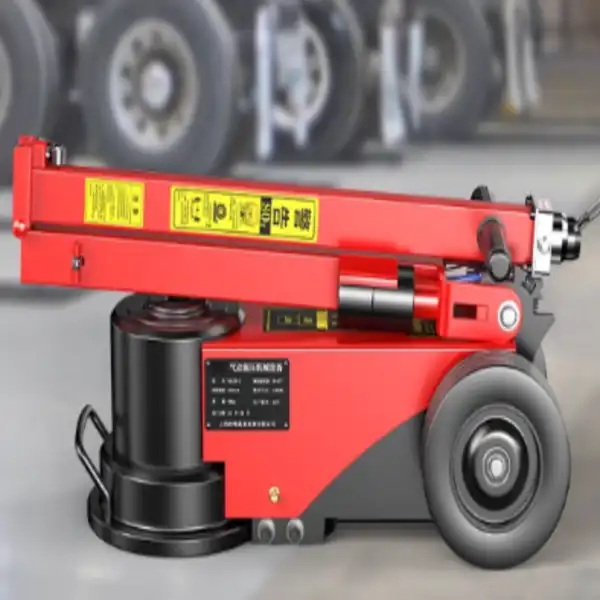

Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm

Understanding Small Pneumatic Jacks: Operating Principles and Applications

Traditional ways of lifting are different from air-powered lifting devices because they are based on simple but effective engineering principles. Compressed air comes in through a normal hose interface and either fills up an internal chamber or moves a piston device up, which creates force. The system is made up of several connected parts that work together to provide safe and controlled lifting.

Core Mechanical Components

The base of these lifting tools is a cylinder core that has been chrome-plated to keep the piston moving smoothly and prevent rust. Building with carbon steel, alloy steel or aluminium alloy gives the structure the strength to support loads ranging from light-duty vehicle work to heavy industrial machines. Seals made of fluororubber or nitrile rubber keep the air pressure stable and can handle temperatures ranging from -20°C to +80°C. Because the exhaust silencer cuts down on noise, these tools can be used in indoor workshops where noise pollution is a problem. Safety valves keep things from getting too pressurised by letting out extra air automatically when the pressure goes above the safe range of 0.4 to 0.8 MPa.

Versatile Application Environments

These small lifting solutions work great in a lot of different industries. When they have to do a lot of rotation and balancing, tyre service centers use the rapid deployment feature. The low-profile entry point lets mechanics put the jack under cars that don't have much ground clearance, like speed cars that have had their suspensions changed aftermarket. When moving and placing things over and over on an assembly line, the quick-cycle feature comes in handy. Construction sites like that the equipment is portable so that it can be serviced in remote areas without good electrical infrastructure. Mining operations rely on the strong construction to last in harsh settings and keep working properly while heavy equipment is being serviced. When every second counts, like during rescue operations, emergency response teams use the rapid deployment feature.

Operational Speed Advantages

Air-driven systems can fully extend in seconds, while traditional hydraulic jacks need dozens of pump steps to do the same thing. This speed directly leads to better productivity and lower labour costs. A busy auto repair shop that works on thirty cars every day can save a lot of time on each lift job, which adds up to hours of extra work time every week. The variable pressure control lets you precisely position for work like aligning parts and installing delicate parts where small changes matter.

Comparing Small Pneumatic Jacks with Other Lifting Solutions

When purchasing managers look at lifting equipment, they need to know how the different technologies affect performance. With each pulling method, there are different pros and cons that depend on the needs of the job.

Performance Efficiency Analysis

With air-powered jacks, you can lift things without having to work as hard as you would with a hydraulic pump. A technician working with a manual hydraulic jack uses a lot of physical energy during a full shift. With a pneumatic system, all that needs to be done is positioning and connecting the air line. Electric jacks take away the need to move things by hand, but they need power connections and electrical safety concerns in wet or dangerous places. Mechanical screw jacks offer stable long-term support, but they can't be set up quickly, which is important in high-volume settings. Operating pressure between 0.4 and 0.8 MPa gives enough lifting force while still requiring a manageable amount of air from standard shop compressors.

Maintenance Demand Comparison

Regular checks of the fluid, inspections of the seals, and sometimes rebuilding of the cylinder are needed for hydraulic systems, and for Small Pneumatic Jack, pneumatic systems have none of these fluid maintenance concerns, requiring only routine checks for seal wear, safety valve function, and exhaust silencer clarity, while the chrome-plated cylinder interior resists scoring and corrosion, extending service intervals, and with electric jacks you have to worry about motor care like replacing the brushes and making sure the electrical connections are solid. If hydraulic fluid is contaminated, it can damage internal parts and the whole system needs to be flushed. Pneumatic systems don't have any of these problems with fluid maintenance. Checking for wear on the seals, making sure the safety valve works and making sure the exhaust silencer stays clear are all part of routine maintenance. The chrome-plated cylinder's inside prevents cracking and rust, which makes it possible to go longer between service visits. With electric jacks, you have to worry about motor care like replacing the brushes and making sure the electrical connections are solid.

Application Suitability Factors

Choosing between technologies relies on how they will be used. Places that already have a system for compressed air can benefit right away from pneumatic solutions without having to spend more money on power. Applications that need support for a long time can benefit from mechanical or hydraulic systems that can keep their place without constant energy input. When lifting things with a lot of frequency, pneumatic speed and less operator fatigue are best. For portable uses in places without access to air supplies, hydraulic or mechanical options may be needed. Load capacity needs to match stated specs, which are usually between 2.5 and 3 tonnes for Small Pneumatic Jacks. This makes sure that there are enough safety margins for the intended uses.

Safety and Maintenance Best Practices for Small Pneumatic Jacks

Using any kind of lifting equipment comes with risks that can be reduced by following the right steps. Setting up thorough safety standards saves workers and makes tools last longer.

Operator Training Requirements

Before using pneumatic lifting equipment, every worker needs to know how to set it correctly. As part of training, people should learn how to find safe lift points on different car chassis and machinery frames. Operators learn to spot areas that aren't good for lifting, like sloped floors, soft ground, or supports that aren't stable. The internal telescopic stabiliser makes the structure rigid on the sides, but it can't fix problems with the surface. As part of training, you will learn about rating ability limits and what happens when you overload. Emergency procedures include the right way to lower something when the air supply goes out and how to spot the signs that something is wrong with the equipment.

Pre-Operation Safety Checks

Before each use, technicians should look at the rubber seals to see if they are cracked, torn, or breaking down because of being exposed to chemicals. The safety valve's functionality is checked by briefly going above its normal operating pressure and making sure that it releases automatically. Connections to air lines are checked to make sure they are securely attached and don't leak. The lifting surface needs to be checked for damage, wear, or dirt that could make it easy for loads to slide off. Before starting to lift things, operators make sure that the work area is clear of people.

Preventive Maintenance Protocols

Cleaning it regularly gets rid of built-up dirt, brake fluid, and oily substances that break down rubber parts. Every 500 lift cycles or every three months, whichever comes first, there should be an inspection. When cracks are seen on the surface of the seal or when leak testing shows pressure loss that is higher than what the maker recommends, the seal needs to be replaced. Chrome-plated surfaces should stay smooth and shiny; if they start to pit or rust, they need to be fixed by a professional. The exhaust silencer needs to be cleaned every so often to keep it from getting clogged, which slows down the engine.

Certification and Compliance

Equipment that has both ISO9001 and CE licenses shows that it meets high standards that are known all over the world. ATEX certification means that something is safe to be in an explosive atmosphere, which is very important in mining and chemical industry settings. Compliance with the Pressure Equipment Directive (PED) means that the design of the vessel meets European safety standards. The quality of units made in China is controlled by Chinese manufacturing standards (GB). Regular checks by a third party make sure that rules are being followed in controlled industries where lifting equipment is a part of workplace safety oversight. Documenting tests like leak tests, pressure tests, and life cycle validation creates audit trails that show proper care was taken when buying equipment.

Buying Guide: How to Select and Procure the Best Small Pneumatic Jack?

To match the specs of tools to the needs of operations, many technical and business factors must be carefully considered. Long-term operational efficiency and maintenance budgets are affected by decisions about what to buy.

Technical Specification Evaluation

The main picking criteria are the lifting ability, and for Small Pneumatic Jack, the rated capacity should be at least 1.5 times the maximum anticipated load to account for variations and ensure longevity, while the lift height range must match the application—typically 400 mm maximum extension for automotive work, but potentially more for machinery repair—and minimum collapsed height determines accessibility under low-clearance equipment, with operating pressure between 0.4 and 0.8 MPa required to be within existing compressor capabilities. To account for changes in load and to make sure the product lasts as long as possible, the rated capacity should be at least 1.5 times the maximum anticipated load. The lift height range needs to be right for the job. For example, for automotive work, the highest extension is usually 400 mm, but for machinery repair, it might need to go further. Accessibility under low-clearance equipment is based on the minimum collapsed height. The operating pressure needs to be between 0.4 and 0.8 MPa, which must be within the range of what the current compressor can handle. The construction of a material affects how long it lasts in different settings. For example, an aluminium alloy construction is lighter for movable uses, while carbon steel construction lasts the longest in industry settings. When chemicals are present, standard nitrile rubber breaks down, so the choice of seal material is important.

Supplier Credibility Assessment

When you work with well-known manufacturers, you can be sure of steady quality and ongoing help. Companies that have been in business for a long time have a history of making good Products" target="_blank" style="color:blue" >products and keeping the market stable. Getting ISO9001 approval means that the production processes are governed by formalised quality management systems. Real-world success validation comes from references from current customers in similar businesses. A supplier's commitment to application success is shown by the fact that they offer technical support during the initial specification phase. This support includes 3D design verification and parameter optimisation. How quickly problems are fixed and new parts are sent out when they're needed depends on the system for after-sales support.

Commercial Terms Consideration

For wholesalers and owners of big fleets, bulk buy agreements offer economies of scale. The terms of the warranty show that the manufacturer is confident in the product's durability, and full coverage shows that quality is assured. Terms of payment affect cash flow management, especially when buying big-ticket items. When processes need tools to be available all the time, shipping dependability and lead times affect how much inventory to keep on hand. When standard specifications don't exactly meet application needs, the ability to customise is important. Clear ways of talking to each other make sure that technical questions are answered quickly, usually within 24 to 48 hours for engineering questions and quote requests.

Total Cost of Ownership

Pricing at purchase is only one part of lifecycle economics. The need for maintenance affects the cost of labour and parts over time. When compared to electric options, pneumatic systems use much less energy while they are running. Replacement planning is affected by how long a major part is expected to last before it needs to be replaced. When equipment breaks down, the costs of downtime could be much higher than the initial savings from buying cheaper equipment. Companies that want to use new types of tools have to pay more to get their operators and support staff trained.

Implementing Small Pneumatic Jacks in Your Operations: Case Studies and Future Prospects

In the real world, deployment events show measurable benefits that are only hinted at in theory specs. Companies in all kinds of fields say that smart advances in equipment have made their operations better.

Automotive Service Center Transformation

A regional tyre service chain with fifteen locations replaced their old hydraulic floor jacks with air-powered lifting solutions in all of their locations, and for Small Pneumatic Jack, the rollout solved two important organisational problems: technicians getting tired during busy times and limited service bay throughput, and within three months of starting to use it, the business saw a 22% drop in the average amount of time needed to service each car. The rollout solved two important organisational problems: technicians getting tired during busy times and limited service bay throughput. Within three months of starting to use it, the business saw a 22% drop in the average amount of time needed to service each car. Technicians said they felt a lot less physical pressure, especially at the end of their shifts. Service advisors were able to confidently add more appointments during busy times thanks to the rapid lifting feature. The equipment was more reliable than expected, and there were no problems during the first year of operation. Through higher service capacity income, the initial investment was fully paid back in eighteen months.

Industrial Manufacturing Integration

For placing heavy wooden frames during joining operations, a furniture factory added pneumatic lifting devices to their assembly line process. The old way of moving things by hand was bad for your health and slowed down output. After rollout, the plant saw a 31% increase in the number of assemblies it could make, and at the same time, fewer injuries happened on the job. The precise positioning control made possible by adjusting the pressure made joint alignment more accurate, which cut down on the amount of work that had to be redone. The small footprint meant that it could be added to existing workspaces without making major changes to the building. Maintenance staff liked how easy it was to maintain compared to hydraulic systems that were used in other production areas before.

Mining Equipment Maintenance Enhancement

Heavy machinery maintenance was hard to do in small service bays at a coal mine that worked with underground extraction equipment. The low-profile design of traditional lifting equipment made it hard to get to parts on big excavators and haul trucks. Using industrial-grade air-powered jacks that are made to hold big loads changed how well repair worked. Mechanics were able to reach service places that were hard to get to before, which cut down on the need to take things apart for regular checks. The strong building could handle the rough environment, which had coal dust, water, and changes in temperature. Over the course of two years of testing, the equipment showed reliability that was on par with or better than competing technologies, as well as faster operation.

Emerging Technology Developments

Manufacturing innovation is still making pneumatic lifting technology better in a number of ways. Smart control systems that use pressure sensors and electronic regulation promise more accuracy and safety monitoring that is done automatically. Researchers studying composite materials look for ways to make things lighter without lowering their power. The main goal of improving energy economy is to lower the amount of air that is used during operation. This lowers the demand for compressors in places with a lot of pneumatic tool networks. Field-replaceable subassemblies are possible with modular design approaches, which cuts down on repair time when a component fails. Longer-term development paths include connectivity features that allow remote diagnostics and predictive maintenance as the use of the industrial IoT grows.

Strategic Procurement Planning

If a company wants to get ahead of the competition, it should compare its current moving equipment inventory to new operating needs. Hydraulic equipment that is getting old and is about to stop working makes sense to replace it. When a facility grows, it's a good idea to stick to newer technologies instead of keeping older types of tools. As the workforce ages, younger techs who can't handle physically demanding manual tools are more likely to prefer comfortable pneumatic options. To make the supply chain more resilient, it's suggested that you keep quality standards high while expanding your relationships with suppliers. Sustainability programs are looking more closely at how equipment's lifecycle affects the environment. They prefer technologies that don't need to be disposed of of fluids and have long service lives.

Conclusion

Compact air-powered lifting tools are an established technology that has measurable operational benefits in both automotive and industrial maintenance settings, and for Small Pneumatic Jack, rapid operation, low physical effort, and strong construction all work together to solve important problems in high-throughput service operations, and when making procurement choices, you have to weigh technical requirements against business concerns while putting seller dependability and full support at the top of the list. Rapid operation, low physical effort, and strong construction all work together to solve important problems in high-throughput service operations. When making procurement choices, you have to weigh technical requirements against business concerns while putting seller dependability and full support at the top of the list. Companies that use these solutions regularly say that they increase output, lower worker fatigue, and make the workplace safer. As production technology keeps getting better, new innovations offer even better performance while keeping the main benefits that made these tools the standard in the industry.

FAQ

What lifting capacity should I specify for automotive workshop applications?

Most work on passenger cars needs a 2.5- to 3-ton capacity, which leaves enough room for SUVs and light trucks. When repairing commercial vehicles, bigger loads are needed, usually 5 tonnes or more based on the type of vehicle. Always check that the stated capacity is at least 50% higher than the biggest load you expect to put on it. This is to account for changes in load and make sure the equipment lasts as long as possible.

Can these jacks be relied on to work in cold weather?

When the right cover materials are chosen, quality units will continue to work in a wide range of temperatures, usually from -20°C to +80°C. When it comes to cold weather performance, fluororubber seals are better than standard nitrile alternatives. The biggest problem in cold weather is moisture in air supply lines, which can freeze and stop movement. This problem can be avoided by adding inline air dryers and moisture separators to compressor systems. Regular system purging gets rid of the condensation that builds up during cold weather.

How does maintenance complexity compare to hydraulic alternatives?

Pneumatic systems don't need to be maintained with fluids like hydraulic systems do. There are no needs for oil changes, replacing seals because of fluid pollution, or purging the system. Visually checking the seals, making sure the safety valves work, and cleaning every so often are all part of routine maintenance. When something is simple, it requires less maintenance work and lasts longer between services. The protected system design keeps fluid leaks from polluting the environment, which helps meet cleaning standards in the workplace.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Pneumatic Lifting Solutions

When purchasing professionals need reliable small lifting equipment, they should work with well-known companies that offer quality products and full support. Every Small Pneumatic Jack produced by FLA Industrial & Trading Co., Ltd. is based on nearly forty years of experience making hardware tools. Our huge catalogue of products, which has more than 1,000 specs, makes sure that you can find options that exactly meet your needs. Before it is shipped, each unit goes through a series of strict tests, such as leak tests, pressure validation, and life cycle verification. This makes sure that it will work reliably from the very first day. Our technical team can help you with everything, from the initial specification to ongoing service. This is true whether you need standard configurations that can be used right away or custom-engineered solutions that solve problems that are specific to your application. Find out why Fortune Global 500 companies choose FLA as their chosen Small Pneumatic Jack source for North American operations by getting in touch with our sourcing experts at sales@flaindustrial.com today to discuss your lifting equipment needs.
