Stainless Rope Clamp Applications for Corrosion-Resistant Wire Rope Connections in Marine Environments

The free end of a wire rope is held against the load-bearing rope, which is usually wrapped around a thimble, by a Stainless Rope Clamp for safety on the water. Grade 316 stainless steel doesn't get chloride pits as easily as grade 304, so it can be used in splash zones, the ocean, and along the coast. An aquaculture system, boat rigging, lifelines, dock railings, and fittings in marinas are just a few of the places it's used. Always check the line width, clamp position, spacing, pressure, and make sure everything is right to get the best results. What are these clamps used for? What grade should I get? How do I put them in? Before I place my order, who should I talk to about it?

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

What Is a Stainless Rope Clamp and How Does It Work?

Core Parts and Grip Principle

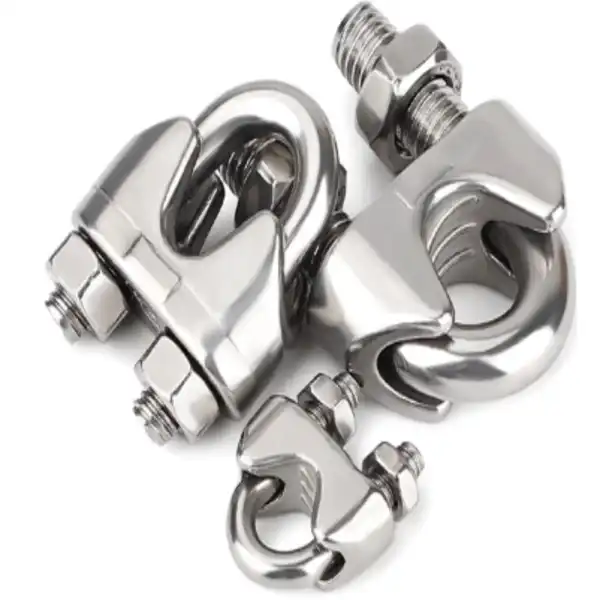

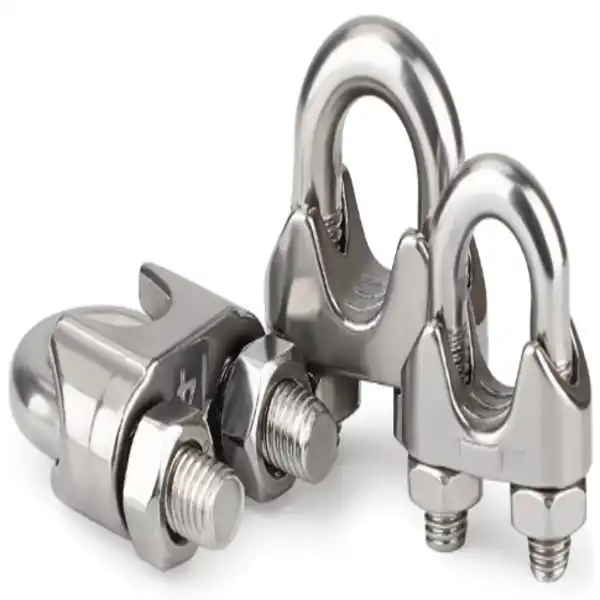

Stainless Rope Clamps come with a saddle, two nuts, a U-bolt, and washers where the design calls for them. You could also call them grips or wire rope clips. The chain is broken when the U-bolt goes around the loose end. The live end, which is where the seat sits, holds the weight. The nuts press the two pieces of rope against each other when they are tightened. This keeps the tail in place. The direction is very important because pressing down changes the grip. A rule that riggers follow helps them remember: "never saddle a dead horse." This means that the saddle should never be put on a horse that has already died.

Why Marine Conditions Are Demanding?

About 3.5% of ocean water is salt, and the chlorides in it break down many metals. When you add UV light, humidity, wave action, and changing loads, even a simple link is always under stress. There is a lot of rust here, and the zinc coats that were put on last year have worn off. Splash zones tend to get muddy and dry out quickly. A thin layer of chromium oxide appears on the surface of stainless steel when air is present. This layer protects the steel and helps it heal. That's why a lot of the hardware on boats, docks, and other buildings near the water is made of stainless steel. But the stuff isn't safe. Still, you should rinse and check the saddle because it could have cracks that let salt water in.

Where Clamps Fit and Where They Do Not?

You can use a wire rope clip on lifelines, gates, static guys, retention lines, and links that you need to check by hand. It's not good for all jobs. Engineers have to sign off on the terminations and make sure they meet the standards for the worker safety systems and overhead lifts to work. For lifting tools, ASME B30.26 has rules, and EN 13411-5 has rules for U-bolt wire rope grips. Before you use any unapproved parts to lift something over your head or hold someone up, talk to an expert first. A steel clamp that is the right size and can be checked and tightened is still a good choice for simple house and boat wiring.

Stainless Rope Clamp Types, Materials, and Marine-Grade Options

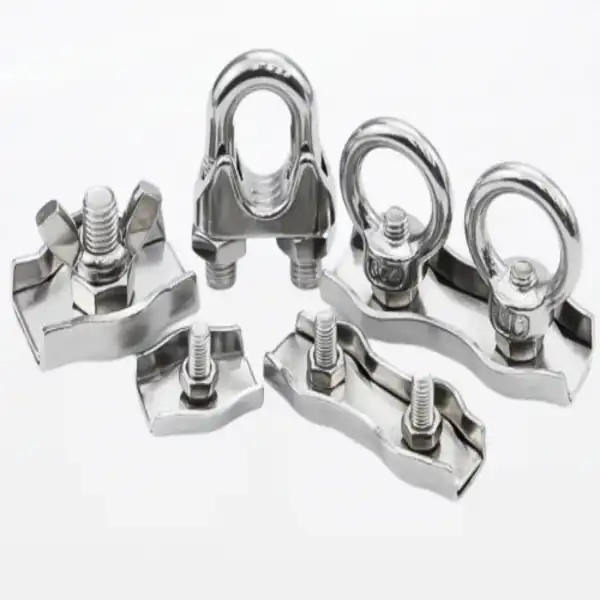

Single-Saddle and Double-Saddle Designs

One-saddle clamps can be used for easy fencing and guy lines. They work like U-bolts. People often call these "duplex clamps" because the rope has a saddle on both ends. This design spreads the load out more, so as long as the person who made it lets it, the rope won't twist in places that are likely to shake or inside buildings. Before you place your order, look at a few pictures. There is a different thread system, size, and finish on each one. You need to know how to use both metric and imperial rope sizes correctly when your customers buy them. Just a little off, the clamp can break the rope or move around when it's full.

304 vs. 316 Stainless Steel

Both types of steel are austenitic for a Stainless Rope Clamp. When the weather is nice, grade 304 can be used both inside and outside. Most 316 steel has 2% to 3% more molybdenum than grade 316 steel. In cracks, this makes it less likely to pit or rust from salt. 316 is a good metal to use in salt water, near the coast, and at sea because of this. Grade 304 that is right next to the water can get tea staining, which looks like brown spots on the surface. There may also be deeper splitting. You can choose the grade of our Stainless Rope Clamp that works best for the job. It's available in 304 and 316. To make sure the grade is right, ask for material certificates for every shipment.

FLA Manufacturing and Surface Finish

A lot of care goes into making our Stainless Rope Clamp in China. They cast, forge, cut, and finish it. Because of this, the stainless steel finish is natural and shiny. It won't rust and can be used in water. The saddle is designed to protect each strand of the rope by distributing the load across it. Because it's just bolt-on, you don't need any special tools to put it together. Our Products" target="_blank" style="color:blue" >products can work in temperatures ranging from -40°C to +200°C, and they meet the requirements for ISO9001 and CE approval. You can use the clamp more than once as long as it's not broken. We do all the work because we've been in the hardware business for almost 40 years. From checking the raw materials to the final check, we do it all.

Stainless Rope Clamp Sizes, Load Capacity, and Correct Installation

Matching Clamp Size to Rope Diameter

Do not start with the size shown in the picture, but with the width of the wire rope. Callipers are what you need to measure across the widest parts of the strands. Then, you should use the service provider's size chart to figure out which answer is better. It's also important how the rope is made, since different rope builds (7x7 and 7x19) react to clamping pressure in various ways. When you buy things from other countries, it's easy to get the sizes mixed up because they are so close to each other. Our Stainless Rope Clamp can hold wire ropes of different widths. We check the sizes against the drawings you give us before we start making them. Sharp turns or wear at the eye won't hurt the rope if you put a thimble in each loop.

Clamp Strength Is Not Rope Strength

The clamp can't always hold something together, and the rope can't always break it. The type of material used, the number of clamps, their distance from each other, the force, and the fact that the load is moving or not can all show how well a clamp works. The gap is getting smaller because of lots of shock and vibration. Every size has a different amount of work to do, and we can make grades that are perfect for your job. Learn about safety factors, get full datasheets, and use them for anything important, like moving or making sure no one falls. Then, have a qualified engineer look over the package and give the go-ahead. Just because it's made of stainless steel doesn't mean it can hold a certain amount of weight.

Installation Steps

Setting up must follow a clear order for it to go well. First, make a clean cut in the rope and look for broken wires. Next, if you want to make a loop, put on a thimble. The U-bolt should go over the dead end, and the seat should go over the live end. Make sure that all of the clamps are in the same place before you add the others. If the supplier doesn't tell you otherwise, you should leave about six rope diameters between each one. One at a time, turn the nuts on until they have the right amount of force. Make sure they're not too tight, or the rope could get hurt. After the first load, tighten it again because the rope moves around a bit. Because lube can change the torque numbers, make sure you do what the seller tells you when you buy one. Steel threads can get clogged.

Stainless Rope Clamp Applications in Marine Environments

Boats, Docks, and Marinas

Safety lines, stays, and utility lines can be kept in place on small boats with a Stainless Rope Clamp. Also, sailors use it to make small changes to their gear all the time. Because they are easy for maintenance crews to check and tighten with simple hand tools, these clamps are also used on dock railings and marina cable systems. 316 is the best choice because it resists corrosion in spray and still water. The bars by the water always look clean because of their bright, shiny finish. The rope shouldn't be near any metal or carbon steel. This might lead to galvanic corrosion. That happens when two different metals meet in salt water. The less valuable metal gets hurt more quickly.

Offshore, Fishing, and Aquaculture Systems

Safety lines, stays, and utility lines can be kept in place on small boats with a stainless steel clip. Also, sailors use it to make small changes to their gear all the time. Because they are easy for maintenance crews to check and tighten with simple hand tools, these clamps are also used on dock railings and marina cable systems. 316 is the best choice because it resists corrosion in spray and still water. The bars by the water always look clean because of their bright, shiny finish. The rope shouldn't be near any metal or carbon steel. This might lead to galvanic corrosion. That happens when two different metals meet in salt water. The less valuable metal gets hurt more quickly.

Shipbuilding, Construction, and Architectural Railings

Clamps made of stainless steel are used on cable fences, structural supports, and extra cable systems in law firms, shipyards, and coastal builders. People use our Stainless Rope Clamp to build things, go on boat trips, and make ships. It's easy to put up because it's made of steel and has a clean finish that goes well with current fence styles. When it comes to guards and safety fences, you may need to follow local building rules, engineering specs, and product approvals. As soon as possible, project experts and workers should make sure that the goals are met. How wide is the rope, how much weight does it need to hold, and where will it be used? We'll help you pick the right grade and size.

Stainless Rope Clamp vs. Alternatives: Choosing, Buying, and Maintenance

Stainless Clamps vs. Galvanized Clamps and Ferrules

Metal clamps are usually cheaper up front and work fine in mild areas. They wear off, though, and rust can form when they are near salt. Stainless steel looks better near water and doesn't rust as quickly. To make small terminations that last, you need to have the right tools and keep an eye on the process when you use swaged ferrules. Clamps are set up, can be adjusted, and can be used again if they are not broken in the field. It's also important to think about how dangerous it is, how easy it is to check, the rules, and whether the connection is temporary, movable, or permanent. Built-in terminations are good for systems that will last a long time or are very important.

Choosing for Your Business

There are different things that people who want to buy something look at. People who sell to other people want a lot of SKUs, consistent quality, good packaging, and regular restocking. People in charge of construction sites want things that are strong, follow the rules, and are easy to move. We don't just sell electrical line tools and iron pipe parts that can be bent. It has more than 1,000 different things on its list. Users can work with a single business for a number of different types of work. It is the job of the distributors to make sure that the labels and packages are correct. Engineers should seek prints and force values. You need to know the amount of risk, the type of load, the exposure, how long it will last, and how often you need to check it. After reading that list, compare the grade, clamp shape, thread, and finish.

Buying Wholesale or Direct from a Manufacturer

Making the "request for quote" clear speeds up the whole process. Tell them what kind of clamp it is, what grade (304 or 316), how thick the rope is, how many items there are, how they will be packed, their name, where they are going, and when they will get there. Just comparing unit price isn't enough. Test, pack, wait, rejection risk, and the total cost of getting the goods to the customer are other things you should think about. Order between 10 and 10,000 units, and you can change the style, the material, or both. The 3D design can also be checked before it is made. Before making a lot of something, checks and samples are done to make it less likely that too much will be made. People in the US, Germany, and Australia buy from us, and Fortune Global 500 companies trust us to work with them.

Inspection and Maintenance

You should check the grade, size, threads, finish, washers, nuts, and packaging against the order before you fix it. Spots, stains, cracks, broken threads, loose nuts, rope that slips, and salt buildup should all be looked for while it's being used. When there is still water or splash zones, people need to be extra careful. If the old clamp is broken, very rusty, or doesn't hold anything, you should get a new one. Keep clean, dry hardware away, and rinse it with clean water. Iron particles can leave rust marks on stainless steel surfaces, so keep carbon steel tools away from them. Keep track of when important things were checked out and when they were swapped out.

Conclusion

As long as the grade, size, and fitting are right for the job, sailors can close wire rope with a Stainless Rope Clamp in a number of flexible and easy-to-check ways. This article explains why 316 stainless steel doesn't rust as quickly as 304, how the U-bolt and saddle work together to make a grip, and how the breaking strength of a rope is different from the binding strength of a clamp. The link is safe because it is set up with the right distance, direction, force, and fixed again after the first load. Cable systems can be used to place dock rails and boats, as well as for building, fishing, and working from home. For easy-to-reach flexible connections, steel clamps work better than galvanised clamps and ferrules. On the other hand, designed terminations may be needed for systems that stay in one place or are very important. Things will last longer if you look at them often, keep them clean, and write them down correctly.

FAQ

Is a Stainless Rope Clamp suitable for saltwater?

The exposure doesn't need to fit the grade or style. Because it has molybdenum in it, 316 stainless steel is better at resisting chloride, so it is good for use in saltwater and along the coast. Grade 304 can get dark tea spots from being near water.

How many clamps does one termination need?

There isn't just one number that works for everyone because it relies on the rope's thickness and the charts the seller gives you. What size rope do you have? We'll make sure there's plenty of space between them.

Can I use these clamps for overhead lifting?

For now, until engineers say it's fine. Lifting and worker safety systems need to have the right safety factors, agreed-upon parts, and limits on what they can lift in order to work. Things stay steadier with these clamps in the water.

Why should I retighten after the first load?

It takes a little while for wire rope to settle down after being added for the first time. The nuts might come loose because of this. There is no change in the tightening pressure when you do it again, so the screw is less likely to come loose.

Request a Stainless Rope Clamp Quote from FLA Industrial & Trading Co., Ltd.

Looking for a Stainless Rope Clamp manufacturer for marine projects or resale programs? FLA Industrial & Trading Co., Ltd. offers 304 and 316 grades, ISO9001 and CE certified products, and custom designs backed by nearly 40 years of hardware experience. Send your rope diameter, grade, quantity, and destination to sales@flaindustrial.com, and our engineers will recommend a suitable size. Details are available at flaindustry.com.

References

1. ASME, ASME B30.26 Rigging Hardware, 2015

2. Wire Rope Technical Board, Wire Rope Users Manual, 4th Edition, 2005

3. Outokumpu, Handbook of Stainless Steel, 2013

4. ASTM International, ASTM B117 Standard Practice for Operating Salt Spray (Fog) Apparatus, 2019

5. European Committee for Standardization, EN 13411-5 Terminations for Steel Wire Ropes: Safety, Part 5: U-bolt Wire Rope Grips, 2008

6. International Organization for Standardization, ISO 15510 Stainless Steels: Chemical Composition, 2014
