Understanding the Pressure Reducing Valve Working Principle

Maintaining optimal system performance across industrial uses requires an understanding of the pressure reducing regulator valve operating principle. Through a clever force-balance system, these specialized flow control devices automatically lower the high and changing pressure upstream to an exact and constant pressure downstream. Using a spring-loaded diaphragm or piston system, pressure reducing valves constantly change how wide they open to account for changes in the pressure upstream and the flow requirements that change. Because they work on their own, they don't need any outside power sources to work. They also keep the pressure steady in important places like fire safety systems and industrial process lines, making them essential for protecting equipment and making sure operations are safe.

What Is a Pressure Reducing Regulator Valve?

Pressure lowering regulator valve are complex mechanical devices that keep the pressure in the downstream part of the system at a set level, even if the pressure upstream changes or the flow demand changes. These self-actuated systems achieve precise pressure control through an ingenious force-balance mechanism that continuously modulates valve opening without requiring external power sources or control systems.

Core Operating Mechanism

The fundamental operation relies on balancing forces between a measured spring, a sensitive diaphragm, and a precise valve mechanism matching their forces. When the pressure downstream goes below the setpoint, the spring force is stronger than the diaphragm pressure. This opens the valve and lets more flow through. On the other hand, if the pressure downstream goes above the goal, the extra pressure on the diaphragm squeezes the spring, which stops the valve from opening and the flow stops.

Primary Valve Types and Configurations

Direct-acting pressure regulators have a simple spring-diaphragm design where the sensor element controls the movement of the valve part directly. These small designs work great for tasks that need a modest level of accuracy and flow rates, which makes them perfect for general industrial uses. The measuring element reacts right away to changes in pressure, which allows for quick adjustment but lacks accuracy when the load changes.

For pilot-operated versions, the main valve is controlled by pressure signals sent to a small valve called a pilot valve. This setup is more accurate and stable, especially when there is a lot of flow or when precise pressure control is very important. The pilot system can handle complicated control strategies and still work well in a wide range of working situations.

Material Selection and Compatibility Considerations

Material choice has a big effect on how long a valve lasts, how well it works with chemicals, and how reliable it is in a variety of commercial settings. Being made of stainless steel makes it very strong and resistant to rust, so it can be used in harsh chemical conditions and at high temperatures. For a reasonable price, brass parts are easy to machine and don't fight corrosion too well. Cast iron, on the other hand, works well in normal water and steam situations where corrosion isn't a problem.

Knowing the difference between pressure reducing valves and pressure release valves can help you avoid making mistakes that cost a lot of money. Pressure relief valves are safety devices that only open when system pressure goes over safe limits. They let out extra pressure to keep equipment from breaking. Pressure reducing regulator valve systems keep the pressure in the downstream system steady during normal operation.

Advantages and Industrial Applications of Pressure Reducing Regulator Valves

The addition of advanced pressure reducing valve has real practical benefits that affect the life of equipment, the dependability of systems, and the costs of running different types of industrial equipment. These devices are the first line of defense against machine breakdowns caused by pressure, and they also help save energy by precisely controlling flow.

Enhanced Safety and Equipment Protection

Overpressure conditions can harm sensitive instruments, damage expensive machinery, and put people in danger, so this is the biggest benefit: it keeps equipment from breaking down in terrible ways. These valves protect expensive equipment investments and make sure that safety rules are followed in safety-critical situations by keeping the pressure downstream within safe limits.

Modern systems that control pressure are very good at getting rid of pressure jumps that happen when the system first starts up, when the pump cycles, or when the source pressure changes. This protection makes tools last a lot longer, which cuts down on upkeep costs and unplanned downtime that can cost businesses thousands of dollars an hour.

Improved System Reliability and Performance

In manufacturing, where exact control affects product quality and yield rates, pressure stability has a direct effect on process consistency. Consistent pressure is needed in chemical processing plants to keep the right stoichiometry of reactions, and exact pressure control is needed in pharmaceutical manufacturing to make sure the quality of the product and compliance with regulations.

Another great benefit is that properly controlled pressure cuts down on unnecessary flow rates and gets rid of the energy loss that comes with having too much system pressure. Studies have shown that improved pressure control can cut energy use by 10–15 percent in common industry settings. This can save a lot of money over the life of the valve.

Diverse Industrial Applications and Case Studies

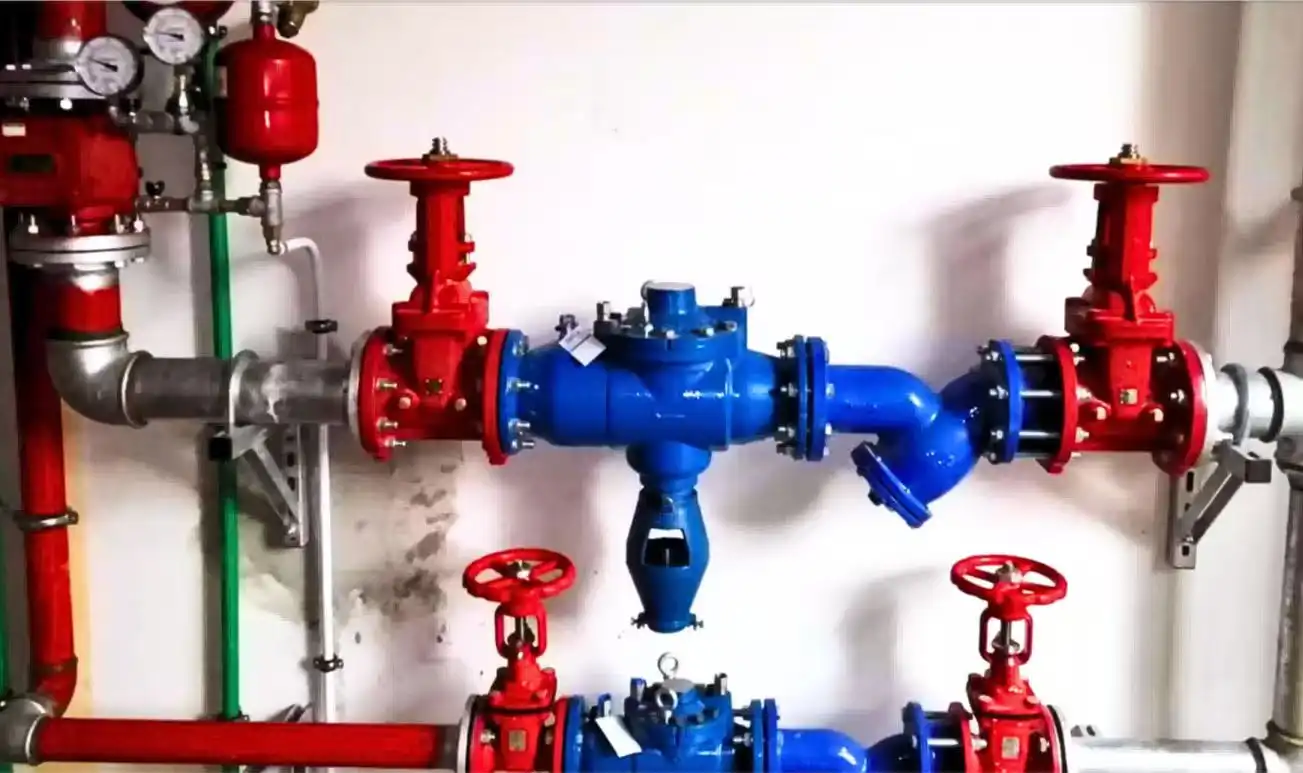

In order to keep working pressures safe throughout multi-story delivery networks, fire prevention systems in tall buildings rely on pressure reducing regulator valve technology. For these uses, careful pressure control is needed to make sure that there is enough flow on the upper floors and that pipes don't get damaged by too much pressure on the lower floors. The fire-rated valves from FLA Industrial are certified by both UL and FM, so they can be trusted in high-stakes safety situations.

These valves are used in water treatment plants to keep membrane filter systems safe from damage caused by high pressure while keeping the systems running at their best. Pressure reducing valves are used in municipal water distribution systems to control pressure zones, which lowers pipe stress and cuts down on water loss through leaks. These devices are used in factories to control the pressure in networks of steam, compressed air, and process water. This makes sure that the factories are as productive as possible.

Specialized valve designs that can handle strong media and keep precise pressure control are useful in the chemical processing business. Hygienic valve designs that meet strict cleanliness standards and provide the accuracy needed for critical process control uses are needed in pharmaceutical plants.

How to Choose the Right Pressure Reducing Regulator Valve for Your Industry Needs？

There are a lot of technical and practical factors that affect performance, dependability, and the total cost of ownership that need to be carefully considered when choosing the right regulator valve. As part of the decision process, the capabilities of the valve are matched with the needs of the application, and long-term operating goals and maintenance plans are taken into account.

Operating Parameter Assessment

Operating pressure ranges are the most important thing to consider when choosing a valve because its performance changes a lot depending on the pressure level. For long-lasting use, high-pressure applications above 500 psig usually need piston-sensing elements for durability, while lower-pressure applications benefit from sensitive diaphragm designs that provide superior accuracy and responsiveness.

The valve's ability to handle necessary flow rates while keeping accurate pressure is based on its flow coefficient (Cv) numbers. When flow needs to be high, valves that are too small can't keep up, and when flow needs to be low, valves that are too big may be hard to control. For accurate sizing, flow estimates must be based on real system needs instead of theoretical maximums.

Material and Environmental Compatibility

Fluid compatibility testing keeps valves from breaking down too soon and makes sure they can work safely in a wide range of chemical settings. Most industrial fluids can be used with stainless steel, but for highly corrosive or high-temperature uses, special metals may be needed. During the choosing process, both direct fluid touch and possible contamination from sources upstream must be taken into account.

Temperature affects both the choice of material and the size of the valve because changes in fluid properties and temperature growth affect how well the valve works. For cryogenic uses, special materials and designs are needed, and for high-temperature steam use, different engineering methods are needed to keep the seals intact and the control accurate.

Valve Type Selection and Configuration Options

Manual adjustments let workers change setpoints to meet changing working needs, and automatic configurations keep the pressure steady without any help from a person. Direct-acting valves are easy to use and effective for most situations. However, pilot-operated designs work better in tough situations that need to be very accurate or deal with big changes in flow.

Custom designs are used to meet specific application needs that can't be met by standard store goods. FLA Industrial is an expert in custom valve solutions. They use advanced production techniques to make unique designs for non-standard uses. When compared to changed standard goods, these custom solutions often offer better performance while keeping prices low by using efficient manufacturing methods.

Supplier Evaluation and Brand Assessment

Well-known brands like Emerson, Parker, and Honeywell have strong track records and give a lot of professional support. On the other hand, niche brands like FLA Industrial specialize in certain application areas and have a lot of experience in those areas. When you evaluate a supplier's skills, you have to look at things like their manufacturing quality systems, their expert help, and how easy it is to get parts for repairs in the future.

Quality certifications like ISO9001, CE marking, and approvals relevant to the business show that the manufacturing process is consistent and follows the rules. These certifications give customers faith in the reliability of the product and make sure it meets operational and buying standards.

Conclusion

Procurement pros and engineers can make choices that improve system reliability, safety, and operational efficiency by understanding the pressure reducing regulator valve operating principle. By using tried-and-true mechanical principles, these high-tech devices provide consistent pressure control without the hassle and upkeep that comes with electronically controlled systems. The force-balance device, which is made up of springs, diaphragms, and precision-engineered parts, works reliably in a wide range of industrial settings, from fire safety systems to complicated manufacturing processes. By choosing the right one based on working conditions, material compatibility, and application needs, you can get the best performance while lowering the total cost of ownership. This is done by making the product last longer and needing less upkeep.

FAQ

What maintenance intervals are recommended for pressure reducing regulator valves?

Standard industrial uses usually need eye checks once a month and full maintenance once a year, which includes testing the components for pressure and assessing their condition. Inspections may need to be done every three months in harsh environments or for critical safety uses. Normal replacement of parts happens every two to three years, based on the conditions of use and the properties of the media.

Can pressure reducing regulator valves handle both gases and liquids effectively?

Modern pressure reducing regulator valve designs can be used for both gas and liquids by choosing the right materials and making the best use of their internal layout. For gas applications, the seat materials and spring rates need to be different from those for liquid applications. However, some specialized designs can be used for both types of service, which makes them more flexible for fitting needs.

What risks are associated with incorrect valve selection or sizing?

When flow rates are high, valves that are too small can't keep up with the demand. This causes pressure drops that affect the performance of equipment further downstream. When there isn't enough flow, over-sized valves can become unstable, and the wrong choice of material can cause them to fail early or become contaminated, which can be dangerous in chemical applications.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Pressure Control Solutions

FLA Industrial & Trading Co., Ltd. has been making precision-engineered valve technology for almost 40 years and has a history of making reliable pressure control solutions for businesses. Our wide range of pressure reducing regulator valve are made from brass, cast iron, and stainless steel, and are meant to work with fire safety systems, industrial processes, and high-stakes safety situations. Every product we sell has been certified by ISO9001, CE, UL, and FM, which means that Fortune Global 500 companies know they can trust us to meet the most stringent needs. For the best pressure control performance, our experienced engineering team offers custom solutions, fast shipping from a large inventory, and full technical support. Email sales@flaindustrial.com to talk to one of our experts about your needs and find out why top manufacturers of pressure reducing regulator valve choose FLA Industrial for their better flow control solutions.
