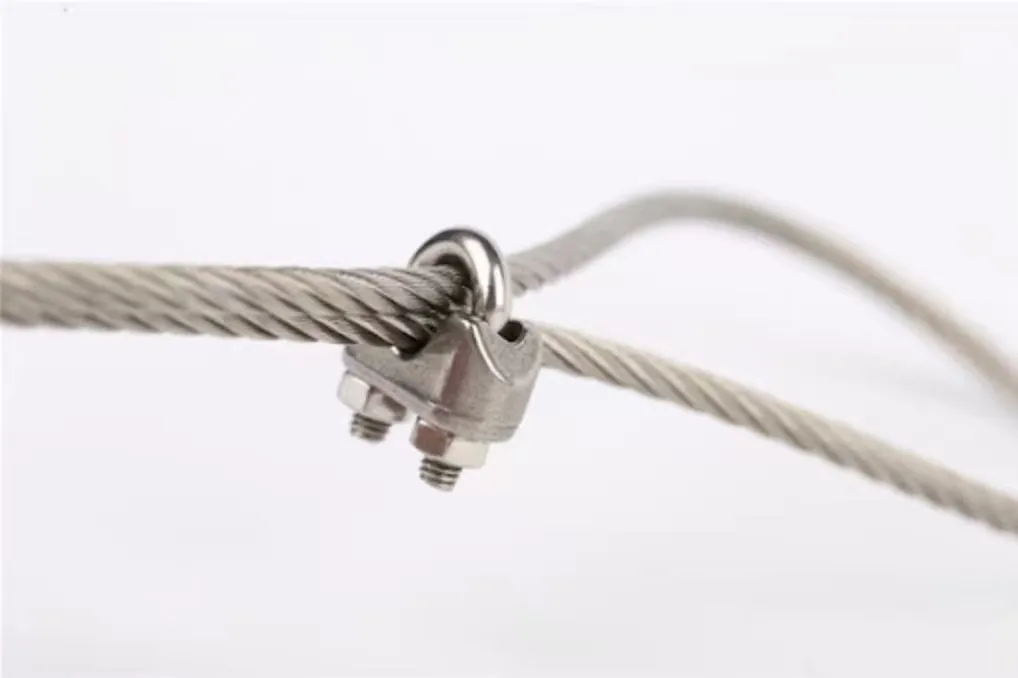

What Is a Stainless Rope Clamp and How to Use It?

A stainless rope clamp is a hand-made tool used to hold wire rope ends in place in harsh environments like factories, ships, and buildings. The 304 or 316 grade stainless steel used to make these clamps means they won't rust and can hold tightly for important safety connections. Unlike bands that are forever swaged, stainless rope clamps can be changed on the job site and used over and over again. Because of this, they are great for scenarios where changes need to be made. The clamp is made up of a U-bolt, a cast seat, and locking nuts. Together, these parts make a strong end for a wire line.

Understanding Stainless Rope Clamps

Wire rope clips are useful tools in many fields that keep buildings safe. It's easy to make safe connections between wire rope pieces or end terminations with these tools. They can hold big loads for a long time.

Core Functionality and Design Principles

There needs to be equal compression forces across the width of the wire rope for the stainless rope clamp to work. The seat part has a slot that is properly machined to fit normal wire rope sizes. This keeps the strands from getting broken and makes the grip better. Professional-grade clamps can cut wire ropes at about 80% to 90% of their minimum breaking load if they are placed properly and follow the manufacturer's directions.

Because the U-bolt has a threaded adjustment, you can keep the tightening pressure the same. The cast saddle spreads the load over several wire strands. Because the stress is spread out, it doesn't build up in one spot, where it could break or not last as long in important cases.

Material Specifications and Performance Characteristics

To make great things, you must first choose the right ingredients. In businesses, grades 304 and 316 stainless steel are often used. It is very hard to rust in most outdoor conditions and with light chemicals because Grade 304 stainless steel has 18–20% chromium and 8–10.5% nickel. Grade 316 has 2 to 3 percent molybdenum in it, which makes it much less likely to get pitting and crevice rust from chloride, which happens a lot in naval areas.

In high-quality production, precision casting and forging are used to make sure that the sizes are right and that the motor parts stay the same. Electrolytic polishing is a high-tech way to make things. It removes iron residue from the surface and adds a layer of inactive chromium oxide that protects much better against rust over time.

Industrial Applications and Load Requirements

The naval engineering field is one of the hardest places for rope clamps to work. Offshore sites, shipyards, and ports all need hardware that can stay in shape even when it's moved and unloaded and exposed to saltwater all the time. For building purposes, its natural stainless steel finish keeps its good looks and stops rust from coming from both air and water.

These days, stainless steel rope clamps are used more and more in hanging structures, cable railing systems, and tensile structures for design and building tasks. For these uses, the bright shiny surface finish is an important standard for buyers to keep in mind because they need something that works well and looks good.

How to Use Stainless Rope Clamps Correctly?

There are safety gaps, service life, and general security of the system that depend on how it is set up, such as whether a stainless steel clamp is used. You can get the best results and avoid mistakes or having to buy new things too soon if you know the right steps to take.

Pre-Installation Preparation and Planning

To get wire rope ready, it needs to be cut cleanly and to the right length with the right cable cutting tools. It's possible for torch cutting to break wire strands and build up stress. The rope end should be properly held with wire or tape so that the strands don't come apart while it's being put together.

When picking out a clamp, make sure that the size fits the wire rope perfectly. If you use clamps that are too big, the grip isn't as good, and if you use clamps that are too small, the rope may get damaged. Companies that make good clamps have detailed size charts that show how to match the rope's width to the correct clamp size.

Step-by-Step Installation Process

The most important thing to remember when putting in wire ropes is "Never saddle a dead horse." This means that the U-bolt should go over the dead end and the saddle should always hit the live part of the wire rope. What if you turn it around? The grip gets up to 40% weaker, and the rope can break under load.

How far apart the clamps should be based on how thick the rope is and how much weight is being held. The clamp center should be at least six rope diameters apart, and the clamp closest to the end of the rope should be about one saddle width away. This room keeps the grip long enough and stops stress from building up.

What the maker says about how much force to use is what you should do. It ranges from 15 to 45 foot-pounds, depending on the size of the clamp. If you use too little torque, the rope strands or thread can break, and if you use too much torque, the grip can get loose. A torque wrench is used by professional fitters to make sure that all clamps give the same results.

Common Installation Mistakes and Prevention

It's easy to make mistakes that can lower safety gaps, like not having enough clamps. Based on the diameter of the rope, industry guidelines set the lowest amount of clamps that can be used. If the rope is up to 1/2 inch wide, you usually need three clamps. If the rope is 5/8 inch to 3/4 inch wide, you need four clamps, and if the width is bigger than 3/4 inch, you need more clamps. When people try to save money by cutting down on the number of clamps, the grips often break, which could be dangerous.

The way you retighten something can also affect how it works in the long run. When wire rope is loaded for the first time, it naturally shrinks a bit. After the first load, the clamps need to be tightened again. This second tightening keeps the best grip even as the rope changes shape to be useful.

Maintenance and Inspection Guidelines

Regular checks should be made on the tightness of the clamps, any obvious rust, and the quality of the rope where the clamps touch. Trouble can be seen when nuts are broken, rope strands are damaged, or clamps move along the rope. Because the environment speeds up rusting, marine uses may need to be checked more often.

Two ways to clean stainless steel clamps are with mild soap solutions or clean water. Cleaners that contain chloride should not be used because they can lead to stress rust cracks. Regularly lubricating threaded parts with the right anti-seize chemicals keeps them from galling and makes sure that the right amount of force is used when they are being serviced.

Comparing Stainless Rope Clamps with Other Materials

In many situations, picking the right material can make a big difference in how well something works, how long it lasts, and how much it costs to own overall. When someone works in buying knows about comparative benefits, they can make smart decisions that balance the costs of the initial investment with the costs of running the business in the long term.

Stainless Steel vs. Galvanized Steel Performance

At first, galvanized steel clamps are less expensive, but they can't be used in places where metals are rusting. The zinc layer guards for a short time through galvanic action, but as soon as it wears off, the steel underneath is open to fast corrosion. Galvanized coats can be worn down in just a few months by marine conditions, which can cause buildings to fail and need expensive repairs.

Stainless rope clamps excel in environments where galvanized alternatives fail prematurely. The chromium in stainless steel creates a layer that is not active and can fix itself. This layer can keep its rust protection even after being scratched or worn down. This feature gets rid of the way that zinc clamps' coatings fail, which makes them last less long.

Because they are lighter, aluminum clamps might be better for some jobs. But they aren't strong enough for heavy-duty work. Galvanic rusting happens when aluminum is mixed with stainless steel wire rope, which makes it harder to use in setups that need to use a mix of materials.

Grade 304 vs. 316 Stainless Steel Characteristics

Grade 304 stainless steel works well for basic outdoor tasks and some light industrial tasks. The 18-8 mix of chromium and nickel stops rust in the air and stays strong at a lot of different temperatures. 304 grade is good for high-volume uses that don't need a lot of rust protection because it is cheaper.

Adding molybdenum to grade 316 stainless steel makes it much better at working in places with a lot of salt. This better resistance to rust is useful in chemical processing plants, the ocean, and places along the coast. At first, it costs more than items made of 304 grade steel, but in tough scenarios, the longer life often makes it worth it.

They can both work in ranges from -40°C to +200°C, which is enough for most business needs. The 316 grade, on the other hand, stays stronger at high temperatures and doesn't break when it comes in contact with strong chemicals.

Cost-Benefit Analysis for Procurement Decisions

When figuring out the total cost of ownership, you need to think about how much it cost to buy, how much it costs to put, how much it costs to fix up, and how often it needs to be replaced. Even though they cost more at first, stainless steel clamps usually end up being cheaper in the long run because they last longer.

In the long run, it saves a lot of money to cut down on upkeep costs. Clamps made of stainless steel don't need much care other than being checked every so often. On the other hand, galvanized clamps might need to be replaced or have their paint changed more often. Over the lifecycle of an average project, changes in the cost of materials tend to change less than changes in the cost of labor for fixes and replacements.

Choosing materials also takes into account things that lower the risk. Stainless steel hardware of good quality is stable and does what it's supposed to do. This makes it better for safety-critical uses and lowers the risk of liability and failure.

Procurement Considerations for Stainless Rope Clamps

When you buy things strategically, you can keep good relationships with your providers, get the best deals, and always get items that meet project and safety needs.

Supplier Evaluation and Certification Requirements

Standards for quality show that you can make things and keep the process under control. If you get ISO9001 approval, it means you care about quality management systems. If you get CE marking, it means you meet European safety standards. When you have to follow strict rules or work on projects with people from other countries, these licenses become very important.

Key quality factors can be seen in the documentation of the producing process. Modern ways of making things like precision casting, forging, and grinding make sure that the sizes and qualities of the materials are right. Different ways of cleaning the surface of something change how it looks and how well it keeps rust away. Because of this, they are important things to think about when choosing building materials.

Keeping track of where things came from is important for quality control and following the law. The full mill papers show what is in the stainless steel from the raw material to the final check. They make sure that the grade standards and technical values are met.

Volume Pricing and Customization Options

For the most part, standard product lines have the best prices and the most common sizes and specs in stock. But custom production can be helpful sometimes because it lets you make things that aren't standard in terms of size, weight, or style. Leading manufacturers keep a steady stock of goods and can also make items when customers place an order. This way, they can meet the needs of a wide range of customers.

A lot of the time, bulk pricing has breaks for numbers that make the cost of each item much lower when you buy a lot of them. Buyers who know these price ranges can place the best orders at the best times and in the right amounts to get the best deal. Some sellers let you use blanket purchase orders with planned releases to get savings on large orders and keep track of how much product you need.

Supply Chain Management and Lead Times

The right wait times are needed to plan production for both standard and special goods. Standard sizes may be in stock and ready to ship right away, but sizes and specs that aren't common may take two to four weeks to make. When planning projects, it's important to keep in mind that moving things between countries takes longer.

Good ways of inspecting goods as they come in help make sure that the given goods meet performance and design standards. It's easy to trust the work of the provider and the quality of the product when you see sample tests, check measurements, and look over paperwork. Making clear guidelines for acceptance cuts down on delays and makes sure that the project requirements are met.

Conclusion

If procurement experts know how to choose, install, and maintain the right stainless rope clamps, they can make decisions that balance performance goals with cost worries. Good stainless steel clamps are used when safety and longevity are very important. This is because they don't rust as easily and have better mechanical qualities. If you install and take care of these important fixing tools the right way, they will last for decades in a wide range of industrial settings.

FAQ

What determines the correct number of clamps needed for a wire rope termination?

How much weight the wire rope needs to hold and how thick it is will determine the answer. If the rope is up to 1/2 inch wide, it usually needs three clamps. If it is 5/8 inch to 3/4 inch wide, it usually needs four clamps, and if it is more than 3/4 inch wide, it usually needs more clamps. Some important uses may need more clamps than the basic requirements to make sure everyone is safe.

Can stainless rope clamps be safely reused after removal?

If the stainless steel clamps are still in good shape and don't have any damage, rust, or thread wear, they can be used again. Look for rope in the saddle gap and make sure the threads can move around without getting stuck. If any screws are broken or have too much wear, you should replace them so that safety works right.

How do I verify compliance with marine industry standards?

Check the papers from the maker to see if it meets the standards, such as EN 13411-5 for lifting or AISI specs for material grades. Ask the mill for papers that show what the stainless steel is made of and how well it works mechanically. Important safety parts for the navy need to be approved by Lloyd's Register or a similar group for many uses.
