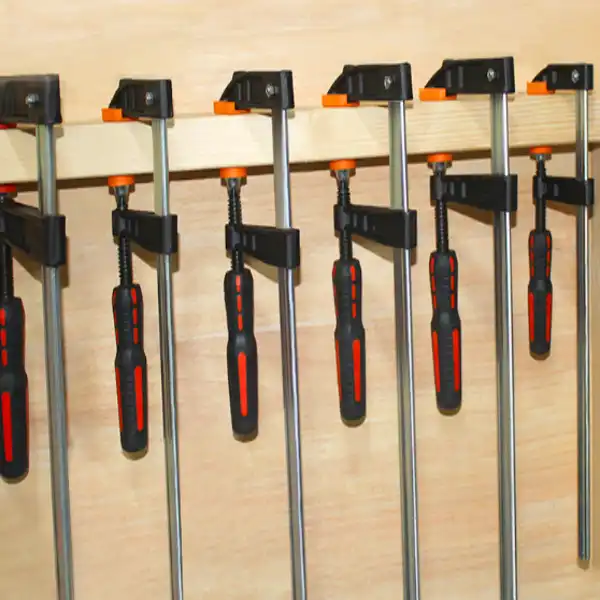

Heavy Duty American F-Clamp for Professional Workshop Projects

The F-Clamps/american-f-clamp">American F-Clamp is the best clamp for professional use when it comes to holding things securely and quickly in the workshop. The heavy-duty tool is made of cast iron that can be shaped and features precision-engineered steel rails that are strong enough to handle woodworking, welding, and assembly tasks. Professional-grade clamping devices have the jaw strength and throat depth needed for demanding industrial settings where material security directly affects project quality and worker safety. This is in contrast to lightweight alternatives that sacrifice stability for convenience.

Specification
Specification	Total Length(mm)	Total Width (mm)	Clamping Length(mm)	Clamping Width(mm)
6 Inch	248	110	160	60
12 Inch	395	110	308	60
18 Inch	550	110	460	60
24 Inch	700	110	615	60
30 Inch	850	110	765	60
36 Inch	1000	110	915	60

Understanding Heavy Duty American F-Clamps

What Defines an American F-Clamp?

This clamping tool is different from other workshop tools because of the way it is built. The frame is made up of cold-drawn steel rails with sharp serrations that lock the moving arm tightly in place and cast iron jaws that can be shaped. This way of thinking about design solves a very important problem in the workshop: keeping the pressure steady without slipping while doing operations with a lot of shaking, like cutting or grinding. The throat depth is usually between 80mm and 120mm, which lets professionals get to the middle of big pieces of work when edge clamps don't work.

Core Components That Matter

Procurement managers can make better decisions when they know how professional binding equipment works. The steel rail, which holds the whole assembly together, snaps into place around the fixed jaw. The moving arm moves along this rail and is held in place by a clutch plate that fits into the grooves on the rail. The Acme threads on the screw rod allow for fast force transfer with little friction loss. The swiveling pad can be used on surfaces that are not parallel to each other without damaging finished materials. Heat treatment is used to make each part 40–48 HRC hard. This keeps the biting mechanism from breaking down after thousands of tightening cycles.

How It Differs from C-Clamps and Bar Clamps

C-clamps work great in small spaces but don't have enough throat depth for large assemblies. Bar clamps are good for length, but they can't handle the concentrated force needed for laminated bonding, where glue lines need to close all the way. This gap is filled by the American F-Clamp design, which has a deep throat reach and binding forces of more than 500 kg in heavy-duty types. The serrated rail system stops the slow loss of pressure that happens with friction-based bar clamps, so the tension stays high during long glue-up times.

How to Choose the Right Heavy-Duty American F-Clamp for Your Workshop

Critical Selection Criteria for B2B Procurement

Size requirements must match the needs of the actual project. A 12-inch model has enough reach for normal cabinet work, while 24-inch and 36-inch models can handle wide tabletop setups. Clamping force levels between 3000N and 7000N show whether the tool can work with delicate veneers or bonded hardwoods. Material proof is very important because real expert tools are made of malleable iron instead of brittle grey cast iron that breaks when it's stressed. When used over and over, the type of handle affects how comfortable the operator is. For example, thermoplastic rubber grips are better for hand fatigue than bare metal handles.

Comparing Alternatives: When to Choose What

Bar clamps are good for quickly placing things when the most force isn't needed. Pipe Clamps are a cheap way to make projects bigger than they need to be. For projects that need both long reach and constant pressure, the American F-Clamp design works best. The parallel jaw design keeps boards from bowing during panel glue-ups, which is good for furniture makers. The metal design is better for welding shops than plastic-bodied quick-grips because it can handle heat better. Knowing these differences helps you avoid buying the wrong things, which can hurt the results of your job.

Performance Indicators for 2024

In professional workshops, tools that are zinc-plated are better at resisting corrosion than painted models when used in damp conditions. Measurements of how straight the rails are are important—any variation of more than 0.5 mm leads to uneven pressure distribution that can be seen in finished work. Screw thread pitch affects clamping speed; 6 threads per inch standards strike a good mix between fine pressure control and quick change. Load testing shows that devices that are made correctly keep their full rated force without jaw deflection, while imports that aren't up to par lose 15 to 20 percent of their force over time.

Proper Use and Maintenance for Optimal Performance

Step-by-Step Usage Protocol

Put the fixed jaw against the edge of the workpiece, then move the arm to a close enough position before tightening. Start by applying hand-tight pressure and making sure that the jaws touch the surface evenly all over. As you watch the part move, turn the handle in quarter-turn steps. When working with wood, don't tighten past the point where the glue starts to squeeze out. Too much force dries out joints of adhesive. To get the best heat transfer during the tacking process, make sure the contact surfaces of the metal you are clamping for welding are clean and flat.

Avoiding Common Operational Pitfalls

According to workshop maintenance logs, 60% of early tool failures are caused by being out of alignment. For an American F-Clamp, the clutch plate should engage the rail serrations straight on, not at an angle that makes a point load. When workers don't fully retract the screw before moving the sliding arm, thread wear speeds up. When you push on the screw while it's stuck against the rail, you break the Acme threads. Copper-backed covers can be used to protect swivel pads from direct welding spray. Clean up the glue squeeze-out right away—dried glue keeps pads in place, which scores finished surfaces.

Maintenance Practices That Extend Service Life

Once a month, wire-brush the rail serrations to get rid of the sawdust and glue residue that is building up and stopping the clutch from engaging. To keep the friction grip, don't put any oil on the rail where the clutch plate touches it. Light machine oil should only be used on the screw threads and the pivot point of the swivel pad. To keep the springs in the clutch system from wearing out, store devices with the jaws only partly open. Every year, check malleable iron castings for tiny cracks that form from repeated impact or over-torquing. Close the jaws while they are partially loaded to make sure they are aligned. If there is any skew, it means that parts are old and need to be replaced before they affect the quality of the workpiece.

Where and How to Procure Heavy Duty American F-Clamps for Your Business

Optimal Purchasing Channels

Direct relationships with manufacturers offer the best mix of technical support and price flexibility based on volume. While distributor networks offer faster shipping for regular sizes, they don't give you many ways to make the order your own. Online B2B platforms let you compare prices from different sellers, but you need to be very careful to make sure that the product specs are correct. Wholesale tool sellers do a good job of serving local markets, but they may only have a few SKUs available. To keep inventory costs as low as possible while still making sure that production schedules are always met, procurement managers should compare the minimum order numbers to the real rates of consumption.

Strategic Price-Quality Balance

When you buy in bulk from well-known companies like FLA Industrial & Trading Co., Ltd., you save money on each unit compared to buying on the spot market. Failure rates, warranty terms, and downtime costs from poor tools must all be factored into the real cost calculation. Total cost of ownership goes up when you buy a device that costs 30% less but only lasts half as long. Ask for certificates of the materials that confirm the makeup of malleable iron and the heat treatment methods. Before agreeing to large orders, samples should be load tested in-house. Stock-outs can cause project delays, so it's important to work with sellers who keep a lot of inventory—at least 2,000 tons.

Evaluating Manufacturer Credentials

ISO9001 approval means that quality control is systematic, not batch-dependent. Manufacturers with 40 years of experience know the differences in metalworking that make reliable tools different from average ones. It's important that the product range is deep; providers with 1,000 or more specifications show that they have the engineering skills to meet unique needs. Being sold on the international market in tough places like Germany and the US says that Products" target="_blank" style="color:blue" >products meet high standards for safety and efficiency. Technical help after the sale that is available within 24 to 48 hours is what sets partners apart from vendors, especially when unique solutions need joint engineering.

Conclusion

Professional workshops need American F-Clamp solutions that work well over and over again, even when things get tough. The design meets important needs for a deep throat reach, high clamping force, and stability that doesn't change with shaking that smaller options can't match. To make the right choice, you need to match the tool's specs to the needs of the job and check the quality of the materials using certifications and testing procedures. Strategic buying from well-known companies gives business-to-business customers the dependability, customization help, and technical partnership they need to stay competitive in the welding, assembly, and woodworking industries.

FAQ

What size American F-Clamp should I purchase for cabinet installation?

For cabinet work, you usually need 12-inch to 18-inch models with enough throat depth to reach frame centers while still being easy to move around in a workshop. Most thicknesses of cabinet material can be clamped with a 60mm clamping width, which is standard on all professional models. Getting a variety of sizes—6 inches for edge work, 12 inches for normal assemblies, and 24 inches for face frames—ensures that you can cover all possible installation situations without sacrificing reach or force capacity with the American F-Clamp.

How does clamping force differ between American F-Clamps and quick-release clamps?

Professional heavy-duty American F-Clamps can hold up to 700 kg because of the screw mechanism's mechanical edge, while quick-release models can only hold up to 200 kg at most. The toothed rail lock keeps the pressure on forever, while friction-based methods in quick clamps lose tension over time when they shake. In laminated joinery, where weak bonds are caused by glue lines that don't close all the way, or in welding, where metal-to-metal contact must stay tight during the tacking process, this difference in force becomes very important.

What warranty coverage should I expect from quality manufacturers?

Reliable suppliers offer warranties that cover flaws in the materials or the way they were made for at least one year. This should include replacing any malleable iron plates that have broken, rails that are bent, or screw threads that are stripped from normal use, not abuse. Manufacturers who are ISO9001 certified have documented quality systems that back up guarantee claims with clear review methods. Problems are usually fixed within two weeks of being reported.

Partner with FLA Industrial & Trading Co., Ltd. for Your American F-Clamp Supplier Needs

Clamping solutions that are made for professional settings should be used in your business. Every heavy-duty tool that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience in the business. We use ISO9001-compliant precision cutting on cast iron that is easy to shape. Our 2,000-ton collection means that normal sizes are always available, and we can make unique configurations in 7–15 days with our custom fabrication services. Procurement managers get quick technical support, and specifications and 3D design help are delivered within 24 to 48 hours. Email our team at sales@flaindustrial.com to talk about big discounts, customization options, and how our American F-Clamp solutions can help your business run more smoothly and deliver better project results.
