How Does Aluminum Motor Housing Improve Industrial Motor Performance?

Aluminum Motor Housing significantly improves industrial motor performance through superior thermal conductivity—up to three times higher than cast iron—enabling motors to dissipate heat faster and operate cooler. This enhanced cooling prevents overheating, reduces thermal stress, and extends motor lifespan, especially critical in continuous-duty industrial applications. The lightweight nature of aluminum reduces overall motor weight by nearly 50% compared to cast iron alternatives, improving energy efficiency and reducing strain on mounting structures. Additionally, aluminum's excellent corrosion resistance and EMI shielding properties make it ideal for harsh environments where reliability and performance consistency directly impact operational uptime and maintenance costs.

​​​​​​​

Specification
Parameter Item	Specification
Product Name	Aluminum Motor Housing
Material	Aluminum Alloy/ Cast Iron
Surface Finish	Painted or Powder Coated
Manufacturing Process	Die Casting,Sand Casting,Machining
Customization	Available (Special-shaped Parts Supported)
Application Scope	Construction,Transportation,Industrial Machinery,Home Improvement
Certification	ISO9001 Certified
Origin	China
Lead Time	7-15 Days(Customized Orders)

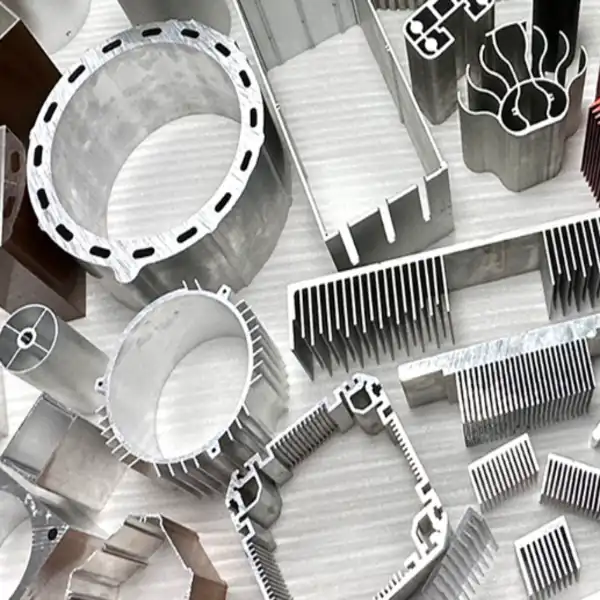

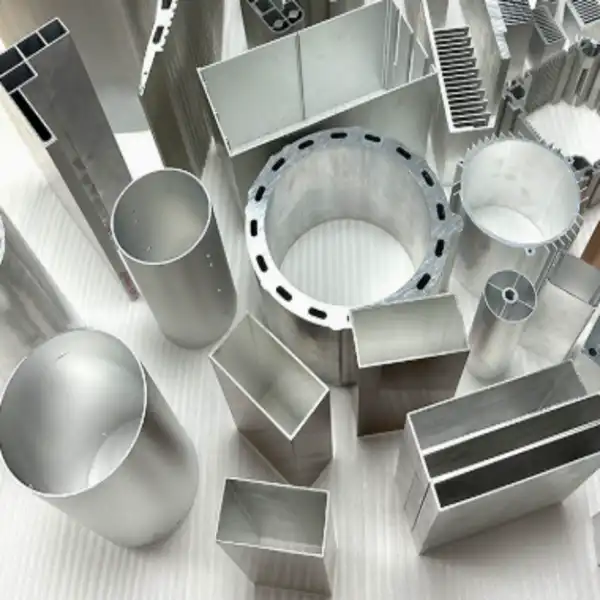

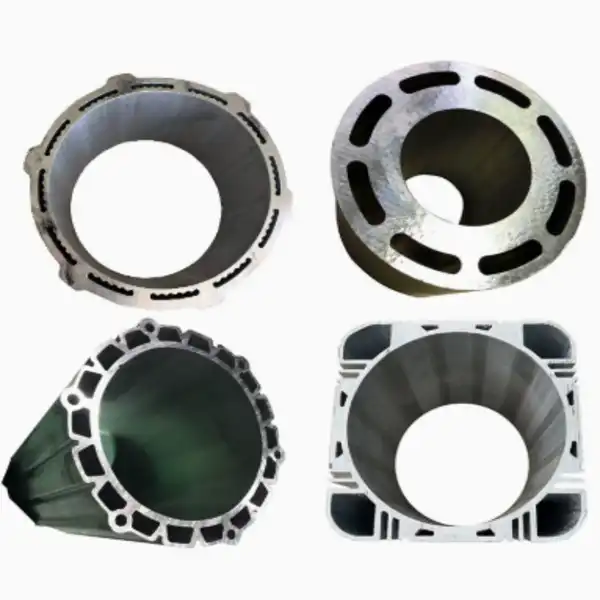

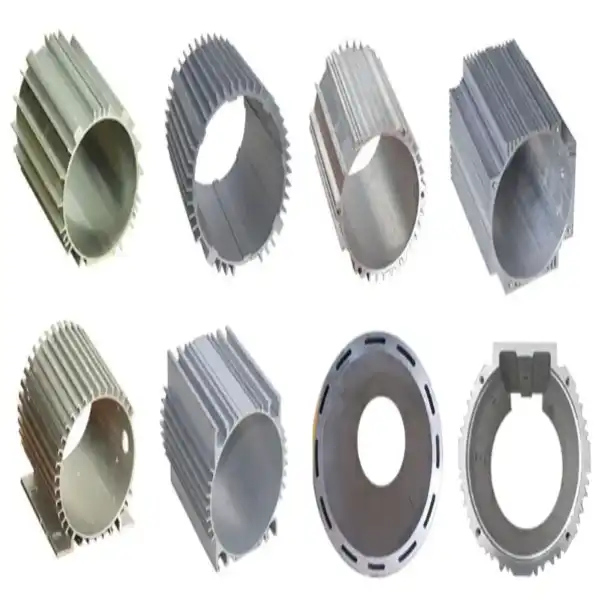

Understanding Aluminum Motor Housing and Its Role in Industrial Motors

Aluminum Motor Housings protect the inside parts of electric motors from dirt, damage, and environmental hazards while also providing support and mounting points. The choice of case material has a direct effect on how reliable the motor is, how well it handles heat, and how long it lasts.

What Makes Aluminum Ideal for Motor Housings?

Aluminum alloys are useful for current motor designs because they are both strong and good at keeping heat in. Cast metal housings are easy to build for complicated shapes, while polished housings are very accurate in terms of their dimensions. The material's mass of about 2.7 g/cm³ saves a lot of weight without affecting the strength of the structure.

Different manufacturing processes are used for different purposes. Die casting is good for mass production because it lets complex features like mounting frames and cooling fins be built into the body. CNC machining makes sure that the bearing holes and fixing surfaces are perfectly round, with margins usually staying between 0.01- 0.02 mm. This keeps the bearings from moving or breaking before they're supposed to.

Key Technical Specifications That Matter

Performance standards for motor housings decide how well they work. IP ratings, which usually range from IP55 to IP67, show how well something is protected against dust and water getting in. Higher ratings are very important in washdown areas or outdoor installations that get wet and dirty all the time.

The composition of a material has a big effect on its performance. The tensile strength of A356 Aluminum Alloy is between 150 and 310 MPa, and it can be cast easily into complicated forms. With a density of 2.7 g/cm³, the 6061 Alloy is very resistant to corrosion, which makes it good for use in sea or chemical processing settings. ADC12 Aluminum has a very high tolerance to thermal wear, which is especially useful in motors that start and stop a lot.

Accuracy in measurements affects how well bearings work and how straight the shaft is. Bearing bores need ISO H7 or J6 tolerance fits to make sure the bearing fits properly without too much contact, which could damage the bearing or not provide enough support, which could cause the shaft to run out of alignment.

Industrial Applications Driving Demand

Motor housings are used in many different fields, and each one has its own performance needs. Aluminum doesn't rust, which is good for HVAC systems that have outdoor fan units that are always exposed to water. The thermal properties of the material help it get rid of heat effectively, which keeps condensing units and air handlers running at their best temperatures.

Automotive uses, especially in electric cars, need battery housings that are light and extend the battery's range. Motor housings that are cooled by liquid and have water jackets built in handle the heat that is generated during acceleration and regenerative braking. These housings have to be able to handle temperature changes and vibrations while still keeping the car leak-free for its entire life.

For robotics and industrial automation, servo motor housings need to have low spinning friction and quickly lose heat. Thermal management is very important for compact designs that pack a lot of power into small spaces. Extruded aluminum housings have uniform cross-sections that work well with standard servo motor families. Die-cast versions, on the other hand, can be mounted in a variety of ways to fit a robotic arm.

Housings for pump systems in chemical processing plants need to be able to resist corrosion so they can handle harsh fluids and weather outside. Specialized surface treatments, such as marine-grade powder coats or hard anodizing, protect even more than the natural oxide layer of the base material.

How Aluminum Motor Housing Enhance Motor Performance?

Aluminum Motor Housings have performance benefits that show up in a number of operational areas and have a direct effect on motor efficiency, reliability, and service life.

Superior Thermal Management Extends Motor Life

Aluminum Motor Housings can move heat away from motor windings and bearings about three times faster than cast iron ones because they have a thermal conductivity range of 90 to 160 W/m·K. This fast heat loss keeps the working temperature low, which keeps the insulation on the windings from wearing down and increases the life of the bearing grease.

When motors are running at lower temperatures, their torque and power output are more stable. When there is too much heat, the resistance of the windings goes up. This lowers the available power and forces motors to draw more current to keep working. Using Aluminum Motor Housings for efficient cooling keeps operating temperatures stable, which saves energy and cuts down on electrical use.

The temperature benefits are most clear in situations where there isn't a lot of airflow or where the system is sealed. Variable frequency drives make more heat through switching losses. Aluminum Motor Housings help handle these high thermal loads without the need for motor frames that are too big or extra cooling fans.

Weight Reduction Impacts Energy Efficiency

When compared to cast iron housings, lowering the weight of the motor by 40–50% has real benefits in mobile applications and systems that need to be moved around a lot. Less mass means less energy is used during rounds of speeding up and slowing down. This is especially important in robotics, where motion changes all the time quickly.

Less operator fatigue and better maneuverability are good for construction equipment and portable power tools. It's easier and takes less work to install lighter motors because they can be mounted on structures that can't support heavier ones.

Because the power-to-weight ratio is better, machines can be made smaller without losing efficiency. Manufacturers can choose smaller motors that produce the same amount of power, which reduces the total system size and the cost of materials used to put the equipment together.

Corrosion Resistance Ensures Long-Term Durability

In most places, aluminum naturally makes an oxide layer that stops it from rusting further. This natural resistance is useful in industries that work with food, at sea, and outside, where cast iron housings would rust and break down quickly.

Options for finishing the surface make this natural security even better. Powder coating adds an extra layer of protection and lets you use color coding to help you find the motor and tell the brand apart. Anodizing makes the surface harder and better at insulating electricity, which is useful in situations where EMI protection is needed or where chemicals are present.

Because they don't rust, these qualities make maintenance periods longer and lower the total cost of ownership. Motors need to be replaced less often, and housings stay strong without breaking down like metal materials do when they are exposed to water and chemicals.

Mechanical Strength Maintains Reliability Under Stress

Even though Aluminum Motor Housings are less dense, they are still strong enough for demanding uses. Tensile strengths between 150 and 310 MPa can support mounting forces and bearing loads without deforming due to vibrations in operation.

Flexing that could lead to bearing misalignment or shaft runout is kept to a minimum by structural rigidity. The right rib designs and wall thickness optimization give the required stiffness without adding too much weight. Using advanced finite element analysis during the construction process makes sure that housings meet mechanical needs and have the best spread of materials.

Vibration damping properties help cut down on noise transmission and shield internal parts from shock loads. The qualities of the material soak up vibration energy, which protects the bearing races and lowers the stress that causes motor parts to wear out.

Comparing Aluminum Motor Housing to Other Materials: Making the Right Choice

When choosing a material for an Aluminum Motor Housing, you have to weigh a lot of performance factors against cost concerns and the needs of the product. Knowing the pros and cons of different building materials helps you make smart buying choices.

Aluminum Versus Cast Iron: The Traditional Alternative

Cast iron housings were the most common type of motor housing for many years because they were cheap and easy to work with. Iron has better electromagnetic qualities than other metals, which can help some motor designs cut down on magnetic losses. Although it can conduct heat, it can only do so at about 50 W/m·K, which is less than Aluminum Motor Housing’s range of 90–160 W/m·K.

When motor frames get bigger, changes in weight become important. An Aluminum Motor Housing 10 HP motor might weigh 15 to 20 kg less than a cast iron one. This could affect the cost of shipping, the amount of work needed for installation, and the amount of support needed for the structure. Aluminum Motor Housing is becoming more popular in industries that are switching to more energy-efficient designs, even though it costs a little more. This is because aluminum has a higher lifecycle value because it uses less energy and lasts longer.

When used outside or in corrosive settings, metal is the best choice because it doesn't rust. Protective coats for cast iron are expensive and eventually wear off, leaving the base metal open to rust. Aluminum Motor Housings keep their structural integrity with little surface preparation, which lowers the cost of long-term upkeep.

Steel Housings: Strength at a Weight Penalty

Steel motor housings are very strong mechanically and have electromagnetic properties that are useful in some motor designs. Welded steel designs can handle unique shapes that aren't possible with cast housings. But steel's thermal conductivity is about the same as cast iron's, at 50 W/m·K. This makes it less effective at getting rid of heat.

To protect against corrosion, you have to paint or plate the metal, which adds steps to the making process and upkeep needs. Steel has more weight problems than even cast iron, so it's mostly used when mechanical loads need the most strength or when custom fabrication gives designers design advantages that cast materials don't have.

Plastic and Composite Options: Specialized Applications

Polymer housings are used for small motors in home Products" target="_blank" style="color:blue" >products where saving money is more important than performance. Plastics are great at resisting corrosion and being easy to build with, but they aren't good at transferring heat or being strong enough for commercial use. Reinforced materials make things stronger, but they can only be used in quarter-horsepower motors that don't make a lot of heat.

Magnesium Alloys: Emerging Performance Material

Even less dense than Aluminum Motor Housing, magnesium alloys have a density of about 1.8 g/cm³. This makes them useful for saving weight in aircraft and high-end car uses. Thermal conductivity is very close to aluminum's, which means it's very good at getting rid of heat. But higher material costs, the need for specialized machining, and worries about corrosion make it hard for many people to use. When magnesium housings are put together with metals that are not the same, they need protective coatings and to be handled carefully to avoid galvanic corrosion.

Professionals in procurement usually save magnesium for uses where the extra weight is worth the extra cost, like in drone motors, race car parts, or portable gear where every gram matters.

Procurement Insights: Sourcing High-Quality Motor Housings

To do successful sourcing of an Aluminum Motor Housing, you need to look at more than just price when evaluating suppliers. You should also look at their manufacturing capabilities, quality systems, and the possibility of forming long-term partnerships.

Evaluating Supplier Capabilities and Certifications

ISO9001 approval is a basic way to make sure that quality management systems are in place, but a more thorough review shows that the manufacturing process is competent. Suppliers should show that they have experience with precision casting and CNC machining, as well as the ability to keep tolerances that are very tight, which is necessary for fitting bearings and mounting surfaces.

Use coordinate measuring machines to check the accuracy of the measurements on sample parts. Ask for material approvals that say the alloy meets the standards. The alloy composition can be A356, ADC12, or 6061, based on your needs. The chemical composition that affects mechanical qualities and corrosion resistance is confirmed by spectrometric analysis results.

Check the quality control methods, making sure they include the ability to do non-destructive testing. X-ray or CT scanning can find holes or openings inside castings that might weaken their structure or allow leaks to happen in liquid-cooled designs. Leak testing tools use gas differential pressure decay or helium leak monitoring to make sure that the IP rating is met.

Customization Options and Engineering Support

Standard housings from catalogs work for a lot of different uses, but unique designs work best for certain situations. Suppliers who are good at what they do offer engineering support from the first idea to production, which can include 3D modeling, finite element analysis, and making prototypes.

Customization includes making mounting arrangements, cooling fin designs, and bearing hole sizes that fit your motor design. By getting rid of different parts, integrated features like wire entry points, lifting lugs, or sensor mounting brackets make assembly easier and more reliable.

FLA Industrial & Trading Co., Ltd. is an expert at making custom-shaped parts that meet the unique needs of many different industries, and for Aluminum Motor Housing, our engineering team offers full support, including creating molds, verifying 3D models, and improving product layouts to make sure that housings fit perfectly with your motor designs. Our engineering team offers full support, including creating molds, verifying 3D models, and improving product layouts to make sure that housings fit perfectly with your motor designs.

Production Considerations: MOQ and Lead Times

Minimum order numbers change depending on how the product is made and how much tailoring is needed. Due to the cost of the tools, die-cast housings usually need higher MOQs, usually between 500 and 1000 pieces. Machined housings, on the other hand, can handle smaller batches starting at 50 to 100 units, depending on how complicated they are.

Lead times depend on how things are made and how much they can hold right now. Standard catalog items ship right away from stock, but custom castings take 7–15 weeks, which includes making the molds, inspecting the first batch, and making more. Lead times are cut down to 3 to 6 weeks when standard castings are used to make housings.

Make sure there is clear communication about delivery dates, technical requirements, and quality standards. Suppliers should give real-time updates on production and allow acceptable changes to the design during the prototype process without charging too much for change orders.

Pricing Dynamics and Value Assessment

The price of an Aluminum Motor Housing depends on the type of materials used, how complicated the construction is, and how many are made. The cost of aluminum is usually 20–30% higher than the cost of cast iron, but Aluminum Motor Housing has a better total lifespan value because it uses less energy, lasts longer, and needs less upkeep.

When you compare quotes, don't just look at the unit price. Also look at the total landing cost, which includes tooling, shipping, and taxes. Set up multi-year supply agreements for large purchases to keep prices stable and ensure enough capacity during times of high demand.

If you want to lower your holding costs and working capital needs, you might want to look into value-added services like inventory management programs, barter arrangements, or just-in-time delivery. Suppliers with a lot of experience will give you flexible terms that work with your production schedules without making you buy too much inventory.

Design and Manufacturing Best Practices for Optimal Performance

To get the best results for an Aluminum Motor Housing, you need to pay close attention to the design details and the manufacturing method throughout the whole process.

Thermal Management Design Principles

Optimize heat dissipation by placing ribs and fins in a way that increases surface area. Vertical ribs help natural convection, and horizontal fins work well with forced-air cooling systems. The distance between fins should be just right to balance surface area and airflow restriction. Usually, 8–12 mm of space between fins keeps trash from building up and makes cooling work best.

The stiffness and rate of heat movement are affected by the thickness of the walls. Minimum wall thicknesses of 3–4 mm keep the ability to be cast while giving enough strength, though important areas may need to be reinforced. Even wall thickness stops holes and internal stresses from happening during the casting and cooling processes.

Liquid-cooled systems use water jackets that need to be built so they don't leak. The shape of the jacket needs to encourage turbulent flow to keep hot spots from forming and keep pressure drops to a minimum. Using vacuum die-casting methods and then vacuum impregnation sealing to make sure the water jacket is completely sealed meets IP67 standards for underwater use.

Manufacturing Workflow and Quality Control

Before production can start, the metal must be chosen, and the casting parameters must be optimized, and for Aluminum Motor Housing, the fill rate, pour temperature, and cooling cycles all have an effect on the structure and mechanical properties of the grains, and controlled solidification reduces the number of holes and shrinking flaws that weaken structures. The fill rate, pour temperature, and cooling cycles all have an effect on the structure and mechanical properties of the grains. Controlled solidification reduces the number of holes and shrinking flaws that weaken structures.

Critical measurements, such as bearing bores, mounting surfaces, and shaft centerlines, are set by machining processes. Multi-axis CNC machines can make complex parts in a single setting, keeping positional tolerances and getting rid of mistakes that build up over time from doing many operations.

During production, there are quality checks. Spectrophotometer analysis is used to check the alloy composition during the incoming material inspection. During the manufacturing process, coordinate measuring machines are used to check that the bearing bores are concentric, perpendicularity, and parallelism are all within the allowed tolerances.

When the housings are finished, they go through a lot of tests, such as checking their dimensions, testing for leaks in liquid-cooled designs, and looking for flaws on the surface. Documentation packages are sent with orders to help with quality control and tracking.

Surface Treatment and Finishing Options

Cleaning and degreasing the surface is the first step in surface preparation. This gets rid of casting leftovers and machine oils. Chemical solutions may include chromate conversion coating, which protects against rust and makes it easier for paint to stick.

Powder coating gives things a long-lasting finish that doesn't chip, scratch, or react with chemicals. Color options help people find products and meet brand standards. The thickness of the coating is usually between 60 and 120 microns, which provides good defense against the effects of dimensional error.

Anodizing raises the surface hardness to 60–80 HB and improves its ability to fight rust and conduct electricity. Type II anodizing gives finishes that look nice, and Type III Hard Anodizing is used for things that need to be resistant to wear or EMI. Depending on the performance needs, anodized layers are anywhere from 5 to 25 microns thick.

Industry Innovations Enhancing Performance

The heating qualities and strength-to-weight ratios of advanced alloys are still getting better. Optimizing the amount of silicon and copper in a material makes it easier to cast, stronger, and better at conducting heat. Adding modifiers and grain refiners to materials improves their qualities without making them much more expensive.

Hybrid designs that use both Aluminum Motor Housings and cast iron end shields improve electromagnetic performance while keeping the thermal benefits. This method works well for motor designs where ferrous materials are good for the rotor magnetic circuits, but Aluminum Motor Housing’s ability to conduct heat is needed for the stator cooling.

With additive manufacturing, you can make shapes that are too complicated to cast in the traditional way. 3D-printed Aluminum Motor Housings have structures and cooling channels that are better at what they do, which makes them lighter while keeping their strength. At the moment, it can only be used for trials and small amounts of output, but as technology improves, it could be used for more things.

Conclusion

Aluminum Motor Housings improve performance in measurable ways by better managing heat, reducing weight by a large amount, and being highly resistant to corrosion. Because the material conducts heat three times better than cast iron, it keeps working temperatures low, which extends the life of motors and makes them more energy efficient. Weight savings of 40–50%, lower construction costs and energy use in mobile uses, and resistance to corrosion lower the need for upkeep. To do a good job of procuring things, you need to look at more than just prices when comparing suppliers' manufacturing capabilities, quality systems, and customization options. By learning about material trade-offs, design principles, and the best ways to make things, you can make decisions that improve motor performance, stability, and lifetime value. As standards for efficiency and dependability rise in industry, Aluminum Motor Housing becomes the more practical choice for balancing performance needs with cost concerns in a wide range of applications, from HVAC systems to electric vehicles.

FAQ

How does thermal performance differ between aluminum and cast iron housings?

At 90–160 W/m·K, Aluminum Motor Housing moves heat around three times faster than cast iron, which moves heat at 50 W/m·K. Better heat escape keeps the motor's working temperature low, which lowers the stress on the windings and bearings. Motors last longer and use less energy because they run quieter and more efficiently.

What customization options exist for bulk orders?

Manufacturers let you make a lot of changes, like how the bearings are mounted, how the cooling fins are combined, what the bearing bore specs are, and how the surface is treated. 3D models, making prototypes, and designing tools are all common types of engineering help. Die-cast housings need 500 to 1000 pieces, while machined versions can handle 50 to 100 units, depending on how complicated they are and what the supplier can do.

Can aluminum housings withstand harsh industrial environments?

The natural oxide layer on aluminum makes it resistant to rust, making it useful in most industry settings. Specialized surface processes give more protection: hard anodizing protects against chemical exposure, powder coating stops mechanical damage, and marine-grade finishes are good for places with saltwater. It's important to choose the right materials. For tough jobs where regular alloys might break down, 5xxx series alloys or specially treated A356 offer better corrosion resistance.

Partner with a Trusted Aluminum Motor Housing Manufacturer

FLA Industrial & Trading Co., Ltd. makes Aluminum Motor Housings with great care and has been doing so for almost 40 years. Our ISO9001-certified factories make housings out of high-quality A356 and 6061 Aluminum Alloys. They use advanced die-casting and CNC machining techniques to keep tolerances between 0.01 and 0.02 mm. We offer full engineering support from the initial design phase through production and are experts at making custom solutions that meet unique needs. We can deliver standard products right away and finish custom orders in 7–15 working days because we keep 2,000 tons of inventory on hand and have streamlined our processes. Within 24 to 48 hours, our experienced team gives you technical specs, 3D designs, and prices. To talk about your motor housing needs, email our buying experts at sales@flaindustrial.com. We provide reliable solutions that support your business success, whether you need regular catalog items or custom designs for unique uses. You can look at all of our products at flaindustry.com and learn why Fortune Global 500 companies trust our quality and service.

References

1. Chapman, Stephen J. Electric Machinery Fundamentals, 5th Edition. McGraw-Hill Education, 2012.

2. Molloy, Michael T. "Thermal Management in Electric Motor Design: Material Selection and Performance Optimization." Journal of Mechanical Engineering Science, vol. 234, no. 8, 2020, pp. 1456-1472.

3. Anderson, Robert K. and Davis, Jennifer L. Industrial Motor Systems: Design, Application, and Maintenance. CRC Press, 2018.

4. International Electrotechnical Commission. "IEC 60034-5: Rotating Electrical Machines - Part 5: Degrees of Protection Provided by the Integral Design of Rotating Electrical Machines (IP Code)." IEC Standards, 2020.

5. Kaufman, J. Gilbert. Introduction to Aluminum Alloys and Tempers. ASM International, 2000.

6. Zhang, Wei and Thompson, Mark. "Comparative Analysis of Motor Housing Materials: Performance, Cost, and Environmental Considerations." International Journal of Advanced Manufacturing Technology, vol. 115, no. 3, 2021, pp. 892-908.
