3 4 inch h style pipe clamp
Material: Carbon Steel / Stainless Steel / Aluminum Alloy
Application: Used for fixing and limiting various pipes, applicable to fire protection pipe networks, water supply and drainage systems, HVAC pipes and industrial pipelines, preventing pipe displacement and vibration, and ensuring installation stability
Appearance: Arc-shaped clamping structure, equipped with bolt fastening components, surface treated with galvanization or anti-corrosion coating
Origin: China
Manufacturing Process: Stamping / Forging / Machining / Welding / Surface Treatment / Assembly
Certification: ISO9001, CE, UL, GB (Chinese National Standard)

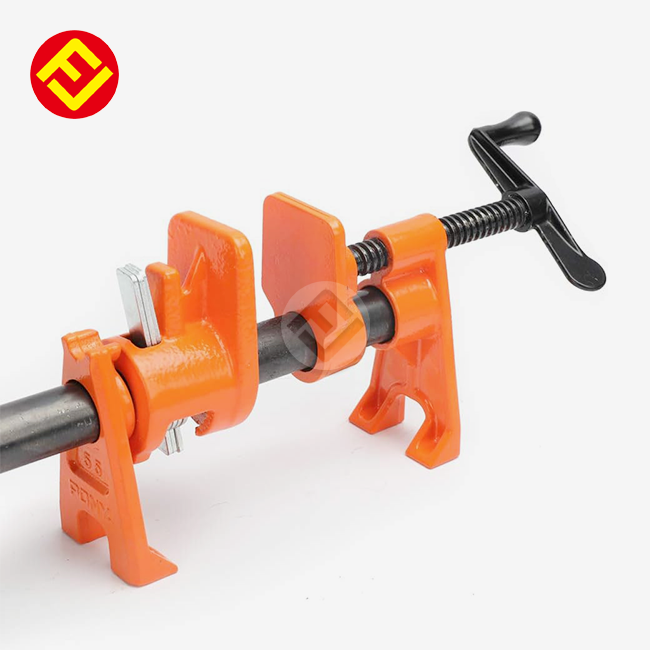

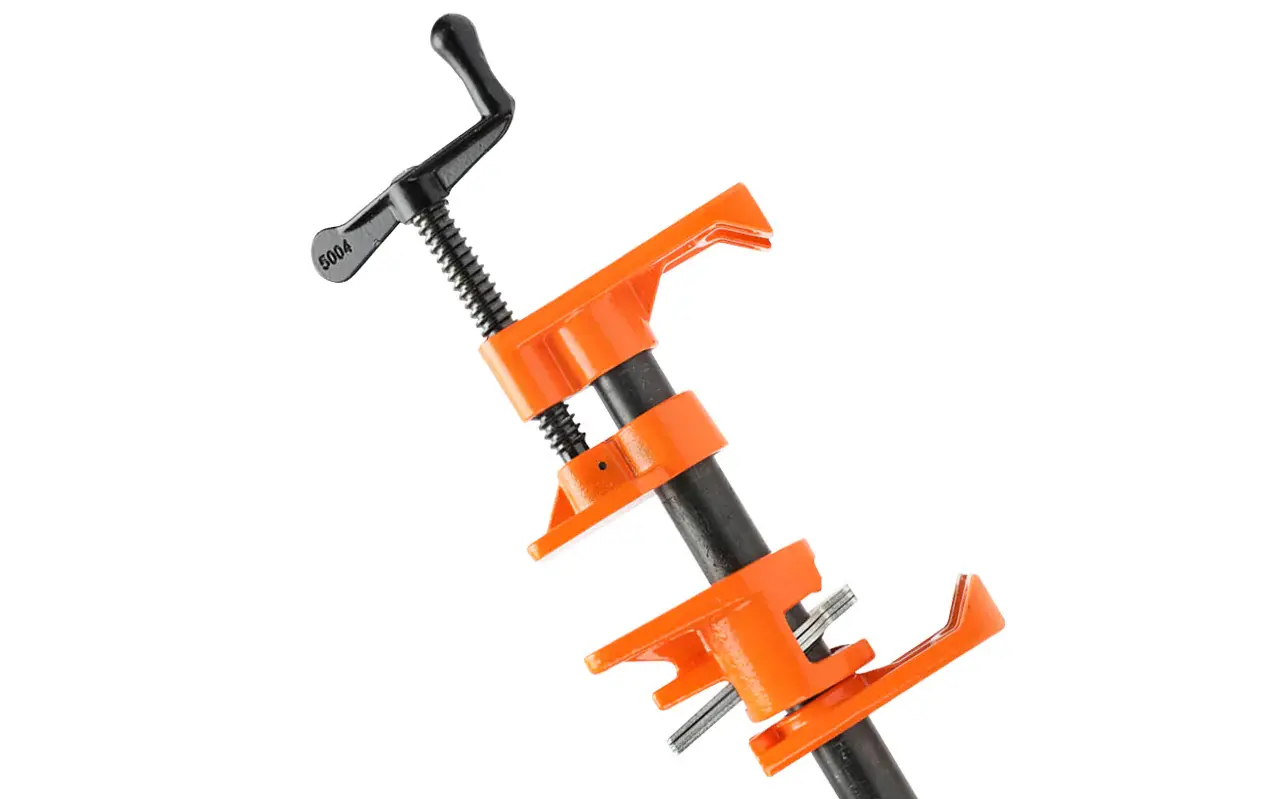

3 4 Inch H Style Pipe Clamp for Furniture Glue-Ups: Cast Iron Jaws and H-Shaped Feet
Woodworking plants are the main buyers of the 3 4 inch h style Pipe Clamp. Orders also come from cabinet shops. Furniture factories buy it too. FLA Industrial & Trading Co., Ltd supplies it. Thread the clamp onto a 3/4-inch pipe and it reaches whatever piece you cut. Cast iron makes the jaws. Inside there is a multi-disc clutch. That clutch holds 3 to 5 hardened steel plates. H-shaped feet lift the pipe about 1.5 inches off the bench. Listed clamping pressure goes past 1,500 lbs (680 kg). Send your details. Pricing comes back in 24 to 48 hours. Unit weight and 3D design feedback arrive with the reply.
Key Features of the H-Style Design
Head stock and tail stock carry the same H-shaped feet. Thanks to that footing, the clamp does not tip or roll as pressure builds. Flat panels are easier to hold during glue-ups.
With the pipe up higher, the crank handle has clear room to spin. It never hits the bench.
The headstock carries 3 to 5 clutch plates made of hardened steel. Put a load on them and they grip the pipe. Back-sliding gets blocked that way. A coarse-thread steel spindle takes the pressure. Feed it in with a crank or a sliding T-bar handle. This product has no fixed opening built in. So the pipe length you attach decides how much it holds.

Specifications
The values below are taken from the product parameter table.
| Parameter | Specification Details |
|---|---|
| Nominal Size | 3/4 inch (compatible with standard water pipes/iron pipes) |
| Material Options | Carbon Steel / Stainless Steel / Aluminum Alloy / Cast Iron / Ductile Iron |
| Throat Depth | 75mm - 200mm |
| Maximum Opening | 300mm - 600mm |
| Clamping Force | Up to several hundred kilograms (heavy-duty models) |
| Surface Treatment | Galvanization / Anti-corrosion coating / Powder coating |
| Base Design | H-shaped dual-axis stability structure |
| Special Features | Quick release mechanism / Rubber gasket / Rotating handle options |
| Manufacturing Process | Stamping / Forging / Machining / Welding / Surface Treatment / Assembly |
| Origin | China |
| Certifications | ISO9001, CE, UL, GB (Chinese National Standard) |
Data not listed in this table, such as unit weight, is not shown here. Contact Us to confirm any missing item before ordering.
Materials and Finish
Jaws get cast in malleable iron or ductile iron. A baked-on powder coat covers the cast iron body and keeps corrosion off it. Black iron pipe is the pipe we recommend for the clamp. Galvanized threaded pipe works as well.

Applications
Tabletop panel glue-ups: Set several clamps in a row along the assembly table. The H-shaped feet let each clamp stand by itself. That leaves your hands free to line up boards before the glue sets.
Custom cabinetry assembly: A standard bar clamp will not reach some casework. For those jobs, put the head and tail pieces on a longer pipe. Up high sits the 3 4 inch h style pipe clamp. That height keeps the crank handle clear of the bench as you turn it.
Door and frame fabrication: Joiners close thick stiles and rails under firm pressure. That load has to go somewhere. A cast iron body carries it. Clamping pressure runs past 1,500 lbs (680 kg), as the figures above show.

What to Check Before You Order
A sample or the drawings are where buyers normally check these points:
- Casting surface: Check the jaws closely. Pay extra attention to the neck, because the pipe enters there. Look for voids or porosity in that spot.
- Clutch plates: The plates must grip your pipe. With load on them, they should stay tight and not slip.
- Thread and handle fit: Turn the spindle by hand. It should not stick. Screw the head down until it sits fully on the threaded end of the pipe.
- Foot flatness: Put the clamp on a flat surface. Give it a push. If it rocks, that means a problem.
- Documents: The certification papers are worth asking for. Check they match your model. They also need to match the market you ship to.

Customization and Technical Support
Non-standard sizes are something FLA produces. Special-shaped parts too. Machinery and building materials are among the sectors that use them. Support covers the full order:
- Early stage: We build molds for custom parts. You also get 3D design and checks, so the shape of the product can be reviewed before production starts.
- Middle stage: The layout gets optimized. Material is confirmed at this point, and so is performance and how accurate the dimensions are.
- Late stage: Production progress updates matched to delivery progress.
Supply and Delivery of 3 4 inch h style pipe clamp
Standard Products" target="_blank" style="color:blue" >products sit in stock at FLA, 2,000 tons of them. Custom orders go out in 7 to 15 days. That covers special-shaped parts too. Your order details confirm the exact schedule.
Product info for this range lists ISO 9001 and CE. UL and GB (Chinese National Standard) appear there too.
How to Request a Quote
Send the following details for a 3 4 inch h style pipe clamp to speed up pricing and unit weight feedback:
- Pipe size and the pipe length you plan to use
- Order quantity
- Handle type (crank or sliding T-bar)
- Drawings or samples if you need a custom part
Frequently Asked Questions
Q: Black iron or galvanized pipe, which one should I use?
A: Black iron pipe is recommended. Galvanized threaded pipe is also compatible, but its smoother surface can reduce clutch grip, so test it under your working load.
Q: Why are the feet higher than on some standard clamps?
A: The H-shaped feet lift the pipe about 1.5 inches off the bench. This gives the crank handle room to turn and helps steady the assembly. This is a key design point of This product.
Q: What pipe length can I use?
A: How much you can clamp comes down to the length of pipe you attach. A long pipe can bend under load. Pick a pipe that fits your span and the pressure you run.
Q: The clamp slips when I tighten it. What do I check?
A: Make sure the pipe is clean and has no oil on it. Check the clutch plates for wear too. Still slipping? Send us photos and tell us which pipe you use.
Q: Do I need to thread both ends of the pipe?
A: No. One threaded end is required for the headstock.
Q: Can FLA customize the clamp?
A: Yes. FLA develops molds and 3D designs for non-standard sizes and special-shaped parts. Custom orders ship in 7 to 15 days.
Contact Us
Send your drawings, quantity, and pipe size to sales@flaindustrial.com to request pricing and unit weight for the 3 4 inch h style pipe clamp.
