How Strong are Stainless Steel Rope Clips?

It is important to know how strong your wire rope fittings are when you're securing heavy loads, putting safety lines, or setting up lifting equipment. When placed correctly, stainless steel rope clips are precision-engineered mechanical clamps that hold between 80% and 90% of the breaking strength of the wire rope. Their amazing strength comes from using high-quality metals—usually AISI 304 or 316 stainless steel—and exact forging or casting methods that make sure the dimensions are correct and the structure stays strong. These clips are better than galvanized ones because they don't rust and can hold their shape in high and low temperatures. This makes them essential for naval rigging, building sites, and other industry settings where failure is not an option.

Understanding the Strength of Stainless Steel Rope Clips

Wire rope clips are very strong, and that's not by chance. This reliable binding solution is made possible by carefully choosing the right materials, using precise engineering, and following strict manufacturing standards.

Material Composition and Grade Selection

Stainless steel rope clips made from AISI 304 grade stainless steel have about 18% chromium and 8% nickel, which makes them very resistant to rust and good for use in architecture and light industry. When the conditions for your projects get rougher, AISI 316 grade is the better choice. This marine-grade material has 2 to 3 percent molybdenum in it, which makes it much more resistant to chlorides, sulfuric acids, and saltwater. At FLA Industrial & Trading Co., Ltd., we make both grades using precise casting, forging, cutting, and finishing methods. This way, we can make sure that the quality is the same for all specifications, from M2 to M32. With almost 40 years of experience making clips, you can be sure that they meet the exact chemical makeup standards needed for the environmental difficulties of your application.

Mechanical Properties and Load Capacity

The tensile strength of stainless steel rope clips is directly related to how well they were forged and how they were designed. Drop-forged saddles work better than cast ones because they are more resistant to fatigue under changing loads. Our clips keep 80–90% of their holding power when placed correctly according to Federal Specification FF-C-450 or DIN 741 rules. This means that a clip rated for 1/4-inch rope can safely hold loads of up to 1,200–1,400 pounds, even though the wire rope itself can break at 1,600 pounds. The saddle presses the live end of the rope against the dead end of the rope, creating friction. This friction spreads force across the U-bolt threads and hexagonal nuts that hold the system together.

Comparing Stainless Steel to Alternative Materials

Galvanized steel clips may be cheaper at first, but they break quickly in salt water, where the zinc covering wears away through rust and pitting. Aluminum clips are lighter, but they aren't strong enough to be used for heavy-duty tasks because they can't stretch. Galvanized wire rope clips need to be replaced every few years, but stainless steel rope clips don't need to be replaced as often. Our production is ISO9001-certified, which means that the dimensions are always the same. This keeps the threads from galling, which happens with lower-quality steel fasteners, and our CE certification shows that we follow all international safety rules.

Types and Sizes of Stainless Steel Rope Clips and Their Impact on Strength

It is just as important to choose the right material grade as it is to choose the right clip type and size. Specifications that don't match up weaken staying power and create safety risks that no project manager wants to deal with.

Standard U-Bolt Clips and Heavy-Duty Variations

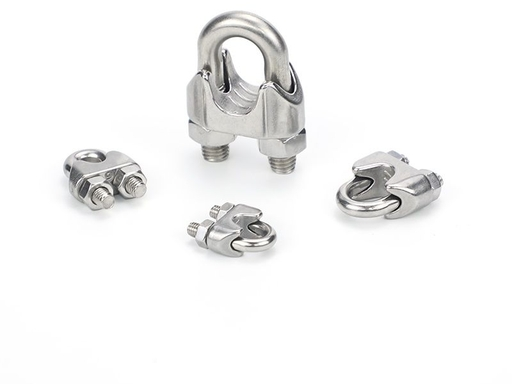

The most popular form of stainless wire rope clip has a U-shaped bolt that goes around the dead end of the rope, a saddle that holds up the live end, and two hexagonal nuts that hold the whole thing together. To better spread the clamping power, heavy-duty versions have bigger saddles and stronger U-bolt stock. When there is constant shaking or shock loading, double saddle clips give you more surface area to grab. Our bright polished finish not only makes the surface look better, but it also smooths out any bumps that could cause stress concentration points when the product is loaded.

Sizing Guidelines for Optimal Performance

It is very important to know how wire rope thickness and clip size relate to each other. An M3 or M4 clip is needed for a 1/8-inch rope, but an M26 or bigger clip is needed for a 1-inch rope. When you use a clip that is too small, the contact area is smaller, which concentrates stress that can bend the saddle or strip the threads. When clips are too big, they leave gaps that let rope slip. We keep a lot of clips in stock in all sizes, so you can be sure that the clip fits perfectly with the thickness of your wire rope. Before it is shipped, precise measuring tools are used to check every measurement, from the thread pitch to the hexagon wrench size.

Installation Quantity Requirements

The minimum number of clips needed per end is based on the width of the rope. For ropes up to 5/16-inch wide, you usually need two clips that are six rope diameters apart. For 3/8-inch to 1-inch ropes, you need three to five clips, spaced out according to the manufacturer's instructions. This extra safety feature makes sure that even if one clip comes open slightly because the rope is stretching or settling, the other clips will still hold securely. When you place an order with us, our expert support team includes specific installation charts. This takes the guesswork out of buying things.

Installation and Usage Best Practices to Maximize Strength

Even the strongest stainless steel rope clip will fail if improperly installed. Following tried-and-true methods for putting things together will protect your investment and keep your workers safe.

The "Never Saddle a Dead Horse" Rule

The most important thing to remember about fitting is that the saddle should always be on the live (load-bearing) end of the rope and the U-bolt should always be pressed against the dead (cut) end. If you flip this arrangement around, the load-bearing strands get crushed, which lowers the breaking strength by at least 50%. The saddle equally spreads the tension on the live end, and the U-bolt's pressure on the dead end creates the friction needed to keep it from slipping without damaging the important wire strands.

Proper Torque Application and Sequence

To start the installation of a stainless steel rope clip, put the first clip one base width away from where the rope ends. Tighten the nuts evenly in a cross pattern instead of one after the other to keep the saddle from getting out of place. Using a measured wrench, apply torque according to the manufacturer's instructions. If you under-tighten, the bolts can slip, but if you over-tighten, the rope strands or threads can become deformed or stripped. Once the unit is tightened all the way, add weight to it. This lets the rope settle into the saddle holes. Check and tighten all of the clips again, because the first time they are loaded usually causes them to become slightly open. This step of retorquing is often missed, but it's necessary to get the recommended keeping efficiency.

Common Installation Mistakes to Avoid

Watch out for these mistakes: putting the first clip too close to the end of the rope, which lets the dead end pull through; putting clips too far apart, which lowers the total holding force; using different clip sizes on the same termination; and not retorqueing after the first loading. We've seen projects where the right number and size of clips were used but the assembly failed because of a single peg that wasn't lined up right. Our full technical support includes installation training, documents, and quick engineering help within 24 to 48 hours of your request.

Performance Benefits and Durability of Stainless Steel Rope Clips

When you know how these clips work in real life, you can see how valuable they are beyond their original specs.

Corrosion Resistance in Harsh Environments

Grade 304 stainless steel forms a chromium-oxide inactive layer that can withstand water from the air, industrial pollutants, and food-grade conditions. When grade 316 is exposed to salt spray, chemical processing fluids, or wastewater treatment, the molybdenum presence stops the pitting and crevice rust that breaks down lower grades of materials. Our clips are tested with salt spray according to ASTM B117 standards. This shows that they can handle more than 72 hours of 5% neutral salt mist without turning red. This resistance to rust directly leads to longer service life, which means that cheaper options don't have to be replaced as often, which costs more in the long run.

Thermal Stability and Temperature Range

Stainless steel rope clips keep their shape from very cold temperatures to about 425°F (800°C). This temperature stability is important for building projects in harsh areas, factories with heat-generating equipment, and marine uses where deck hardware has to deal with both freezing spray and direct sunlight. The material doesn't break when it's cold or soften when it's hot, so it keeps its binding power no matter what the weather is like outside.

Real-World Performance Documentation

One Fortune Global 500 building company said that the corrosion problems they were having with galvanized stainless wire rope clip on a seaside bridge job went away in just 18 months after moving to our AISI 316 clips. A shipbuilding company in Germany found that deck cable systems that were exposed to constant saltwater spray did not break down during their five-year service life. These reviews show that we are dedicated to quality management systems that make sure that every production batch goes through X-Ray Fluorescence spectrometry to check the material's composition, Go/No-Go thread gauges to check the size, and load testing to make sure it meets the rated capacity with enough safety margins.

Procurement Considerations for Purchasing Stainless Steel Rope Clips

To make smart choices about sourcing, you need to balance technical needs with realistic business factors that can affect your project timelines and bottom line.

Technical Specification Requirements

First, figure out what kind of climate you're in. AISI 316 is best for marine and chemical plant uses, while AISI 304 is better for building and general construction projects. Figure out the holding strength that is needed by using the highest predicted load and the right safety factors, which are usually 5:1 for static lifting and 8:1 for dynamic lifting. Make sure that the seller you're buying from gives you material test records that show the chemical make-up, tensile strength, and resistance to corrosion. Our ISO9001 quality management system checks that all of our production runs meet these standards, and we make sure that any differences in size are in line with international norms.

Supplier Reliability and Certification Verification

As important as the product specs are, the production skills of your provider are also very important. We keep 2,000 tons of stock on hand so that we can quickly fill standard orders. For parts with unique shapes or sizes, our customization skills allow us to send them within 7 to 15 days. With this level of stock depth and production freedom, there are no longer any delays that stop projects from starting on time. The fact that we have CE approval shows that we follow European safety rules, and the fact that we have been serving customers in the US, Germany, and Australia for almost 40 years shows that we can meet a wide range of legal requirements.

Pricing Strategy and Order Logistics

When you buy a lot of stainless steel rope clips, you need to know how order volume, wait times, and per-unit costs affect each other. We can take orders from 100 pieces to more than 100,000 pieces, and there are no minimum order quantities that force you to keep extras on hand. Our mid-process optimization and 3D design confirmation services make sure that the custom specifications meet your exact needs before production starts. This keeps you from having to pay for expensive remakes. During the whole manufacturing process, real-time updates on the state of production keep your procurement team updated. This helps with just-in-time inventory management, which lowers the cost of carrying inventory.

Conclusion

The power of stainless steel rope clips comes from using high-quality metals, precise engineering, and the right way to place them. Grades 304 and 316 have the corrosion protection and tensile strength needed for tough jobs. To get the full 80–90% holding power, make sure you use the right size, amount, and torque specs. We at FLA Industrial & Trading Co., Ltd. have been making things for almost forty years, so we can give procurement professionals the quality guarantee, expert help, and supply flexibility they need. These clips are a reliable way to secure naval rigging, building safety lines, or industrial lifting assemblies. They have been tested and approved by international organizations.

FAQ

What differentiates drop-forged from cast stainless wire rope clips?

Drop-forged clips are made in a way that matches the metal grain structure. This gives them better tensile strength and wear resistance. Compared to cast forms, which may have microscopic holes that become failure places, the saddle and U-bolt can handle higher torque loads and dynamic stress. Forged design should be used for heavy-duty uses that need the best holding power.

How often should installed clips be inspected and retorqued?

Within 24 hours of the first fitting and load application, all screws should be retorqued. Visual checks should be done once a month for the first six months to look for rope slide, saddle deformation, or nuts that have come loose. Inspections should be done every three months for as long as the unit is used in high-vibration or critical safety situations.

Can I reuse clips from a disassembled wire rope system?

You can use the U-bolt again as long as it hasn't been bent, the threads are still good, and the saddle groove hasn't worn smooth. The section of rope that was clamped before has lasting damage from compression, so it needs to be cut away before it can be clamped again. When the quality of a component isn't clear, replacing it is cheaper than putting the whole system at risk of failing.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Stainless Steel Rope Clip Solutions

You need a company that makes stainless steel rope clips that knows that the strength of a part has a direct effect on the safety of a project and how well it runs. Our ISO9001-certified factory uses a mix of precision casting, forging, machining, and finishing to make sure that the quality of more than 1,000 different product specs is always the same. We get rid of the supply chain delays that mess up your plans by keeping 2,000 tons of inventory on hand for quick delivery and being able to make custom designs in 7 to 15 days. Our expert team is quick to respond and can confirm prices, weights, and 3D designs within 24 to 48 hours. This helps you make smart choices about what to buy. Get in touch with our engineering experts at sales@flaindustrial.com to talk about your unique needs and find out how our nearly 40 years of experience making high-quality gear can help you find reliable, low-cost solutions for your wire rope fastening needs.
