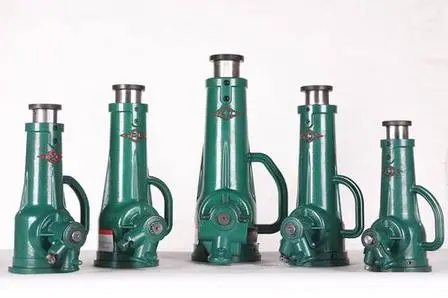

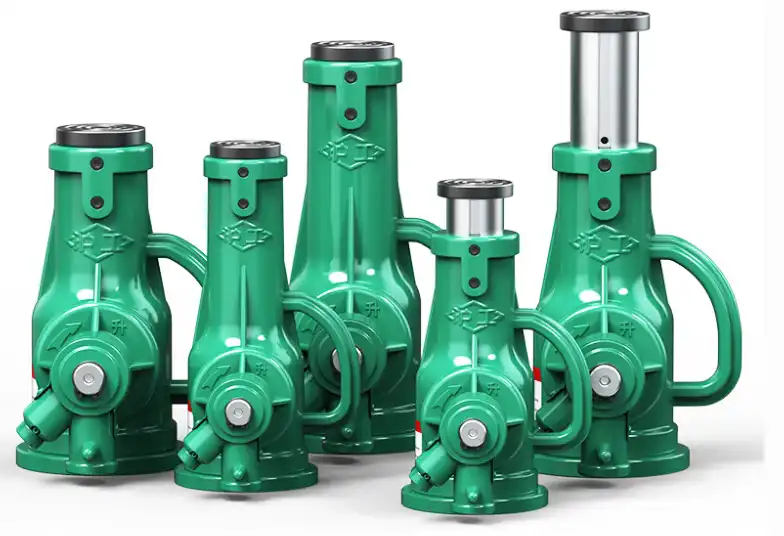

Manual Screwjacks: Reliable Lifting Solutions for Industry

If you need to lift something precisely and strongly without using electricity or hydraulics, an industrial screw jack is your best mechanical friend. You can raise, lower, place, or support thousands of pounds with amazing accuracy using these strong machines, which turn simple spinning force into controlled vertical or horizontal movement. Powerful alternatives need constant power sources or pressurized fluids that can leak. But mechanical industrial screw jacks are reliable because they are designed to be simple. This makes them essential on construction sites, manufacturing floors, and maintenance jobs where safety and accuracy are very important.

Specification
Model(t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height(mm)	Weight(kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Manual Screwjacks and Their Operating Principles

The Core Mechanics Behind Screw Jack Operation

At the heart of every industrial screw jack is a mechanical system that is both incredibly simple and very strong. Through a threaded screw mechanism, the device changes the circle motion you apply to a handle or input shaft into linear motion. A worm gear set moves either a lead screw or ball screw assembly, converting the force you apply. This creates what engineers call mechanical advantage, which means you can increase the force you apply by a large amount.

The load-bearing screw is usually made from tempered or quenched alloy steel for maximum longevity, and the moving nut is made from bronze or high-grade industrial plastics. The case is made up of precision-machined parts. The worm gear connects with the main gear when you turn the input mechanism. This makes the screw either turn inside a stable nut or stay still while the nut moves along its threads. Controlled load transmission with very high positional precision is made possible by this basic concept.

How Mechanical Lifting Differs from Hydraulic and Electric Systems?

Knowing the differences between lifting systems can help you make better choices about what to buy. Hydraulic systems use pressure fluid to make force, which makes them quick but also prone to seal failures, fluid leaks, and changes in performance caused by temperature. Electric devices make things easier by automating them, but they need to be plugged in all the time and can be dangerous in dangerous places because of electricity safety concerns.

Mechanical industrial screw jacks only work when two cut sides touch each other. They don't need any outside power to hold things in place, there is no chance of fluid contamination, and their self-locking thread design protects against overloading. The trapezoidal thread shape that is common in these devices makes enough contact to stop backdriving. This means that your load stays exactly where you put it without using energy or needing brakes.

Load Control Through Thread Geometry

You can get very accurate results with an industrial screw jack because of the way its threads are made. Standard Acme trapezoidal threads are the best combination of load capacity, speed, and the ability to lock themselves. Each full turn of the input handle moves the screw forward by a set distance, called the lead or pitch. This lets you place the screw accurately and over and over again, down to fractions of an inch.

Thread pressure is useful for two things when you're pulling. It gives you a mechanical edge that makes your input force go further when you're actively pulling. During static holding, the same friction creates the self-locking action that keeps your load in place forever without using any power. By understanding this connection, you can choose the right gear ratios and thread profiles for your application, which will make sure that everything works well and safely.

Key Applications and Advantages of Manual Screwjacks in Industry

There are a lot of different kinds of workplaces that use industrial screw jack because they are good at solving problems that other lifting methods have trouble with. Because they are reliable mechanically and can be used in many ways, they are the best choice when accuracy, safety, and not needing power sources are the most important factors.

Where Screw Jacks Excel in Real-World Applications

These devices are used by construction companies to support structures during projects like building installations, foundation work, and bridge repair, where a loss of the hydraulics could be very bad. Because they self-lock, portable support structures stay safe even when the power goes out or equipment breaks down, keeping workers and facilities safe.

Industrial screw jacks are used in factories to move machines, change the height of an assembly line, and do timed moving tasks where multiple units work together. They provide stable, long-term support for vehicles while bottom work is being done in auto repair shops. In woodworking, they are used in special gluing tools where precise pressure control keeps the material from getting damaged. Electric utility businesses count on them to be able to position heavy infrastructure parts during repair and installation work.

Pay extra attention to the coordinated lifting feature. You can control an entire system with just one motor or by hand by physically connecting several industrial screw jacks together with connecting shafts and miter gears. This mechanical synchronization makes sure that loads that aren't level or are too big are lifted perfectly level. This is something that computer synchronization systems have a hard time doing reliably and cheaply.

Comparative Advantages Over Alternative Lifting Technologies

Here are the main reasons why mechanical industrial screw jacks are so useful for buying managers looking at moving options:

• Low Maintenance Needs: Industrial screw jacks only need to be oiled and checked over time because they don't have any fluid plugs or electrical parts that can break. This directly leads to a lower total cost of ownership and an easier time planning upkeep. The solid-state mechanical design can work in difficult conditions like high and low temperatures, dust, and water that could damage hydraulic or electrical systems.
• Better safety thanks to self-locking: Thread friction stops unwanted load movement even when force is stopped. The mechanical lock provides silent safety that doesn't need to be monitored or powered. This is different from hydraulic systems that can slowly move under load or electric actuators that need brake systems. For uses involving the safety of people or the protection of important equipment, this trait is essential.
• Cost-effectiveness Across the Product Lifecycle: When you add up the starting costs of industrial screw jack technology compared to other hydraulic systems, you can see that it is usually less expensive. This is because hydraulic systems need equipment like pumps, tanks, hoses, and control valves. The low cost of operation comes from the fact that energy is not used at all when the pump is operated by hand, and powered models use a lot less power than hydraulic pumps.
• Operational Independence: If compressed air or hydraulic pressure is not available, both pneumatic and hydraulic systems stop working totally. When the power goes out, electric devices stop working. Manual industrial screw jacks keep working even if the power goes out in the building. This keeps operations going during situations or in places that don't have stable power infrastructure.

These benefits address the main issues that buying managers and project engineers have when choosing lifting equipment: dependability in real-life situations, predictable lifetime costs, and safety compliance without the need for complicated extra systems.

Selecting the Right Manual Screwjack for Your Industrial Needs

When looking for the best lifting option, you need to carefully consider both your short-term needs and your long-term operating needs. Making smart choices during the design stage keeps mistakes from being expensive and makes sure that the equipment lasts a long time.

Critical Specification Parameters

Load capacity should be your main decision factor, but meeting your highest load weight alone is not enough. A safety factor of 2:1 or more is recommended. This means that an industrial screw jack rated for at least 20,000 pounds is needed for a 10,000-pound load. This margin takes into account things like shock loads, uneven weight distribution, and wear and tear over the life of the tools.

How far your load moves during action is based on the stroke length. Find the distance you need for vertical or horizontal movement, then add space for fixing gear and possible future changes. Keep in mind that longer strokes might need column support to keep it from breaking when loads are compressed or whipping when loads are stretched.

Compatibility with mounting configurations makes sure that the load is transferred correctly between your industrial screw jack and the building around it. Clevis mounts let you load at an angle, base plates spread the weight over a bigger support area, and flange mounts let you attach directly to machinery frames. By matching the mount style to the contact with the structure, you can avoid stress points that cause the structure to fail early.

Comparing Design Variants and Their Trade-offs

Knowing the differences between translating screw and spinning screw setups can help you make the best use of the room you have. When the load is directly attached to the screw end and there is enough vertical space, translating screw designs work well. This is because the screw extends and retracts while it rotates. Rotating screw designs keep the screw still while the nut moves up and down the thread. This makes them perfect for installations with limited room or that need to guide load movement.

Worm gear industrial screw jacks have high gear ratios, small sizes, and great self-locking features. Because of the friction that makes the worm gear mesh hot, they usually only work at 20 to 30 percent of their duty cycles. For uses that need to run continuously or at higher speeds, ball screw versions get rid of a lot of this friction through rolling contact, but they can't lock themselves and need stop motors to keep them from backdriving.

When choosing materials, functional needs and environmental factors are weighed against each other. For controlled indoor settings, carbon steel is a strong material that doesn't cost a lot. For high-cycle uses, alloy steel parts offer better wear protection. Stainless steel building doesn't rust in places like chemical plants, food processing plants, and outdoor sites where the compatibility of the materials is important. Bronze or industrial plastic nuts should be used with screws that are made of the same material so that the wear qualities and operating lifetime are best.

Supplier Evaluation and Partnership Considerations

In addition to technical requirements, your supplier's skills have a direct effect on the success of the project. How easily your industrial screw jack works and how long it stays in place depend on how precisely it was made. Look for providers that can do a wide range of manufacturing processes, such as precise turning, grinding, milling, and heat treatment. These steps make sure that the material properties and tolerances meet strict industry standards.

Quality marks are direct proof of consistent production. The ISO9001 approval shows that the quality management system is well-established, and the CE marking shows that it meets European safety standards. Industry-specific standards, such as DIN, AGMA, and EN specifications, make sure that foreign engineering methods are compatible and make it easier for equipment from different countries to work together.

When normal store items don't quite fit your needs, the ability to customize them becomes very important. If a supplier offers technical support for custom stroke lengths, special mounting configurations, or unique material specs, they can change tried-and-true designs to fit your needs without the cost and risk of making something from scratch.

Procurement Considerations and Strategic Sourcing

To get the best deal on the right tools, you need to know what factors affect prices and how to find sellers who can meet your quality and delivery needs. When buying something, smart buyers weigh the short-term cost against the long-term worth and dependability of the operation.

Navigating the Procurement Landscape

Industrial screw jacks can be bought through both standard distribution networks and direct ties with manufacturers. Distributors who have been around for a while keep stock of common setups so that standard needs can be met right away. This is helpful when project deadlines don't allow for long wait times or when you only need a few items and don't want to work directly with the maker.

When you work directly with a maker, you can get benefits for needs like big volumes or specific requirements. Where the goods are made has a big effect on the prices. China has become a major production hub for industrial screw jacks by mixing advanced manufacturing technology with low labor costs. This regional concentration makes it possible for procurement managers to find prices that are good for their budgets without losing quality when they work with well-known makers who follow international quality standards.

You can use bulk buying talks when you need to buy equipment for multiple sites, make sure that all of your facilities are the same, or build up an inventory for routine upkeep. When you commit to a certain volume, you can usually get better price and priority schedule for production. Custom production is important when your application needs stroke lengths that aren't standard, special materials, or mounting options that aren't available in catalogs.

Understanding Cost Drivers and Value Factors

The choice of materials has a big effect on the final price. For controlled conditions, carbon steel building is the most cost-effective option. Using metal steel parts costs more, but they last longer and don't wear out as quickly, so the extra cost is worth it in high-cycle uses. Stainless steel versions cost the most, but they are worth it when rust resistance keeps them from needing to be replaced too soon or keeps food and medicine from getting contaminated.

Load capacity is directly related to the size of the part, the width of the material, and how hard it is to make. Higher-capacity units need screws with a bigger diameter, housings that are heavy, and gear sets that are stronger, all of which raise the cost of production. By accurately describing your real load needs, you can avoid spending too much on too much capacity while still leaving enough safety gaps.

Optional features and surface processes add extra costs that are worth it. Coatings that don't rust make things last longer in tough settings. Integrated dust covers keep parts inside from getting dirty. Built-in lubrication connections make upkeep easier and cut down on downtime for service. Think about these choices based on how you run your business and the total cost of ownership, not just the price at first.

Why FLA Industrial & Trading Co., Ltd. Stands Out?

FLA industry & Trading Co., Ltd. has been making things for almost 40 years and has a lot of experience with hardware tools, precise clamps, and mechanical lifting solutions for demanding industry markets around the world. Our factories use both old-fashioned craftsmanship and cutting-edge manufacturing technology to make industrial screw jacks that can stand up to heavy daily use on building sites, in factories, and in repair shops.

Our over 2,000-ton inventory includes standard setups, so we can quickly meet the needs of urgent projects. We give custom specifications the same amount of attention—within 24 to 48 hours of receiving a request, our engineering team sends full quotes, technical specs, and 3D design documentation. Customized production usually ships within 7–15 days, which keeps project delays to a minimum and gives you exactly what your application needs.

Quality control is still an important part of how we make things. Before it is shipped, every industrial screw jack goes through a lot of tests, such as checking the material, making sure the measurements are correct, trying the load, and making sure it works. Our ISO9001 certification and CE compliance show that we follow international quality standards. Our long-term partnerships with Fortune Global 500 companies show that buying workers can trust us.

The Products" target="_blank" style="color:blue" >products are made with high-quality materials that are right for the job. The housings are made of alloy steel, carbon steel, cast steel, or stainless steel, and they come with heat-treated lead screws and bronze or designed plastic nut assemblies. Spray painting and special coats that don't rust are two ways to finish the surface. Our basic designs can be changed to fit your working environment with the help of optional dust covers and lubrication connections.

Technical help lasts the whole time you work with us, from the original meeting on your specifications to production updates and coordinating delivery. You can get in touch with our sales team at sales@flaindustrial.com, and they'll put you in touch with engineering people who understand both the mechanical principles and the problems you're having with their practical application. This way of working together makes sure that the tools you get exactly meets your needs, and that you can get spare parts and expert help when you need it.

Conclusion

When it comes to industrial lifting tasks that need accuracy, safety, and not being connected to a power source, manual industrial screw jacks are the most reliable option. Because they are mechanically simple, they require very little upkeep, last a very long time, and can keep working even when hydraulic or electric alternatives stop working. These devices are very useful because they can be used to position heavy machinery, support structural loads during building, or time multiple lifting spots for large parts. They have the controlled force and built-in safety that demanding uses need. When you work with experienced manufacturers who can combine tried-and-true designs with customization options, you can be sure that the lifting solutions you get will be the best ones for your unique operational tasks and surroundings.

FAQ

Is every screw jack self-locking?

Not all the time. Mechanical industrial screw jacks often use trapezoidal or Acme thread designs, which lock themselves together through pressure between the threads. Ball screw versions give up this feature to be more efficient and work faster; they need extra brake motors or locking devices to keep them from backdriving when they're loaded.

What determines appropriate duty cycle for continuous operations?

Worm gear friction makes heat that limits the duty cycle of normal industrial screw jacks to about 20 to 30 percent. This means that they're only meant to be used occasionally, with breaks for cooling down between jobs. For uses that need to run all the time, special designs with bevel gears or ball screws that reduce friction and heat production are needed.

Can I synchronize multiple lifting points with one power source?

One of the best things about industrial screw jack devices is that they can be mechanically synchronized. Using couplings, connecting shafts, and miter gears, one physical input or motor can power two, four, six, or more units, all of which will work perfectly together thanks to mechanical connection instead of computer controls.

How do I prevent screw over-travel accidents?

Put mechanical stop nuts on the screw to make it fail-safe and limit how far it can extend or retract. For automatic uses, you can add external electrical limit switches or proximity sensors that cut power before the screw hits mechanical stops. This keeps parts from getting damaged by impact.

Partner with a Trusted Industrial Screw Jack Manufacturer

Are you ready to come up with lifting methods that will last and work reliably? FLA Industrial & Trading Co., Ltd. can help you with your most difficult projects because they have been making quality industrial screw jack goods for almost 40 years. Our tech team is ready to give you advice on the best configurations, give you full specs, and make custom solutions that meet your individual needs. We offer consistent quality and quick service to goods wholesalers, building companies, production sites, and industrial operations in the US, Germany, Australia, and other global markets. Email our sales team at sales@flaindustrial.com to talk about your lifting needs, get technical information, or get thorough quotes on both standard and custom setups. Visit flaindustry.com to see all of our products and learn why sourcing workers around the world choose FLA Industrial as their first choice for precision-engineered lifting tools.

References

American Society of Mechanical Engineers. (2019). Power Transmission Elements: Design and Application Standards for Industrial Machinery. ASME Press.

Budynas, R.G. & Nisbett, J.K. (2020). Shigley's Mechanical Engineering Design, 11th Edition. McGraw-Hill Education.

Deutsches Institut für Normung. (2018). DIN 69051: Machine Tools - Screw Jacks and Lifting Mechanisms - Technical Delivery Conditions. Beuth Verlag.

Khurmi, R.S. & Gupta, J.K. (2021). A Textbook of Machine Design. Eurasia Publishing House.

Norton, R.L. (2020). Machine Design: An Integrated Approach, 6th Edition. Pearson Education.

Society of Automotive Engineers. (2017). SAE J2418: Criteria for Mechanical Lifting Devices Used in Heavy-Duty Applications. SAE International Standards.
