Understanding the 3 Types of Machine Screw Jack Designs

If you're looking for lifting tools for commercial use, knowing the differences between machine screw jack designs can save your business a lot of money and keep it from breaking down badly. An industrial screw jack takes rotational motion and turns it into precise linear force. It can be used in production, building, and maintenance to lift, position, and support loads. In contrast to hydraulic systems, which can leak fluid and cause pressure fluctuations, these mechanical devices provide stiff, self-contained solutions with setting accuracy of less than a millimeter. Machine Screw Jacks with trapezoidal threads, Ball Screw Jacks, and Planetary Roller Screw Jacks are the three main types. Each one is designed to handle a different set of operating tasks, such as moving heavy loads quickly and precisely. Picking the right type will have a direct effect on how safe your project is, how well it works, and how much it costs to maintain over time.

Overview of Machine Screw Jack Designs

Mechanical lifting devices transform rotary input from motors or manual cranks into controlled vertical or horizontal movement. Threaded parts work together inside a strong frame that is usually made of alloy steel, carbon steel, or stainless steel to make this change possible. The basic mechanism is made up of a lead screw that engages with a nut assembly to create straight movement that can be predicted.

Core Operating Principles

In most moving devices, the worm gear set is very important. If you turn the input shaft, the worm will connect with a worm wheel and move the rising screw. This arrangement gives a big mechanical edge, which lets people lift heavy things with only a small amount of power. The form of the thread affects how well it works, how much weight it can hold, and whether the system locks itself when the power goes out. Knowing these rules helps buying managers match the specs of tools to what is needed on the job site.

Why Design Selection Matters

Choosing between different screw systems changes a lot of things about how they work. Lifting concrete forms as a construction worker needs different skills than putting together furniture as an assembly piece. Which plan works best depends on how long the load needs to be held, how fast it needs to move, and the surroundings. When specs don't match, things wear out too quickly, become unsafe, or can't lift enough. The parts that follow talk about the pros and cons of each style type.

Classification of Three Main Types

Based on the shape of the screw thread and the arrangement of the rolling element, the industry defines three separate groups. The threads on industrial screw jack units are either trapezoidal or Acme, and they have moving friction. Some types of Ball Screw Jacks have rotating ball bearings between the screw and the nut, which makes the friction much lower. Threaded rollers are used in Planetary Roller Screw Jacks to get the most load capacity in small packages. Each category fills a specific need in the industry, and the unique qualities of each one give it an edge over other categories.

Deep Dive into the 3 Machine Screw Jack Types

To avoid making mistakes that cost a lot of money, procurement teams need to have a deep understanding of technology. Different types of designs have different mechanical qualities that decide which ones are best for different uses.

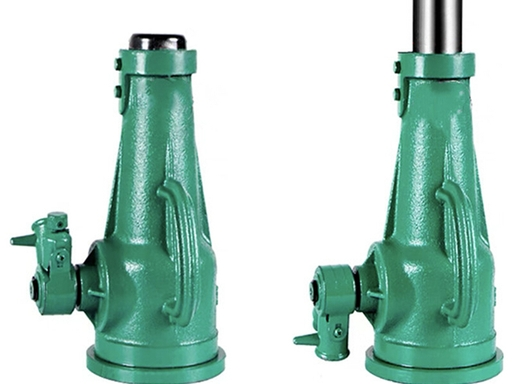

Machine Screw Jacks with Trapezoidal Threads

Mechanical screw jack classic styles use hardened or quenched lead screws with Acme or trapezoidal thread shapes that have been made into them. During use, the nut, which is usually made of bronze or industrial plastics, moves along the screw holes. This sliding friction makes the mechanism naturally self-locking; when circular input stops, friction stops the load from moving the mechanism backwards. This safety feature is very useful on construction sites for holding up structure parts while they are being installed. Its strong design can handle shock loads better than precision options, which makes it perfect for rough industrial settings. However, the sliding contact makes heat when it works for a long time, which limits duty cycles to about 20 to 30 percent in normal setups. Regular lubrication through special connections keeps things running smoothly and makes parts last longer.

Ball Screw Lifting Systems

In ball screw systems, rolling friction is replaced by recirculating ball bearings that ride in raceways that are perfectly ground. Compared to trapezoidal threads, this rolling contact cuts friction by up to 90%, allowing for faster movement speeds and more accurate placement. The smooth, accurate motion control is helpful for woodworking tasks that need to be moved around a lot. Because there is less friction, these systems do NOT stop themselves; they need external brakes to keep the loads safe. The amount of heat produced goes down a lot, which lets constant duty cycles work in many situations. Precision production and bearing parts make the original costs higher, but for high-cycle uses, operating effectiveness often makes the investment worth it. Electrical construction teams that use these to maintain utility poles like how quick the controls are and how they keep operators from getting tired when they have to do the same tasks over and over again.

Planetary Roller Screw Mechanisms

The most modern version has many threaded rollers arranged around a central screw shaft. Each roller makes several thread touches at the same time, which spreads the load over a lot of engagement spots. All industrial screw jack types can hold the most weight compared to their envelope size when this setup is used. The rolling action works very well and can sometimes lock itself in place based on the angle of the lead. Planetary roller screws are used by heavy equipment makers for high-force, small uses like press brake positioning. Because of the complicated geometry, it takes advanced production skills to make, which is mirrored in the high price. Maintenance requires specialized knowledge, but systems that are properly oiled last a very long time. When access to equipment is limited, HVAC contractors who are building big commercial units like how the design saves room.

Comparative Analysis of the 3 Screw Jack Designs

To make smart buying choices, you need to compare a number of performance factors to your unique operational needs. This framework for comparison helps buyers match technology specs with real-world needs.

Load Capacity and Speed Trade-offs

Machine screw jacks with trapezoidal threads are great at keeping big loads in place, and the self-locking threads make them safe. Because they are less efficient, they can only move at slower speeds, which makes them better for irregular positioning rather than fast cycling. Ball screw systems give up self-locking for faster speeds and more accurate placement, making them perfect for situations where changes need to be made often under light loads. Planetary roller screws offer the most force in the smallest area, but they cost more. Which trade-off gives you the most value depends on the load profile of your application—continuous staying vs. frequent moving.

Maintenance Requirements and Operational Costs

Industrial screw jack trapezoidal thread designs need to be oiled regularly, but they can handle dirt and dust better than precision thread designs. Bronze nuts wear out in a predictable way, so they can be replaced before they break. To keep from breaking down too soon, ball screw systems need to be kept clean and the bearing raceways need to be oiled all the time. Getting building dust or metal bits on an industrial screw jack can quickly hurt its performance. Planetary roller gears need special checking methods, but if they are kept in good shape, they can last longer between service visits. When proposing designs, hardware dealers should think about how well the client can maintain them, since field service needs have a big impact on the total cost of ownership.

Application Suitability Across Industries

Heavy-duty machine screw jacks with trapezoidal threads are useful for construction jobs because they are safe and reliable. Maintenance teams that work on bridges trust these to do important structure support jobs. When making furniture that needs to be placed precisely and repeatedly, companies that do so usually choose ball screw systems, even though they cost more at first, because they cut down on cycle times, which increases production flow. When plumbing workers need to place large sections of pipe in tight areas, they may choose planetary roller screws because they are small and strong. Extreme temperatures, dust exposure, and corrosive atmospheres can also affect the choice of design. Stainless steel construction and special finishes can help Products" target="_blank" style="color:blue" >products last longer in tough circumstances.

Procurement Considerations for B2B Clients

Finding the right tools for a job requires more than just technical specs. It also involves checking the supplier's skills, making sure the delivery is reliable, and setting up long-term support systems.

Supplier Evaluation Criteria

Certifications are objective proof of quality processes in industry. ISO9001 recognition shows that quality management methods are structured, and CE marking makes sure that safety standards are met for products going to regulated markets. Industry-specific guidelines and standards, such as DIN, AGMA, and EN, make sure that measurements are correct and that performance is consistent. Before sending goods out, purchasing managers should make sure that sellers check the materials, make sure the measurements are correct, and test the loads. Manufacturers who offer customization can change standard designs to fit specific application needs, like mounting setups or environmental protection needs that can't be met by off-the-shelf products.

Customization and Lead Time Management

Standard catalog items usually ship fast from stock, but for many commercial uses, the specs need to be changed. Custom configuration lead times depend on how complicated the design is and how full the production line is. Suppliers who keep a large stockpile of materials (thousands of tons) can often speed up custom production compared to smaller businesses that need to buy raw materials before they can start making things. By asking for proof of the 3D design before production, costly mistakes about mounting interfaces or size requirements can be avoided. Making shipping dates clear helps make sure that equipment arrives on time for projects, which saves money by avoiding costly delays at the job site.

Total Cost of Ownership Perspective

Lifecycle costs for a mechanical screw jack include more than just the price of the initial buy. Downtime caused by equipment breaking down too soon can cost a lot more than the initial investment in the equipment. Suppliers who offer real new parts and expert help for as long as the equipment is in use lower operating risk. Maintenance partnerships that offer regular testing services can help find wear and tear before it leads to a major failure. Buyers should look at how stable and present a provider is in the market, since makers must stay in business for parts to be available for the whole life of the industrial screw jack equipment. Building ties with well-known sources makes it easier to work with them on future projects that need similar lifting solutions.

Maintenance and Safety Guidelines for Industrial Screw Jacks

Good repair methods have a direct effect on how well equipment works and how safe the operators are. Structured rules keep breakdowns from happening out of the blue and make service intervals longer.

Routine Maintenance Procedures

As part of regular inspections, thread conditions should be looked at visually to see if there are any unusual wear patterns or buildups of contamination. How often you need to lubricate depends on the job cycle and the surroundings. For example, building equipment that is exposed to dust needs to be oiled more often than factory installations that are kept clean. Protective bellows and dust covers keep sharp particles out of thread contact zones, which greatly increases the life of the component. Checking the torque on the mounting nuts keeps them from coming loose during operation because of shaking. Maintenance teams should write down what they find during inspections and when they apply lubrication. This will create history records that show problems as they grow before they break.

Load Management and Safety Practices

Going over the stated load capacity immediately poses a safety risk and speeds up wear. Site managers need to make sure that workers know how much weight they can lift and never try to lift more than what is allowed. For synchronized pulling with multiple jacks, they need to be mechanically linked through connecting rods or controlled electronically to make sure that the load is spread out evenly. When you lift something unevenly, you create dangerous side loads that can damage equipment and make the load unstable. Proper user training includes how to place things correctly, how to spot strange sounds or resistance that mean problems are happening, and how to shut down the industrial screw jack in an emergency.

Troubleshooting Common Issues

When something is working, strange noises usually mean that the threads aren't properly oiled or are dirty. More working force means there is wear or imbalance that needs to be checked out by a professional. If ball screw systems move or position inconsistently, it could mean that the bearings are damaged and need to be fixed right away. When problems get worse than what regular maintenance can fix, calling in qualified service techs stops the damage from getting worse. Trying to fix things without the right knowledge could damage the tools or cause a safety issue. Keeping in touch with service providers who know what they're doing guarantees a quick reaction when important moving equipment needs professional help.

Conclusion

When choosing the right industrial screw jack, you have to weigh the technical specs against the practicalities of the job and your budget. Machine screw jacks with trapezoidal threads work well for heavy building and repair tasks because they are strong and self-locking. Ball screw versions offer faster and more accurate performance in factory settings where positioning needs to be changed often. Planetary roller screws provide the most force in small packages, which is useful when design choices are limited by room. To be successful at procurement, you need to understand these basic differences and make sure that the skills of the tools you buy match the needs of the job site. Working with well-known companies that offer full expert support, original replacement parts, and the ability to customize equipment lowers practical risk throughout its entire lifecycle.

FAQ

What determines whether a lifting mechanism self-locks?

The self-locking properties are based on the thread pitch and the friction coefficient. When the input movement stops, trapezoidal thread designs usually self-lock because there is enough slide friction to stop back-driving. Ball screw systems use rolling contact with little friction, so they can't stop themselves and need external brakes to keep loads safe. Self-locking is also affected by the lead angle, which is the thread's rate of movement per turn. Steeper angles make it harder to hold.

How do you synchronize multiple lifting points?

Connecting shafts, couplings, and miter gears connect several units to a single motor for mechanical timing. This guarantees perfect coordination even if the load is spread out in different ways. Electronic syncing uses separate wheels with control systems that work together. This gives installers more options, but it needs complex code. When it comes to important safety uses, mechanical linkage is the best choice because it is naturally reliable.

What maintenance intervals apply to different designs?

The amount of use and the surroundings have a bigger impact on how often upkeep needs to be done than the type of design itself. In rough settings, construction tools may need to be oiled and inspected once a week. In clean factories, the intervals might be pushed back to once a month or three times a year. In their technical paperwork, manufacturers usually list duty cycle rates and suggested repair times. Setting up condition-based monitoring lets you catch problems as they happen before they get too bad for planned repair windows.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Lifting Solutions

Our industrial screw jack solutions are a result of nearly 40 years of manufacturing experience and precise engineering. They are also very durable. FLA Industrial & Trading Co., Ltd. makes moving equipment out of alloy steel, carbon steel, and stainless steel. The lead screws are tempered or cooled to make them last longer. There are bronze and engineering plastic nuts that can be used in a variety of settings, and corrosion-resistant coatings and extra dust covers can help them last longer in tough circumstances. We keep our ISO9001 certification and follow CE rules to make sure the quality of our products meets worldwide standards. We have a large inventory and more than 1,000 product specs, so we can quickly deliver standard setups and custom solutions within 7 to 15 days. After you ask, our expert team gets back to you within 24 to 48 hours with specs and 3D designs. Please email us at sales@flaindustrial.com right away to talk about your unique lifting needs and get competitive quotes from a reputable industrial screw jack maker.
