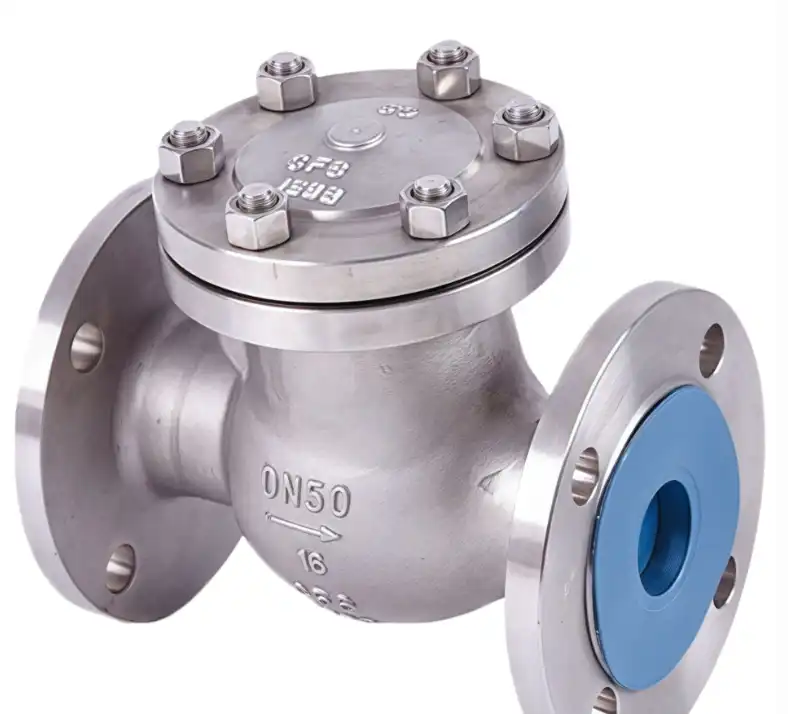

Why Cast Steel Steam Check Valves are Essential for High-Temp Steam?

In high-temperature steam systems, cast steel steam check valves act as crucial safety barriers by instantly stopping backward flow, which could damage pumps, turbines, and boilers. These precisely designed parts can withstand temperatures above 425°C and keep their structural integrity during large changes in pressure. In power plants, process heating systems, and industrial steam distribution networks, choosing the right backflow prevention solution has a direct effect on the life of the equipment, its safety during operation, and how much energy it uses. This means that making smart purchasing decisions is essential for the success of the project.

Specifications
Model(DN)	Type	Connection	Pressure Rating	Temperature Range
DN50	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN50	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN50	National Standard Heavy Body(Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN65	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN65	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN65	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN80	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN80	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN80	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20℃ to 425°C
DN100	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN100	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN100	National Standard Heavy Body(Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN125	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20°C to 425°C
DN125	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425°C
DN125	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425°C
DN150	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN150	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425°C
DN150	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN200	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425°C
DN200	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN200	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN250	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN250	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN250	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN300	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20℃ to 425°C
DN300	National Standard Large Body	Flanged/Threaded	PN16-PN40	20℃ to 425℃
DN300	National Standard Heavy Body(Thickened)	Flanged/Threaded	PN16-PN40	20℃ to 425℃

Understanding Cast Steel Steam Check Valves and Their Role in High-Temp Steam Systems

Components for industrial steam systems need to be able to handle harsh circumstances and still work reliably. A cast steel steam check valve controls flow in only one direction. It closes itself instantly to stop flow in the opposite direction when steam pressure drops or changes direction. This automatic process keeps condensate from flowing backwards into boilers or steam generators and saves equipment ahead from water hammer damage.

Common Types and Their Applications

The design of the valves you choose has a measured effect on how well the system works. Swing check valves have a disc that is flexible and pivots fully open during forward flow. This makes the pressure drop very small, which makes them perfect for horizontal steam distribution lines where flow rates stay pretty steady. Lift check valves have a guided disc that rises vertically against a spring or gravity. This means that they can be used in vertical setups where the flow goes up.

Tilting disc designs are better than standard swing types because they move the pivot point out of the center to limit disc motion and keep it from slamming shut. This setup works especially well in systems where the flow changes direction often or where the steam pressure pulses. When installation length is important, wafer-style valves save room because they fit between flanges without needing major changes to the pipeline.

Material Science Behind High-Temperature Performance

The limits of heat efficiency are directly set by the choice of material. ASTM A216 WCB carbon steel is the standard for steam uses up to 425°C. It has a great strength-to-cost ratio and has been used in millions of setups and proven to be reliable. When superheated steam temperatures go above this limit, alloy steel types like ASTM A217 WC6 or WC9 offer better resistance to creep and stop graphitization from happening.

The casting method itself affects how well something works. Precision casting methods make sure that the wall thickness is the same all the way through the valve body. This gets rid of any weak spots that could break under the stress of heat cycles. When things are being made, controlled cooling rates keep internal stresses from building up that could weaken the structure during the normal temperature changes that happen in steam service.

Cast steel construction strikes a good mix between mechanical properties and production flexibility when compared to forged steel alternatives. Forged parts may have a slightly higher tensile strength, but cast steel valves work well enough for most steam uses and are easier to get. This is especially important when you need to order a lot of them for big jobs.

Key Benefits and Design Features of Cast Steel Steam Check Valves

Reliability of parts directly affects working uptime and repair cost control when you're in charge of steam infrastructure. Figuring out the real benefits these cast steel steam check valves offer helps to support buying choices and set reasonable performance goals.

Performance Advantages in Demanding Environments

Cast steel steam check valve building can go through many rounds of thermal expansion and contraction without getting stress fractures or changing sizes. High-velocity steam flow doesn't wear down the material because it is naturally tough. This is especially important at the boiler exits and turbine escape lines, where flow speeds are very high. This makes service times longer, which means that expensive shutdowns for valve replacement happen less often.

The automatic operation mechanism gets rid of the need for outside power or control systems, which makes the system more reliable. In normal use, forward steam flow pulls the internal disc all the way open, letting everything pass through. When the flow speed slows down or turns around, the disc goes back to its original location due to gravity, spring force, or the mechanics of the flow. This stops backflow without any help from a person or electrical controls that could fail.

The features of pressure drop have a big effect on how efficiently your steam network uses energy. When they are working normally, well-designed valves keep flow lines simple so that there is little resistance. Lower pressure drops mean less energy is lost when trying to open a valve that won't open. This saves fuel over the course of a year, which is especially helpful in places where steam is generated all the time.

Engineering Features That Enhance Reliability

Modern versions have a lot of improvements that make them last longer and be easier to maintain. Stellite hard-facing is often used on sealing surfaces to make interfaces that don't wear out and keep shutoffs tight even after thousands of rounds. This cobalt-chromium-tungsten metal can resist erosion from wire-drawing, which is the damaging cutting action that happens when high-pressure steam leaks past a seat that doesn't touch it perfectly.

When repair teams replace the seat rings, they can get the closing to work again without having to replace the whole valve body. When analysis shows damaged or worn seats, techs can machine out the old seat ring and install a new one. This extends the life of the valve for a lot less money than replacing the whole unit. This modular method cuts down on the need to keep extra parts on hand and shortens the time it takes to fix things.

Compact body shapes reduce the space needed for fitting without lowering the flow rate. Project engineers often have trouble with limited space, especially when plants are being expanded or retrofitted and new valves need to fit into existing pipeline setups. Face-to-face dimensions that are smaller and lighter than forged options make them easier to handle during installation and upkeep.

Comparing Cast Steel Steam Check Valves with Alternative Valve Materials and Types

When choosing materials, you have to balance the need for efficiency with the limits of the job. Each choice has its own pros and cons that become clear when you compare them to the requirements of your application.

Cast Steel Versus Forged Steel Construction

Hot working methods that align the grain structure and get rid of internal voids give forged steel valves their excellent mechanical qualities. This way of making things makes parts that can handle shock loads and pressure spikes that are higher than what is normally needed for steam service. However, the limits of forging mean that complicated internal geometries can't be used, and final measurements are often only reached after a lot of machining.

Cast steel can be used to make parts with complicated internal openings and optimized flow lines that would be too expensive or difficult to machine from forgings. Engineers can put material exactly where it's needed to be strong while keeping weight low in areas that aren't important. Radiographic checking and pressure testing are two examples of modern quality control methods used in casting that make sure the structural stability is the same as that of forged parts in most steam uses.

Because it is cheaper, cast steel steam check valves are better for projects that need more than one valve or where choices are limited by cash. When you ask for sizes bigger than DN100, where forging costs go up quickly, the price difference becomes even more noticeable. Usually, procurement managers can choose cast steel valves for normal steam service and forged parts for really tough situations that need the best mechanical qualities.

Material Comparisons: Bronze and Stainless Steel Alternatives

Bronze valves work well in low-temperature situations, but they aren't strong enough or resistant to heat enough to handle high-pressure steam above 230°C for a cast steel steam check valve. The copper-based metal gets softer at high temperatures, which means it could deform when put under the kinds of forces that cast steel is used to. Bronze parts can still be used in low-pressure heating systems and wastewater return lines where the temperature stays reasonable.

Stainless steel structure is better at resisting corrosion in steam conditions that are harsh on chemicals. Even though it costs more, stainless steel may be the best choice for applications that involve polluted condensate, salty water sources, or chemical process streams. The chromium oxide layer that forms on stainless steel surfaces protects them naturally from pitting and crevice rust, which can damage carbon steel parts.

But for clean steam service in most manufacturing buildings, cast carbon steel is still the best choice. If you keep up with the right maintenance and water cleaning methods, carbon steel parts will last for decades. Protective coatings that are put on during production make the metal more resistant to rust in slightly harsh conditions. This makes it as good as stainless steel at a lower cost.

Configuration Selection: Swing Versus Wafer Designs

Swing check valves work great in situations where low pressure drop and easy upkeep are important. When the disc is fully open, it moves out of the way of the flow, making very little resistance when the machine is running normally. When body designs include fixed bonnets, interior parts can usually be serviced without taking the valve out of the pipeline, which is something that maintenance teams really like about swing designs.

Wafer valves squeeze between pipeline flanges, getting rid of the need for body end connections and cutting the installed length by about 60% compared to flanged swing designs. This space-saving feature is useful in equipment boxes that are small, mechanical rooms that are tight, or retrofit cases where the length of the available pipeline limits the choice of components. The lighter weight also makes it easier to move and support.

Installation direction changes how well a setup works. Most swing designs work well with horizontal lines, while vertical runs that flow upward benefit from lift or spring-loaded designs that counteract the effects of gravity. By making sure that the valve design is right for the fitting conditions, problems like disc flutter and premature wear can be avoided.

Procurement Considerations: How to Buy the Right Cast Steel Steam Check Valve?

Accuracy in specifications decides whether purchased parts work consistently or cause ongoing issues. For procurement to go well, technical factors must be matched to real-world working conditions, and suppliers' skills must be evaluated in ways that go beyond just delivering parts.

Critical Technical Specifications

Ratings for pressure and temperature must take into account the worst possible situations along with necessary safety gaps. When steam systems are turned on, when valves are opened, or when there are process upsets, the pressure temporarily rises above standard working levels. By specifying valves that can handle 125% of their regular working pressure, you can be safe and avoid overstressing during short-term events.

Ratings for temperature depend on both the highest temperature of the steam and the possibility of superheating. When the pressure is known, saturated steam follows an expected temperature relationship. However, superheated steam can be much hotter than these numbers. Make sure that the types of materials used and the way the system is built can handle the real amounts of superheat that it creates. This is especially important downstream of stations that lower pressure, where temperature may not drop as quickly as pressure does.

Material approvals for cast steel steam check valve prove that valve parts meet certain standards and chemical makeup needs. The ASTM standards say what levels of carbon, manganese, silicon, and other elements that change the mechanical qualities and weldability are allowed. Ask for Certified Material Test Reports that show the results of heat-specific chemistry analysis and mechanical testing. These papers can be tracked and show that the material meets quality system standards.

Supplier Evaluation Criteria

Manufacturing credentials show that you can regularly make parts that meet strict standards. ISO 9001 approval shows that a company has well-established quality management systems with clear written rules, supervised processes, and programs for ongoing growth. Extra approvals, such as the CE mark, show that a valve meets safety rules and technical standards that guide its design and performance.

Total ownership costs are affected by after-sales help in a big way. Reliable providers keep expert staff on hand to help with questions about applications, fixing problems, and making specifications better. Spare parts stocks that are easy to get to cut down on downtime when repairs or maintenance are needed years after the original buy. The quality of the documentation affects how well the installation goes and how well it works for long-term upkeep. Clear troubleshooting guides, installation directions, and maintenance methods add value to the physical part.

As a reliable provider of cast steel steam check valves to Fortune Global 500 companies, we can make valves from DN50 to DN300 in sizes and offer a range of connection choices to meet your needs. Our tech team offers application support to help you choose the best configurations. Clear prices and dependable delivery schedules make planning your purchase easier.

Optimizing Procurement Terms

Being clear about prices means more than just knowing how much each valve costs. Ask for thorough quotes that include the price of the base valve, the cost of shipping, any duties or taxes that apply, and any extra costs for testing, certification, or special features. Instead of just looking at component prices, compare quotes based on the total cost of delivery to find the most cheap ones.

Accurate lead times affect how projects are planned and how material is managed. Standard valves are usually shipped within days by suppliers who keep popular sizes in stock, but custom designs may take weeks or months to make. When you buy something from another country, make sure your buying plan takes into account realistic lead times, shipping times, and the time it takes to clear customs.

If your job needs a lot of valves, buying them all at once can save you a lot of money. Talk about bulk prices for orders that are bigger than the necessary quantities, but weigh the chances of discounts against the costs of keeping inventory and the risk of running out of stock. Staged delivery plans line up the arrival of parts with the progress of the building project. This cuts down on the need for storage on-site and gets better prices.

Conclusion

To choose the right backflow protection equipment for high-temperature steam service, you need to carefully look at the working conditions, the material's skills, and the supplier's reputation. When used correctly and kept up, cast steel steam check valves have a track record of reliability in a wide range of industry settings. These automatic flow control devices keep important equipment safe from damage caused by reverse flow while also reducing energy waste and pressure drop. When procurement professionals know the differences between available options, materials, and design features, they can match parts perfectly to the needs of an application, lowering both the original investment and the costs over the product's lifetime. Working with well-known manufacturers that offer full professional help and high-quality documentation is the best way to make sure that a project is a success from the planning stages to the many years of use.

FAQ

What maximum temperature can cast steel steam check valves handle?

Temperature power mostly depends on the steel grade that was chosen when the product was made. Standard ASTM A216 WCB carbon steel works well in steam uses up to 425°C, which is hot enough for most industrial heating and process needs. When superheated steam temperatures go above this limit, alloy steel types like ASTM A217 WC6 can be used at temperatures higher than 540°C. The practical temperature limits are also affected by the form of the valve, especially the choice of seat material and the way it seals. Instead of thinking that all cast steel steam check valves can handle the same temperatures, check the manufacturer's specifications to make sure they fit your unique operating conditions.

How do I prevent seat leakage in steam check valves?

Most of the time, a leaking seat is caused by dirt building up or wear that weakens the binding surface contact. Putting in upstream strainers gets rid of scale and particles before they reach the valve's internals. The right way to start up a system slowly adds steam while letting out stored air. This stops debris bursts that damage the sealing surfaces. Regular inspections catch wear before it gets too bad, which lets you lapping or replacing the seat in time. When you order valves with Stellite hard-facing, the sealing surface lasts a lot longer in harsh or high-cycle working circumstances.

Can I install swing check valves vertically?

When installed vertically, swing check valves only work right when the flow direction goes upward. This lets gravity help close the disc when the flow stops. Vertical flow going downward causes problems with operation; the disc can't close against gravity, which defeats the purpose of the valve. Lift checks or spring-loaded designs are needed for vertical uses with downward flow. In these cases, the closing force comes from the springs instead of gravity. Horizontal installs usually work best for swing designs because they keep the discs from wearing out and make sure the closing works reliably at all flow rates.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Steam System Components

Getting reliable cast steel steam check valve supply from a maker with a lot of experience will protect your project's schedule and operating performance. Every part that FLA Industrial & Trading Co., Ltd. makes is the result of almost 40 years of experience making precise parts for customers around the world, such as building companies, industrial sites, and wholesale distributors in the United States. Our thorough quality control system, which is backed by ISO9001, CE, and other foreign certifications, makes sure that every valve meets strict performance standards before it is shipped. As a reliable provider of cast steel steam check valves to Fortune Global 500 companies, we can make valves from DN50 to DN300 in sizes and offer a range of connection choices to meet your needs. Our tech team offers application support to help you choose the best configurations. Clear prices and dependable delivery schedules make planning your purchase easier. Email our expert sales team at sales@flaindustrial.com to talk about the details of your project, get thorough quotes, or look into custom solutions that are made to fit your specific installation needs.
