A Buyer’s Guide to Choosing the Right Swing Check Valves

Procurement managers and engineering teams need to know a lot about swing check valves in order to choose the best flow control option for industrial fluid systems. These automatic check devices work with the help of a disc mechanism that is pushed by gravity. They stop costly cases of reverse flow and keep pipes moving forward efficiently. These valves are very important for safety in places like chemical plants, oil distribution networks, and wastewater treatment plants because they keep backflow from damaging equipment like pumps and compressors. To pick the right model, you need to carefully look at the pressure levels, the compatibility of the materials, and the application-specific needs that are right for your work setting.

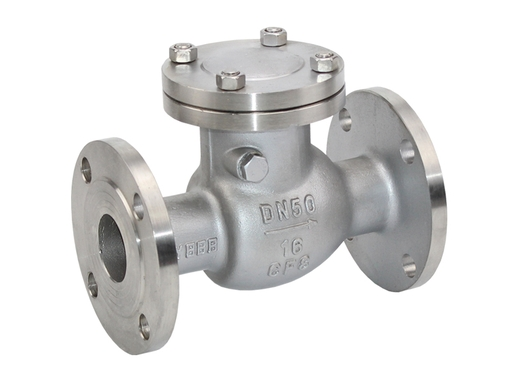

Specification
Model(DN)	Type	Material Options	Connection Type
DN50	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN50	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN50	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN65	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN65	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN80	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN80	National Standard Large Body	Cast Iron/ Stainless Steel/ Carbon Steel	Flanged Threaded
DN80	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged Threaded
DN100	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN125	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN150	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / CarbonSteel	Flanged/ Threaded
DN200	National Standard Medium Body	Cast Iron / Stainless Steel/ Carbon Steel	Flanged/ Threaded
DN200	National Standard Large Body	Cast Iron/ Stainless Steel/ Carbon Steel	Flanged/ Threaded
DN200	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN250	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN250	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN300	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN300	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN300	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded

Understanding Swing Check Valves: Basics and Key Features

How Swing Check Valves Operate?

This valve works with the help of a movable disc that is connected to a pivot pin. When the fluid moves in the right direction, the pressure pushes the disc away from the seat, making a clear path. When the flow stops or tries to go backwards, gravity and difference pressure push the disc back against the seat, making a tight seal. This simple mechanical action doesn't need any extra power or work from a person, so it's perfect for constant industrial activities. Compared to lift-style options, this design reduces turbulence more, which leads to less pressure drop and better energy economy in all pumping systems.

Material Selection and Construction Standards

For industrial-grade valves, the bodies are usually made of cast carbon steel that meets ASTM A216 WCB standards, stainless steel grades like ASTM A351 CF8M for places that are likely to rust, or bronze metals for water service uses. Hardened coats like Stellite 6 layer are often put on seating surfaces to keep them from wearing down from fluids that contain particles. Asme B16.10 is used for face-to-face measurements and ASME B16.34 is used for pressure-temperature ratings. This makes sure that the Products" target="_blank" style="color:blue" >products can be used in all global supply lines. This standard design makes it possible to predict how well it will work and make replacements during maintenance rounds.

Available Configurations and Size Ranges

There are a lot of different setup choices on the market to meet different installation needs. Large-diameter uses usually use flanged end links, which offer strong mechanical coupling for high-pressure systems. When room is limited, wafer-style models can fit between pipeline flanges, but they usually handle lower pressure levels. Threaded models are used for building services with lines that have a smaller width. Most of the time, sizes range from half-inch connections for monitoring lines to 24-inch lengths for water mains in cities. The DN150 6-inch nominal bore version is a popular middle-ground design that strikes a good balance between flow capacity and easy fitting for industrial builders.

Key Factors in Selecting the Right Swing Check Valve

Matching Valve Specifications to System Parameters

Finding the highest and lowest flow rates in your pipeline is the first step in correctly fitting your valves. Undersized valves cause too much pressure drop and wear to happen faster, while large units may have disc flutter at low flows, which damages hinge parts. With the right safety factors, pressure ratings must be higher than the highest system pressure. For example, ASME Class 150 can handle up to 285 psi at room temperature, while Class 300 and higher are for high pressure uses. Material choice and internal openings are affected by fluid qualities like viscosity, temperature, and particulate content. Media that is corrosive needs better metalworking, and service at high temperatures needs longer cap designs that keep stem packing from breaking down due to heat.

Installation Orientation and Flow Direction

The performance and life are greatly affected by the correct installation direction. The most usual way to place a pipeline is horizontally, which lets gravity help close the disc. For vertical placements, the disc needs to move up so that it can drop shut; moving down vertically stops the seal from working right. The body of the valve has directional signs that show the right way for the flow to go. Installing the valve against the arrow causes it to stop working right away. The valve should be placed so that it doesn't put too much stress on the links next to it when it bends. Having enough space around bolted bonnets makes it easier for repair workers to get to the pipeline without taking it apart. This cuts down on downtime during seal replacement or internal checks.

Maintenance Protocols and Service Life Extension

External leakage around bonnet seals and body-to-bonnet joints of swing check valves should be checked as part of regular repair plans. Internal inspections check the state of the seat to see if it has any erosion, rust, or buildup of waste that could make binding less effective. Wear on the hinge pins is the main cause of mechanical failure; too much space between the pins causes the disc to become misaligned and leak. Most designs have top-entry bonnets that make it possible to remove internal parts without having to unbolt the valve body from the pipeline. This makes upkeep a lot easier. Setting up standard data during commissioning lets you do trending analysis that tells you when to replace a component. Working with trained service techs makes sure that the right torque values are used for reassembly and that the gaskets are installed correctly, which keeps seals from failing too soon.

Procurement Strategies for Swing Check Valves

Evaluating Direct Manufacturing Versus Distribution Channels

When you buy straight from makers, you usually get better prices on large orders and can get help from engineers as you work on your specifications. Manufacturers are better at making custom changes, like using different materials or not standard pressure values, than wholesalers. However, wait times grow during production scheduling, which could make project deadlines later than planned. Industrial wholesalers keep stock of popular specs, which lets them deliver quickly for repairs that need to be made right away or building plans that have tight deadlines. Their product lines come from a number of different manufacturers, so they can give a wide range of choices through single-source procurement relationships. Distribution markups help cover the costs of keeping supplies and providing local technical support, which is helpful for workers who are working on multiple projects at the same time in different parts of the world.

Volume Purchasing and Price Structure Dynamics

Bulk purchasing deals use economies of scale to lower the cost per unit by making production more efficient and sending more at once. Manufacturers usually set different price levels based on how many units you buy, with big discounts at 50, 100, and 500 units. Valve size has a huge effect on price; bigger openings need more material and more time to machine, which drives up costs by a huge amount. Choosing the right materials is another important factor that affects costs. For example, exotic metals are more expensive than normal carbon steel. Testing in the factory that goes beyond the basic hydrostatic requirements costs more, but it gives proof of compliance for important service uses. Certification prices for third-party inspection and material tracking raise the total cost of purchase, but they meet the quality guarantee needs of regulated businesses.

Negotiating Delivery Schedules and Custom Manufacturing

For project-specific delivery plans for swing check valves to work, procurement teams and factory production planning need to work together. Standard catalog items usually ship within two to four weeks. For unique designs, wait times can be as long as eight or twelve weeks, based on how long it takes to get the materials and how complicated the machining needs to be. Negotiating staggered delivery plans lines up valve landings with building phases, which cuts down on the amount of space needed on-site and the money that is lost on stock. When an application needs non-standard flange drillings, unusual trim materials, or special testing standards, custom production can help. By checking how responsive and flexible possible providers are in terms of engineering, you can be sure that custom orders will be made exactly as needed, without having to go through expensive changes or shipping delays that cause projects to miss their deadlines.

Making the Final Decision: A Practical Buyer's Checklist

Technical Requirements Verification

Keeping track of system factors is the first step in choosing the right valves. Write down the highest working pressure, the temperature range, the type of fluid, and the flow rates that you expect. Find out what restrictions there are on installation orientation and what servicing access is allowed. Find out whether the sealing needs metal-seated designs to last at high temperatures or soft-seated designs for tight shutoff in clean service. Check that the dimensions needed, such as the face-to-face length and the flange cutting patterns, are the same as those for the current pipeline. This technology baseline gets rid of choices that don't work together early on in the evaluation process, so the procurement team can focus on candidates that are really a good fit.

Compliance and Certification Validation

Certain certificates that prove compliance with design, production, and testing requirements are often needed in industrial settings. API 6D approval proves that a pipeline valve can be used in the oil and gas business. Standardized testing methods used to show agreement with ASME B16.34 show that pressure-temperature ratings are accurate. Registration under ISO 9001 means that a quality management system is being used in all production activities. Materials certification keeps track of the materials' chemical make-up and mechanical qualities, which protects against responsibility. Specifications for purchases should make it clear what certifications are needed, and seller bids should include proof of compliance instead of just claims that they do.

Total Cost of Ownership Analysis

The price of the valve is only one part of how much it will cost over its lifetime. Energy use from pressure drop adds up over years of continuous operation, and in big pumping systems, it may be more than the original cost of buying the equipment. Costs for workers and system downtime depend on how often and how complicated the maintenance is. The past of reliability affects the number of extra parts that need to be kept on hand and the risks of having to replace them in an emergency. Even though they cost more at first, valves that last longer between repairs because they are made of better materials or have better design features are still a better deal. This full picture of costs helps to explain high-end products for important tasks while finding cheaper choices for less important tasks where a drop in performance is okay.

Conclusion

To choose the right swing check valves flow control options, you have to weigh the pros and cons of technical performance and cost. Backflow can be reliably stopped by the basic working principle in a wide range of settings, from public water systems to chemical processing plants. To get the best performance, the system needs to be perfectly in sync with the choice of materials, pressure ratings, and design settings. When making procurement plans, companies should look at both direct ties with manufacturers and networks of distributors. They should think about things like shipping times, technical help, and pricing structures for large orders. Certification compliance and total cost analysis help people choose options that will give them long-term value instead of the cheapest ones at first. Procurement teams set up their companies for successful fluid system operations by carefully handling these technical and business factors.

FAQ

Can swing check valves handle vertical pipeline installations?

Vertical installations only work right when the flow goes up. When the flow stops, gravity closes the disc. The disc can't swing against the seat, so downward vertical flow keeps the seal from working right. Some companies make designs with springs that are especially made for downward vertical service, using mechanical force to help gravity. Before selecting vertical orientations, you should always check the manufacturer's installation instructions first. If you don't, the system will stop working right away, and unchecked backflow could damage other equipment. For standard swing designs, horizontal placements are still the best choice.

What causes water hammer issues with these valves?

Water hammer is a type of pressure surge that can damage pipes and equipment when the disc closes quickly during flow reverse. Standard swing designs depend on flow reverse to start closing, which can happen quickly in some system situations. External lever and weight parts let you change the speed at which the door closes, which makes the sitting motion more comfortable. For important tasks, hydraulic dashpots provide more advanced stabilization. No matter how the valves are set up, hammer risks can be reduced by using surge prediction chambers and controlled pump shutdown steps in the system design.

How does seat configuration affect performance?

Metal-seated valves with strengthened steel or Stellite coatings can handle harsh fluids and high temperatures, so they last longer in tough situations. They let a little more leaking through than soft seats, but they still work even after being exposed to particles and changing temperatures. Bubble-tight shutoff for gas service and clean liquids is achieved with soft-seated systems that use PTFE or rubber materials. But they can't be used below 400°F because of temperature limits, and sharp particles quickly damage sealed surfaces. The conditions of the application determine which place to use.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Valve Solutions

We are a reliable provider of swing check valves for challenging industrial uses around the world thanks to our nearly 40 years of experience in manufacturing. FLA Industrial & Trading Co., Ltd. has strict quality control methods that make sure all of their valves meet foreign standards. These include ISO, ASME, and API certifications. We have a lot of product specs that are designed to meet a wide range of fluid control needs, from water infrastructure in cities to chemical processing plants. During the procurement process, our expert team is available to help you with any questions you have and will help you understand the complicated specs and application requirements. Competitive price systems allow for both one-time orders for specific projects and long-term deals to buy a lot of something, giving customers value without lowering the quality. Email our sales team at sales@flaindustrial.com to talk about your unique needs and ask for full technical documentation that will help you make smart decisions about your next project.
