Step-by-Step Guide: How to Install a Mechanical Grooved Tee Correctly
2026-07-03 15:27:01
Installing a mechanical grooved tee correctly involves preparing the pipe surface, aligning the grooved tee fitting with precision, positioning the gasket evenly, and torquing the coupling bolts to manufacturer specifications. This grooved piping solution eliminates welding, reduces labor time, and accommodates thermal expansion. Whether you're retrofitting an existing line or building new infrastructure, mastering mechanical tee installation ensures leak-free connections, system reliability, and compliance with AWWA C606 and ASTM standards—critical for mission-critical applications in fire protection, HVAC, and industrial fluid transport.
Specification |
|
| Model | Model |
| DN50xDN25(60x33) | DN100x80(114x89) |
| DN65x25(76x33) | DN125x25(140x33) |
| DN65x32(76x42) | DN125x32(140x42) |
| DN65x40(76x48) | DN125x40(140x48) |
| DN65x50(76x60) | DN125x50(140x60) |
| DN80xDN25(89x33) | DN125x65(140x76) |
| DN80xDN32(89x42) | DN125x80(140x89) |
| DN80xDN40(89x48) | DN150x25/32/40/50(OD 165) |
| DN80xDN50(89x60) | DN150x65(165x76) |
| DN100x25(114x33) | DN150x80(165x89) |
| DN100x32(114x42) | DN200x25/32/40 |
| DN100x40(114x48) | DN200x50/65(219x60x76) |
| DN100x50(114x60) | DN200x80(219x89) |
| DN100x65(114x76) | |
Understanding Mechanical Grooved Tees and Their Industrial Applications

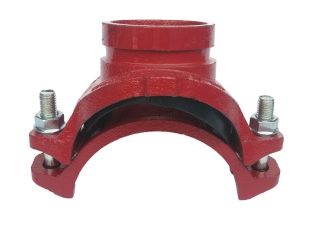

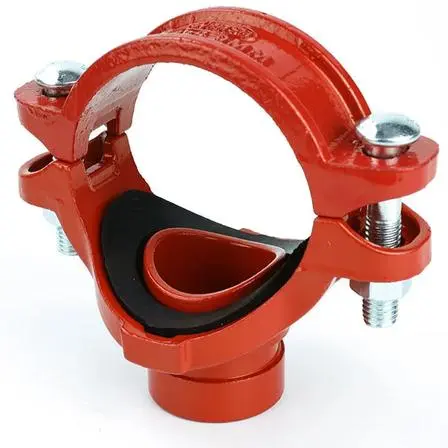

A mechanical grooved tee is a special kind of ductile iron pipe fitting made for grooved mechanical piping systems. It is an important three-way fluid distribution node from the point of view of senior engineering. The mechanical grooved tee is different from standard welded or threaded tees because it has cold-formed or machined groove technology on both ends that allow it to connect to mechanical connections. This design philosophy solves a number of problems that people who work in the water and building industries face every day.
Elimination of Hot Work Permits and Welding Hazards
There is no longer any need for welding licenses, fire watches, or qualified welders with the mechanical grooved tee. This benefit is very useful in dangerous places like chemical plants, hospitals, or finished business buildings where working with open flames is too dangerous. Now, contractors can put in branch lines in places that are already occupied without stopping work or setting off expensive fire safety measures.
Stress Accommodation and Seismic Resilience
When used with flexible connections, the mechanical grooved tee can handle changes in temperature or seismic activity that cause linear expansion, contraction, and bending. This stops stress fatigue at the joint, which is a frequent place where stiff welding tees break. This function is especially helpful for high-rise HVAC chilled water systems, since pipe risers expand and shrink a lot when the temperature changes. The mechanical grooved tee connects branch lines to floors and works with flexible connections to handle riser movement without the need for big extension loops.
Installation Velocity and Labor Cost Reduction
When compared to welding and flanging, the method cuts the time it takes to put together joints by up to 60%. This helps with meeting tight project deadlines and saving money on labor. For commercial fire safety systems that meet UL and FM standards, these tees are used in sprinkler systems where dependability is very important during water hammer or pressure spikes when pumps turn on. During these sudden changes in pressure, the branch line won't break because of the strength of the mechanical joints.
Another big benefit is that mining and water transport operations can quickly take apart a certain junction to check for wear or turn the pipe piece 90 degrees to make it last longer. Welded systems can't offer this kind of repair freedom because cutting and re-welding causes downtime and wastes materials.
Essential Preparations Before Installing Your Mechanical Grooved Tee
A good fitting starts with careful planning. Following the right rules, like ASTM A536 for ductile iron and AWWA C606 for groove sizes, makes sure that things are safe and work well. To choose the correct mechanical tee, you need to accurately measure the pipe and carefully think about the material and pressure levels that are best for the job.
Verifying Material Specifications and Certifications
There are strict material and size standards that control how a mechanical grooved tee works. High-strength ductile iron that meets ASTM A536 Grade 65-45-12 has a minimum tensile strength of 65,000 psi and a 12% stretch, making it more resistant to shock and impact than gray iron. For marking purposes, alkyd-enamel rust-inhibiting paint is often a choice, as is Hot Dip Galvanization (ASTM A153) for places that are corrosive.
Different applications have different certification needs. As a matter of fact, fire safety systems must have approvals from both UL (Underwriters Laboratories) and FM (Factory Mutual). Applications that use drinking water need to be certified by NSF-61, while naval devices need to be approved by DNV or Lloyd's Register. Before taking delivery, procurement experts should check that these marks are correct on the casting.
Assembling the Required Tools and Equipment
Grinders (that can cut or roll grooves), pipe cutters, deburring tools, torque wrenches that are set to the manufacturer's specs, cleaning brushes, and lint-free rags are all important tools. Measurement tools, like calipers or slot gauges, make sure that the dimensions are correct. Having these tools on hand cuts down on installation delays and ensures accuracy that meets legal standards, which lowers the chance of failures during operation.
Measuring Pipes and Confirming Groove Dimensions
To make sure the quality is good, the "A" dimension (Groove Diameter), "B" dimension (Groove Width), and "C" dimension (Gasket Seat) must be precisely measured to match the numbers in the AWWA C606 table. Deviations in this area cause leaks or connection blow-off. The tee fitting can be used with any pipe plan of the same legal size, as long as the pipe has the right grooves cut into it. Standard grooved tees fit Schedule 10, Schedule 40, or thicker wall thicknesses without any problems because they follow standard OD (Outside Diameter) guidelines.
Step-by-Step Installation Process of a Mechanical Grooved Tee
A full and useful installation process walks users through each step, from cleaning the pipe surface for the first time to making sure the whole system works. Engineers and workers can make setups that meet or go beyond industry standards by using this organized method. This makes the systems last longer and work better.
Pipe Surface Preparation and Cleaning
Use a pipe cutter to cut the pipe to the right length and make sure the edge is straight and free of burrs. Clean the outside of the pipe where the connection will go of any dirt, scale, rust, or other unwanted matter. A wire brush and a lint-free rag should be used to clean the groove area well. Any dirt or debris in the groove weakens the gasket seal and raises the risk of a leak.
Grooving the Pipe Ends
Either cut grooving or roll grooving can be used to make holes on the ends of pipes. For pipes with a normal wall thickness, roll grooving is best because it makes the groove cold without taking away any material, so the pipe wall stays strong. Cut grooving works well with steel pipes with a thicker wall thickness (Schedule 80). Use a measure to check the groove sizes to make sure they meet AWWA C606 requirements. Most common ductile iron mechanical grooved tees come with grooves that are either cast or rolled, so they can be used with pipe ends that are either cut or rolled.
Positioning and Aligning the Mechanical Grooved Tee
Place the mechanical grooved tee fitting where you want the branch to go, making sure it is facing the right way for the flow to go. Line up the tee body with the branch exit and the main run pipe. Make sure that all of the connections are straight and spaced out correctly. When things aren't lined up right, the seal doesn't collapse evenly, which can lead to leaks. To keep things in place while installing the coupler, use alignment tools or temporary supports.
Installing the Gasket and Coupling Assembly
Place the seal around the end of the pipe and make sure it fits properly in the groove without folding or bending. It is important that the seal covers the whole groove evenly. Line up the bolt holes on the coupler housing pieces and place them over the gasket. To make sure the seal is compressed evenly, put in bolts and hand-tighten nuts in a star design. This first step keeps the seal from coming out when it's finally tightened.
Torquing to Manufacturer Specifications
Tighten bolts to the manufacturer's recommended torque value in a cross-pattern pattern using a torque wrench that has been properly measured. This makes sure that the seal is compressed evenly and stops stress from being spread out unevenly. Too much torque can damage seals and crack coupler housings, while too little torque lets leaks happen. Standard torque values are between 75 and 125 ft-lbs, but they can be different based on the pipe size and coupling design. Always check the product paperwork for more information.
Pressure Testing and Documentation
Do a hydrostatic pressure test to make sure the joint is solid after fitting. Random batch testing at three times the working pressure (to 1500 psi for a 500 psi fitting) makes sure that safety factors are met. For upkeep and reporting purposes, write down the test results, torque values, installation date, and name of the technician. This paperwork is very helpful for governmental checks and planning future maintenance.
Comparison and Decision Factors: Mechanical Grooved Tee vs Other Branch Connections
Engineers can get better results from their projects if they know when to use a mechanical grooved tee and when to use other branch connection methods. Depending on the needs of the system, the limitations of the installation, and the need for long-term upkeep, each type of link has its own benefits.
Installation Complexity and Labor Requirements
For some uses, welded tees need to be treated with heat after the weld and be inspected with x-rays for important services. They also need qualified welders and hot work permits. This level of difficulty makes projects take longer and costs a lot more to do. Threaded connections work well for low-pressure uses with small diameters, but they need pipe compound to be applied to make sure the threads join properly. Flanged joints allow for easy removal, but they need to be perfectly aligned and use multiple bolts, which makes the installation process longer.
These problems can't happen with mechanical grooved tees because they have a fast coupling setup that people in the field can do in minutes without needing special welding skills. When compared to welding, the grooved method cuts installation time by about 60%, which has a direct effect on project costs and schedules. When coordinating multiple trades on tight building schedules, site managers like how efficient this is.
Cost Analysis and Long-Term Value
When it comes to the cost of materials, mechanical grooved tees are usually in the middle of bonded and flanged choices. When you add up the cost of labor, permits, inspections, and renting tools, however, the total cost of installation is often less than what it was before. The system's upkeep benefits make it even more valuable. For example, a grooved link can be taken apart and put back together many times without breaking, while welded parts need to be taken apart and replaced in a destructive way.
Cost benefits are especially clear in retrofit and fix situations. To change a welded system, it has to be cut, fitted, and re-welded, which creates heat-affected areas and needs system draining and downtime. With mechanical grooved tees, you can add a branch by just shaping the current pipe and putting in the tee assembly, which can often be done without shutting down the whole system.
Suitability for Different Pressure and Temperature Ranges
Standard mechanical grooved tees made from ductile iron that meet ASTM A536 standards can handle working pressures of up to 500 psi. Specialized high-pressure versions can handle 750 psi or more. For normal elastomer gaskets, the temperature range is from -20°F to 230°F. High-temperature gaskets are offered for steam service up to 366°F.
For the vast majority of HVAC, fire prevention, and industrial process uses, these specs are fine. Ultra-high pressure systems (above 1000 psi) or services that work in very high or very low temperatures may need forged steel bonded joints, though. Engineers have to weigh the needs of the system against the benefits of grooved systems in terms of installation and upkeep.
Brand Selection and Quality Benchmarks
Mechanical grooved pipe systems have high standards set by well-known companies like Victaulic, Smith-Cooper, and Anvil. These names offer full engineering help, a lot of data on product tests, and certifications that are known all over the world. When procurement managers ask for mechanical grooved tees, they should make sure that sellers show proof of compliance with dimensions, material certifications, and pressure ratings.
Generic or unbranded parts for mechanical grooved tee may be cheaper at first, but they usually don't go through strict quality checks. A visual check of the casting should make sure that the surfaces don't have any sand holes, cold shuts, or large holes in them. To make sure the coupling gasket closes properly and without any gaps, the parting line needs to be ground flush. Metallurgical confirmation using spectrochemical analysis shows that the ductile iron has more than 90% nodularity, which means that the fitting will deform plastically when it's overloaded instead of breaking in a huge way.
Maintenance Tips and Troubleshooting for Mechanical Grooved Tees
To get the most out of the life and dependability of installed mechanical grooved tees, they need to be maintained regularly. Small problems can be stopped before they become expensive system failures by inspecting and fixing them as soon as they become apparent.
Periodic Inspection Schedule and Retightening Protocols
Set up a maintenance plan that includes checking all grooved links visually every three months for the first year, and then once a year after that. Look for signs of a gasket coming out, a cracked joint case, or a pin coming loose. If the bolts were installed during times of high temperature, they may need to be torqued again because thermal cycling can change the connection preload. Keep torque values within the range recommended by the maker to keep gasket tightness without putting too much stress on parts.
Pressure Rating Validations and System Monitoring
Keep an eye on the system's working forces to make sure they stay within the limits set by the designer. Water hammer, pump cycling, or valve closing can all cause sudden drops in pressure that can put stress on mechanical parts. Grooved connections are safe from short-term overpressure events when pressure release valves and surge suppressors are installed. Check that the pressure values still work in the current working conditions on a regular basis, especially after changes to the system or increases in capacity.
Common Issues and Practical Troubleshooting Solutions
Most of the time, leaks at grooved joints are caused by bad fitting, damaged gaskets, or coupling bolts that are too free. If there is a leak, let the system's pressure drop, check the seal for cuts or extrusion, and make sure the hole sizes are correct. Replace broken gaskets right away—using damaged gaskets again will cause problems to happen again.
Cracks in coupler housings or stripped bolt threads are signs of material wear. These problems show that parts need to be replaced instead of being fixed. Keep a stock of popular sizes on hand to cut down on downtime during emergency repairs. When thinking about upgrading a system, you should check to see if the current mechanical grooved tees are sufficient or if longer-lasting finishes or higher pressure ratings would make them more useful.
Conclusion
When a Products" target="_blank" style="color:blue" >products">mechanical grooved tee is installed properly, it changes the way pipe systems are built and maintained by getting rid of the need for welding, cutting down on labor costs, and giving installers a lot of freedom. For connections that don't leak and can handle harsh industrial conditions, the surface must be properly prepared, the grooves must be precisely measured, the seal must be carefully placed, and the force must be applied correctly. The system can handle changes in temperature, withstands earthquakes, and can be quickly taken apart for upkeep. These are all benefits that welded and threaded joints can't match. Engineers and contractors can make sure that the piping infrastructure they build meets strict safety standards and stays reliable for a long time by following the full construction steps in this guide and performing regular upkeep tasks.
FAQ
Can a mechanical grooved tee be used in direct burial applications?
Yes, mechanical grooved tees can be used in underground setups as long as they are properly secured. Coat the outside of the fitting with asphalt or epoxy, and use connections that are made to work in underground service. Because it is naturally flexible, the system is very good at fighting ground settling forces that can break rigid PVC or welded fittings. This makes it a great choice for underground fire protection and water mains.
What is the difference between a standard mechanical grooved tee and a short radius tee?
The center-to-end distance of short radius tees is shorter, which saves space in small machinery rooms or when they are being retrofitted. But because the flow direction changes so quickly, they cause a lot more friction loss and pressure drop. When engineers figure out the pump head, they need to take this higher resistance into account to make sure the system works right.
How does one determine if a cut groove or roll groove tee is required?
Most normal ductile iron mechanically grooved tees have grooves that were cast or rolled into them while they were being made. Cut holes are usually only used for installing steel pipes with a higher wall thickness (Schedule 80). As standard, the fitting has cast slots and can be used with both cut and rolled pipe ends. This makes installation possible with a range of pipe sizes and materials.
