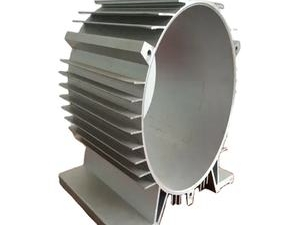

Benefits of Aluminum Motor Housing: Lightweight and Efficient

When choosing protection parts for electric motors, aluminum motor housing comes out as an engineering answer that makes the motor work better. The material is naturally low in density, very good at conducting heat, and very resistant to rust. These qualities make it perfect for uses where reducing weight and managing heat directly affect working efficiency. In industry settings like HVAC systems and manufacturing equipment, this type of covering makes motors last longer while using less energy because it cools them better. Because of these real benefits, procurement managers are choosing aluminum enclosures more and more for mission-critical projects that need to be reliable in tough circumstances.

Parameter Item	Specification
Product Name	Aluminum Motor Housing
Material	Aluminum Alloy / Cast Iron
Surface Finish	Painted or Powder Coated
Manufacturing Process	Die Casting, Sand Casting, Machining
Customization	Available (Special-shaped Parts Supported)
Application Scope	Construction, Transportation, Industrial Machinery, Home Improvement
Certification	ISO9001 Certified
Origin	China

Understanding Aluminum Motor Housing: Key Properties and Advantages

For electric motors to work reliably in industrial settings, they need motor safety components. The choice of building material has a big effect on how well it works, how much upkeep it needs, and the total cost of ownership.

What Defines Aluminum Motor Housing

Aluminum motor housing means that aluminum alloys are used to make motor enclosures, which are protective shells that keep internal parts safe from external dangers and provide structural support. These housings are made by FLA Industrial & Trading Co., Ltd. using advanced casting and precision machining techniques to turn raw aluminum alloy or cast iron materials into parts that are exactly the right size. Controlled casting methods are used in the manufacturing process, followed by CNC machining to make sure that the bearing bores are perfectly centered within microns. This is important for keeping high-speed uses from breaking down prematurely.

Some common alloy standards are A356, ADC12, 6061, and 5083. Each of these has its own set of performance traits. The tensile strength of A356 aluminum alloy is between 150 and 310 MPa, and its density is 2.7 g/cm³. This means that it can be used for high-end motor uses in both cars and factories. At a density of 2.73 to 2.75 g/cm³, ADC12 has great mechanical qualities and heat wear resistance, and 6061 has great corrosion resistance for the aircraft and electronics industries. Which material to use depends on the needs of the purpose, such as how much weight it needs to hold, how it will be exposed to the environment, and how it needs to handle heat.

Superior Strength-to-Weight Ratio

The best thing about aluminum housings is how strong they are compared to how heavy they are. Aluminum enclosures cut the weight of the whole motor system by 40 to 60 percent without losing structural integrity. This is because aluminum has a density about one-third that of cast iron. This weight reduction immediately leads to easier installation, lower shipping costs for hardware sellers, and mounting systems that don't need as much structural support.

This feature is helpful for construction contractors who need to put motors in high places or on mobile tools using aluminum motor housing. A standard 10-horsepower motor case that weighs 45 pounds in cast iron weighs only about 18 pounds when made of aluminum. This is a big difference that affects how quickly and easily workers can install multiple units. The lower inertia also lets servo motors accelerate more quickly, which improves reaction times in robotics and industrial automation where precise motion control decides how much work gets done.

Exceptional Heat Dissipation Capabilities

Thermal control is an important part of making sure that motors last a long time and keep working well. Depending on the metal, aluminum's heat conductivity can be anywhere from 90 to 160 W/m·K. This is about three times higher than cast iron's 50 W/m·K. Because of this big difference, aluminum housings are better at moving heat from the stator windings to the air around them. This helps keep the working temperature lower, which increases the life of the insulation and lowers the risk of thermal overload failures.

This benefit is especially clear in designs for new energy cars that use liquid cooling. In these cases, complex water-jacket shapes are built into the structure of the housing through precise die casting. The material can handle sudden changes in temperature and speed up the exchange of heat, which lets traction motors produce more steady power while still fitting into small spaces. The same is true for industrial pump applications: motors that run in high-ambient-temperature environments stay within safe working zones that would otherwise cause cast iron housings to hit critical temperature levels.

Natural Corrosion Resistance and Durability

When aluminum is exposed to air, it forms an oxide layer that heals itself. This layer protects against rust better than raw cast iron. This trait is useful for HVAC equipment that is put outside and pump systems that work with chemicals and are often exposed to moisture. The protective oxide film stops the gradual breakdown that leads cast iron housings to rust and seize up after a long time of use.

Surface treatments make this natural protection even stronger. FLA Industrial & Trading Co., Ltd. uses powder coating and anodizing to make their Products" target="_blank" style="color:blue" >products even more resistant to harsh conditions. They meet the IP65 and IP67 ratings for entry protection that are needed for industrial equipment that is exposed to dust and water spray. Marine-grade finishes can be used in seaside buildings where the salty air speeds up the rusting of iron-based materials. This means that it will last longer and need less upkeep, which are both very important factors for procurement engineers who are in charge of controlling total lifecycle costs.

Design Considerations and Maintenance for Aluminum Motor Housing

To get the most out of your aluminum motor housing's performance, you need to pay attention to the design factors and care methods that keep it working properly throughout its service lifecycle.

Critical Design Factors

The strength of a structure starts with walls that are the right width and have rib designs that make them stiff without being too heavy. Engineers use finite element analysis to find stress areas and find the best way to distribute materials. This study is used by FLA Industrial & Trading Co., Ltd. when creating custom designs to make sure that housings meet mechanical load standards and have the most thermal surface area possible to get rid of heat.

Specifications for bearing bores need extra care. Following ISO standards for dimensional tolerances—usually H7 or J6 fits—needs machining accuracy within 0.01-0.02mm to stop bearing wear and early failure. The alignment and shaking of a shaft are directly affected by how concentricity between bearing bores works. As part of our quality control, we use coordinate measuring tools to make sure that these important dimensions are correct before the goods are shipped. This gives us proof that meets the requirements for buying industrial equipment.

You can change the mounting arrangements, the direction of the shaft, the location of the output boxes, and the arrangement of the cooling fins. This gives original equipment makers (OEMs) the freedom to incorporate motors smoothly into equipment designs, taking into account room limitations and airflow patterns that are unique to each application. For liquid cooling, water jacket designs have complicated internal pathways that need vacuum die-casting methods to keep them from having holes that would let leaks happen.

Maintenance Best Practices

Compared to cast iron housings, aluminum housings don't need as much upkeep. However, simple preventative steps can extend their useful life and keep them working at their best. Visually checking for physical harm, making sure the mounting bolts are tight, and judging the state of the surface should all be part of regular inspections. Cleaning gets rid of built-up dirt and dust that makes surfaces less conductive and less effective at transferring heat. This is especially important in dirty places like craft shops where sawdust gathers quickly.

Care must be taken in a certain way for surface treatments. Cleaning powder-coated finishes with light detergents is better than using rough materials that damage the protection layers. Chemicals won't hurt anodized surfaces, but they should stay away from strong acids or alkalis for a long time because they damage the oxide layer. These simple steps keep the look and resistance to rust for decades of use.

Vibration monitoring lets you know early on when bearings or mountings are wearing out or breaking down, before they fail. Procurement engineers who choose motors for important production equipment like this level of certainty because planned maintenance during planned downtime costs a lot less than emergency fixes that stop production without warning.

Environmental Protection Strategies

When working in harsh conditions, extra protection steps are needed on top of normal finishes. Marine-grade powder coatings can handle being exposed to salt spray, so they can be used on shoreline structures and offshore equipment. Hard anodizing makes the surface harder and more resistant to wear in situations where it will be in close touch with other things or be contaminated with rough materials.

Chemical handling areas may need special coating systems that are chosen based on the chemicals, amounts, and temperatures that are present. Our engineering team uses its nearly 40 years of experience in a wide range of workplace settings to help clients find the best protection methods. This way of working together makes sure that the requirements for living match the real service conditions instead of using general standards that might not work.

When temperatures are very high or very low, you need to choose materials that are compatible with their thermal expansion rates and alloy qualities at those temperatures. A356 metal is better at resisting thermal fatigue than ADC12 or 6061 options, making it useful for applications that go from subzero cold starts to high working temperatures.

Procurement Insights: Selecting and Buying Aluminum Motor Housing

Source selection choices affect how well equipment works, how long projects take, and how much money is spent on operations. Understanding aluminum motor housing procurement helps teams make choices based on facts. Supplier partnerships that provide regular quality and dependable service are based on well-thought-out review criteria.

Evaluating Manufacturer Qualifications

Credentials for certification are the first things that are looked at. Getting ISO9001 approval shows that you are dedicated to quality management systems that include process controls, documentation routines, and methods for ongoing improvement. This basic qualification makes sure that makers keep production standards the same and that products can be tracked all the way through the supply chain.

Manufacturing skills go beyond just being able to make things. When you need a custom motor housing, you need technical help that includes 3D design proof, mold development skills, and the ability to make multiple prototypes. FLA Industrial & Trading Co., Ltd. offers full technical support from the original idea to the rapid growth of production. They can work with custom-shaped parts and non-standard specs that make OEM goods stand out in competitive markets.

Processes for quality control tell the difference between good producers and great partners. Coordinate measuring tools should be used to check the layout's dimensions, spectrometry should be used to figure out the material's make-up, X-ray or CT scans should be used to find holes, and leak tightness testing should be done on designs that are cooled by liquid. These steps keep broken parts from getting to the assembly lines, where they can cause expensive delays and void warranties.

Pricing Structures and Volume Economics

Unit price takes into account many things that affect costs, such as the type of material used, the complexity of the shape, the necessary tolerances, the surface finish requirements, and the number of items that are ordered. Hardware dealers and tool wholesalers gain from economies of scale, which means that when they place large orders, the costs per unit go down significantly because production runs are optimized and setup time is cut down.

Lifecycle cost analysis is a better way to figure out how much something is worth than comparing the buying price. When compared to cast iron options, aluminum housings are more expensive, but they often save money in the long run through cheaper shipping costs, less installation labor, longer service life, and fewer upkeep tasks. Construction companies that are in charge of multiple project sites know that these practical benefits lead to real profit increases, even though the costs of buying these things are higher.

Supply Chain Reliability Factors

Long-term buying partnerships depend on how stable a supplier's finances are and how much they can produce. Manufacturers with large inventory backups, like FLA Industrial & Trading Co., Ltd.'s 2,000-ton stock, can handle changes in demand without having to deal with shipping delays that mess up customers' production plans.

Lead times, shipping prices, and how well people can communicate are all affected by where they are located. While producing in China can save you money, you need to pay attention to quality control methods and protecting your intellectual property. Established suppliers that work with Fortune Global 500 companies have shown they can meet international quality standards and delivery promises.

Being quick to communication shows that you are skilled in your work. When a customer asks for technical specs, pricing, and 3D designs, suppliers who respond within 24 to 48 hours show that their systems and staff are in line with customer care goals. This flexibility is especially helpful when engineering teams have to look at a lot of different design options in a short amount of time.

Conclusion

There are clear benefits to using aluminum motor housing in terms of performance, durability, and lifecycle costs that make it worth thinking about for a wide range of industry uses. The material's high thermal conductivity makes motors last longer while allowing for smaller designs. Its light weight also lowers installation costs and energy use, and its resistance to corrosion means that it doesn't need as much upkeep in harsh settings. When purchasing professionals look at different sources, they should give more weight to companies that can show they have strong quality control, technical support, and the production flexibility to adapt to changing application needs. As the push for electrification, automation, and sustainability in the industry picks up speed, aluminum housings become the best option for designing equipment that will work in the future.

FAQ

Why does aluminum excel in heat dissipation compared to steel housings?

Depending on the metal, aluminum has a heat conductivity of 90–160 W/m·K, which is about three times higher than steel's 50 W/m·K. Because of this basic feature of the material, aluminum housings can better move heat from the motor windings to the air around them. This keeps the working temperature lower, which increases the life of the insulation and stops thermal overload failures. Engineers can select smaller frame sizes for the same amount of power output, which saves money on materials and installation room while also making the system more energy efficient.

Can aluminum motor housings withstand harsh industrial environments?

Aluminum has a natural oxide layer that makes it more resistant to rust than steel or cast iron that hasn't been treated. Powder finishing and anodizing are two surface treatments that make this protection even better. This is why aluminum housings can get IP65 and IP67 ratings for protection against dust and water spray. Marine-grade finishes can handle salty environments for sites near the water, and chemical process environments are protected by special coats. When finished properly, aluminum housings usually last 15 years or more in outdoor and industrial settings where metal materials rust in 5 to 7 years.

What critical factors should buyers consider when ordering custom housings?

Tolerances for bearing bores must be specified according to ISO standards. Usually, H7 or J6 fits demanding machining perfection within 0.01-0.02mm. The choice of material should depend on the needs of the job. For example, A356 alloy has better resistance to thermal stress, while 6061 alloy has better resistance to rust. Which manufacturing method to use—die casting or extrusion—depends on the complexity of the shape, the amount of production, and the tolerances that need to be met. Buyers should check that the provider has quality control measures in place, such as using a coordinate measuring machine to check for flaws and leaks in liquid-cooled designs.

Partner With a Trusted Aluminum Motor Housing Manufacturer

For your aluminum motor housing needs, you need a production partner with technical know-how, quick response times, and quality systems that have been shown to work. FLA Industrial & Trading Co., Ltd. has been making precision-engineered motor housings for nearly 40 years. Their work meets the high standards of Fortune Global 500 partners in the power equipment, car systems, and industrial machinery sectors. Our ISO9001-certified manufacturing processes ensure that the sizes of our products are accurate to within microns, and our 2,000-ton inventory and fast production make it easy for us to meet both standard and unique needs quickly. You can email our engineering team at sales@flaindustrial.com to talk about your specific application needs, get technical specs, or get cheap quotes that come with full quality documentation and reliable delivery promises.

References

Davis, J.R. (2001). Alloying: Understanding the Basics. ASM International, Materials Park, Ohio.

Shackelford, J.F. & Alexander, W. (2000). CRC Materials Science and Engineering Handbook, Third Edition. CRC Press, Boca Raton.

Kaufman, J.G. & Rooy, E.L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International, Materials Park, Ohio.

Bejan, A. & Kraus, A.D. (2003). Heat Transfer Handbook. John Wiley & Sons, Hoboken, New Jersey.

Campbell, J. (2003). Castings, Second Edition. Butterworth-Heinemann, Oxford, United Kingdom.

Hughes, A. & Drury, B. (2013). Electric Motors and Drives: Fundamentals, Types and Applications, Fourth Edition. Newnes, Oxford, United Kingdom.
