Choosing the Right 6 Inch Swing Check Valve for Industrial Flow

Choosing the right 6 swing check valve has a direct effect on how well and safely your industrial plumbing system works. These important flow control parts stop backflow on their own, which keeps expensive equipment upstream, like pumps and compressors, from getting damaged. When purchasing things for water treatment plants, HVAC systems, or fire protection networks that use pipes, buying teams have to look at a lot of things, such as how long the materials will last, how much pressure they can handle, and how reliable the suppliers are. This guide shows you important things to think about that will help building contractors, facility engineers, and maintenance managers choose valves that will work well for their needs and fit their project schedules.

Model(DN)	Type	Material Options	Connection Type
DN50	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Connection Type
DN65	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged Threaded
DN80	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN100	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN200	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN250	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded

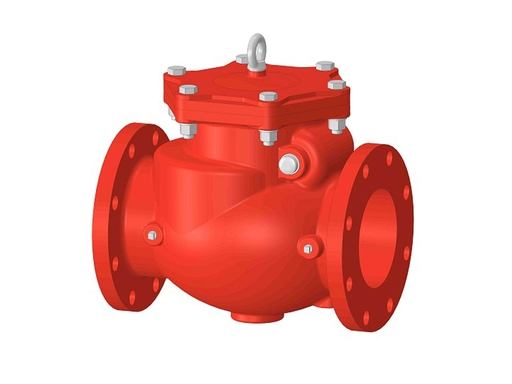

Understanding the Basics of 6 Inch Swing Check ValvesHow Swing Check Valves Operate

The swing check valve has a hinged disc system that adjusts itself automatically to different pressures in your pipeline. The disc lifts off the seat as fluid moves forward, making a clear path for the fluid to run. Gravity and backpressure naturally push the disc back into place against the seat when the flow stops or changes direction. This makes a seal that doesn't let any fluids leak. Because they don't need any outside power or control signals to work, these valves are great for sites that are far away or where an electricity failure could be dangerous.

The standard bore size of 6 inches is equal to DN150, which means that it can handle a lot of flow while still being small enough to install. Swing devices are more flexible when it comes to installation than lift-style check valves, which need to be positioned vertically. They can work with both horizontal and vertical pipeline runs.

Material Construction and Durability Standards

Industrial-grade 6 swing check valves come in a range of materials that are designed to work in a variety of situations. In standard water uses where working temps stay moderate, cast iron bodies work well and don't cost much. Construction made of stainless steel doesn't rust in places where chemicals are processed or near the coast, where saltwater can shorten the life of equipment. Different types of carbon steel are strong and cheap at the same time, making them good for oil plants and high-pressure steam systems.

The method of making it includes precise casting, CNC machining for important seating areas, careful assembly of internal parts, and the application of a protected finish. Manufacturers of good Products" target="_blank" style="color:blue" >products put hardened stellite coatings on sitting areas. This makes them last a lot longer in fluid conditions that are rough. Larger industrial setups usually use flanged connections, while smaller secondary lines need threaded connections, which are easier to install.

Common Industrial Applications

Water treatment plants put these valves right after centrifugal pumps to stop column separation and damage from water hammer when the pumps stop suddenly. Fire safety systems rely on swing check valves at the places where pumps discharge. These valves keep the standpipe pressure charged and stop drainback, which would make it take longer for sprinklers to respond to emergencies.

In systems with more than one pump, HVAC cooling loops use swing check devices to separate the pumps that aren't working while still allowing them to work in parallel. Chemical processing plants use materials that don't rust when working with harsh media, and they rely on the full-bore design of the valve to keep pressure drop to a minimum across large networks of pipes. Municipal water distribution systems carefully place these valves along pipeline networks to protect treatment equipment and keep the flow going in the right way across zones that are related to each other.

Comparing 6 Inch Swing Check Valves with Other Valve Types for Industrial Needs

Functional Differences Between Check Valve Designs

Lift check valves have a guided disc that moves vertically inside the valve body. They can be installed either vertically or horizontally, with the lid facing up. Compared to swing systems, these designs make more turbulence and bigger pressure drops, but they can close faster in some situations. If you use a ball check valve, the spherical part falls onto a seat. This works great for closing clean fluids, but it can get clogged up with solids in the fluid.

Wafer-style check valves can be installed between pipeline flanges without the need for special valve bolts. This saves room and weight during installation. But because they close with a spring-assisted system, they need more upkeep and have places where they could break that gravity-operated swings don't. The swing check valve works best in situations where minimising pressure loss, allowing for larger debris passing, and easy servicing access through bolted bonnets are all important.

Material Selection Impact on Performance

The building of stainless steel is better at resisting corrosion in a wide range of chemical conditions. It also keeps its shape and seals intact over long periods of time. Even though the material costs more at first, it ends up saving money over time for places that deal with toxic materials or have to follow strict cleanliness rules. Cast iron is resistant to rust well enough in neutral pH water, and buying it in big quantities can save you a lot of money.

Extremely high temps and high pressure rates can't hurt carbon steel bodies. This makes them necessary for power plants and hydrocarbon processing. The choice of material has a direct effect on weight issues. Stainless steel has a good strength-to-weight ratio that makes fitting easier. Procurement managers have to weigh the starting costs of materials against how long they are expected to last, taking into account the costs of replacing and the time lost from production when 6 swing check valves fail before they should.

How to Choose the Right 6 Inch Swing Check Valve for Your Industrial Project

Critical Performance Parameters

Minimum valve sizes are set by flow rate standards. However, undersizing causes disc chatter and speeds up the wear on hinge parts. The fastest flow rate in your system should keep the disc fully open against its stop position. This will stop vibration, which causes noise and mechanical stress. According to industry standards like ASME B16.34, pressure levels must be higher than peak system pressures, which includes short-term surges. The right safety factors must also be used.

Extreme temperatures affect both the choice of material and the specs for the gasket. This is especially true in steam uses where thermal cycling puts stress on the sealing surfaces. Media compatibility is more than just thinking about rust. The percentage of suspended solids, the viscosity, and the chance of crystallisation all play a role in choosing the right 6 swing check valve. Chemical compatibility charts from reputable makers help you match the right materials to your process fluids.

Sizing Guidelines and Environmental Considerations

The right valve size makes sure that the pressure drop across the part is okay, matching the cost of the equipment with how well it works with hydraulics. When flow rates are average, valves that are too big may not open all the way, and valves that are too small cause too much headloss, which makes the pump use more energy. The climate around valve placements is very important. For example, when temperatures drop below freezing, special drains or heat tracing are needed to keep the valve body from freezing.

Coastal or industrial areas with corrosive air speed up the wear and tear on the outside, so uncovered installations need protection coatings or better materials. Over time, vibrations from nearby machines can loosen screws, so they need to be installed with the right amount of force and thread-locking powder.

Evaluating Supplier Credentials and Support

Quality badges are concrete proof of consistent production and process control. The ISO9001 certification shows that the quality management is orderly, and the CE marking shows that the product meets European safety standards for pressure tools. Fire protection uses are especially covered by UL and FM approvals, which reassure the authorities that the parts meet recognised safety standards.

Check the supplier's technical skills, such as their engineering help for custom specs and changes, in addition to their certifications. If a manufacturer offers OEM partnerships, they can change standard designs to fit your project's specific size or performance needs. Ask about available inventory and wait times, keeping enough stock on hand shows that the source cares about customer service more than just making things to order, which can make project timelines longer.

The warranty terms show that the company that made the product is confident in its quality, as they cover all possible problems that could cause it to break down early. After-sales help is very important when you need to fix problems with installation or get new parts years after you bought the product. Getting in touch with providers who can answer technical questions within 24 to 48 hours can help you avoid costly project delays.

Maintenance and Troubleshooting Tips for 6 Inch Swing Check Valves

Common Operational Issues

Flow blockage happens when garbage builds up on the seating surfaces or when foreign objects get stuck under the disc and stop it from closing all the way. This situation lets backflow happen all the time, which hurts the system's performance and could damage equipment further upstream. Most of the time, leaks through worn seating surfaces happen slowly over time as erosion or rust weakens the sealing. However, a quick impact from heavy water hammer can cause damage right away that needs instant attention.

When flow speeds are close to the minimum needed to keep the disc fully open, disc flutter makes noise that can be heard. This movement speeds up the wear on the hinge pins and arm bushings very quickly. If this isn't fixed, the whole mechanism could break down. External leakage through bonnet gaskets or body-to-bonnet joints is generally caused by too little or too much force during installation, gasket degradation from changing temperatures, or pressure spikes inside the engine that are too high for the design limits.

Preventive Maintenance Best Practices

Regular inspection times should be based on how important the system is and how it's being used. For most business uses, external inspections should happen every three months and internal inspections should happen once a year. Visual checks find surface rust, signs of leaks, and the state of fasteners before small problems get worse and cause major failures. For internal inspections, the system has to be temporarily shut down and the 6 swing check valves have to be taken apart. This lets the experts check for wear on the seat, the state of the hinge pins and that the disc can move freely throughout its entire travel range.

Cleaning methods rely on the type of service fluid. For example, freshwater washing is all that's needed to get rid of dirty media, but chemical processes can leave behind scale or polymer residues that need to be removed mechanically or cleaned with a solvent. During reassembly, replacing gaskets with materials recommended by the maker and suitable for your working conditions stops leaks that happen after repair work.

When to replace parts depends on how hard they are used, but hinge pins and sitting surfaces wear out over time and need to be replaced every so often. Keeping extra parts for important valves on hand cuts down on downtime when they break down unexpectedly. This is especially helpful for industrial operations that run 24 hours a day, seven days a week, where long outages can affect production plans. Detailed repair records keep track of data on how long parts last, which lets replacement plans be planned ahead of time and stop unplanned failures.

Installation Guidelines Preventing Premature Failure

Correct valve placement is very important—swing check valves must be installed with the hinge pin above the seat axis so that gravity can help the disc close. Make sure there is enough space to remove the bonnet for future repair without having to take apart a lot of pipes or move a lot of equipment. Instead of using the valve body as a structural anchor point, support the pipes separately. This keeps stress from building up and distorting the closing surfaces.

Before bonding flanges or making connections, make sure the flow direction matches the arrows on the valve body. If it doesn't, the valve will stop working right away. Before putting the pipelines to use, they need to be cleaned inside and out to get rid of welding slag, scale, and building debris that could damage the seating surfaces during the first run. Gradual system pressurisation during starting keeps the disc from hitting quickly, which could damage parts inside.

Buying Guide: Where and How to Purchase 6 Inch Swing Check Valves

Procurement Strategies for Industrial Buyers

When equipping new facilities or doing big retrofit jobs that require a lot of similar valves, buying in bulk can save you a lot of money. Combining needs from related projects makes it easier to negotiate with makers, which could lead to lower prices based on numbers that aren't available for smaller orders. Online purchasing platforms give buyers access to suppliers beyond local distributors. However, it is still important to check the trustworthiness of sellers by checking their business license and calling past customers.

Price changes are caused by more than just the cost of materials. 6 swing check valves that are approved for tough uses like fire protection systems cost more because they go through a lot of testing and are checked by a third party. The reputation of a brand affects its prices, with well-known companies using decades of success to support higher start-up costs. Adding external controls, counterweights, or dampening systems to complicated designs makes them harder to make, which is mirrored in the prices.

Assessing Supplier Trustworthiness

Manufacturer certifications are a good starting point for ensuring quality, but procurement due diligence also includes checking the company's practical skills and security. Companies that keep a lot of supplies show that they are financially stable and care about their customers. This lets regular setups be shipped right away instead of waiting for longer manufacturing lead times. Full-service suppliers offer more technical support than simple product resellers. For example, they can help with 3D modelling and application engineering.

Referrals from customers in related industries can help you figure out how reliable a seller is, especially when it comes to delivery times and how quickly they respond to problems after the sale. Site visits to industrial sites show how they make things, how they check for quality, and how skilled their workers are. These are all important things to think about when looking at possible long-term supply relationships.

Custom Manufacturing and OEM Solutions

Specialised uses often need changes to the sizes, better materials, or performance requirements that go beyond what is listed in a catalogue. Custom manufacturing programs let companies that have access to technical tools and the ability to produce in a variety of ways meet these needs. When making your own equipment that needs integrated valve solutions that meet specific interface standards, OEM relationships are especially helpful.

Custom valve development usually takes longer than standard products, but reputable providers give reasonable schedule guarantees that take into account engineering, prototype testing, and production ramp-up. Teams from purchasing departments and engineers at suppliers work together to make sure that standards meet application needs while still being cost-effective and easy to make. Most of the time, these partnerships turn into preferred seller agreements that make sure quality and service are uniform across multiple projects.

Conclusion

When choosing the right 6 swing check valves for industrial plumbing systems, you have to balance the need for high technical performance with the need to save money on costs. The choice of material, the pressure grade, and the correctness of the measurements all have a direct effect on how reliable the equipment is and how long it lasts. Getting the right product isn't just about checking the specs; how well the seller can handle things like stock availability, technical help, and the ability to make special orders has a big effect on how the project turns out. Valve service life is extended by following the right installation and preventative maintenance steps. This protects your investment and keeps the system running efficiently. Procurement professionals easily handle valve specifications that meet project needs while keeping lifecycle costs low by using thorough evaluation criteria and useful selection guidelines.

FAQ

How do I determine whether a 6 swing check valve fits my specific system requirements?

Check the valve's specs against your pipeline's flow rate, working pressure, temperature range, and fluid properties. Check the fitting space that's available and make sure there's enough room for the bonnet to be removed for repair. Make sure that the flange's size and pressure class match the pipe you already have. Check the technical data sheets provided by the maker to make sure that the material is compatible with your process media. When you're not sure what to do, ask experienced providers for application engineering help. They will look at your system factors and suggest the best configuration for a 6 swing check valve. Testing similar setups in your own building gives you useful performance data that helps you make decisions about specifications.

What maintenance practices effectively extend valve service life?

Set up regular checkup schedules that look at the outside state every three months and the inside components once a year. Write down the trends of wear that you've seen so that you can repair things before they break. Keep the system fluids clean by filtering them properly. This will keep the sitting surfaces from wearing down too quickly. Follow the manufacturer's torque recommendations when putting parts back together after repair to make sure they close properly without putting too much stress on the gaskets. Instead of watching for signs of a leak, replace worn parts like seals and packing before they break. By teaching maintenance workers the right way to take things apart, you can keep precision-machined surfaces from getting damaged by chance during service work.

Can I replace existing valves with different check valve types?

When changing valve types, it's important to carefully look at how the dimensions work together, how much pressure drops, and how the valve needs to be installed. 6 swing check valves usually need more installation length than wafer designs, which could mean that the pipes need to be changed. Different types of valves close at different speeds, which can change the risk of water hammer in your system. Make sure that the new valves you buy meet the rules and codes that apply to your system. When thinking about changing valve types, talk to application experts to make sure that the options you're considering will meet your system's backflow prevention needs without causing any unexpected operational problems.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Swing Check Valve Solutions

We know that purchasing managers and building engineers need reliable 6 swing check valve providers who can provide consistent quality and quick technical support. Our company, FLA Industrial & Trading Co., Ltd., has been making valves for almost 40 years and has strict quality standards that are backed up by ISO9001, CE, UL, and FM certifications. Our huge inventory—more than 2,000 tons—allows us to ship standard setups right away, while custom projects get extra technical care and are finished in 7–15 business days. Technical teams offer full support for applications and help with 3D creation that is tailored to your needs. Get in touch with our experts at sales@flaindustrial.com to talk about your project needs and get specific quotes that fit your business needs.
