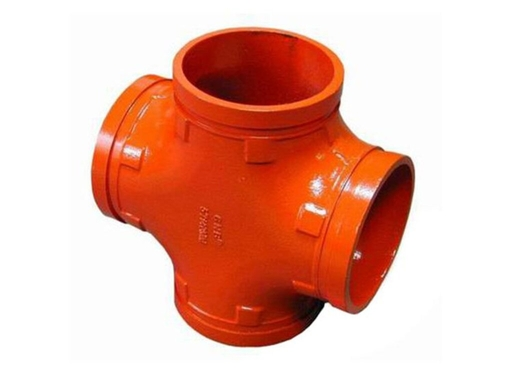

Designing Complex Piping Layouts with Grooved Cross Fittings

Reliability, speed, and freedom are needed to design complicated pipe layouts. When you need to distribute flow in more than one direction for your project, a grooved cross is an important part that makes splitting and combining easier in four-way arrangements. Instead of using welded or threaded connections, these mechanical fittings have precise grooves that fit with couplings and seals to make leak-proof joints. This cuts installation time by a huge amount while still keeping structural integrity. Whether you're in charge of fire safety networks, HVAC systems, or industrial process pipes, knowing how these parts fit into your design strategy will have a direct effect on how long projects take, how much labour costs, and how well systems work in the long run.

​​​​​​​

Specifications
Type	Model	Outer Diameter(mm)
Grooved Cross	DN65	76
Grooved Cross	DN80	89
Grooved Cross	DN100	108
Grooved Cross	DN100	114
Grooved Cross	DN125	140
Grooved Cross	DN150	159
Grooved Cross	DN150	165
Grooved Cross	DN200	219
Grooved Cross	DN250	273
Grooved Cross	DN300	325

Understanding Grooved Cross Fittings in Complex Piping Systems

What Makes Grooved Mechanical Fittings Different

A four-way mechanical fitting is an important part of pipe networks where flow changes directions at right angles. The idea behind this design comes from a roll-grooved or cut-grooved end shape that fits into connection housings and elastomeric seals. This motorised part gets rid of the need for hot work, which is safer in places where welding could start a fire or go against company policy. The self-restrained joint can handle small misalignment and heat expansion, which is something that welded links can't do without extra expansion joints.

Material Selection and Standards Compliance

Due to its better resistance to pressure and tensile strength than normal cast iron, high-grade ductile iron is the main building material. This metal's edge is very important in situations where there is water hammer or pressure spikes. To get very close specs on groove depth and width, the manufacturing process starts with precise casting and then moves on to CNC machining. Gasket tension and joint stability are directly affected by how accurate the measurements are. Products" target="_blank" style="color:blue" >products that are made with ISO 9001 quality systems and have CE approval show that they meet international performance standards. This means that they are compatible with ANSI, ASTM, and EN standards that are used in markets around the world.

Critical Dimensions and Pressure Ratings

When sizing these fittings, including grooved cross configurations, you need to pay close attention to the nominal width requirements. Standard designs cover a wide range of system capacities, from DN65 (76 mm outer diameter) to DN300 (325 mm outer diameter). For each size, there are specific working pressure values that must match the way your system works. Depending on the width and wall thickness, ductile iron fittings can usually handle pressures from 300 PSI to over 500 PSI when paired with the right connections. To avoid problems during installation and make sure the system works without leaks for as long as it's supposed to, procurement teams should check that the groove dimensions match the connection specs.

Advantages of Using Grooved Cross Fittings in Complex Layouts

Installation Efficiency That Transforms Project Timelines

Lessening the time needed for welding, fitting, and flanging saves real time on the job site. Installation teams only need to use standard tools to match pipe sections and tighten mechanical connections. This takes minutes instead of hours. This speed edge is especially useful for retrofit jobs that need to keep downtime to a minimum. When compared to traditional joining methods, modular assembly methods cut labour costs by up to fifty percent for construction companies that are working on tight plans. The ease of use also lowers the level of skill needed, which lets more people work without lowering the quality of the work.

Safety Enhancements During Installation and Maintenance

If you take out the hot work from the construction process, there are no more burn risks, fire risks, or the need for hot work permits in sensitive buildings. When maintenance workers get to these joints, they don't find any heavy plates that need to be lifted or sharp edges from cut threads. Because links are mechanical, they can quickly be used to separate systems and change parts without having to cut a lot of pipes. When inspections show wear or changes need to be made to the system, techs quickly take apart joints, replace parts, and get service back up and running with little trouble. This easy entry for upkeep increases system uptime and greatly lowers the cost of emergency repairs.

Flexibility for System Expansion and Reconfiguration

As industries change, so do the pipe systems that keep up with the new needs of output. Because mechanical piping is built in modules, engineers can add branches, move parts, or change flow patterns without having to tear down a lot of the pipe. A four-way connection can be taken apart and moved, which makes it possible for facilities to grow or equipment to be moved without having to completely rebuild the system. This flexibility saves investments and gives operations freedom that fixed welded systems can't match. Facility managers like being able to adapt to changes in operations without having to pay a lot of money to make changes.

Comparing Grooved Cross Fittings with Other Cross and Coupling Solutions

Structural Performance Across Joining Methods

Welded crosses make lasting links that keep the structure strong, but they need skilled workers, take a long time to install, and leave heat-affected areas that can rust. Flanged crosses can be taken apart, but they are very heavy, need to be torqued precisely, and need regular seal care. Threaded links work for smaller sizes but aren't useful for diameters bigger than two inches because they create stress points. These things are balanced by mechanical grooved systems, including grooved cross configurations, which give structures the strength of welded joins while keeping the freedom of flanged assemblies. The self-restrained coupling system moves loads well without needing supports every time the direction changes.

Cost Analysis Over System Lifecycle

The initial costs of buying something are only one part of the total costs of owning. Project managers should figure out how much installation labour, equipment hire, welding consumables, inspections, and long-term upkeep will cost for each option before deciding which one to choose. Even though mechanical connections may cost more per unit than basic welded crosses, the total cost of the project is usually less because the skilled welder's salary, welding tools, and long installation times are not needed. Over decades, maintenance saves add up because joints can be inspected without cutting the lines. System changes are much cheaper than changes to bonded systems, which need a lot of extra work.

Application-Specific Selection Guidance

UL and FM-approved mechanical fittings are good for fire prevention systems because they work reliably during rare but important triggering events. Installations that use HVAC systems like the vibration isolation qualities that stop pump noise from getting through hard connections. In mining, joints need to be able to handle rough materials and be quickly rearranged when working areas change. Each use has different needs when it comes to resistance to rust, pressure capacity, temperature range, and ease of upkeep. Before selecting parts, procurement professionals should make sure that the fitting standards are right for the working conditions by looking at the technical data provided by the maker.

Procurement and Supply Chain Insights for Grooved Cross Pipe Fittings

Identifying Qualified Suppliers and Manufacturers

Building relationships with dependable manufacturers for grooved cross guarantees consistent product quality and quick expert help. Companies with approved quality management systems offer tracking paperwork, material test certificates, and dimensional inspection records that make it easier for regulators to give their permission. Manufacturers who keep a large inventory, like 2,000 tonnes of stock, can supply regular sizes quickly and without any production delays. When projects have specific needs, being able to make custom designs, such as ones with non-standard diameters and outlet patterns, is useful. Responding to communication requests and answering technical questions within 24 to 48 hours shows that the provider wants the customer to succeed.

Understanding Price Factors and Lead Time Variables

Fitting costs are affected by many things, such as the choice of base material, the difficulty of making, the finish standards, and the need for certification. Ductile iron castings with an epoxy covering are more expensive than painted finishing because they protect against corrosion better. Unit costs go up by the same amount as the diameter, since bigger sizes need more raw materials and more time to be machined. The number of items you order has a big effect on the price, and buying in bulk can save you money because you get group rates. Lead times change depending on production plans and customer needs. For stock things, they can be shipped right away, but for special designs, they can take anywhere from 7 to 15 days. International shipping adds time to the travel time, so planning the supply chain is important to keep the project on schedule.

Evaluating Brand Comparisons and Certifications

Leading names have built their reputations over decades of field success and ongoing product development. While brand suggestions change depending on the area and the job, procurement teams should give more weight to makers who can show they follow established standards. ISO 9001 approval confirms quality management practices such as checking the quality of raw materials, keeping an eye on the production process, checking measurements, and testing for hydraulic pressure. The CE mark shows that the product meets European safety standards. Full paperwork packages with technical drawings, installation directions, and compliance certificates help engineers get approvals and make sure the project runs smoothly.

Best Practices for Designing Complex Piping Layouts Using Grooved Cross Fittings

Defining System Requirements and Design Parameters

A thorough description of the requirements, including flow rates, pressure conditions, temperature ranges, fluid properties, and external factors, is the first step in designing pipes that work well, including grooved cross applications. Engineers have to figure out how much pressure drops through fittings by using equivalent length data from makers and making sure that friction losses are taken into account when choosing the right pump size. Because of the risk of earthquakes in some areas, flexible connection requirements are needed so that buildings can move during earthquakes. The choice between normal paint and epoxy coating depends on how likely it is to corrode from fluid chemistry or the outside world. Writing down these factors sets selection criteria that help with part design and avoids expensive changes in the field.

Leveraging Modular Design for Layout Optimization

The four-way setup lets you come up with clever ways to get around problems with room and routing. Instead of using many elbows and tees to change directions, a single cross fitting brings together links in a small space. This method cuts down on the number of joints, which means there are fewer possible leak places and pressure testing is easier. With modular planning, pipe structures can be made ahead of time in a controlled workshop setting, where quality control is better than in the field. Crews can put together, test, and deliver whole parts that can be quickly installed on-site, which shortens project plans by a lot. Being able to change the direction of connections during installation lets you deal with field situations that are different from what was planned in the planning phase, without having to return or change the materials.

Learning from Implementation Case Studies

Commercial building fire protection retrofits show how useful mechanical systems can be in occupied buildings where welding can cause problems with operations. Installation rates were three times faster on projects that used four-way mechanical fittings than on projects that used welded options. This let workers finish the work during times when they had limited access. When manufacturing companies were already running, adding more HVAC systems was easier because they could connect to existing lines without needing hot work permits or stopping production. In mining operations, rotating sections of pipe to spread out wear increased service life by 60% compared to systems that were fixed and bonded together. These real-life examples show that design methods work and give confidence when choosing mechanical joining systems for tough jobs.

Avoiding Common Installation Pitfalls

Details must be paid attention to in order for execution to go smoothly and avoid speed problems. Pipe ends need to be properly prepared by having clean grooves cut into them at certain lengths and sizes. To make sure they close properly, coupling gaskets need to be placed correctly in housing holes before they are put together. It is very important to follow the torque specs on connection bolts exactly. If you over-tighten them, the seals will get damaged, and if you under-tighten them, water will leak out. System builders should make sure that couplings work with different pipe schedules because the wall thickness of Schedule 10 and Schedule 40 pipes is different, which can change the gap sizes. By giving installation training and making sure that the manufacturer's instructions are followed, mistakes in the field that damage the structure of the joint can be avoided.

Conclusion

Components for complicated pipe layouts such as grooved cross need to combine structural performance, installation speed, and cost-effectiveness over the lifespan. Four-way mechanical joints have these benefits because they use tried-and-true engineering principles that get rid of hot work risks, cut down on labour needs, and give systems more freedom than any other joining method. If you choose high-quality ductile iron parts that are made under strict quality standards, they will work reliably in industrial, fire protection, and HVAC settings. Professionals in procurement who know about material requirements, source skills, and best practices for design set their companies up for project success while keeping total ownership costs as low as possible. Mechanical piping systems are a good investment for modern building and industrial work, as shown by proof from field uses.

FAQ

Can These Fittings Accommodate Seismic Movement in Buildings?

When you combine mechanical systems with flexible connections, you can bend and rotate them in ways that are necessary for earthquake compliance. The joint design lets the pipe move in a controlled way when the building shakes, without causing stress concentrations that lead to failures. Because of this, these fittings are good for places that are prone to earthquakes where stiff links can be dangerous. By consulting structural experts, you can be sure that the coupling standards fit the seismic design parameters required by your building code.

What Distinguishes Standard From Reducing Configurations?

Standard versions have four outlets with the same width, while reducing versions have one or more outlets that are smaller. Separate circular reducers are not needed for reducing designs, which saves installation room and cuts down on the number of parts. This plan works especially well in small machinery rooms where every inch counts. Choosing the right setup during planning stops changes from having to be made in the field and speeds up installation.

How Do Friction Losses Compare to Welded Alternatives?

Modern designs have internal shape that is optimised for flow and reduces noise and pressure drop. Even though losses are a little higher than with straight pipe sections, they are still about the same as with other fitting types. For correct pump sizing, engineers should use equivalent length data from the maker when figuring out system head loss. Proper hydraulic analysis makes sure that the system works the way it was meant to without oversizing the pumps.

Partner with FLA Industrial & Trading Co., Ltd. for Your Piping Solutions

A business that has been making high-quality products for almost 40 years goes into every mechanical part it makes. As a well-known grooved cross seller, we keep over 2,000 tonnes of stock in normal DN65 through DN300 sizes, so we can get you what you need right away if your project needs it. Our ductile iron parts go through a lot of quality checks, such as being measured and being put through hydrostatic pressure tests that are higher than normal working conditions. Our manufacturing methods are approved by ISO 9001 and CE, so the products we send you meet world performance standards. Our engineering team can help you with everything from the initial design to tracking your delivery, whether you need standard configurations or custom-shaped parts that can be delivered in 7–15 days. Get in touch with us at sales@flaindustrial.com to talk about your unique needs and find out how our track record of working with Fortune Global 500 partners can help you with your pipe projects.
