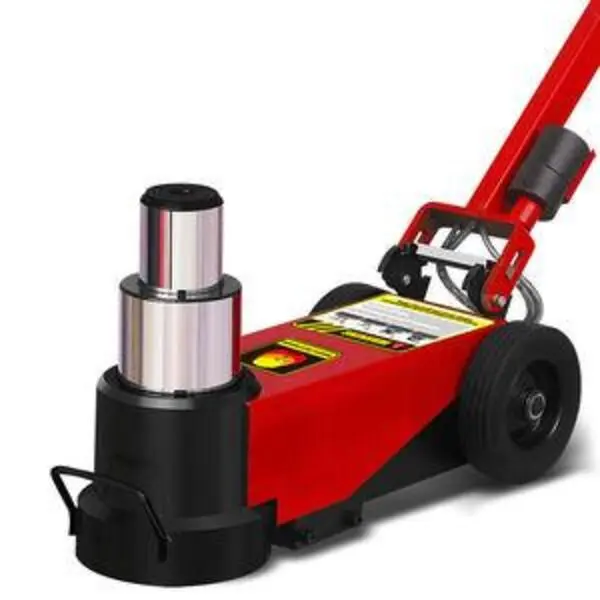

Boost Efficiency with High-Performance Pneumatic Lift Jacks

When fast lifting is needed in industry, the pneumatic lift jack's compressed air technology gives it unbeatable speed and efficiency. Unlike traditional hydraulic systems that need to be pumped over and over by hand, these air-powered machines can reach full extension in less than five seconds. This makes the workers much less tired and increases productivity in the workplace. In order to improve both safety and efficiency, B2B procurement experts who run high-volume car shops, building sites, or factories should learn how pneumatic lift jacks can be used to improve business processes.

Specification
Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	30T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	30T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Pneumatic Lift Jacks: How They Work and Key Benefits?

Air-powered lifting equipment works on a completely different concept than regular hydraulic systems. This makes it very useful for industrial uses that need to be done quickly.

The Mechanics Behind Compressed Air Lifting

Compressed air, usually kept at 8 to 10 Bar pressure, is used by a pneumatic lift jack to expand strengthened rubber lungs or move steel cylinders. When shop air comes in through the hose contact, the chamber inside the machine quickly expands, causing vertical displacement that can lift up to three tons for normal models. The chrome-plated inside of the cylinder and fluororubber or nitrile seals keep the pressure stable, and a built-in safety valve stops the pressure from going above its maximum limit. This design gets rid of the bulk and weight of hydraulic fluid reservoirs, making a solution that is lighter and easier for techs to move around and quickly set up under low-clearance cars or equipment.

An important issue with air-based lifting is horizontal stability, which is taken care of by the internal telescopic guide system, which is usually made up of a Z-frame or a cylinder-shaped steel stabilizer. As the air chamber expands, this automatic guide keeps the height straight, so the bag doesn't wobble like it might with air bags that aren't supported. These devices are especially useful when positioning speed directly affects income generation. This is because they have both rapid inflation and structure stability.

Operational Advantages Over Traditional Lifting Methods

When you look at how well pneumatic lift jacks and hydraulic options work, you can see a few key differences. To get to working height, hydraulic floor jacks need 15 to 30 pumping strokes. This takes time away from the worker and can lead to repeated strain injuries after a while of use. Pneumatic systems get rid of this physical need altogether—a single trigger pull starts the lift cycle, letting workers place jack stands or get tools ready at the same time.

Different technologies have very different maintenance needs. As fluid wears away, hydraulic pumps develop seal leaks that need to be bled and refilled on a regular basis. Since air systems don't use up fluids, upkeep is limited to checking the working of valves and rubber parts. The exhaust muffler reduces the noise from the output, which helps with worries about noise exposure at work in busy service bays.

For mobile processes, weight is a very important factor. A three-ton pneumatic lift jack usually weighs 40% less than a three-ton hydraulic jack, which makes moving it from one work area to another easier. This advantage of flexibility also applies to field service situations where techs have to react to accidents on unpaved roads. The wide base plate spreads the weight over soft soil or gravel, where narrow hydraulic wheels would sink.

Performance Optimization: How High-Performance Pneumatic Lift Jacks Boost Operational Efficiency?

Throughput metrics are used to measure progress in manufacturing and service centers. This makes lift cycle time an important variable in operational planning.

Quantifiable Speed Improvements in High-Volume Settings

During busy times of the year, seasonal demand spikes at high-throughput tire centers, where every minute per car counts. When business service operations move from manual hydraulic jacks to compressed air systems, the time it takes to lift each corner drops from about 90 seconds to less than 20 seconds. This saves more than nine minutes per car, which is enough to serve two more customers during busy afternoon hours for a normal four-wheel service that needs eight lift rounds.

Even bigger gains in speed can be seen in assembly line uses. When factories use pneumatic lift jacks to place parts, station cycle times are 35% faster than with electric scissor lifts, which need to be hooked up to electricity and move more slowly. Pneumatic actuation's instant reaction is in line with lean production principles because it gets rid of waiting time that doesn't add value.

Safety Enhancements Through Engineering Design

Modern pneumatic lift jack building uses several safety methods that work together to deal with risks that are unique to the business. The non-return check valve at the air outlet stops the load drop from being too great if the supply hose breaks during operation. Compressed air stays inside the chamber, keeping the pressure high until it is released safely. In hydraulic systems, on the other hand, a broken seal can cause the system to fall quickly.

Over-pressure safety turns on immediately when input pressure goes above safe levels, which are usually set at 10 Bar. The relief valve lets out extra air before the stress in the chamber gets too high, which stops bursting fails that could put people close in danger. Professional-grade units are tested for 300% of their estimated load capacity in burst pressure, which makes sure that the vulcanized rubber reinforcing layers, which often have steel mesh or aramid fibers in them, can handle high stress levels.

Temperature resilience is important for activities that take place in a range of temperature zones. Quality seals rated for low-temperature service keep the rubber from becoming soft in cold weather, and built-in moisture traps in the air supply line keep the internal valve from freezing, which could stop it from working during the winter. These technical features make sure that the system works the same way in all temperatures, which is important in North American workshops and on building sites outside.

Selecting the Right Pneumatic Lift Jack for Your Business Needs

When making purchase decisions, it's important to match the specs of the equipment to what it will actually be used for, rather than just buying models with the highest capacities.

Capacity and Application Matching

The most obvious standard is the weight limit, but buying managers often forget how important it is that the height can be collapsed for low-clearance uses. When exotic cars have custom body kits or air suspension systems that are dropped, the ground clearance may be less than 140 mm, which means that regular hydraulic jacks can't fit. When air bags collapse to as little as 85 mm, they can easily slide under obstacles, and the soft rubber contact points keep delicate frame parts from getting damaged.

Different skills are needed to maintain heavy machinery. Industrial air-hydraulic hybrid pneumatic lift jacks that combine pneumatic movement with hydraulic force multiplying are needed by mining operations and building companies that work with machines that weigh more than 10 tons. With these units, you can lift up to 80 tons, and the quick release benefits of compressed air start are still there.

Material Quality and Durability Indicators

The service life of building materials in harsh settings is directly related to how long they last. Premium models have frames made of carbon steel or alloy steel that have been treated to prevent rust. Depending on the base material, these treatments can be spray-painted coatings or anodized finishes. Chrome treatment is applied to the inside of the cylinder to stop rust that could damage the seals during reciprocation.

The chemical protection and temperature range of a seal are affected by the material that is used. Nitrile rubber works well with common car fluids and doesn't cost much. On the other hand, fluororubber (Viton) can handle strong acids and stays flexible over a wider temperature range. The materials you use for seals should be specified in the procurement documents based on the fluids and temperatures you will be working with.

Transparency in the manufacturing process of a pneumatic lift jack shows a drive to quality. Reliable providers keep records of how they make structure parts by turning, casting, or welding them, then testing for leaks, making sure the assembly is correct, testing for pressure to certification standards, and testing for cycle life over 5,000 times. This testing method makes sure that units can handle years of heavy use without breaking down too soon.

Maintenance and Safety: Ensuring Longevity and Safe Operation

Good equipment management saves your investment and keeps the safe working conditions that your insurance and government rules require.

Routine Inspection and Preventive Maintenance

A daily check before use doesn't take long and stops major problems before they happen. When operators look at the rubber bellows or cylinder, they should look for cuts, scrapes, or dry rot that means the material is breaking down. The link for the air hose needs to be checked to make sure it is securely attached without cross-threading, which could lead to blowouts when the pressure is high. If the exhaust muffler gets clogged, it makes venting less effective and creates back-pressure that stresses interior parts. Cleaning or replacing this cheap part will increase the life of the whole system.

As part of the three-month upkeep, the safety release valve must be pressed to make sure it is properly calibrated and working. This valve is your main defense against too much pressure, so making sure it works properly is very important for worker safety. Putting a thin layer of approved oil on moving extendable parts keeps them from binding, which could cause them to lift unevenly or get stuck at full extension.

Professional service by trained experts once a year makes sure that ASME PASE-2019 and CE Machinery Directive standards are always met. Technicians test the seal's integrity using pressure decay, replace old parts before they break, and recertify the unit's capacity rating. Maintenance records that are written down protect workers from being sued, which is important for industrial operations where injuries at work lead to investigations by the government.

Critical Safety Protocols for Personnel Protection

No industry standard allows people to work under loads that are only held up by pneumatic lift jacks. Air jacks are only used for setting; once they are raised, loads must be moved right away to mechanical jack stands that are designed to hold static loads. This process takes into account the fact that air naturally compresses, and unlike hydraulic fluid, it can compress even more when shock loads or temperature changes happen, which could lower the suspended load.

Not only do people need to learn how to use tools, they also need to learn how to spot hazards. Operators need to know about the risks of eccentric loads. If the lift point is not in the middle, it can cause tipping moments that the internal stabilizers may not be able to fully counteract. When placed correctly under the lift points stated by the maker, the force is spread out among the structural chassis parts that are made to handle heavy loads.

Being aware of your environment can help keep accidents from happening with a pneumatic lift jack. Even if the pneumatic lift jack works properly, soft surfaces like asphalt or dirt can push down under the base plate and make the foundations less solid. Putting a thick piece of plywood under the base spreads the weight over a bigger area and keeps the base stable on uneven ground. When it gets below freezing, you have to make sure that the seals are still flexible. Using tools with rubber that has become stiff from the cold can cause seal tears that are unsafe.

Procurement and Brand Selection: How to Buy Pneumatic Lift Jacks with Confidence?

When making strategic buying choices, you have to weigh the current price against the total cost of ownership over the lifecycle of the equipment.

Evaluating Manufacturers and Quality Indicators

Manufacturers who have been around for a while show their dedication by getting widely known certifications. The ISO9001 quality management system certification checks that documented methods are in place to control where materials come from, how consistent output is, and how final inspections are done. The CE label on a product means that it meets the safety rules of the European Union. The PED (Pressure Equipment Directive) and GB standards cover the unique pressure tank needs for pneumatic lift jack equipment.

FLA Industrial & Trading Co., Ltd. is a great example of industrial quality that has been built up over almost 40 years of making hardware tools. Before they ship out their pneumatic lift jack line, they do a lot of quality control checks, such as checking for leaks, making sure the assembly is correct, and testing the pressure. The quality seal materials and chrome-plated interior of the cylinder ensure constant performance over long periods of use. FLA has relationships with Fortune Global 500 companies and more than 1,000 product specifications. This gives them the production scale and technical know-how to make sure that supply lines for big projects work well.

Strategic Procurement Considerations

When you buy in bulk, the size of your order can help you get better terms than just a lower unit price. Distributors and big contractors should talk about stocking arrangements with manufacturers. This way, manufacturers can keep a dedicated store for your needs, making sure that they are available right away when project deadlines require quick deployment. When standard Products" target="_blank" style="color:blue" >products don't perfectly fit a specific application, the ability to customize them is important. Manufacturers with in-house engineering can change lift heights, base measurements, or capacity ratings, and they can send specialized parts in as little as 7–15 days.

The structure of the warranty shows how confident the maker is in the product's longevity. Comprehensive covering of both materials and workmanship for longer than one year is a sign of good building, while restricted warranties that don't cover regular wear and tear are a sign of possible reliability issues. Technical support after the sale is also very helpful. When problems happen with equipment during its service life, makers who offer application engineering help, troubleshooting advice, and new parts lower the total cost of ownership.

There are many factors that can change arrival times and landing costs when shipping goods internationally. Experienced providers take care of export paperwork, set up combined shipping to save money on freight costs, and make sure there is clear contact throughout the whole process. Lead times are important to know when planning a project because standard goods from makers with a lot of stock usually ship within days, but special configurations or large orders may take several weeks to finish producing.

Conclusion

Pneumatic lift jack technology solves problems in certain industries where speed, portability, and operating efficiency are key to staying ahead of the competition. The compressed air systems make lift cycle times shorter while also making operators less tired and lowering the amount of upkeep that needs to be done. Strategic buying means matching the specs of the equipment to what the application actually needs, making sure the quality of the maker through tests and certifications, and building relationships with suppliers that will support long-term operating needs. When properly combined with strict safety rules and regular maintenance, these air-powered lifting options boost output in industries like auto repair, manufacturing, construction, and heavy equipment maintenance.

FAQ

How is the upkeep for pneumatic lift jacks different from that for hydraulic ones?

Because they don't use fluids that break down over time, pneumatic systems need a lot less upkeep than hydraulic equipment. Hydraulic jacks get seal leaks that need to be bled and refilled on a regular basis. Pneumatic lift jacks, on the other hand, only need basic checks of the rubber parts and valve function. Since there is no hydraulic fluid, there are also no environmental worries about spills or getting rid of tainted fluid during service.

Can pneumatic lift jacks easily work with big vehicles?

When chosen correctly and used within their stated size, pneumatic lift jacks are great for lifting heavy cars. Industrial types with multi-layer strengthened rubber bellows and internal steel stabilizers can safely handle loads that are higher than what is normally used in cars. As soon as the lifting is done, mechanical jack stands must be put down right away according to a critical safety requirement. Pneumatic lift jacks can quickly position loads but should never be used to hold people still while they work under cars.

Are these systems suitable for integration into automated assembly lines?

Pneumatic actuation works well with automated production processes because it responds right away. PLC systems handle solenoid valves that open and close pneumatic lift jacks, which lets them work in sync with other station activities. Their five-second lift processes get rid of the bottleneck delays that come with slower electric scissor lifts, so they can keep up with the needs of high-volume production settings.

Partner with FLA Industrial & Trading Co., Ltd. for Your Pneumatic Jack Requirements

Increase the pulling power of your business with FLA Industrial & Trading Co., Ltd.'s complete pneumatic lift jack options, which are made to last and meet industry standards. Our manufacturing experience, gained over almost 40 years of serving global markets such as the car, building, and heavy equipment industries, makes sure that the equipment you receive meets strict ISO9001, CE, and pressure safety standards. We keep over 2,000 tons of goods on hand so that we can meet your needs right away. For special orders, we can also customize your order quickly and have it delivered in as little as 7 to 15 days. Our technical team offers full support from the initial specification meeting to production updates. We also offer affordable direct-manufacturer pricing that doesn't include markups for distributors. If you're a pneumatic lift jack distributor looking for trusted supply partners or an end user needing bulk purchasing prices, please email our experts at sales@flaindustrial.com to talk about custom solutions that fit your needs and your budget.
